Front Power Window Regulator

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.

1. Disconnect the negative battery cable.
2. Remove the front door trim.
3. Partially peel off the front door screen.
4. Disconnect the front power window regulator connector.

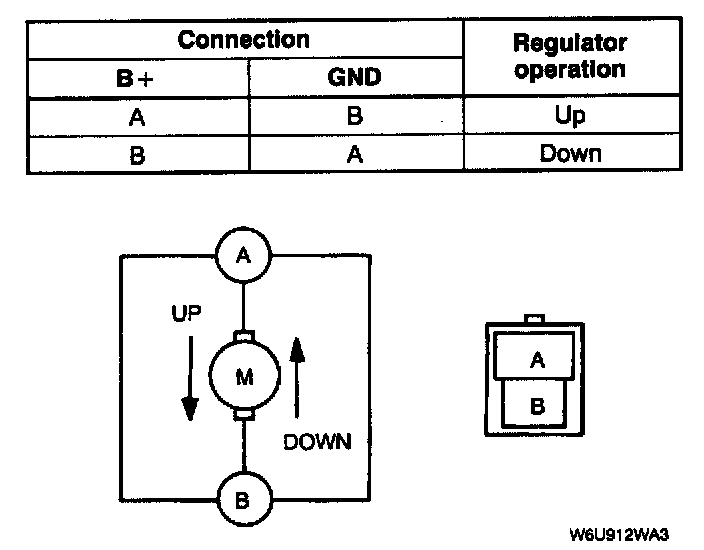

5. Apply battery positive voltage to the front power window regulator terminals and check the operation of the front power window regulator.
- It not as specified, replace the front power window regulator.
