Electronic Brake Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.

AI Repair Guides

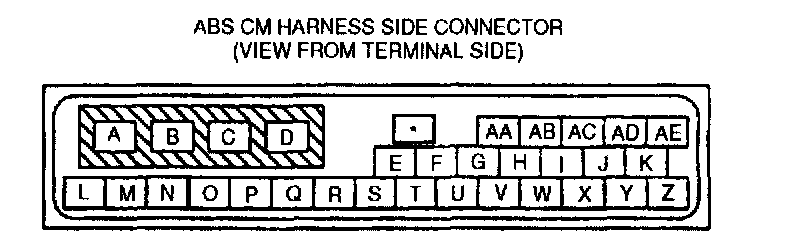

ABS Control Module Terminal Pinouts:

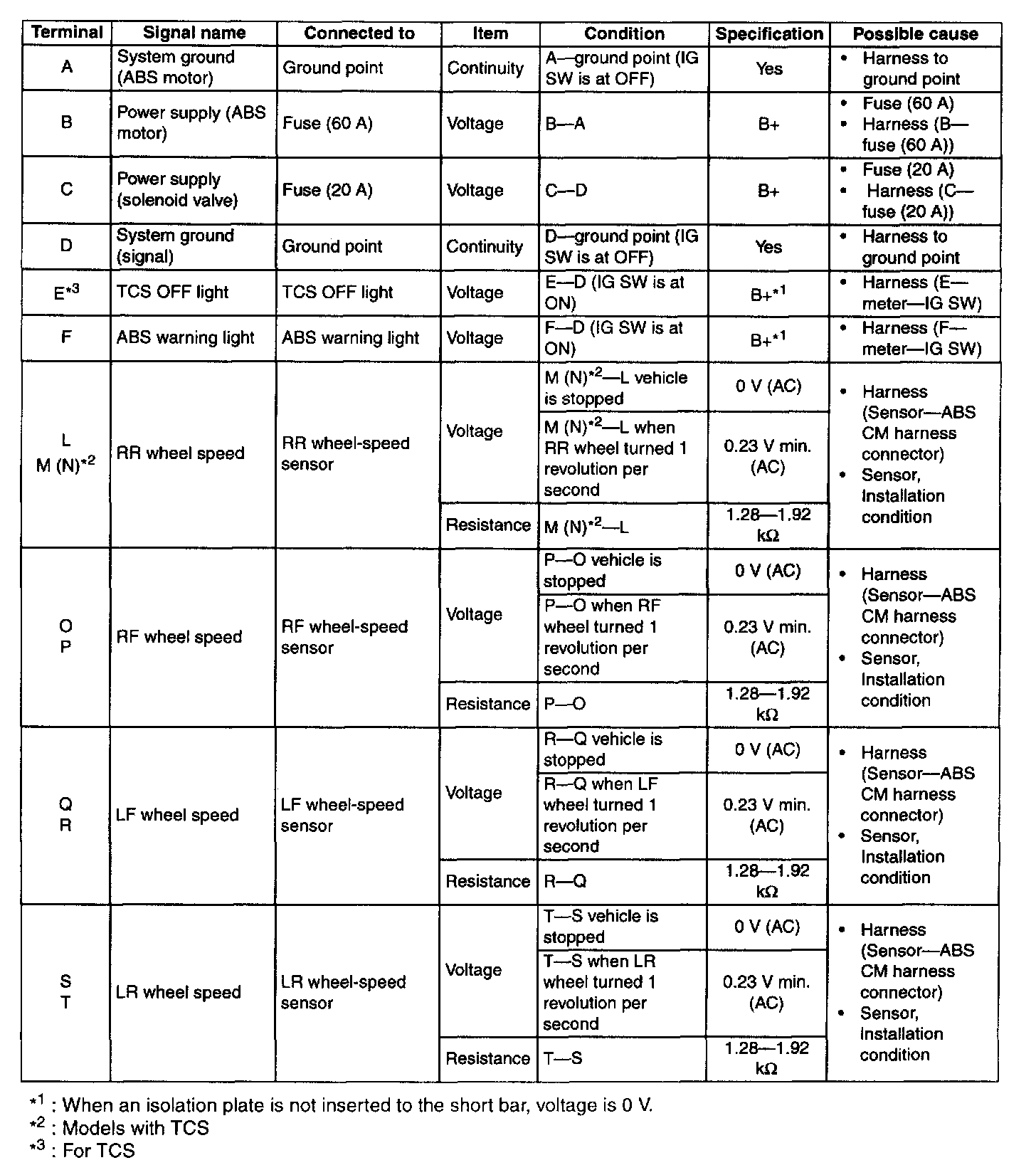

Terminals A - T:

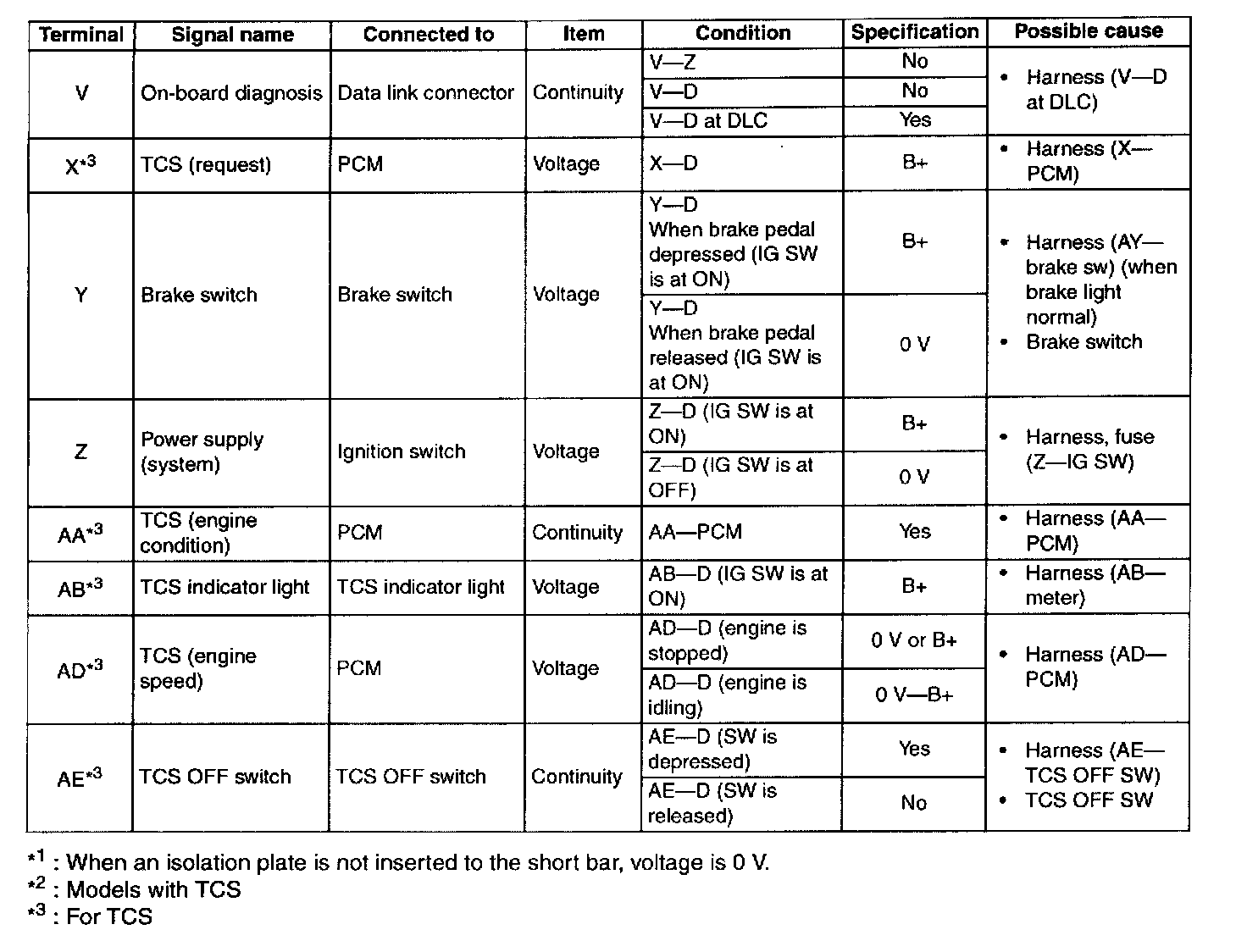

Terminals V - AE(+3):
