Central Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.

AI Repair Guides

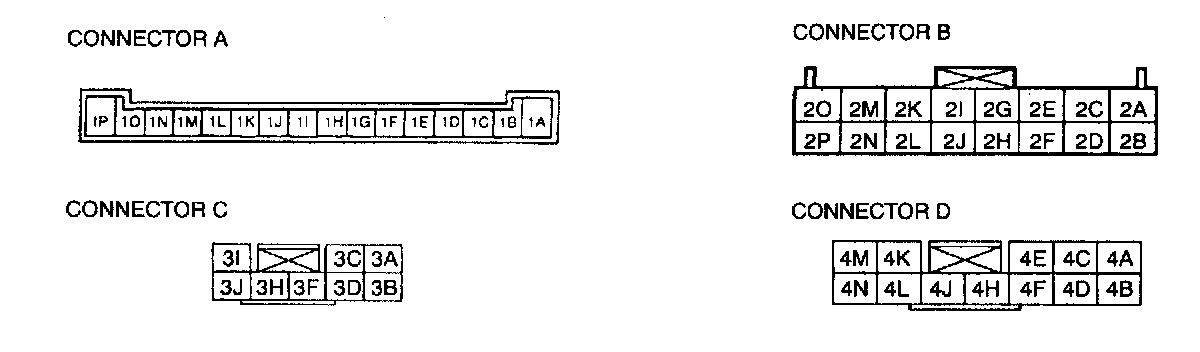

Central Processing Unit (CPU) Terminal Pinouts:

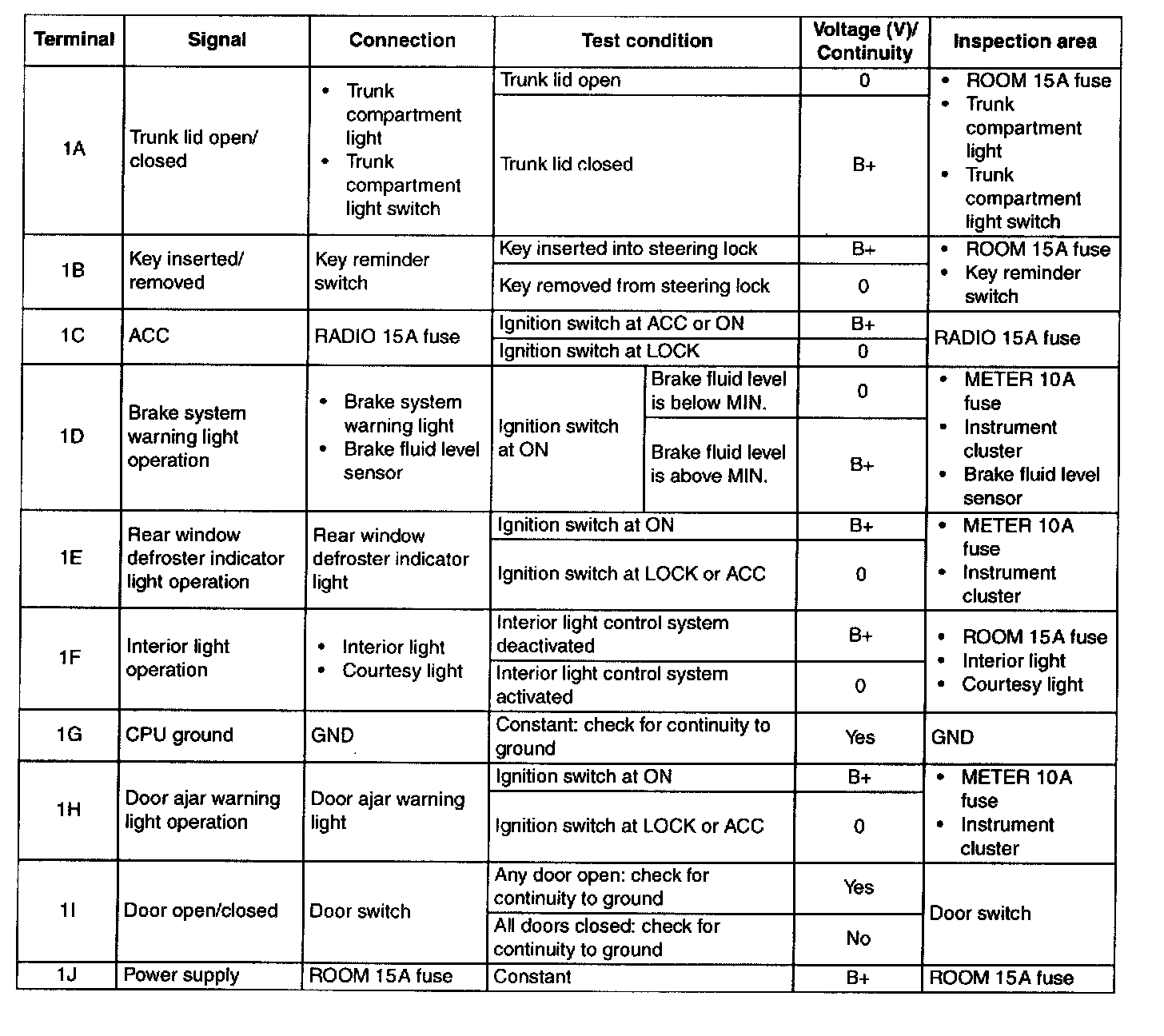

Central Processing Unit (CPU) Terminals 1A - 1J:

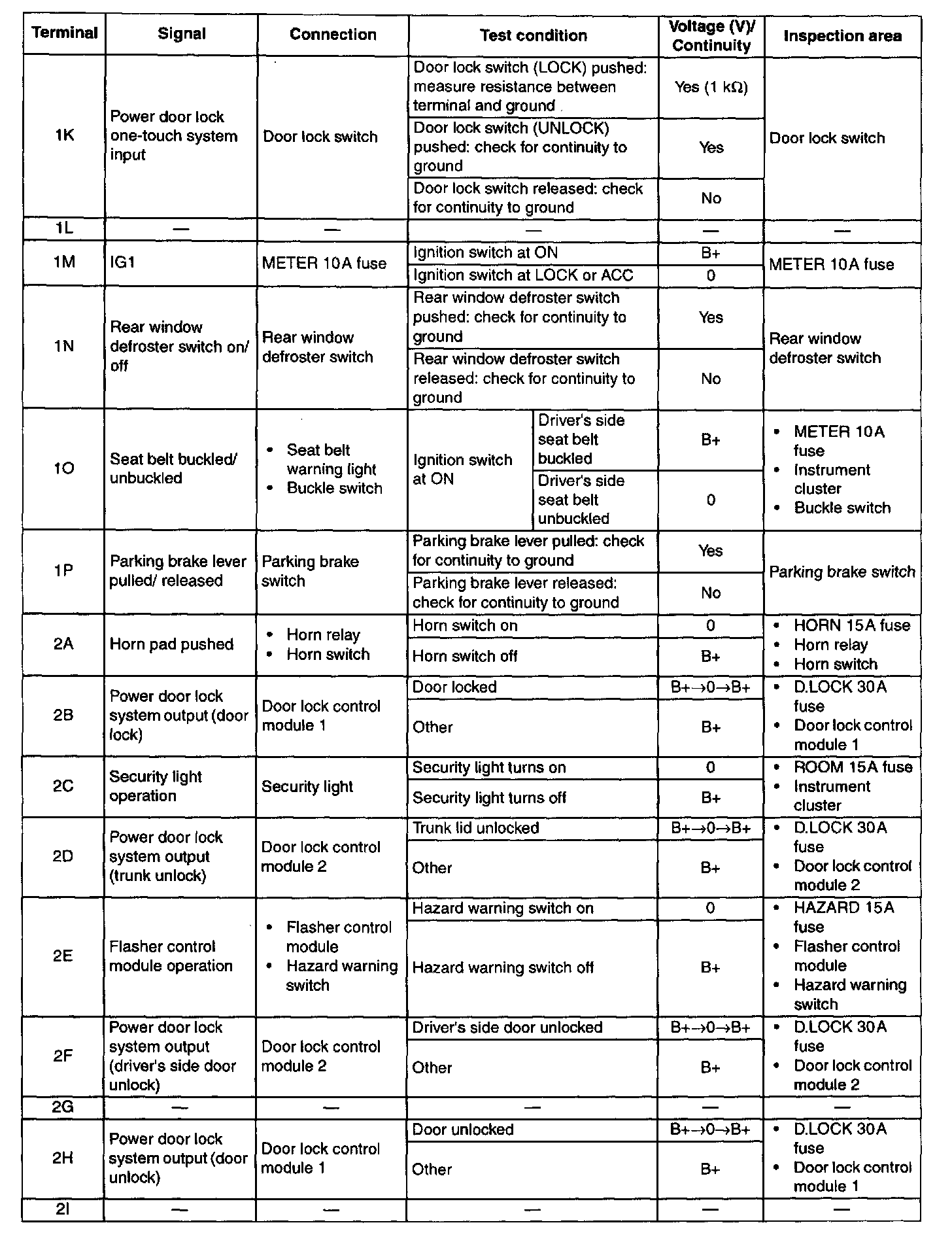

Central Processing Unit (CPU) Terminals 1K - 2I:

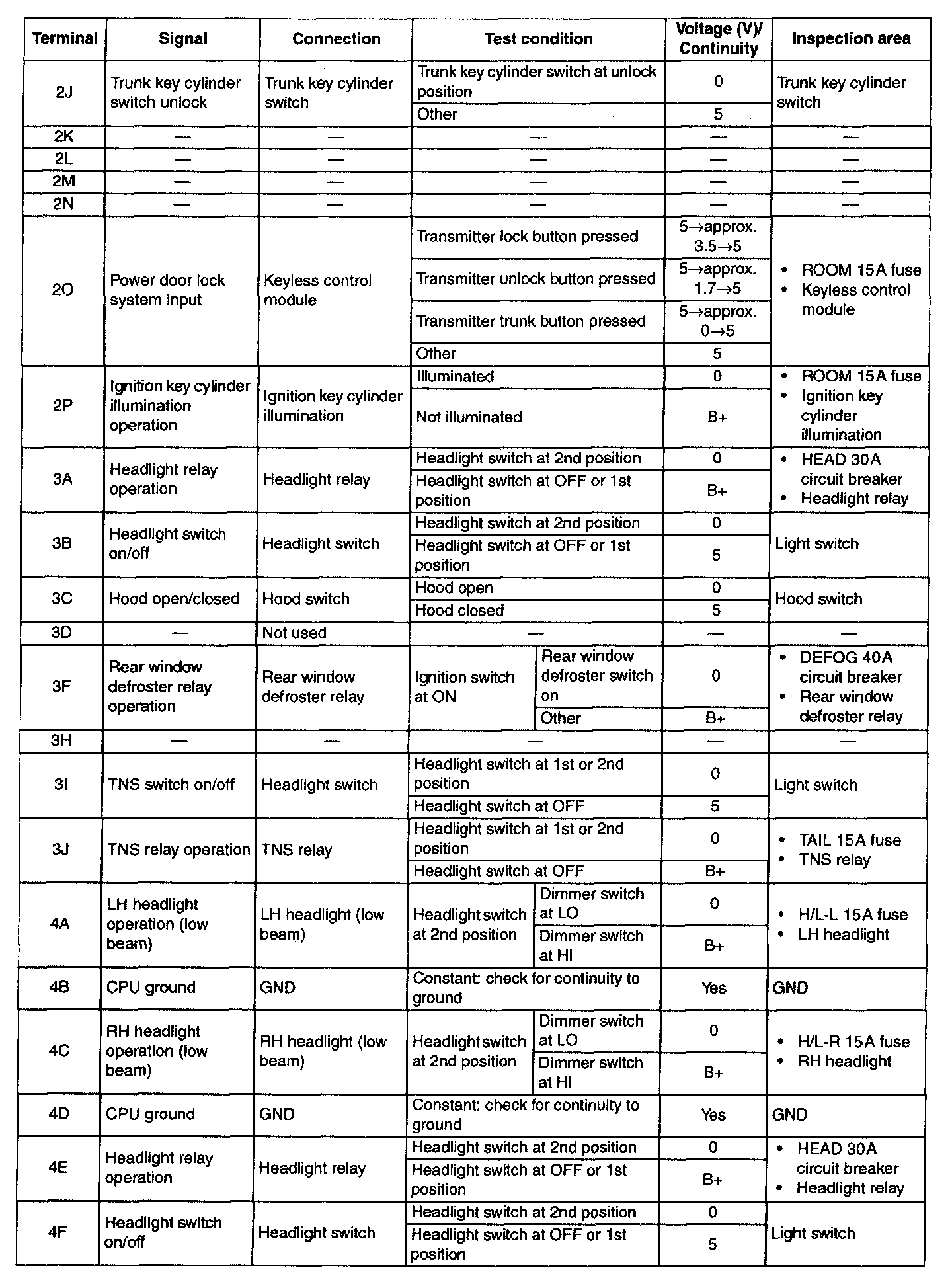

Central Processing Unit (CPU) Terminals 2J - 4F:

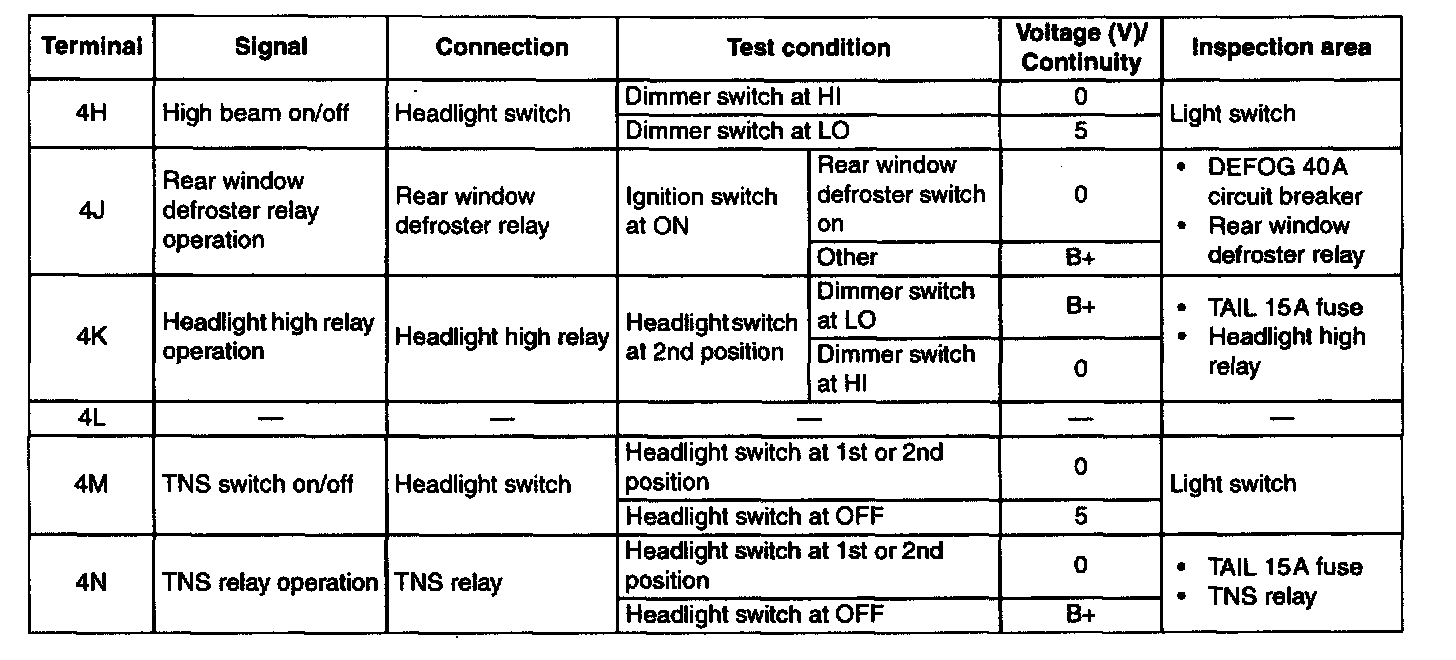

Central Processing Unit (CPU) Terminals 4H - 4N:
