Emission Control Systems: Locations

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.

AI Repair Guides

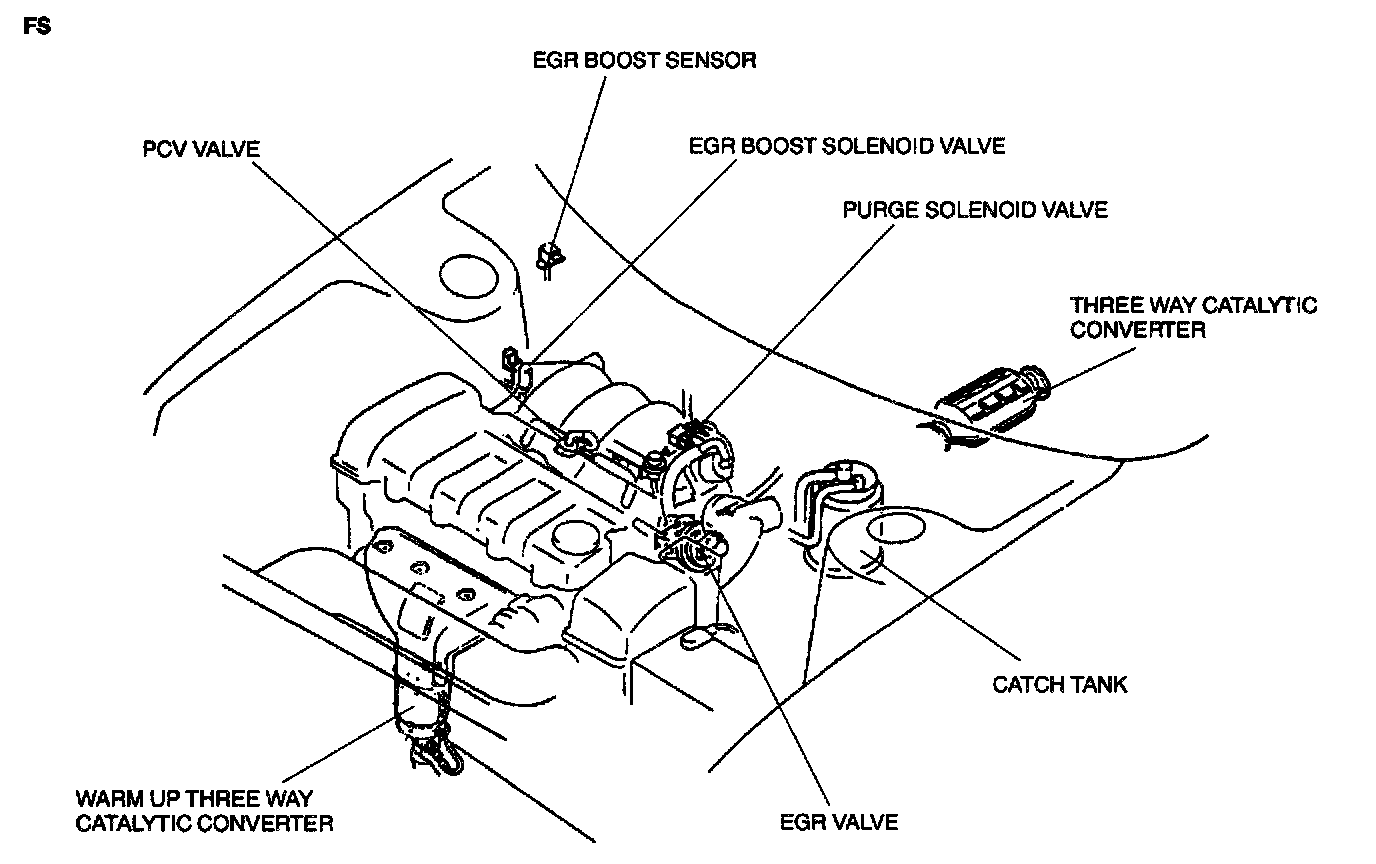

Structural View - Engine Room Side (Part 1):

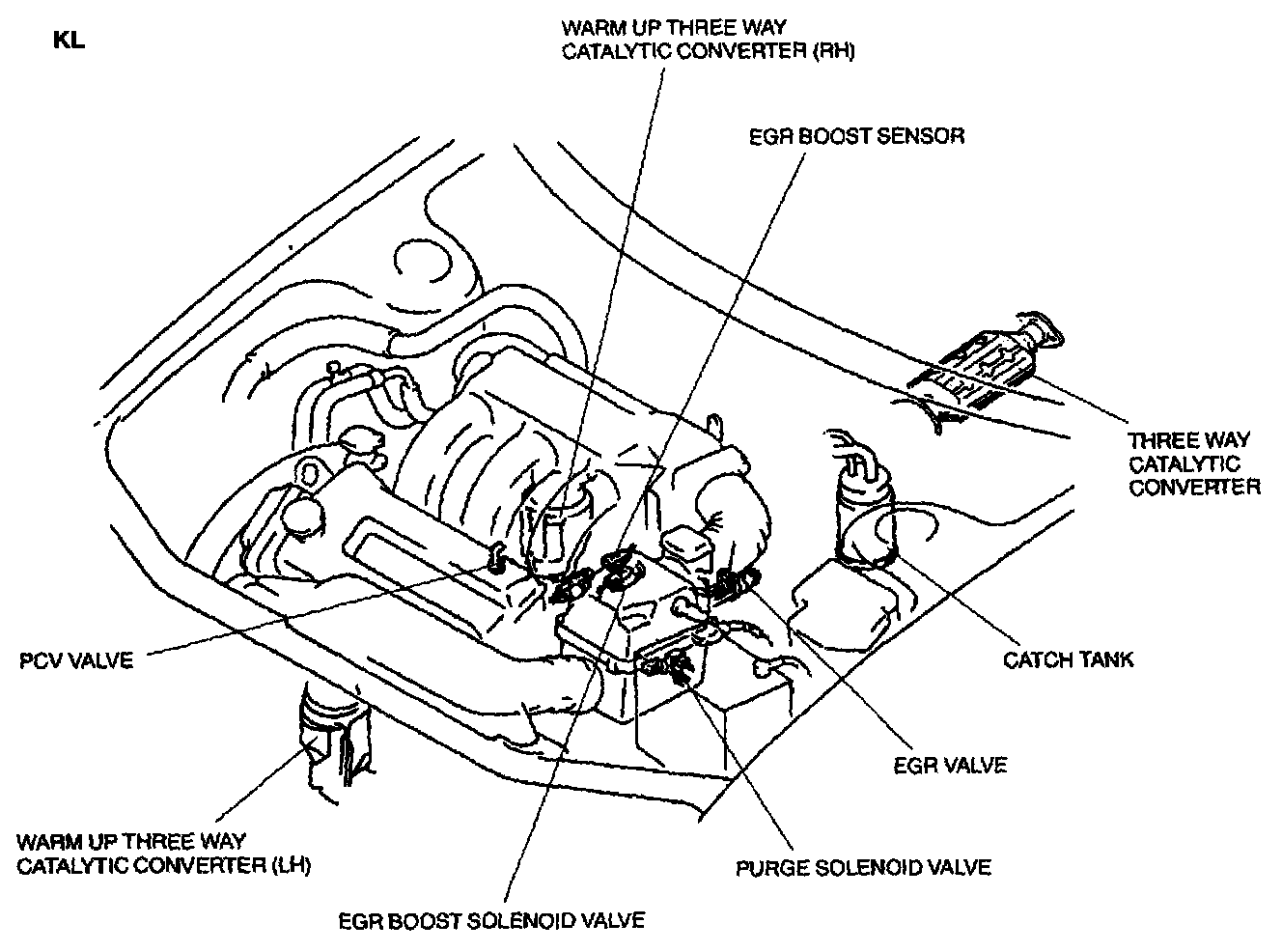

Structural View - Engine Room Side (Part 2):

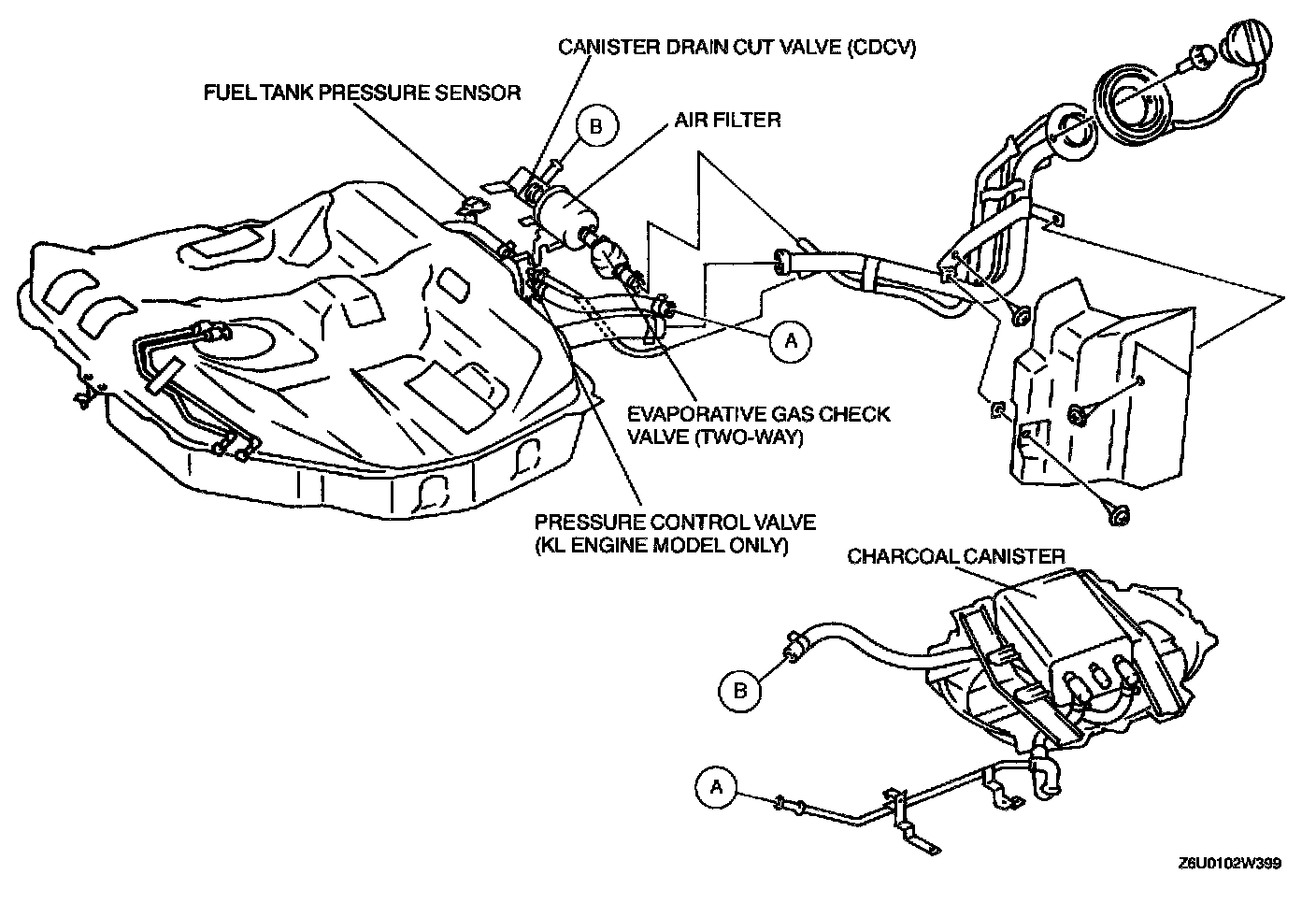

Fuel Tank Side:
