Diagnostic Monitoring Test Results

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.

AI Repair Guides

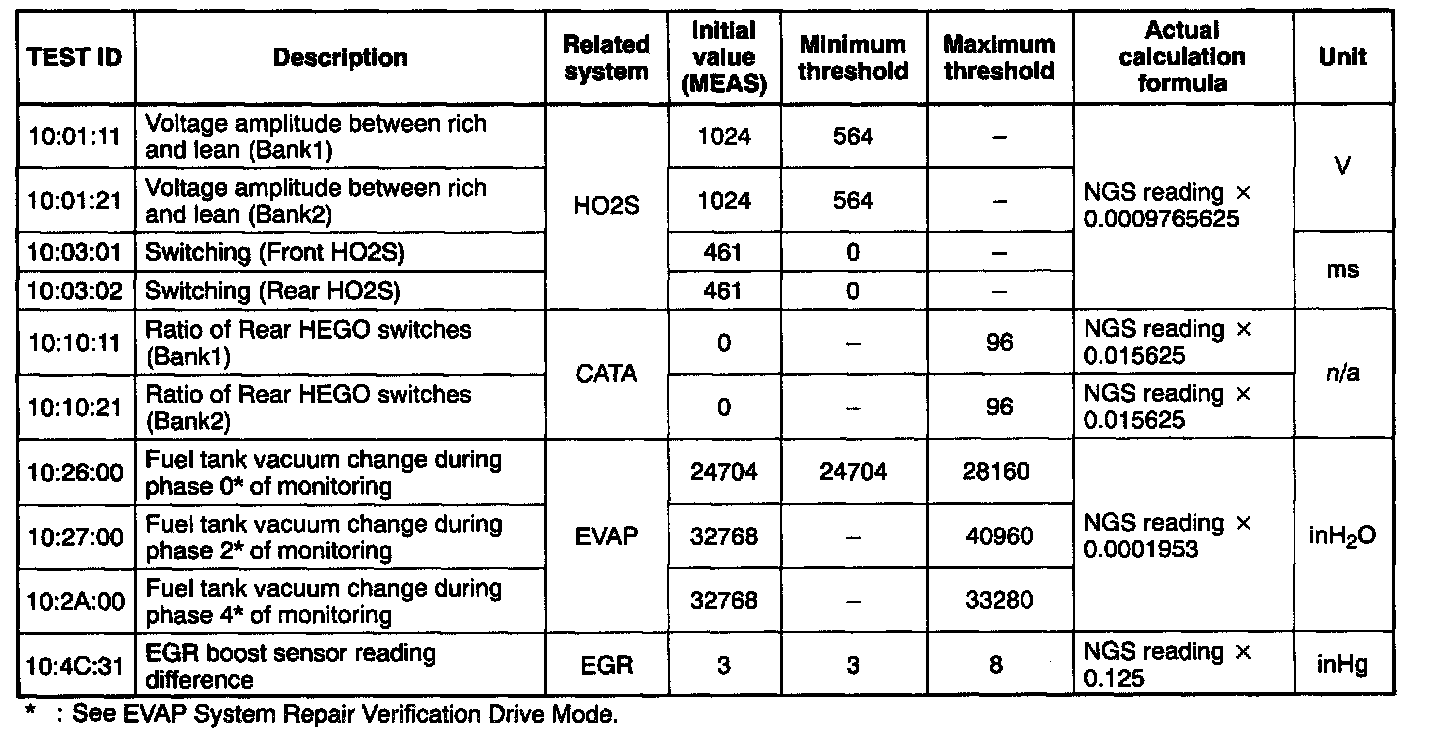

Diagnostic Monitoring Test Results - Part 1:

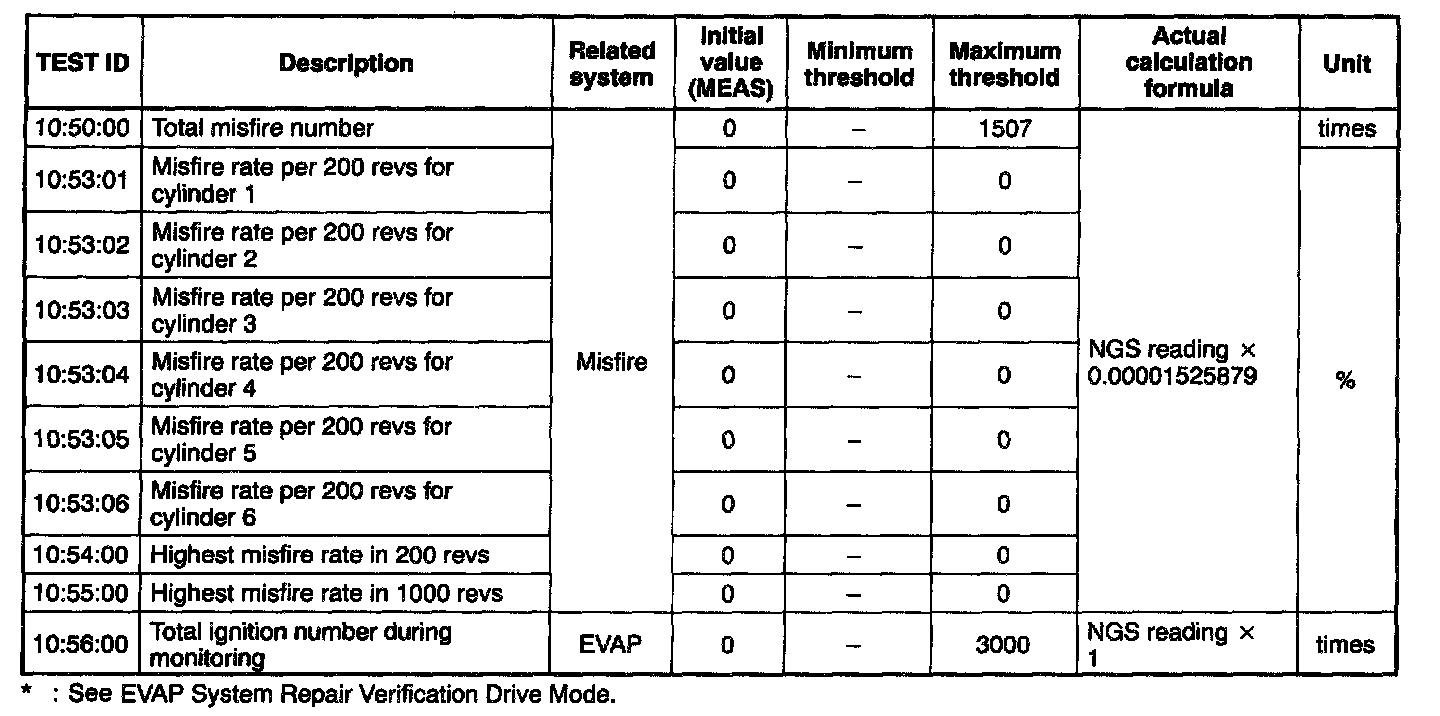

Diagnostic Monitoring Test Results - Part 2:




The purpose of this test mode is to confirm the result of OBD-II monitor diagnostic test results. The result values stored when particular monitor is completed are displayed. If the monitor is not completed, initial value is displayed.
