1. Remove the main relay.

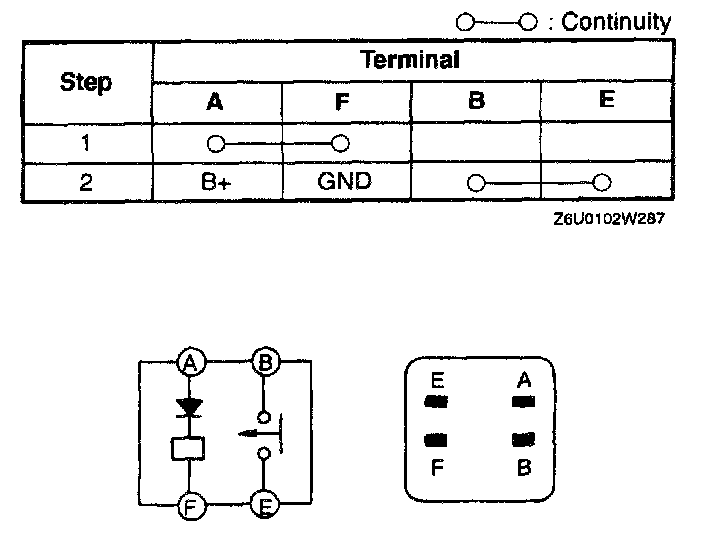

2. Apply battery positive voltage and check continuity between terminals of the main relay by using an ohmmeter.
- If not as specified, replace the main relay.
- If okay, inspect related harness and connectors.
Inspection of Continuity
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.
1. Remove the main relay.
2. Apply battery positive voltage and check continuity between terminals of the main relay by using an ohmmeter.
- If not as specified, replace the main relay.
- If okay, inspect related harness and connectors.
