NOTE: Disconnect the keyless control module connector before checking for continuity at terminal B.
1. Remove the rear package trim.

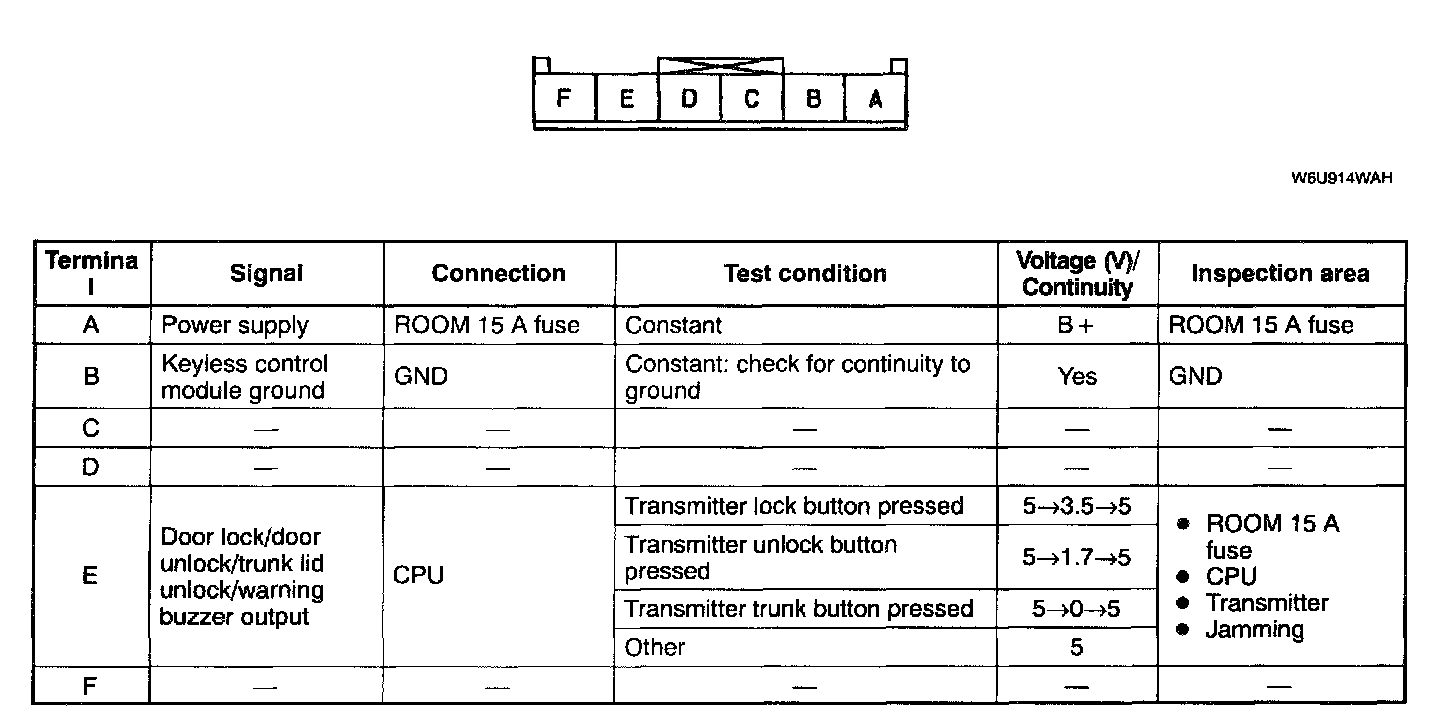

Terminal Voltage List (Reference):
2. Measure the voltage at the keyless control module terminals as indicated below.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, perform troubleshooting.
