1. Disconnect the negative battery cable.
2. Remove the rear package trim.
3. Disconnect the keyless control module connector.

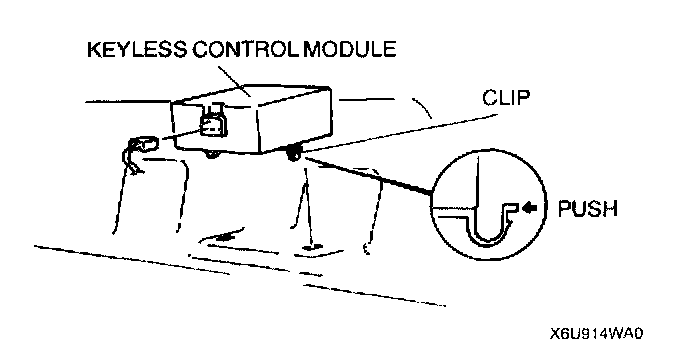

4. Push the sides of clips and remove the keyless control module.
5. Install in the reverse order of removal.
Keyless Entry Module: Service and Repair
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2001 Mazda.
1. Disconnect the negative battery cable.
2. Remove the rear package trim.
3. Disconnect the keyless control module connector.
4. Push the sides of clips and remove the keyless control module.
5. Install in the reverse order of removal.
