1. Remove the dashboard.
2. Disconnect the key reminder switch connector.

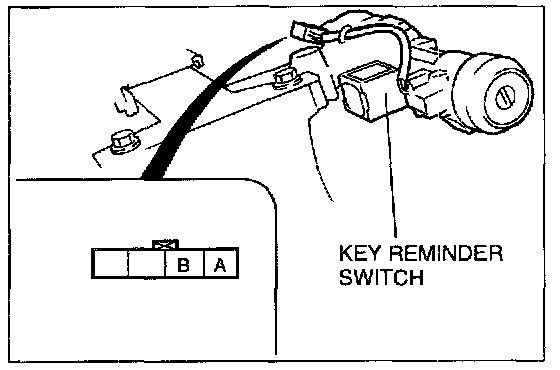

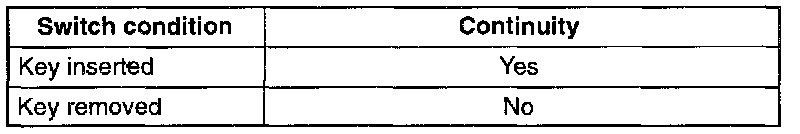

3. Check for continuity between terminals A and B of the key reminder switch.
4. If not as specified, replace the key reminder switch.
Key Reminder Switch
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.
1. Remove the dashboard.
2. Disconnect the key reminder switch connector.
3. Check for continuity between terminals A and B of the key reminder switch.
4. If not as specified, replace the key reminder switch.
