Ignition System Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.

AI Repair Guides






1. Remove the fuel pump relay from main fuse block.
2. Check condition of connector and ignition coil (kJ). Check condition of connector, and high-tension leads (kL).

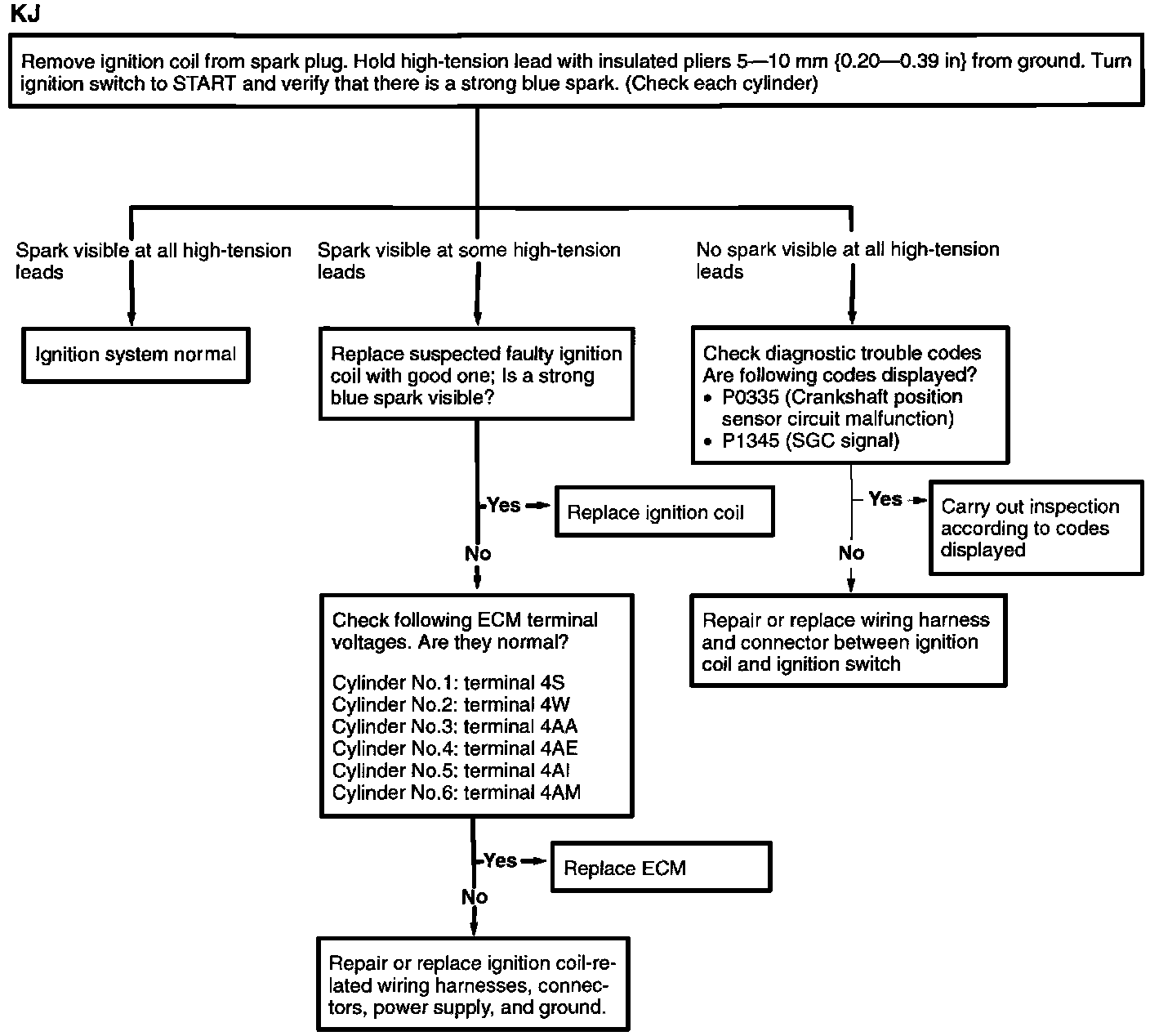

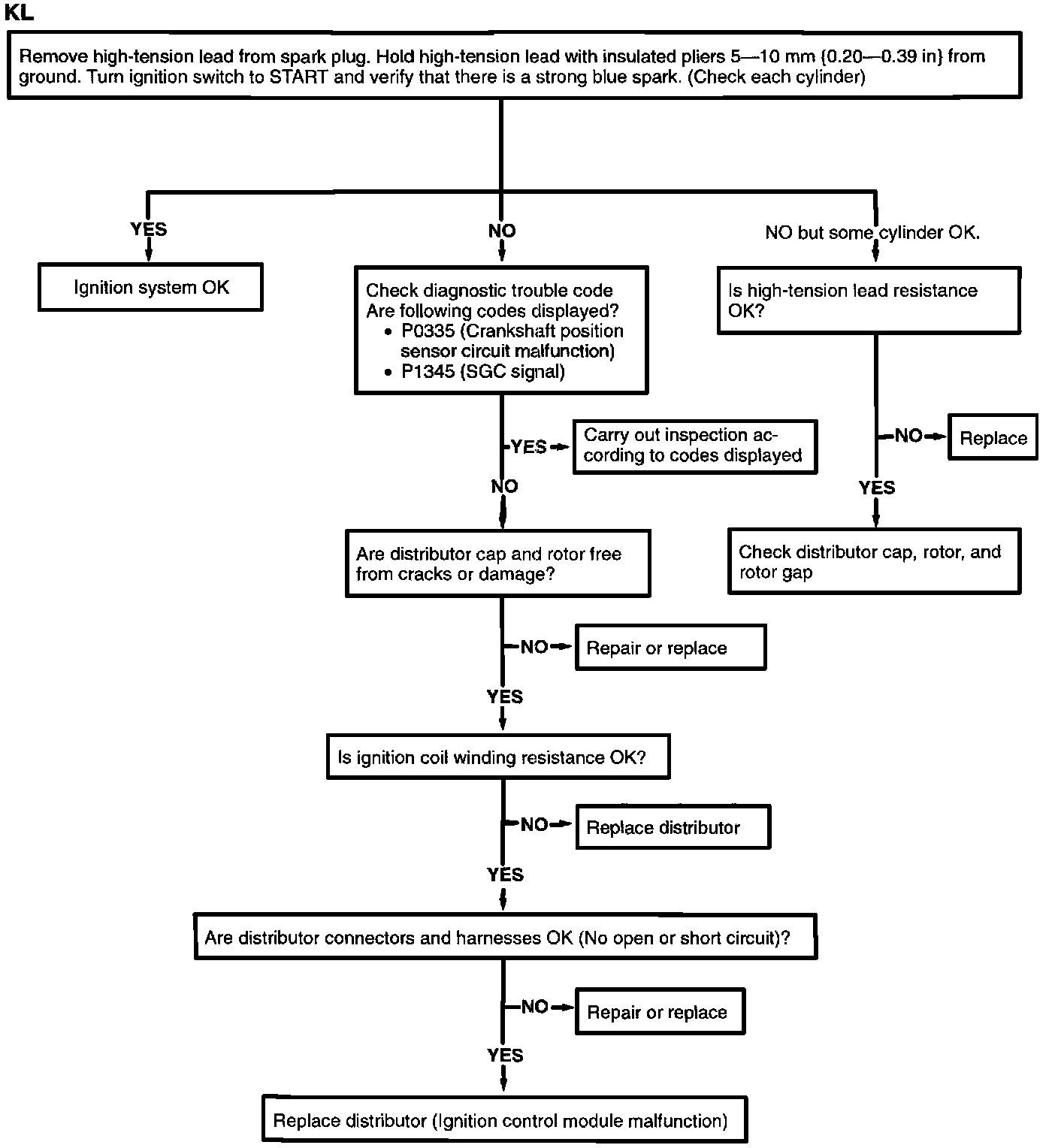

3. Inspect the ignition system as following procedure.

WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
