Distributor: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.

AI Repair Guides



Removal / Installation
1. Disconnect the negative battery cable.

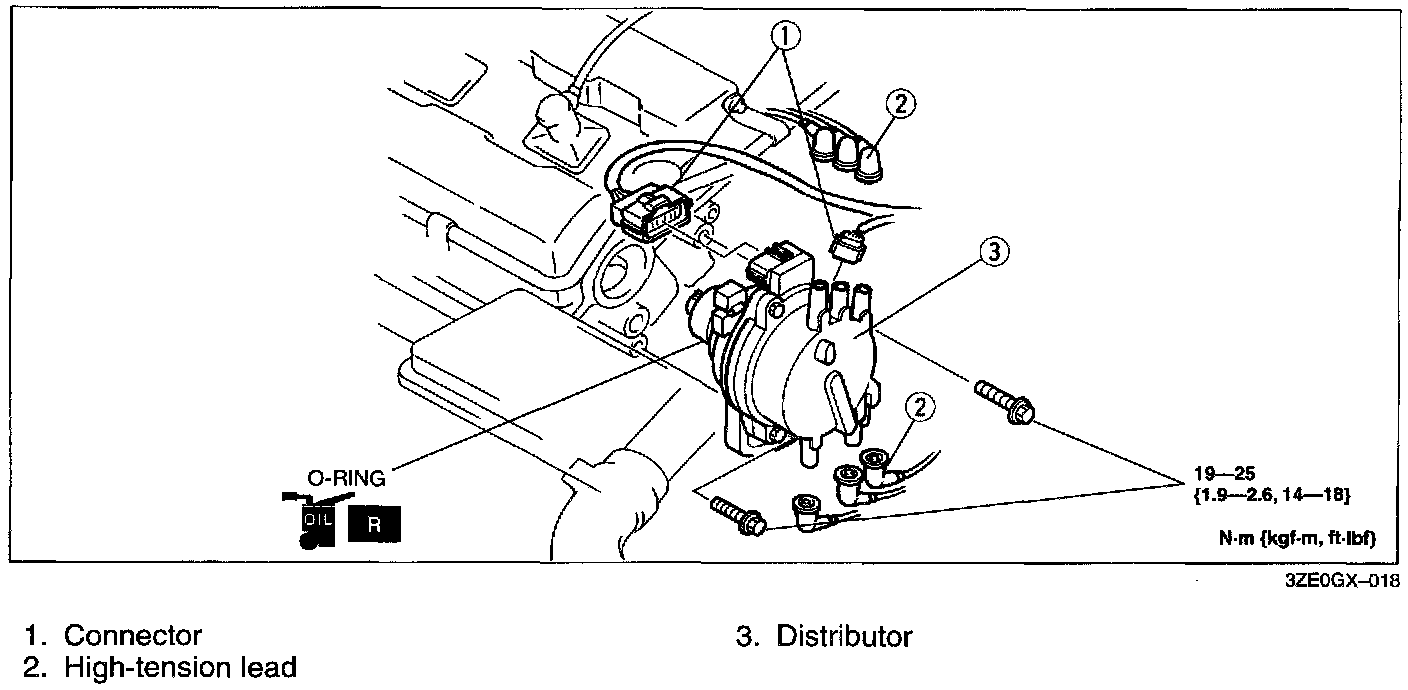

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.




Disassembly / Assembly

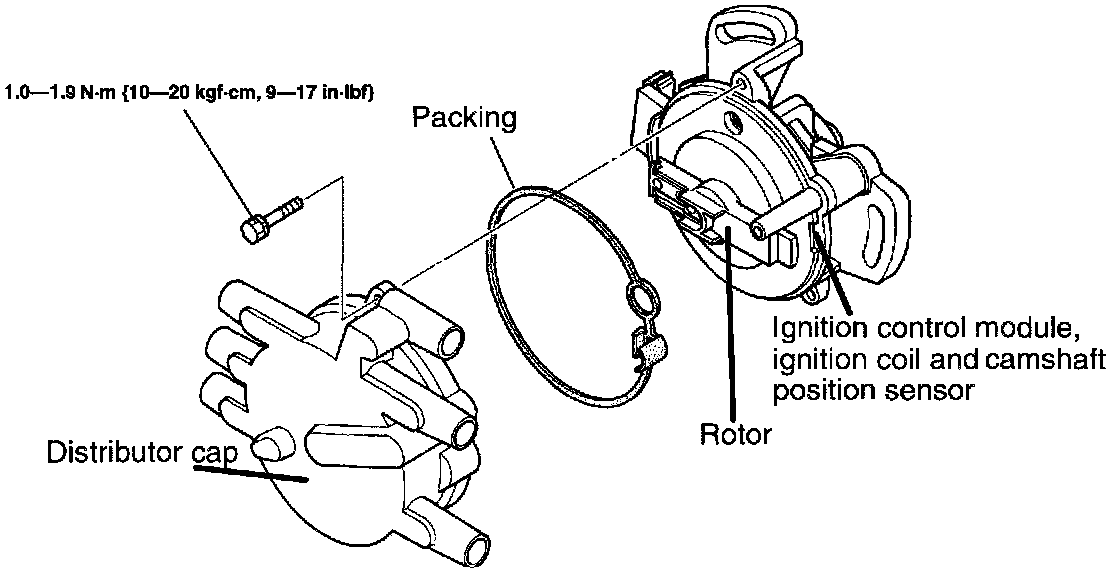

1. Disassemble in the order shown in the figure.
2. Inspect all parts and repair or replace if necessary.
3. Assemble in the reverse order of disassembly.
