1. Disconnect the negative battery cable.

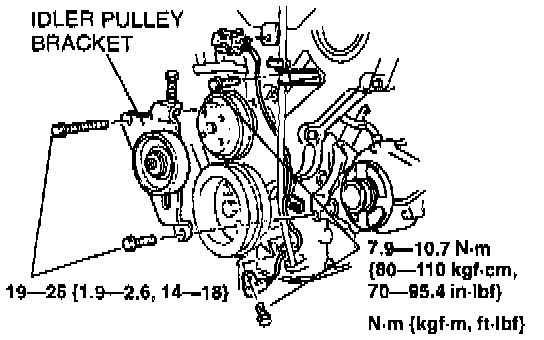

2. Remove the idler pulley bracket.
3. Remove the dipstick pipe.
4. Remove the crankshaft position sensor.
5. Install in the reverse order of removal.
6. Adjust the drive belt deflections.
Crankshaft Position Sensor: Service and Repair
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.
1. Disconnect the negative battery cable.
2. Remove the idler pulley bracket.
3. Remove the dipstick pipe.
4. Remove the crankshaft position sensor.
5. Install in the reverse order of removal.
6. Adjust the drive belt deflections.
