1. Remove the intake air temperature sensor.

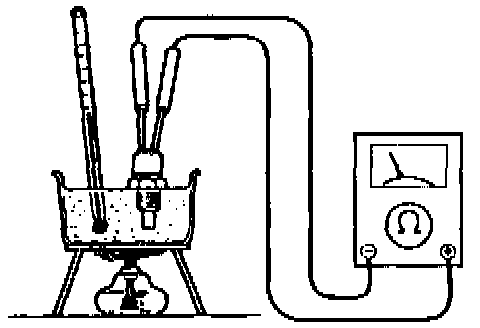

2. Measure the resistance of the sensor by using an ohmmeter.

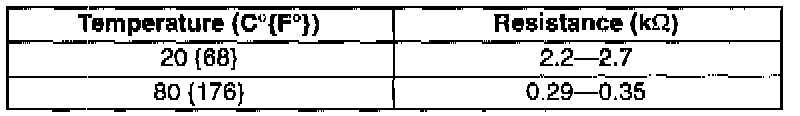

3. If not as specified, replace the intake air temperature sensor.
Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.
1. Remove the intake air temperature sensor.
2. Measure the resistance of the sensor by using an ohmmeter.
3. If not as specified, replace the intake air temperature sensor.
