Main Fuse

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.

AI Repair Guides

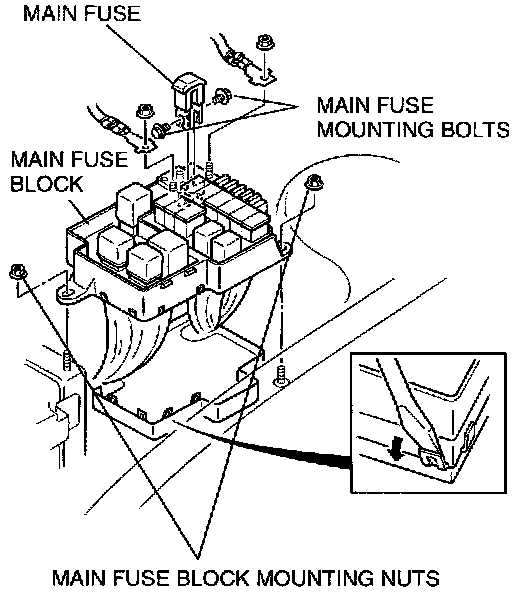

Removal / Installation
1. Disconnect the negative battery cable.
2. Remove the main fuse block cover.
3. Remove the main fuse block mounting nuts.
4. Remove the MAIN fuse mounting bolts.
5. Remove the MAIN fuse.
6. Install in the reverse order of removal.
