Control Module HVAC: Testing and Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.

AI Repair Guides



Inspection

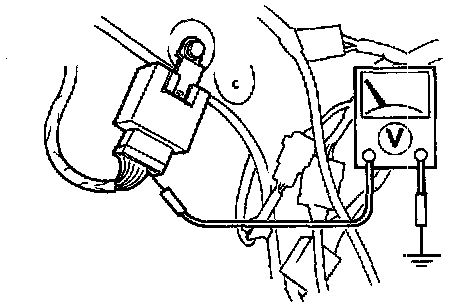

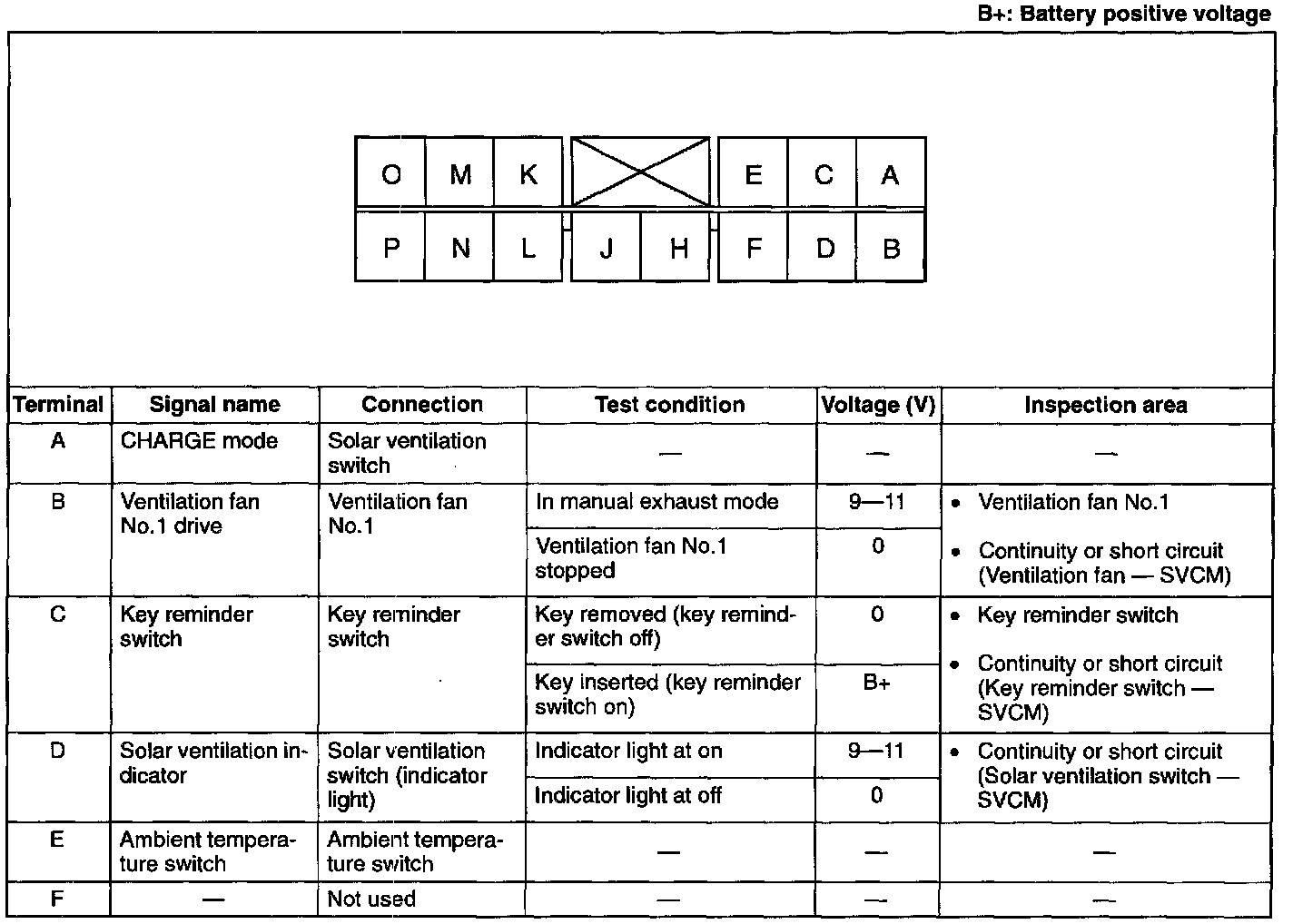

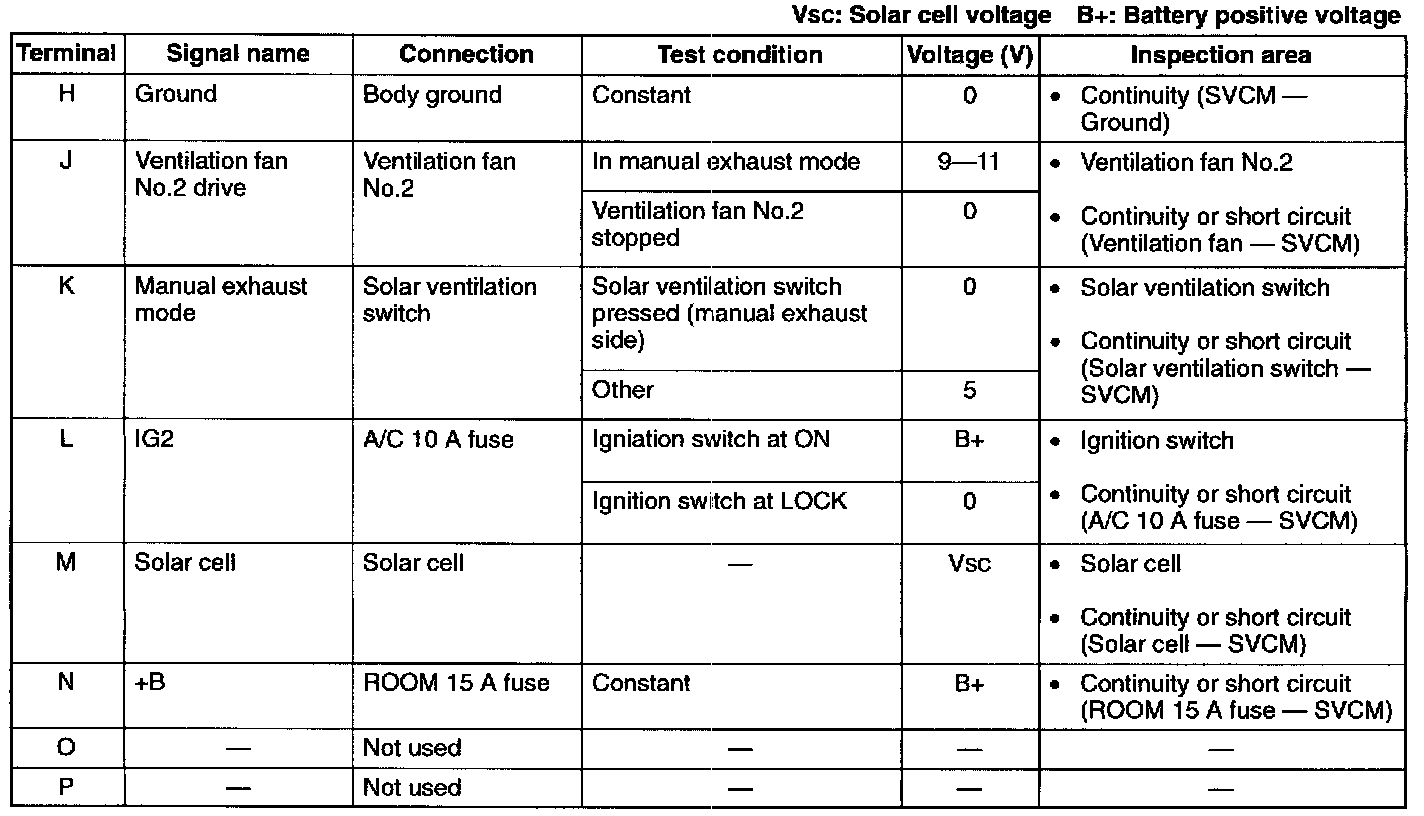

1. Measure the voltage at the terminal wires of the SVCM connector.







2. If not as specified, inspect the appropriate area.

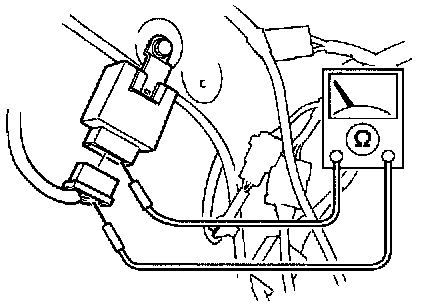

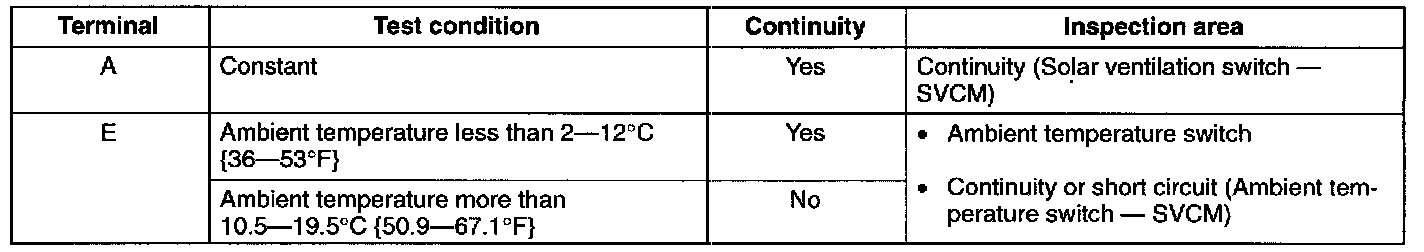

3. Disconnect the SVCM connector and check for continuity between the SVCM and main harness.




4. If not as specified, inspect the appropriate area.
5. If the appropriate area is correct, replace the SVCM.
