Cruise Control Servo: Testing and Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1997 Mazda.

AI Repair Guides
Inspection

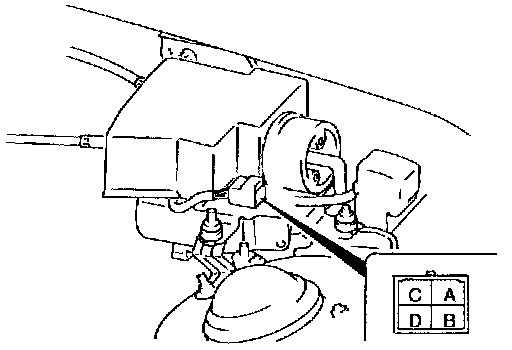

1. Disconnect the cruise actuator connector.

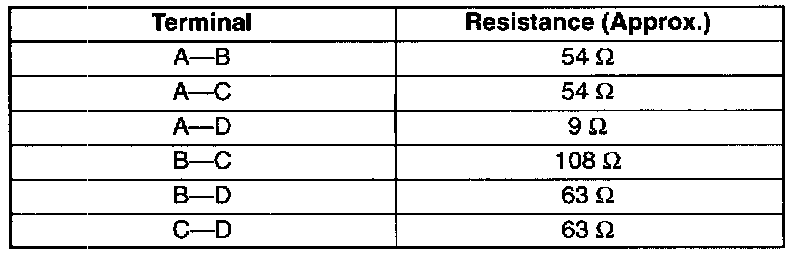

2. Measure the resistance between the cruise actuator terminals.

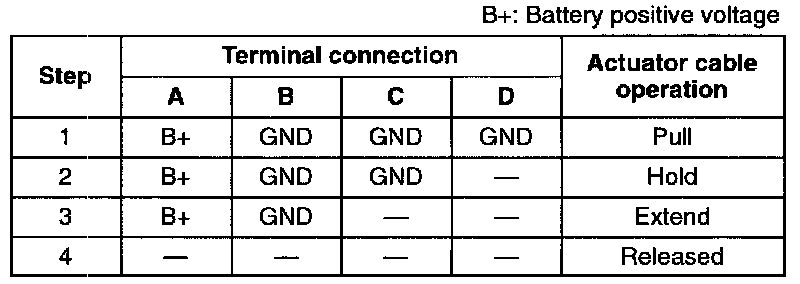

3. Connect the battery positive voltage and verify the operation of the actuator cable as indicated below.
4. If not as specified, replace the cruise actuator.
