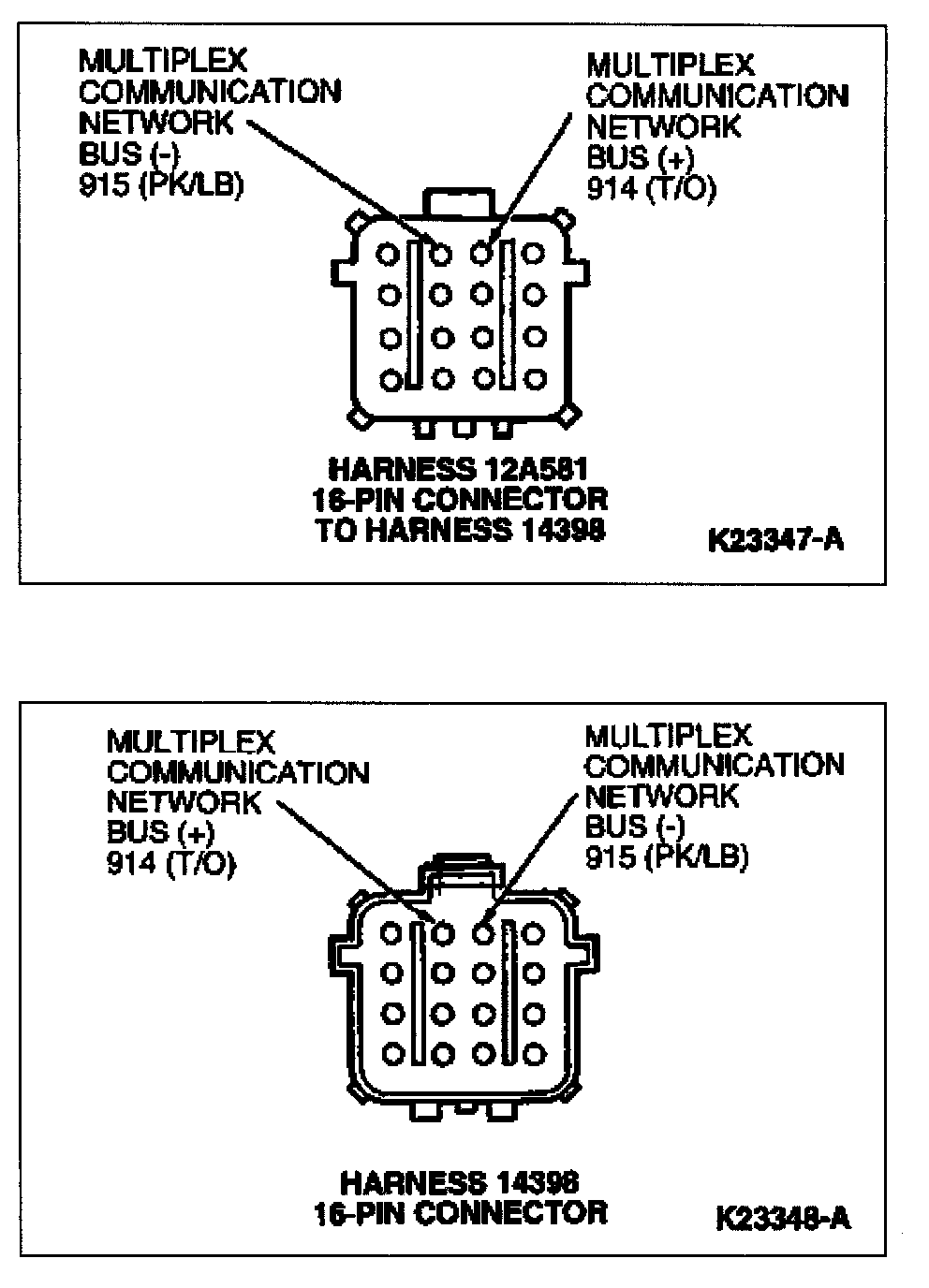

Connector 1 (C1):

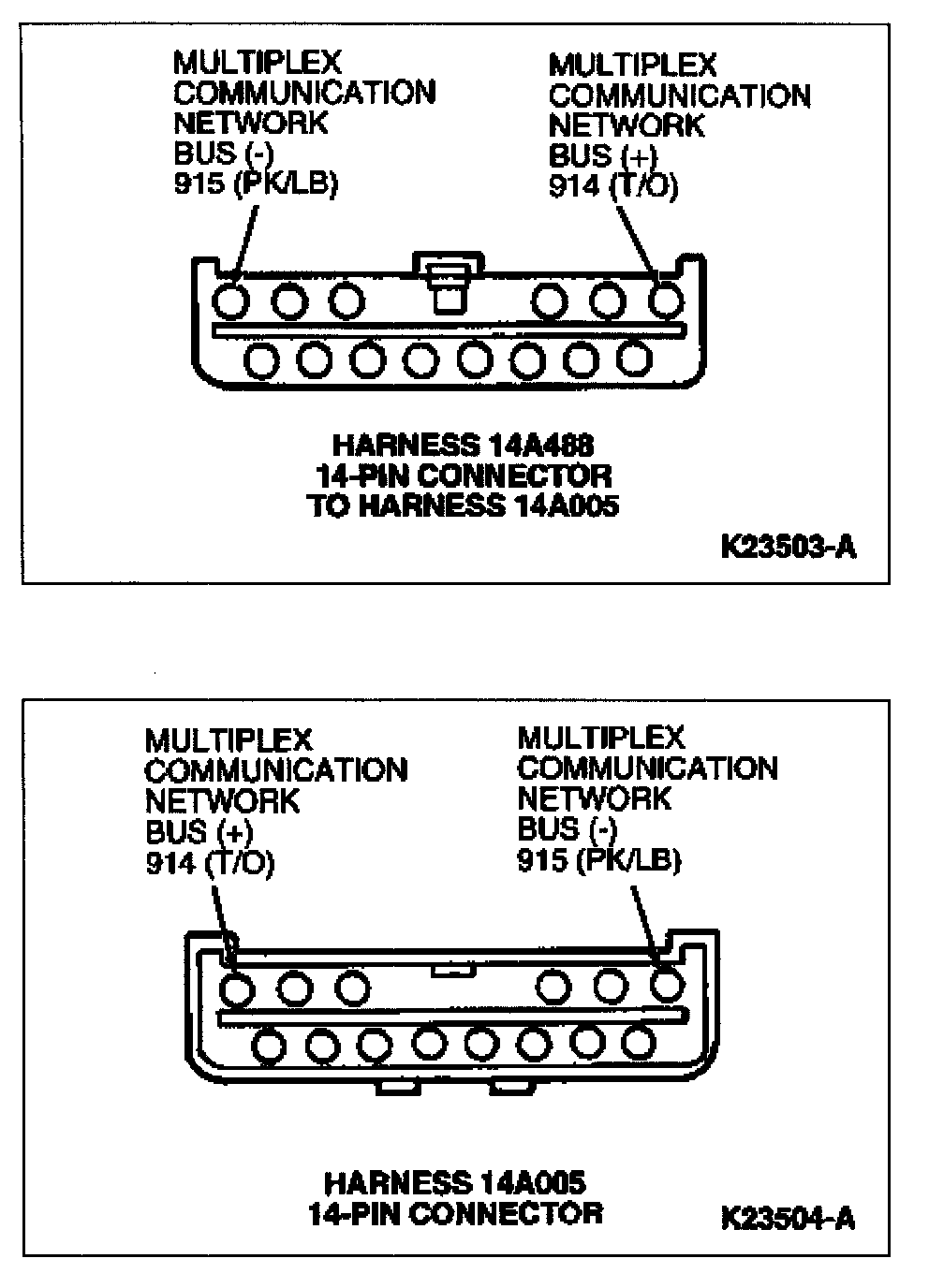

Connector 2 (C2):

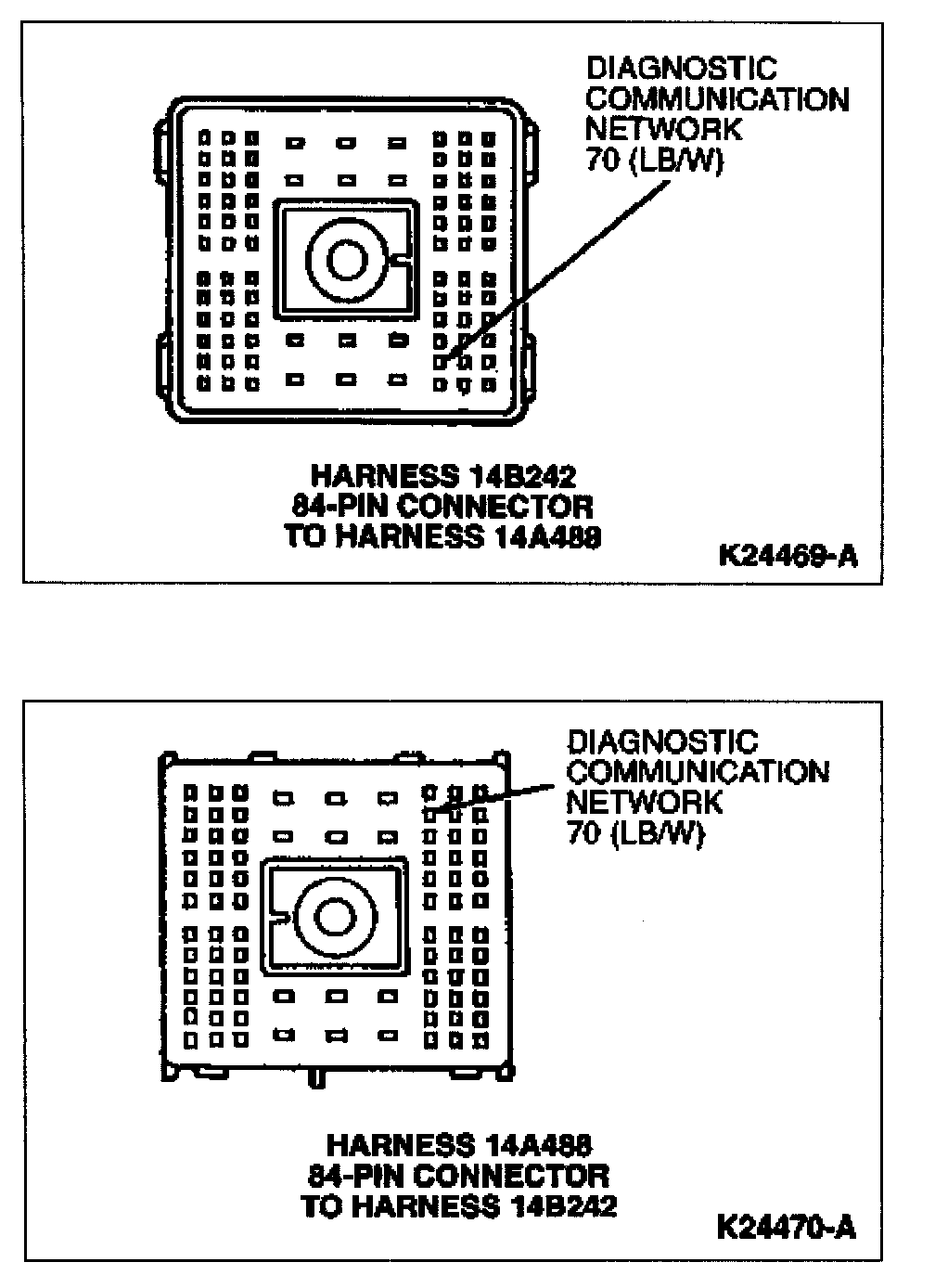

Connector 3 (C3):

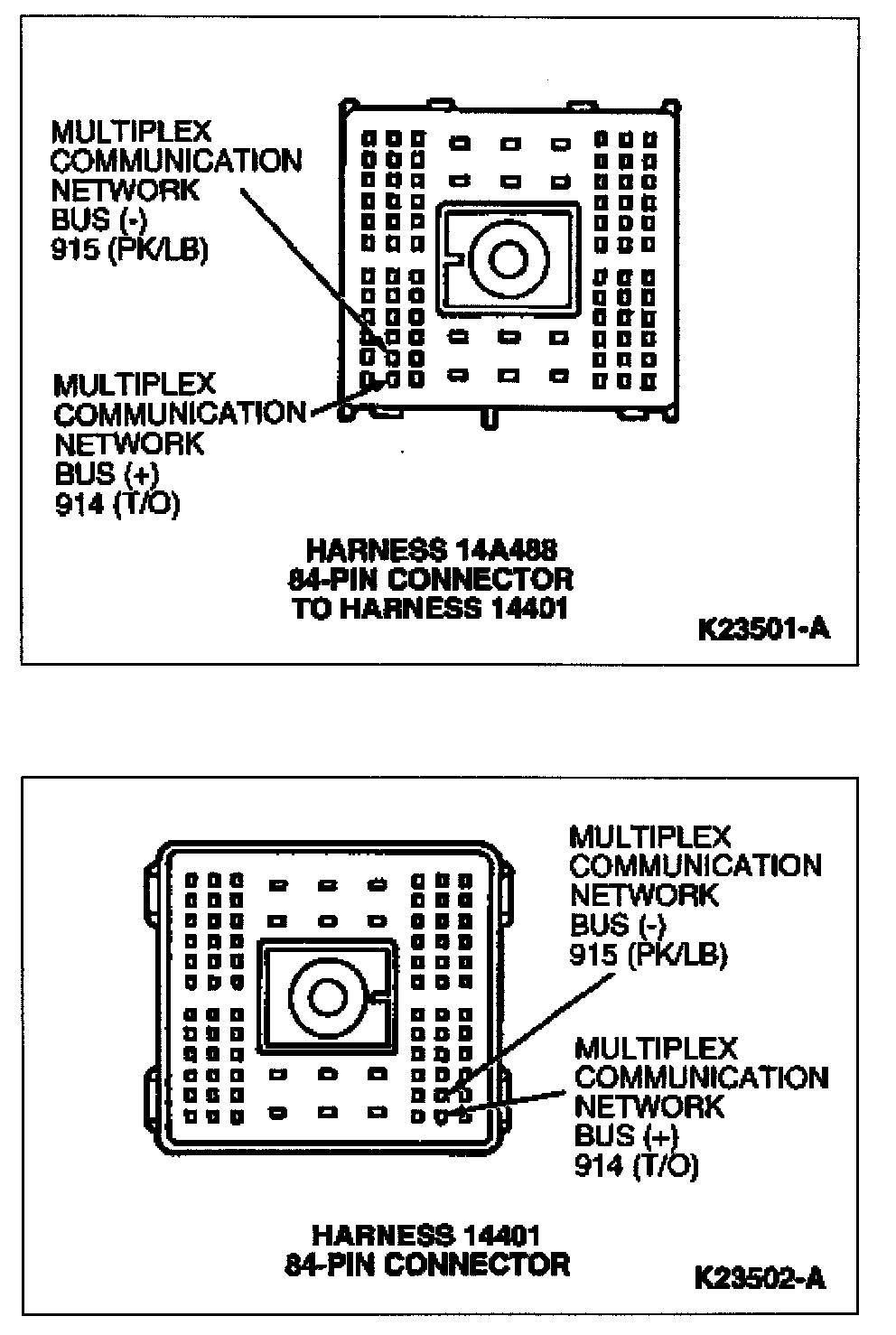

Connector 4 (C4):

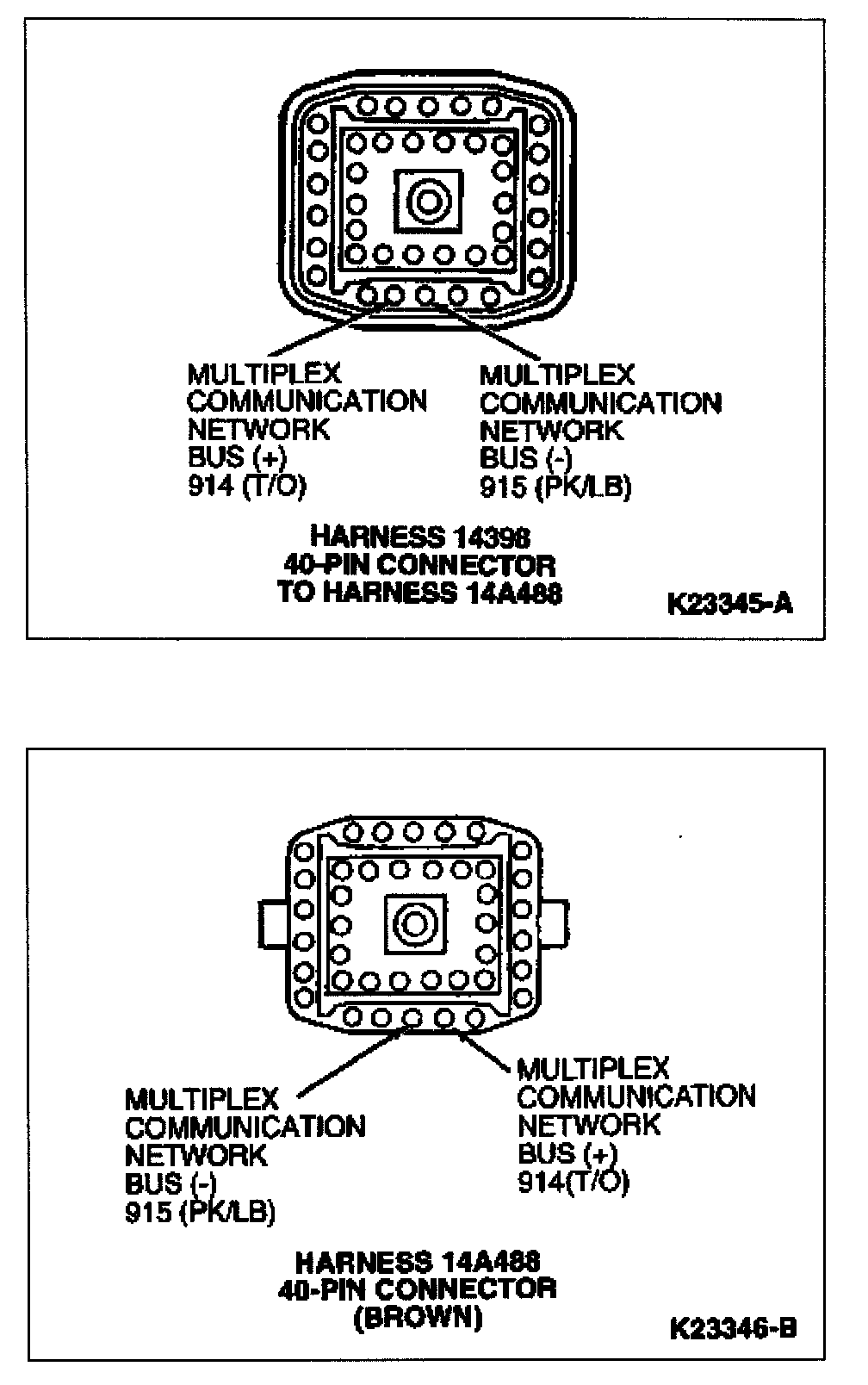

Connector 5 (C5):

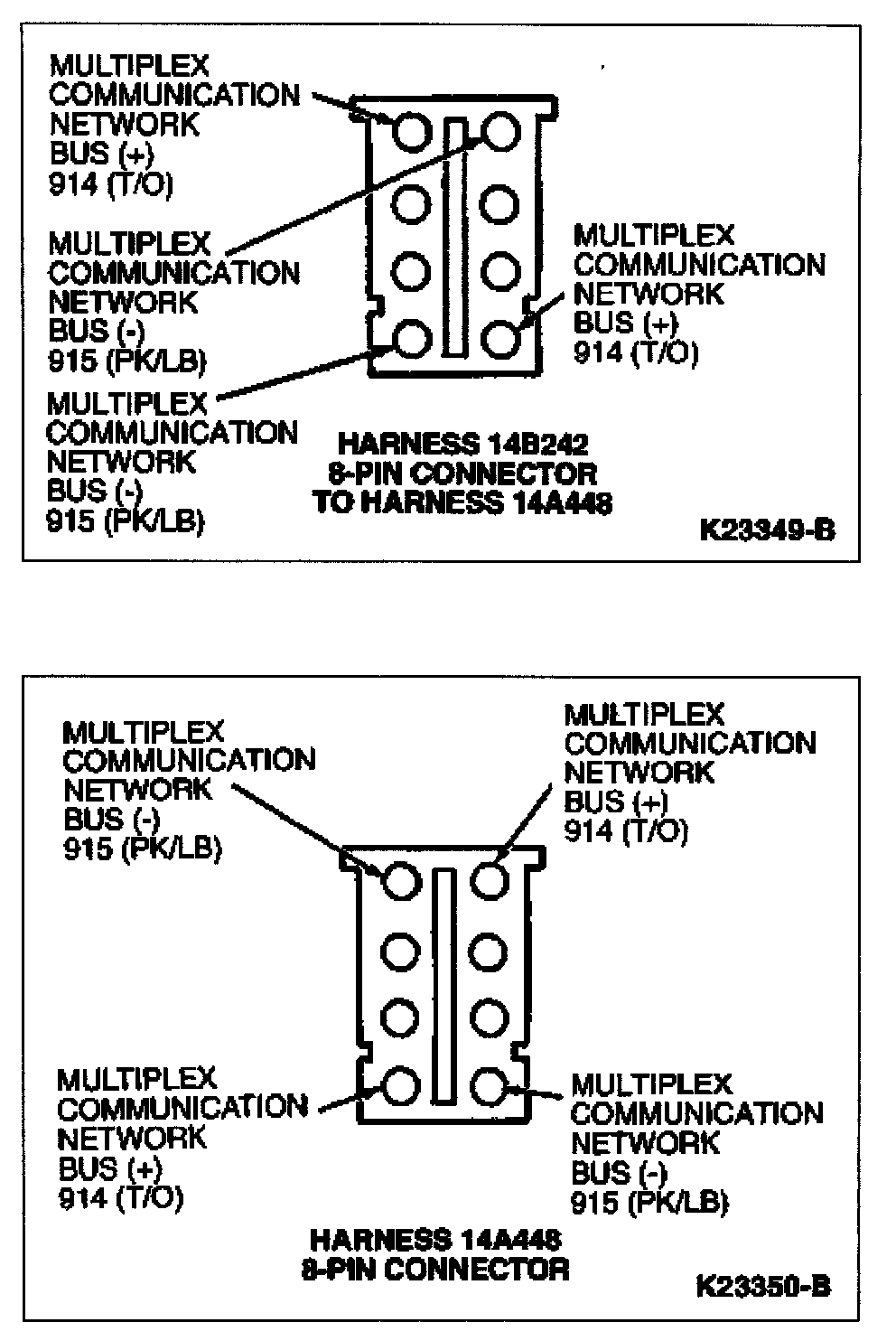

Connector 6 (C6):
Connector 7 (C7):
In-Line Connectors
