SERVICE SPECIFICATIONS: 2GR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

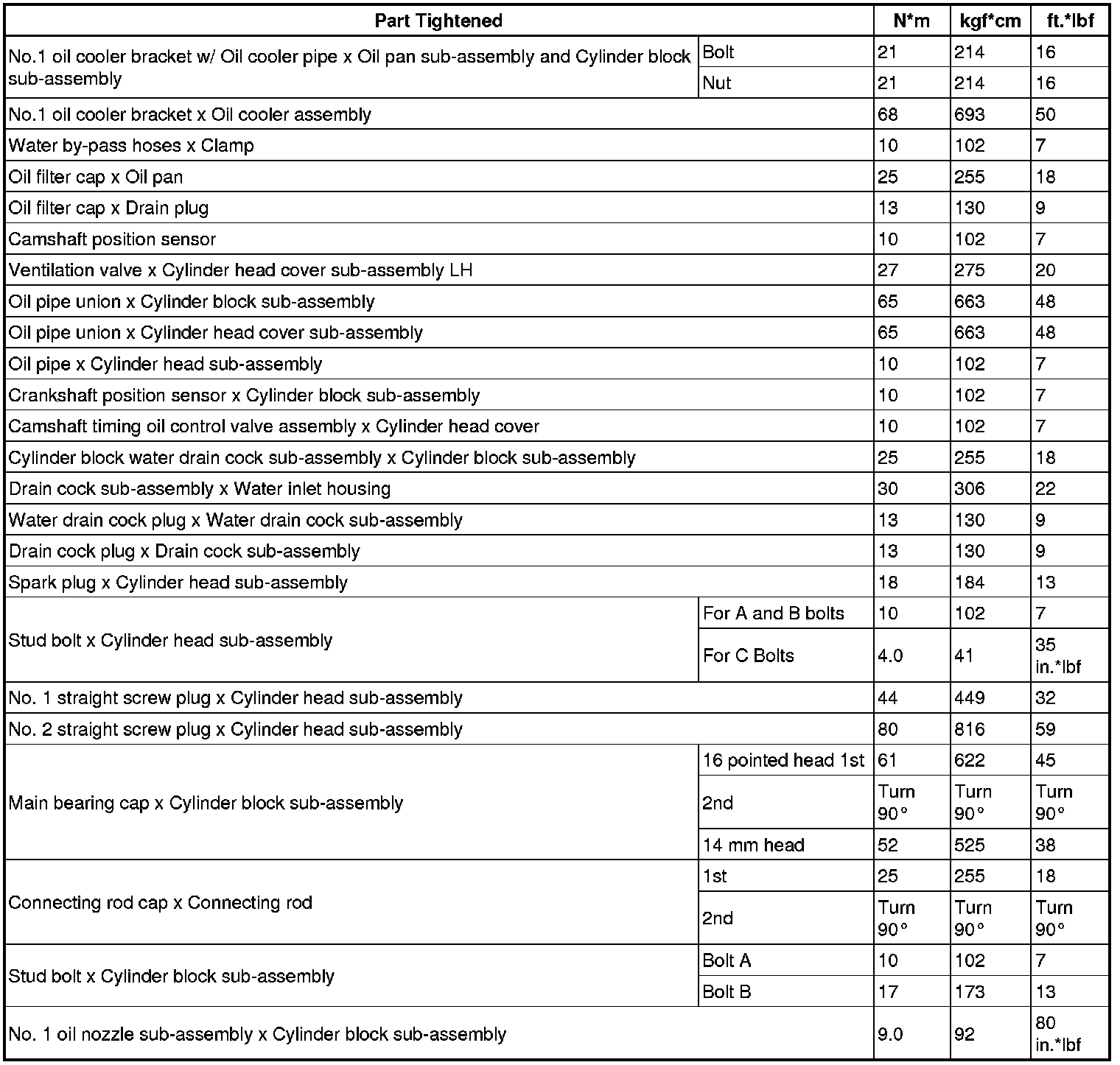

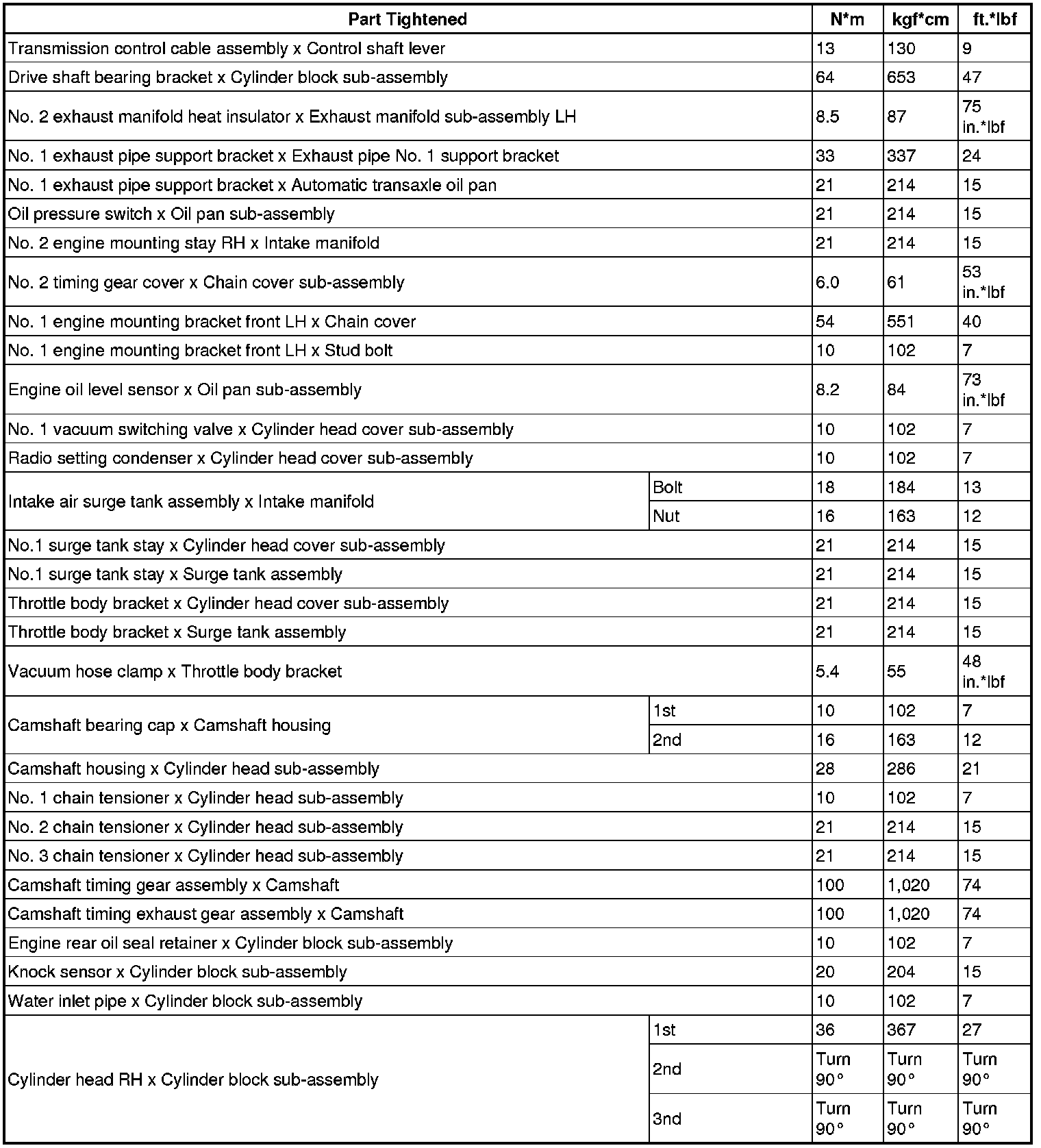

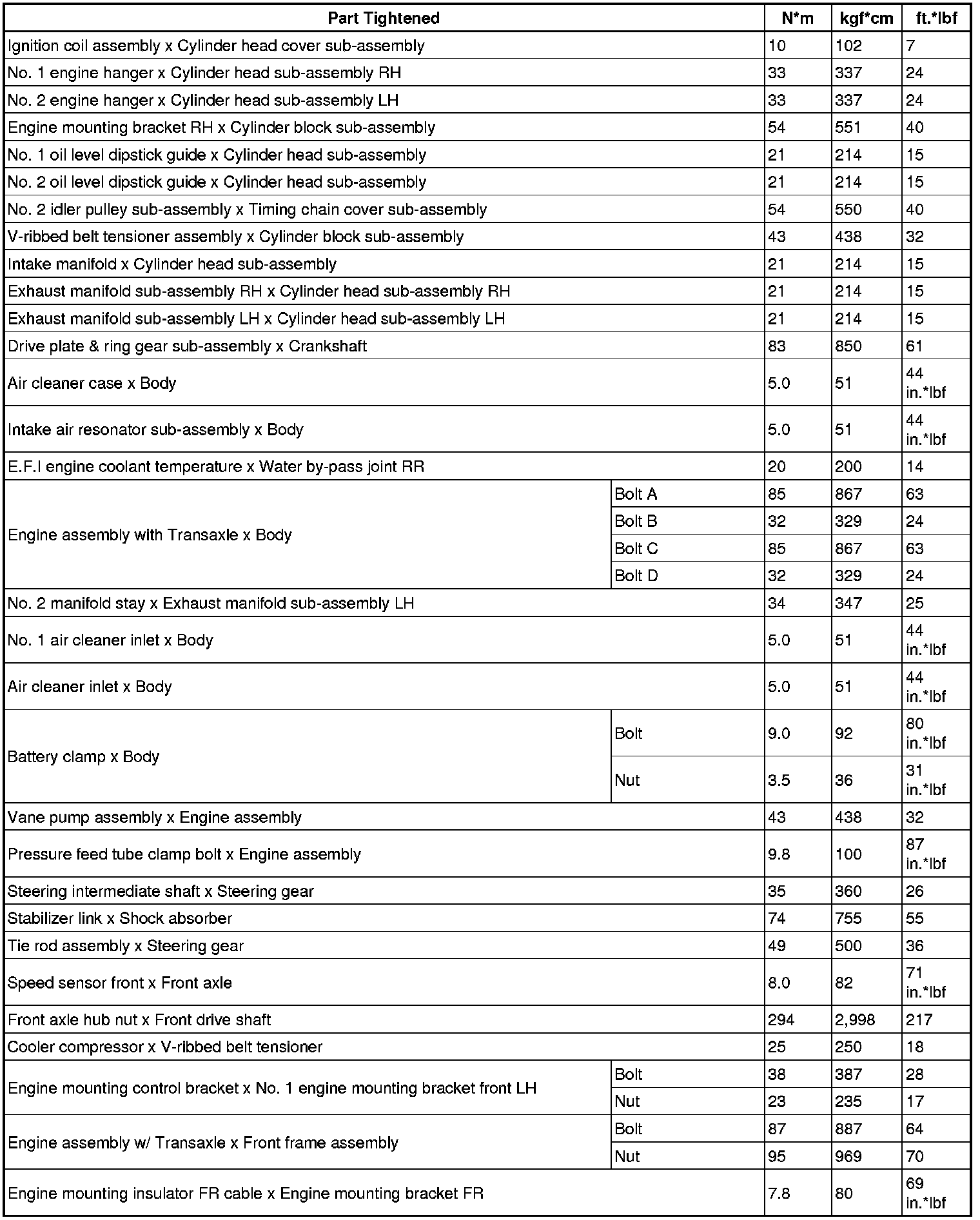

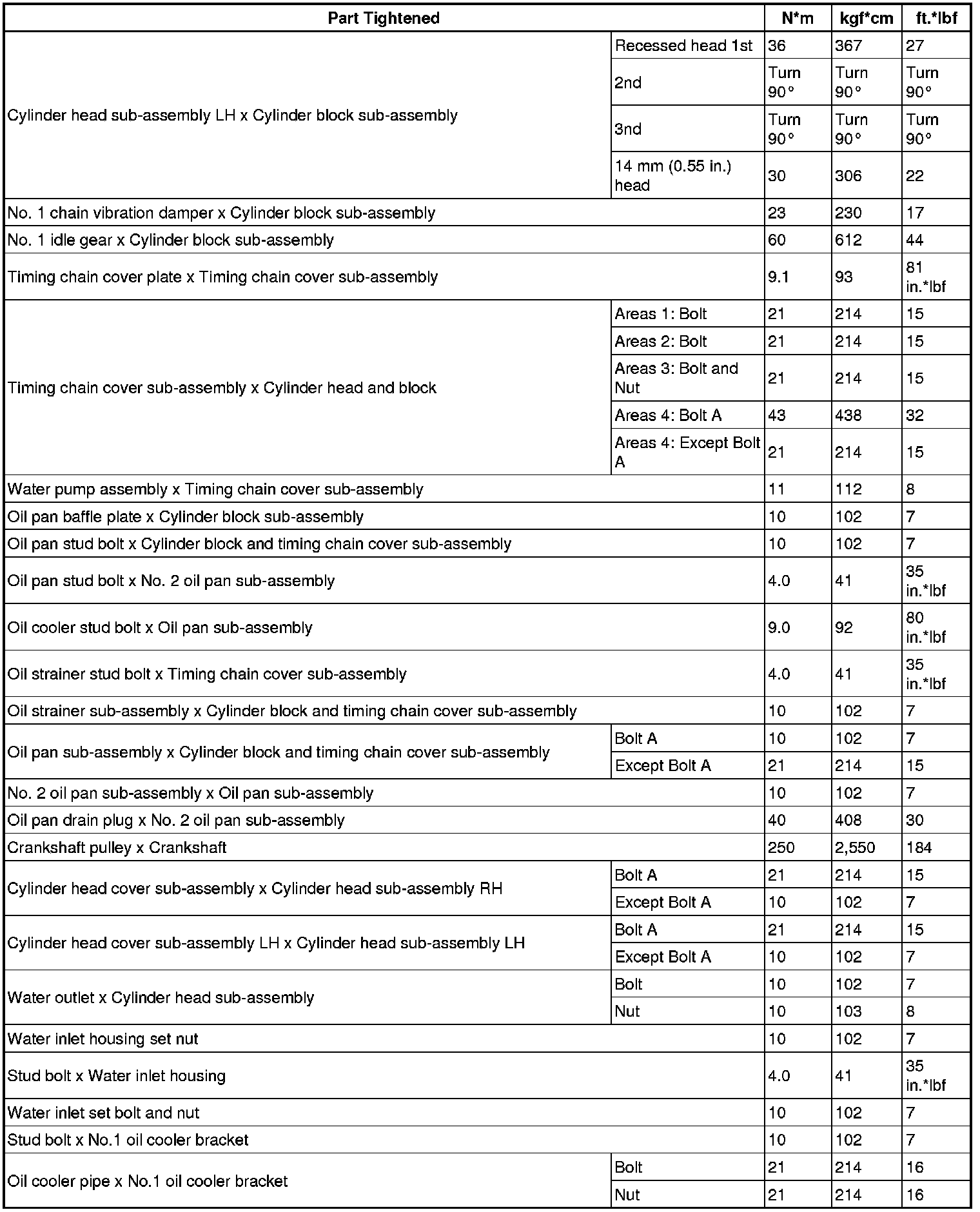

TORQUE SPECIFICATIONS

















Oil pump cover x Timing chain cover 9.1 Nm (93 kgf-cm, 81 in-lb)
