2GR-FE ENGINE CONTROL SYSTEM: EFI RELAY: INSPECTION

INSPECTION

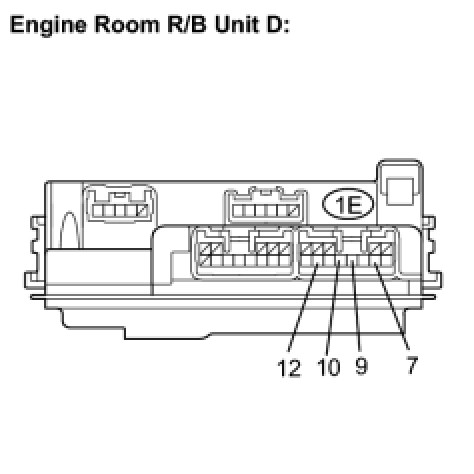

1. INSPECT EFI RELAY





(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.

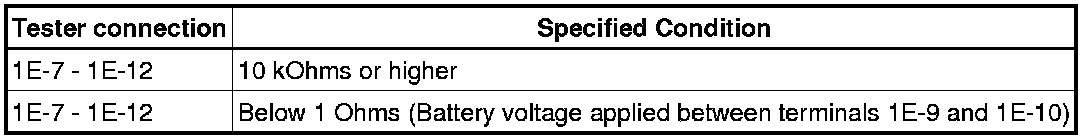

Standard resistance:
