SEAT: SEAT MEMORY SWITCH:
REMOVAL
1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG Disassembly
2. REMOVE FRONT DOOR ARMREST BASE PANEL ASSEMBLY Disassembly
3. REMOVE COURTESY LIGHT ASSEMBLY Disassembly
4. REMOVE DOOR ARMREST COVER Disassembly
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
6. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP Disassembly
7. REMOVE SEAT MEMORY SWITCH

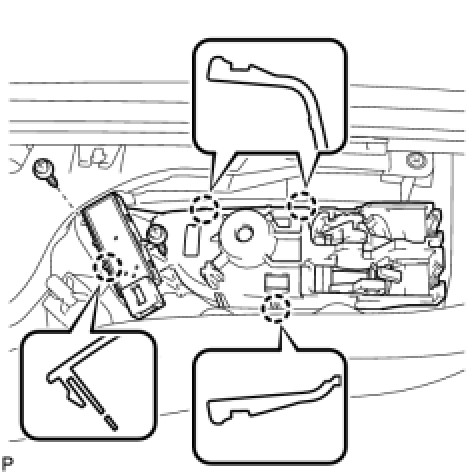

(a) Remove the 2 screws.
(b) Disengage the 4 claws of the inside handle.
HINT: The inside handle cannot be removed from the trim board sub-assembly.

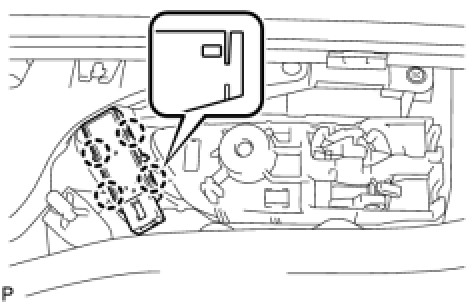

(c) Disengage the 4 claws, and remove the seat memory switch.
