ECM Power Source Circuit

CIRCUIT DESCRIPTION
When the ignition switch is turned ON, battery positive voltage is applied to the coil, closing the contacts of the EFI main relay (Marking: EFI) and supplying power to the terminal +B of the ECM.

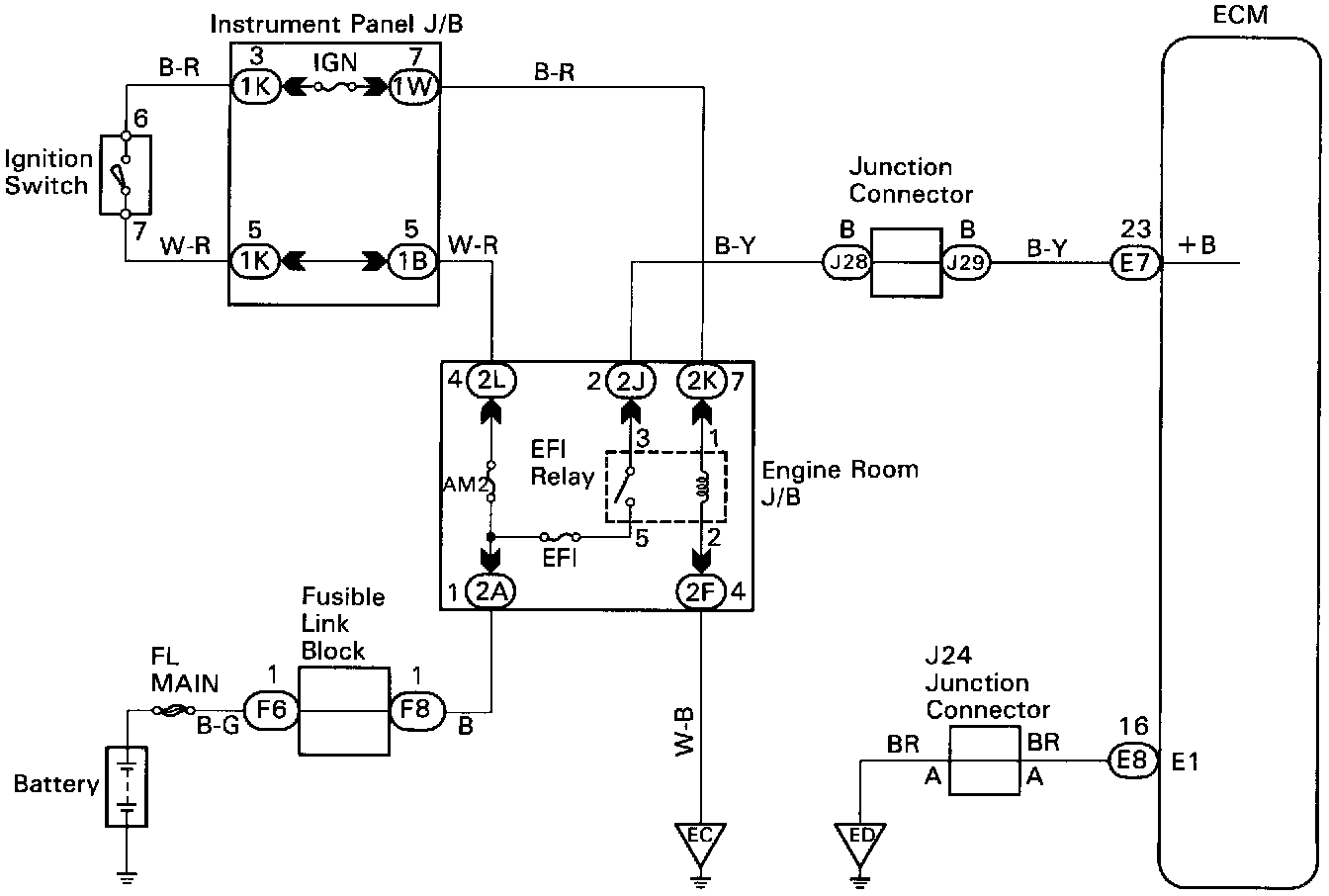

WIRING DIAGRAM

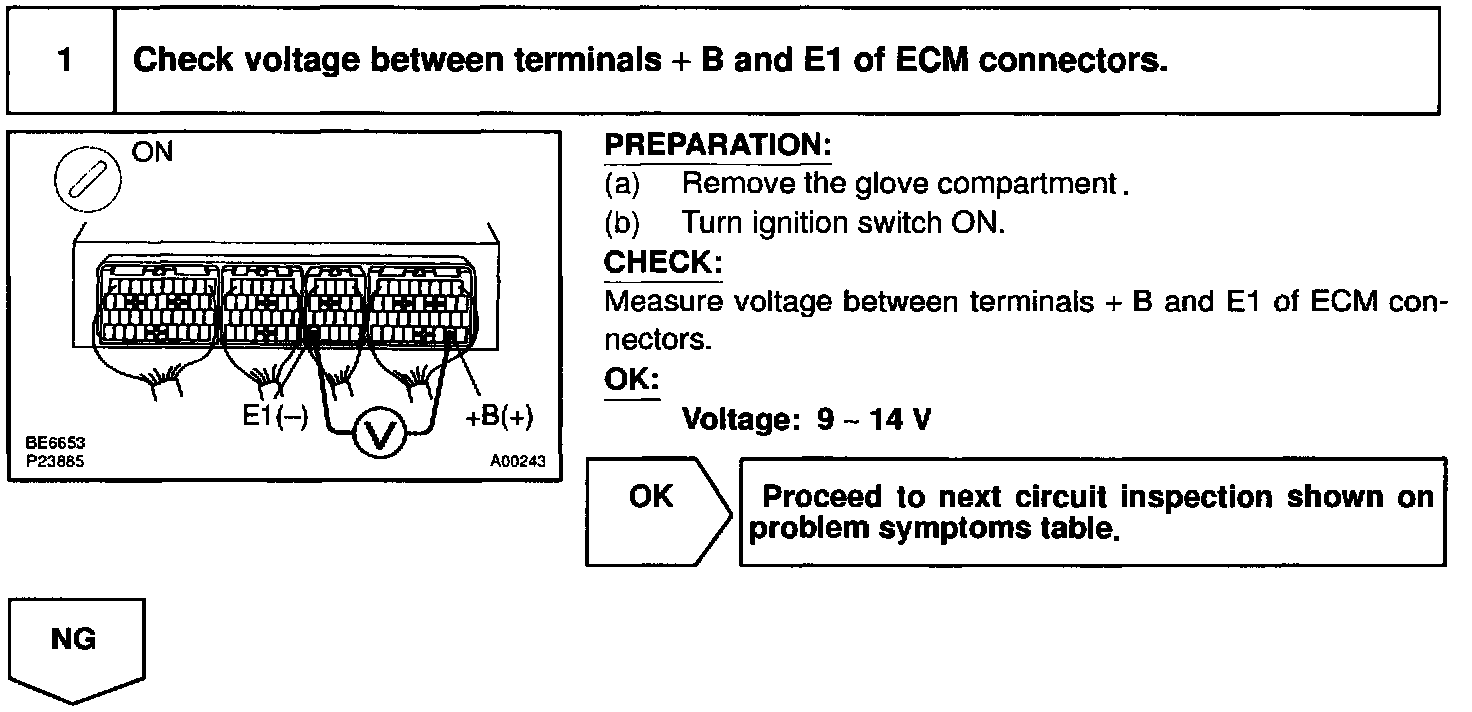

Step 1:

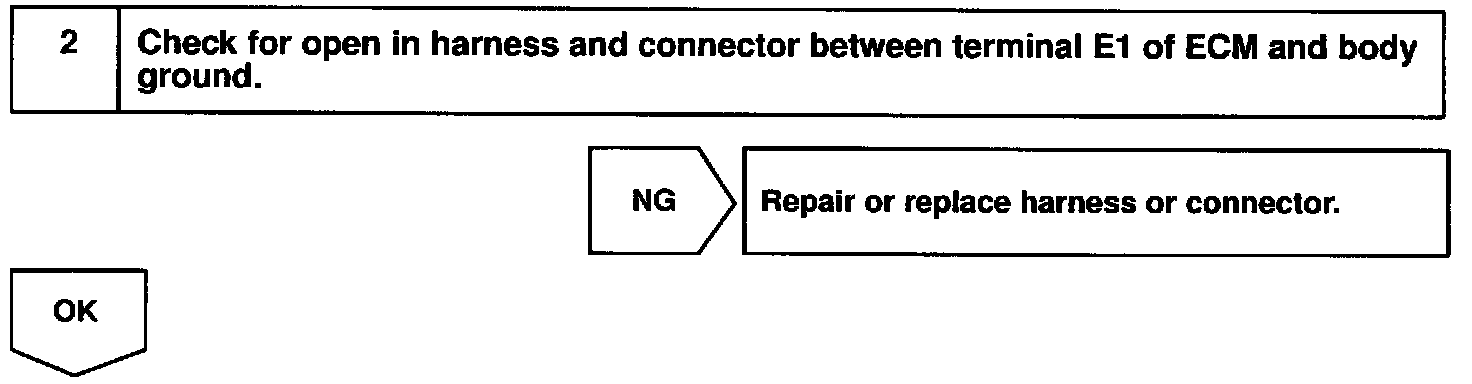

Step 2:

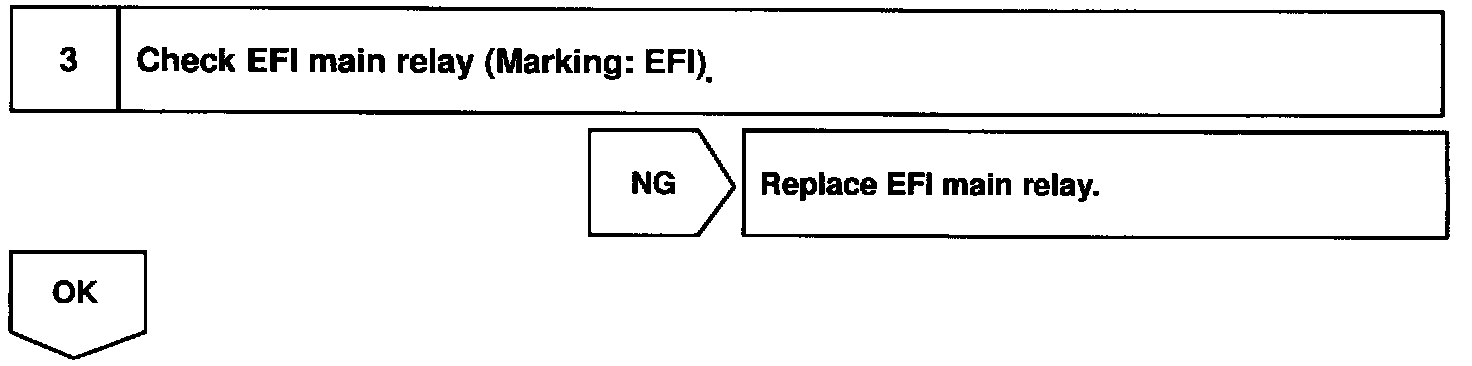

Step 3:

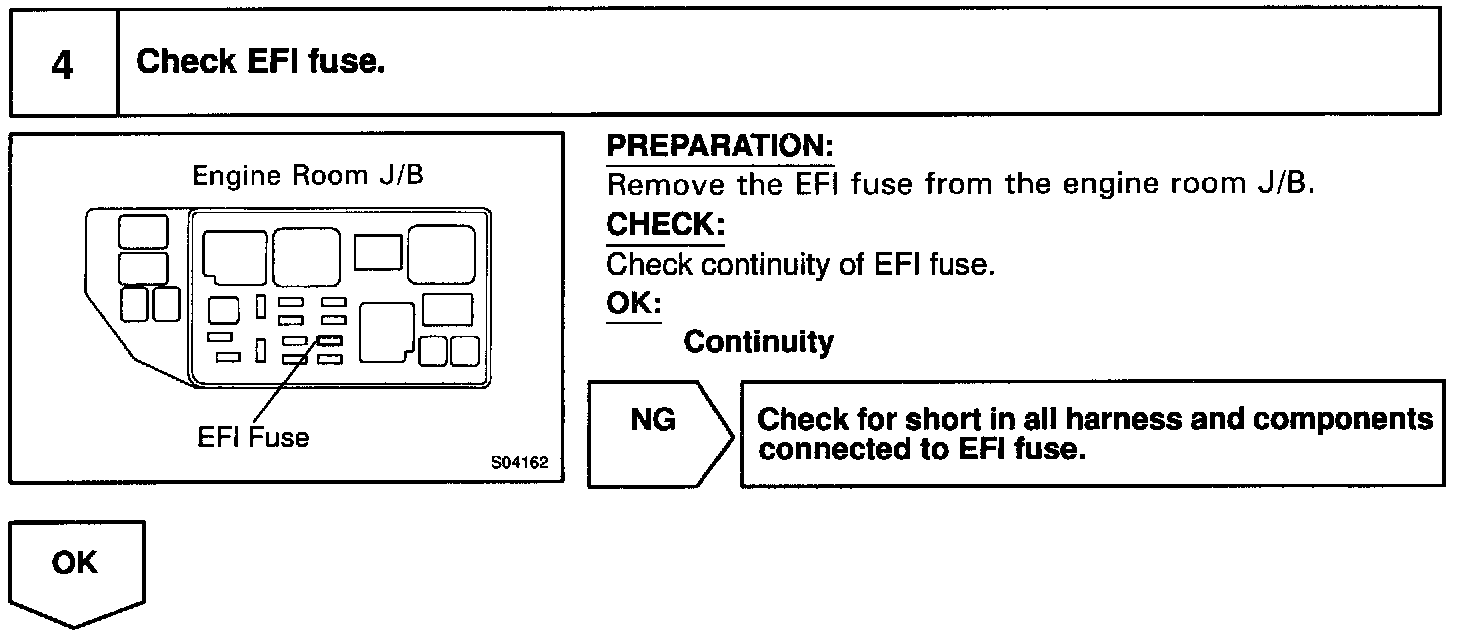

Step 4:




Step 5:

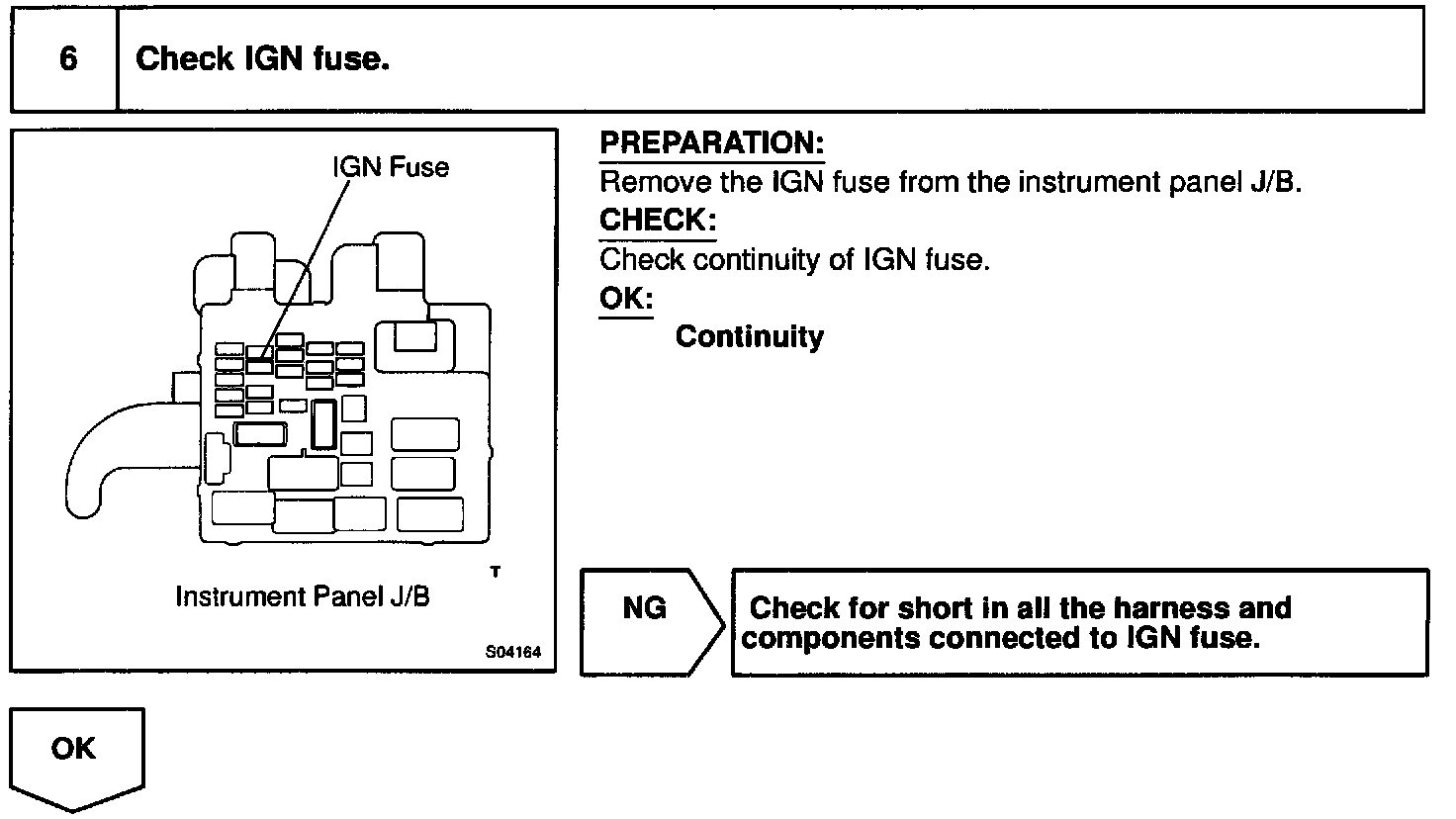

Step 6:

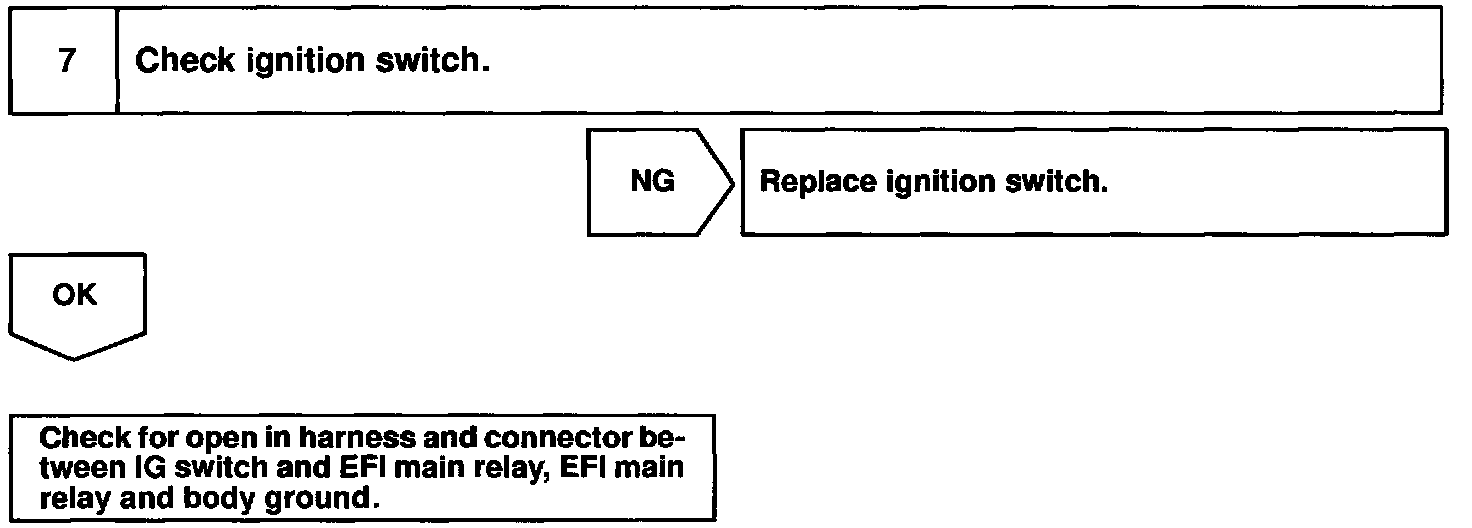

Step 7:





INSPECTION PROCEDURE
