Ignition Switch: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1985 Jaguar.

AI Repair Guides


Remove and Refit

- Disconnect the battery.

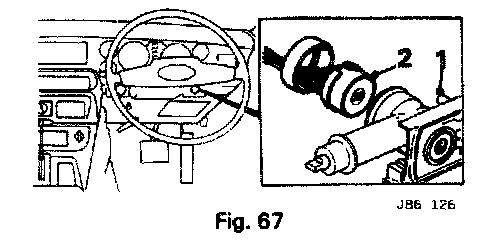

- Slacken the ignition lock cover shroud screws and remove the shroud from the fibre optic (1, Fig. 67).

- Disconnect the switch multi-plug connector (2. Fig. 67).

- Remove the switch to lock retaining screw, displace the plastic cover and remove the switch assembly.
