Intake Manifold

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2010 Honda.

AI Repair Guides

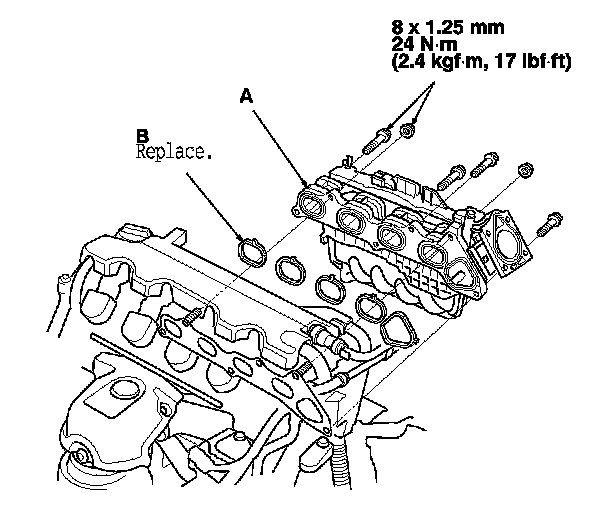

Install the intake manifold (A) with new gaskets (B), and tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.

Raise the vehicle on the lift.

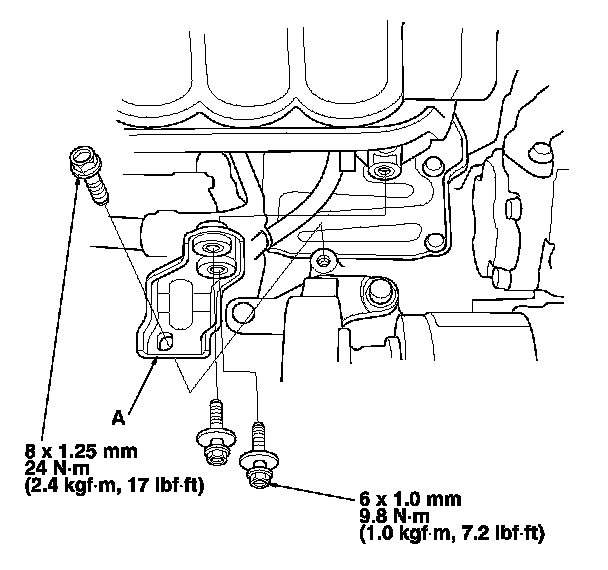

Install the intake manifold bracket (A).

Lower the vehicle on the lift.
