Dashlights Brightness Controller and Odometer Select/Reset Switch Test/Replacement
1. Remove the subdisplay visor Subdisplay Visor Removal/Installation and disconnect the connectors.

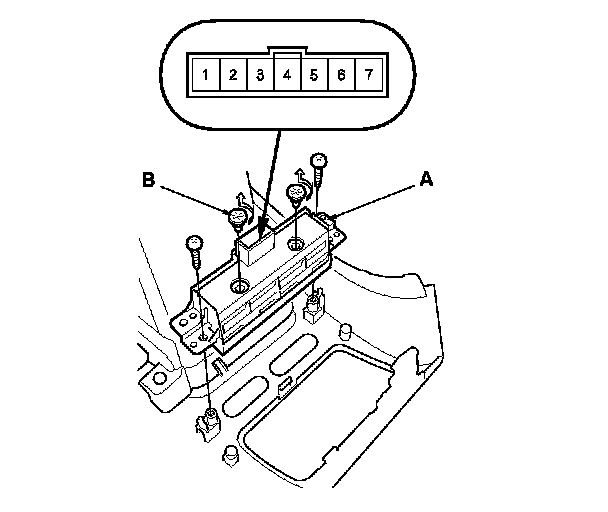

2. Remove the two screws and the dashlights brightness controller and odometer select/reset switch (A).

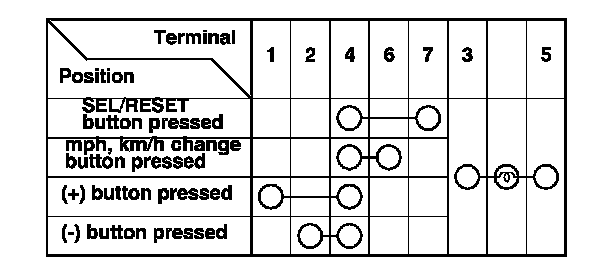

3. Check for continuity between the terminals in each switch position according the table.
4. If the continuity is not as specified, replace the bulbs (B) or the dashlights brightness controller and odometer select/reset switch.
5. Install the dashlights brightness controller and odometer select/reset switch in the reverse order of removal.
