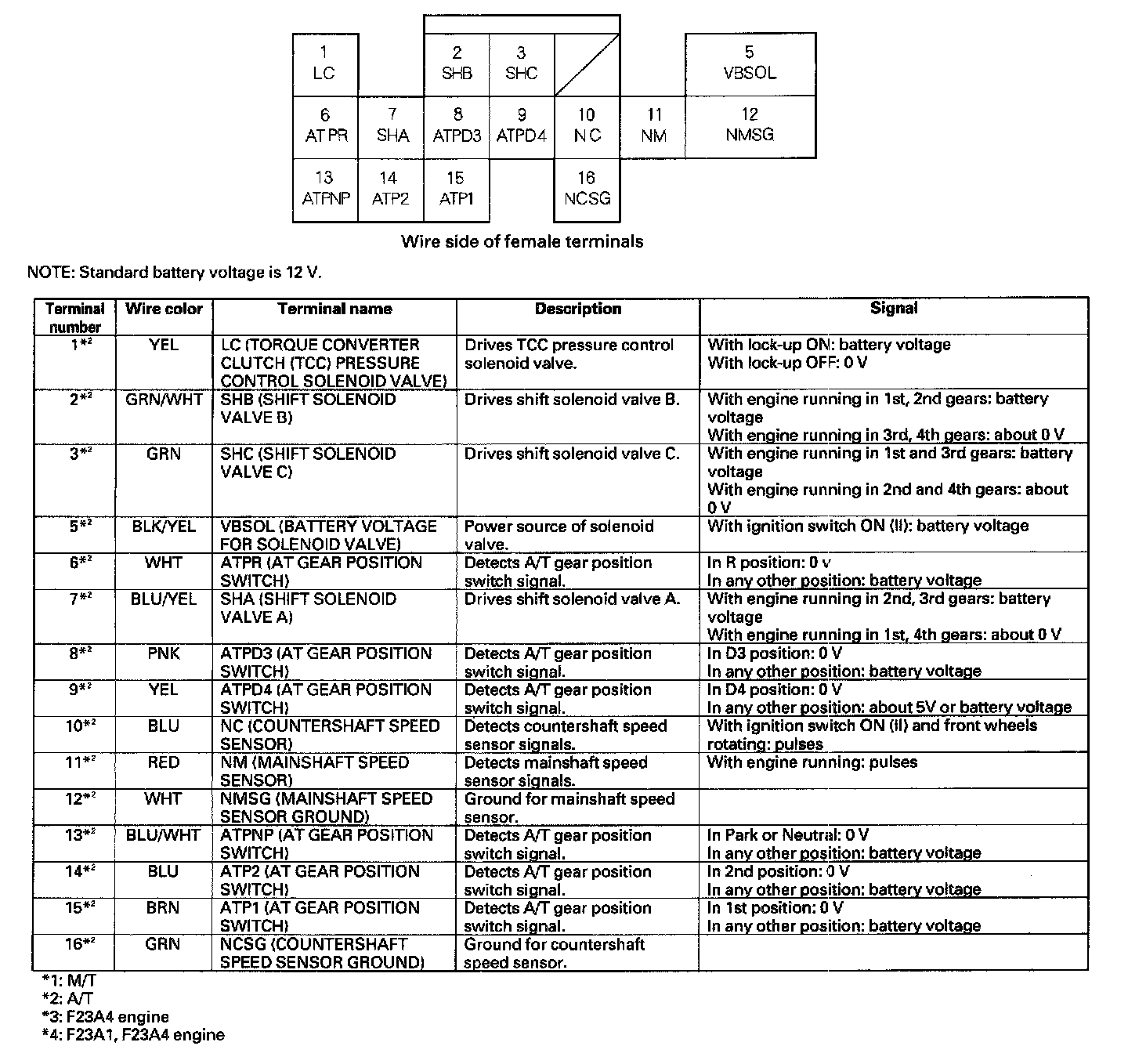

ECM/PCM Inputs And Outputs At Connector A (32P) Part 1:
ECM/PCM Inputs And Outputs At Connector A (32P) Part 2:

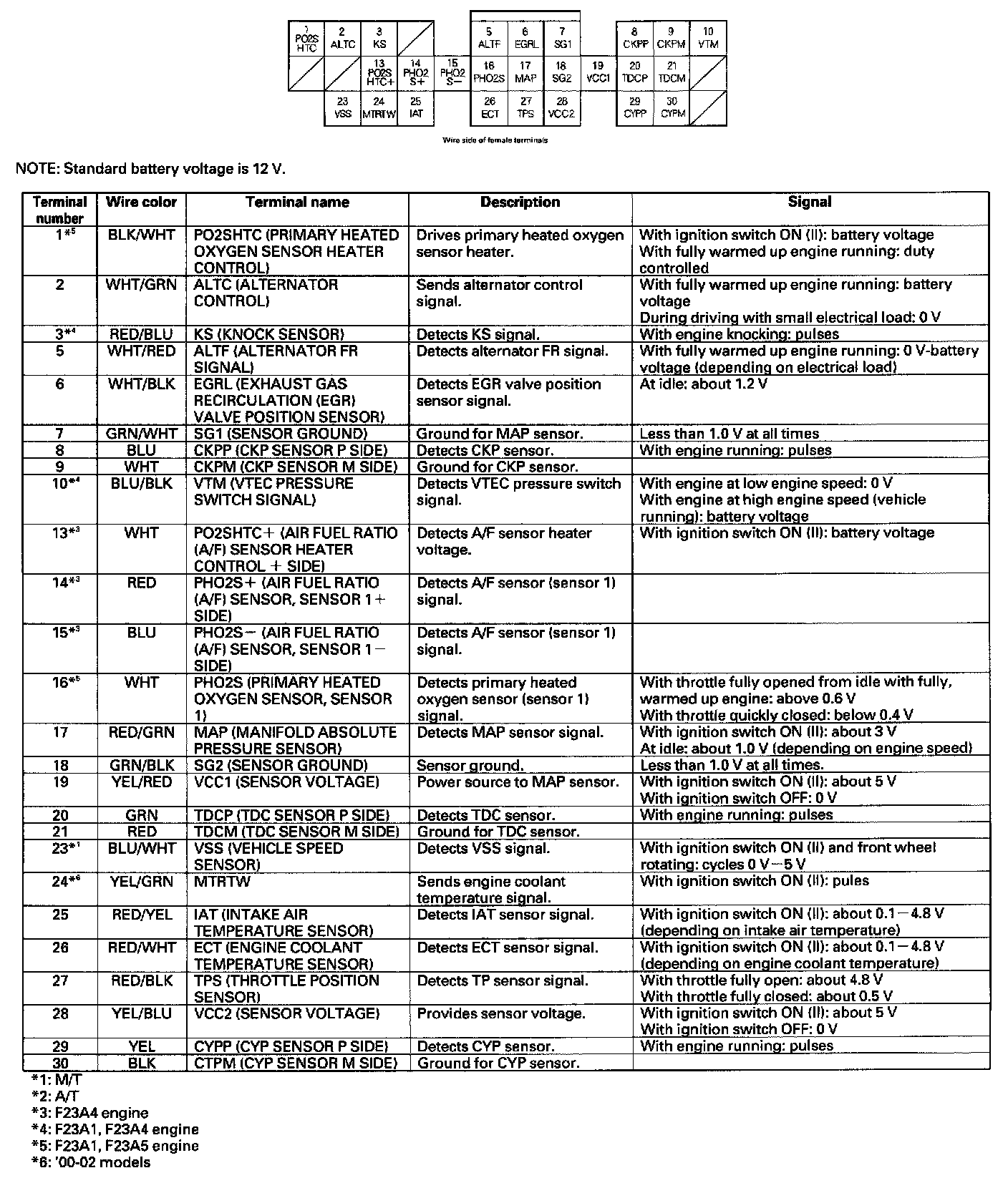

ECM/PCM Inputs And Outputs At Connector B (25P):

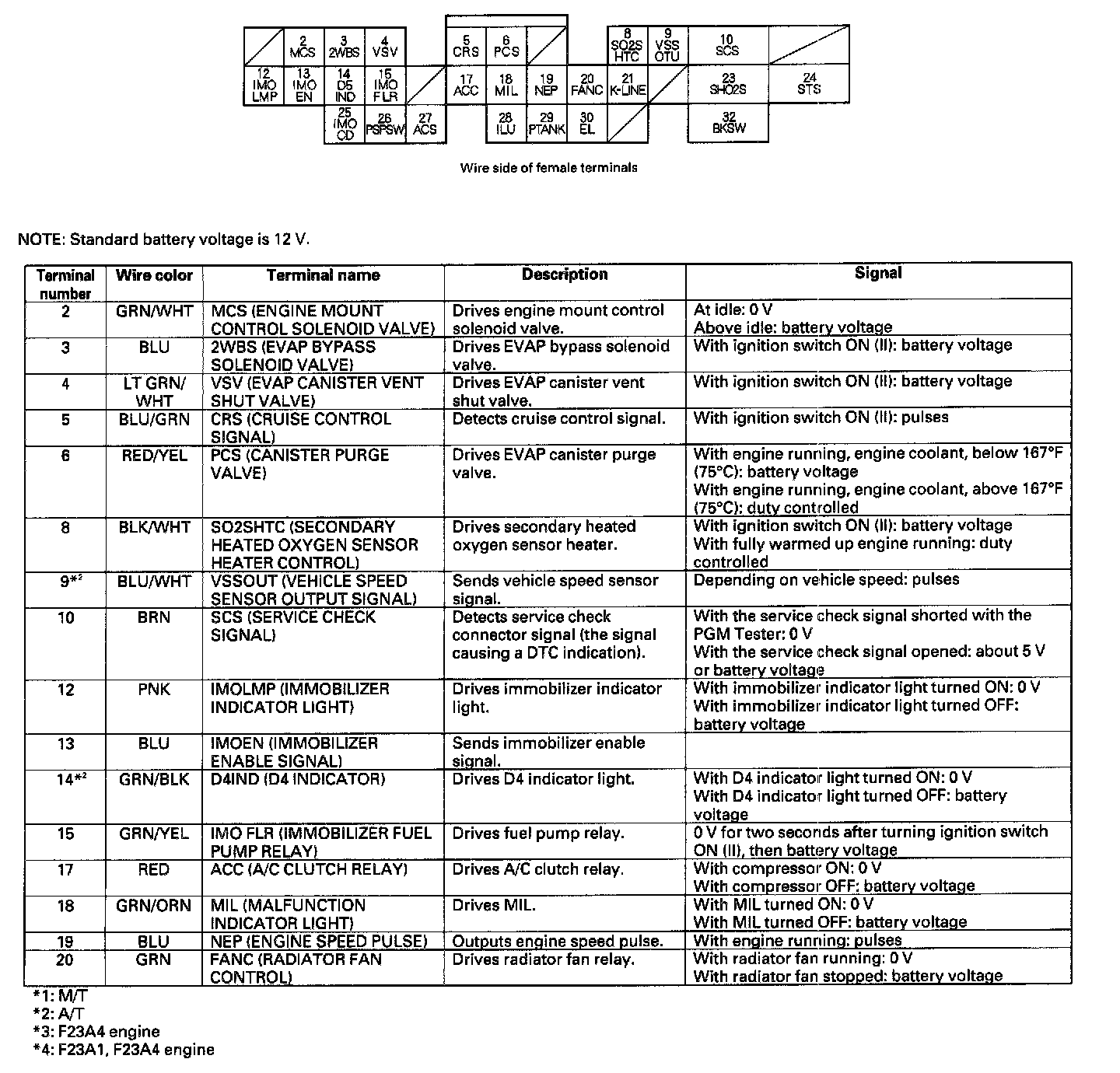

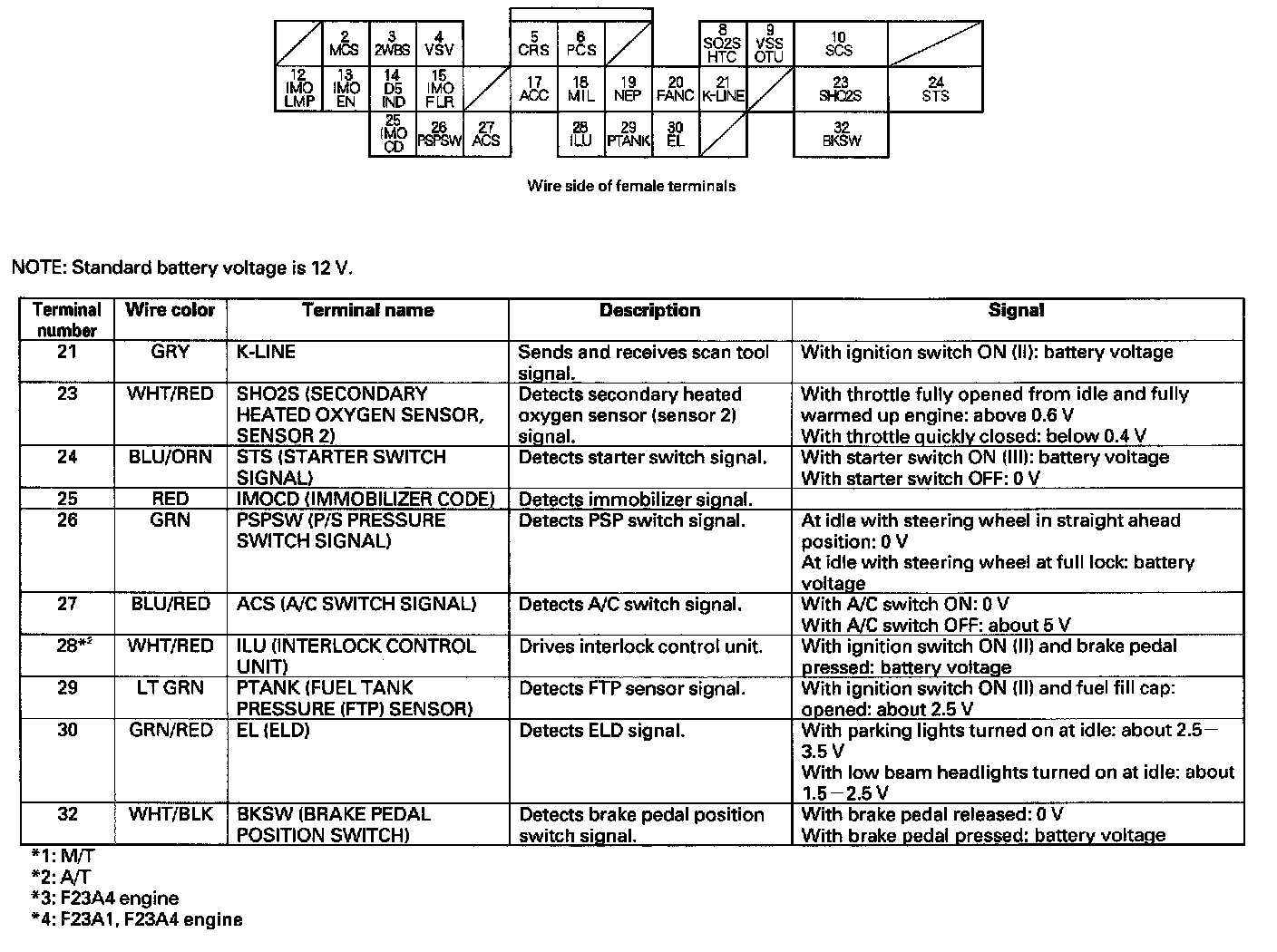

ECM/PCM Inputs And Outputs At Connector C (31P):

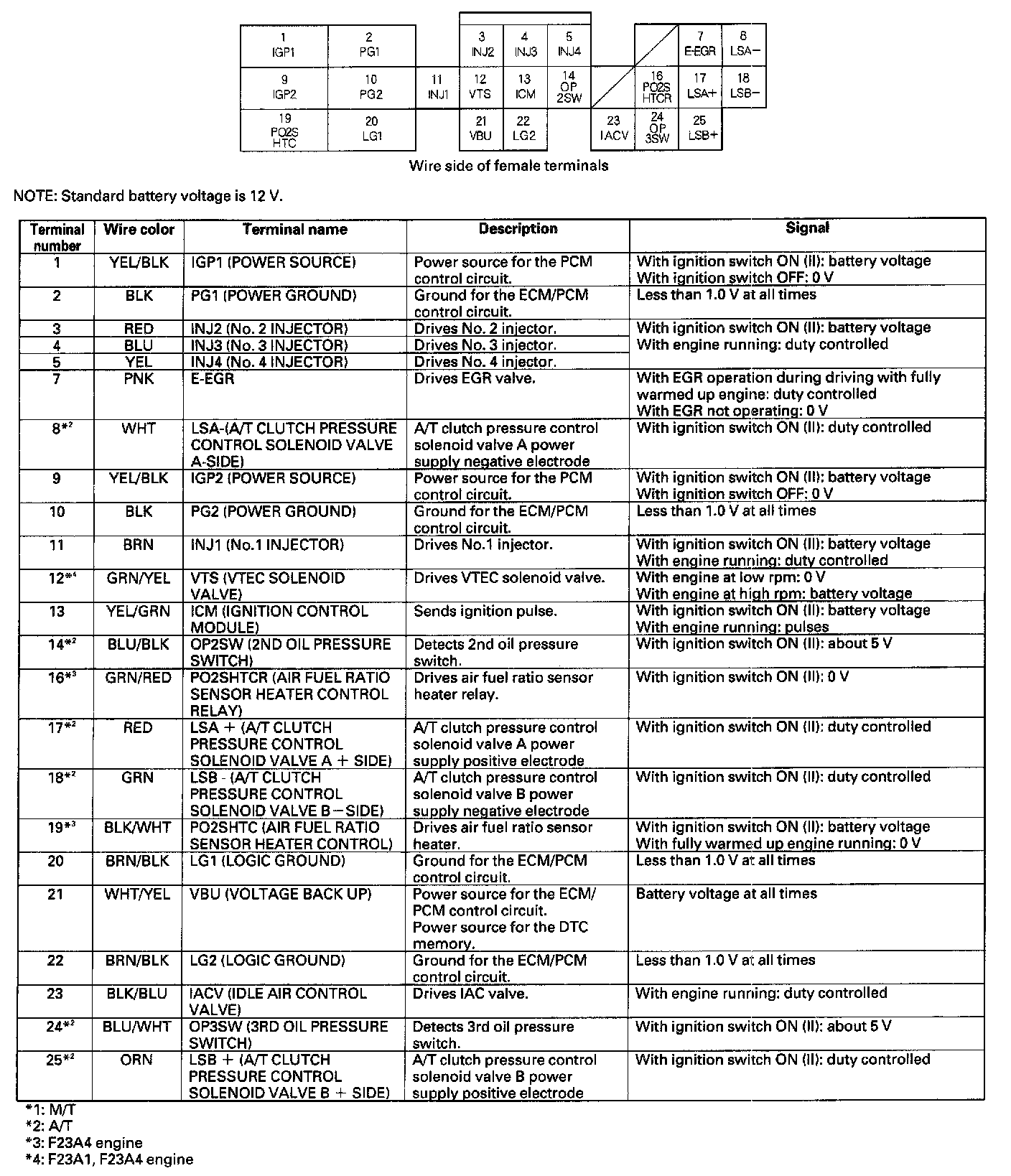

ECM/PCM Inputs And Outputs At Connector D (16P):
