Electronic Brake Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2000 Honda.

AI Repair Guides

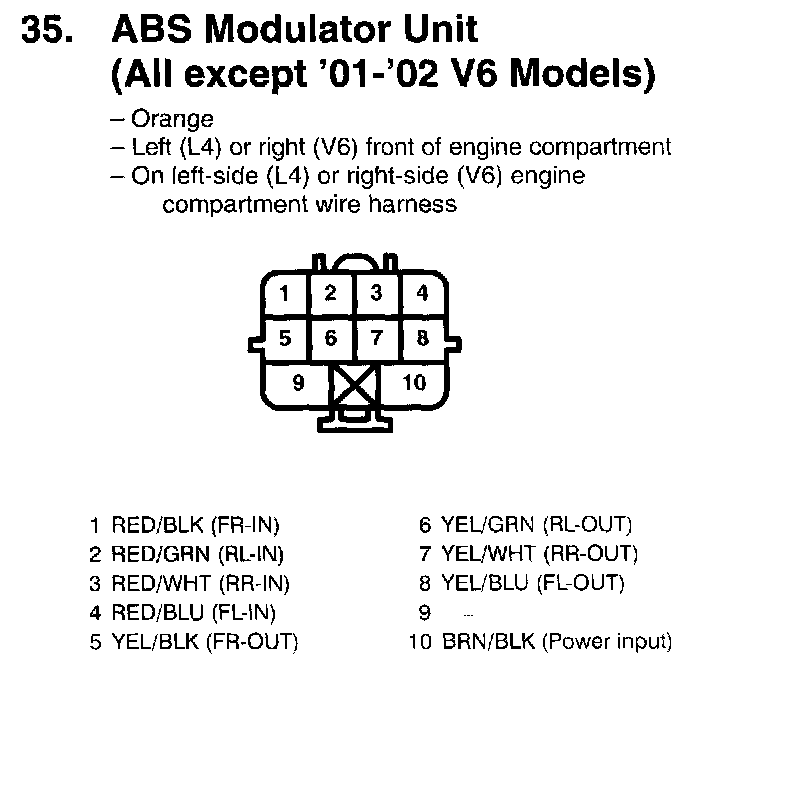

35. ABS Modulator Unit:

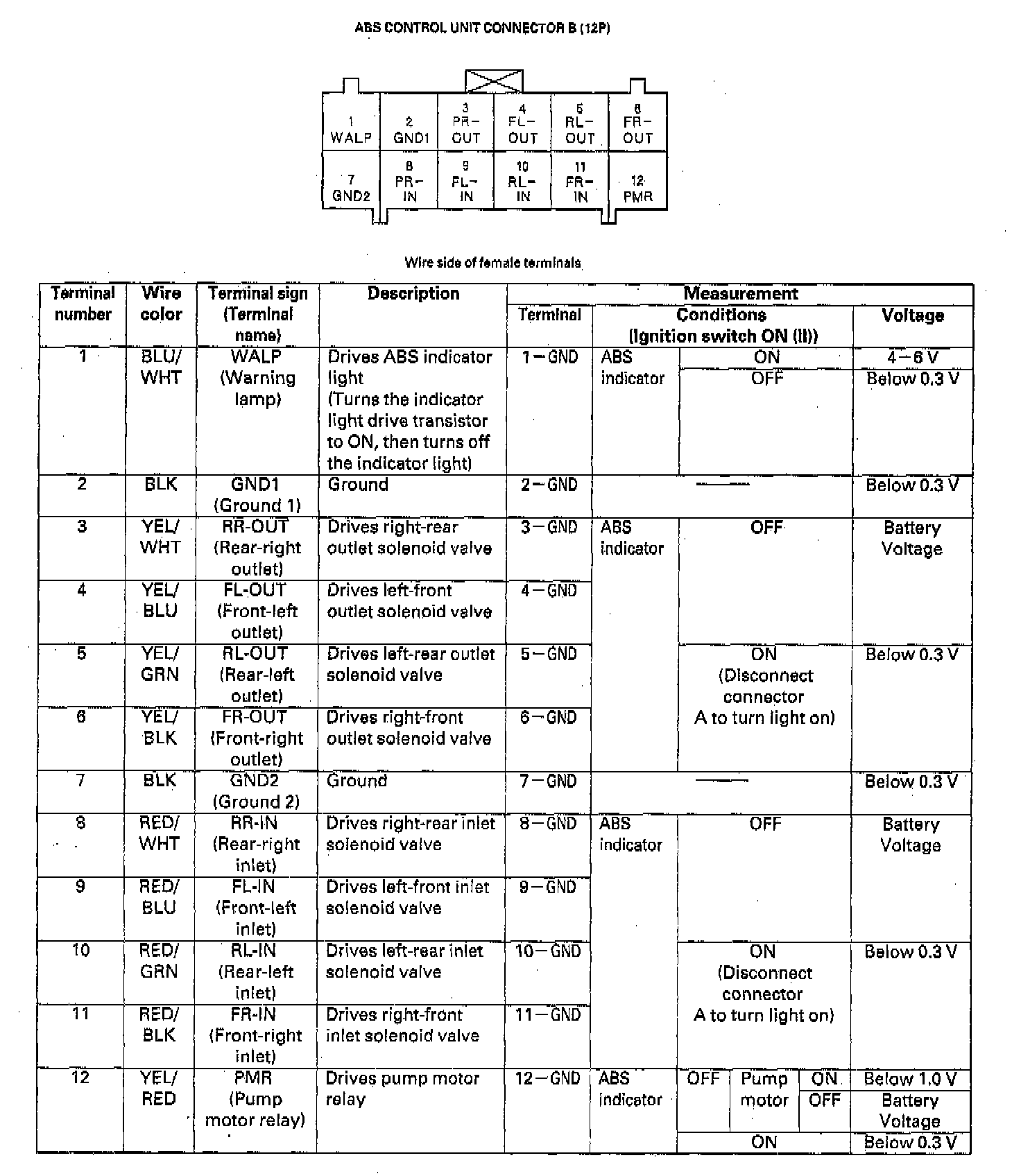

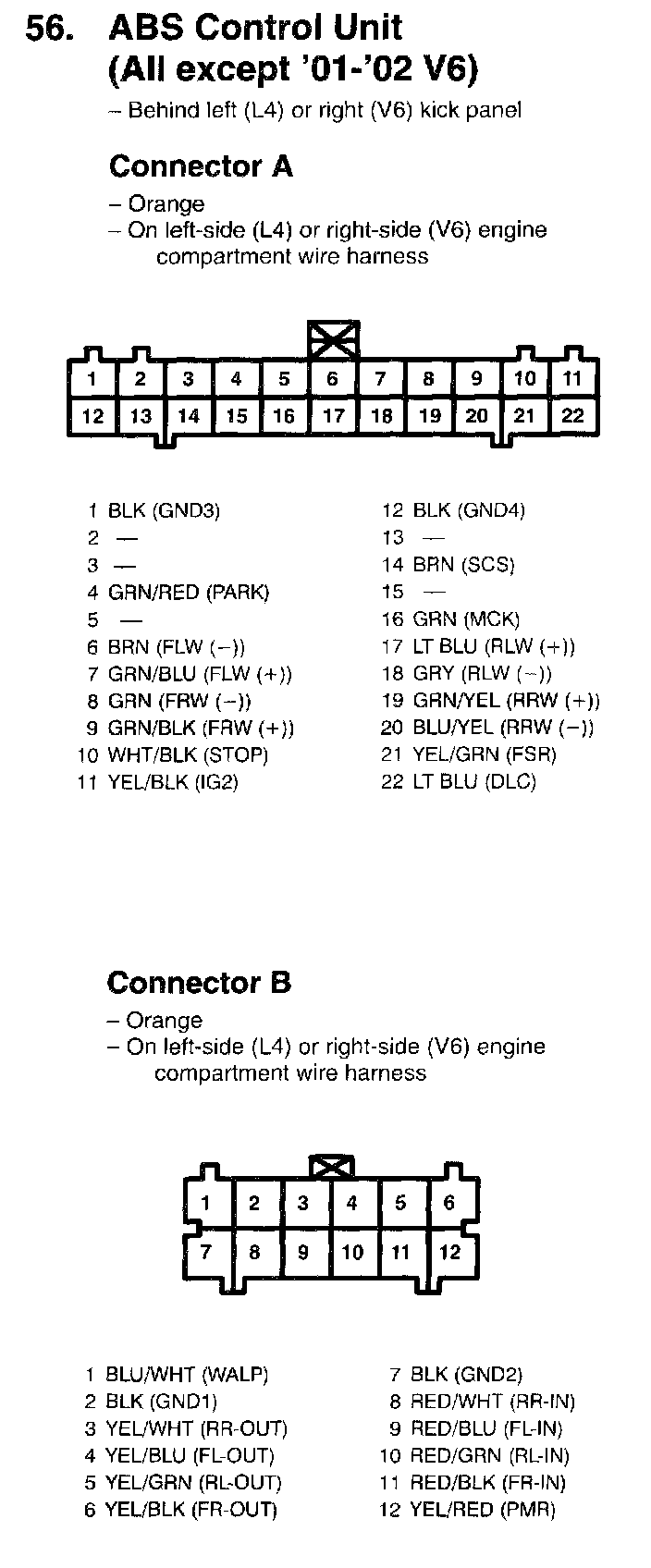

56. ABS Control Unit Connectors A, B:

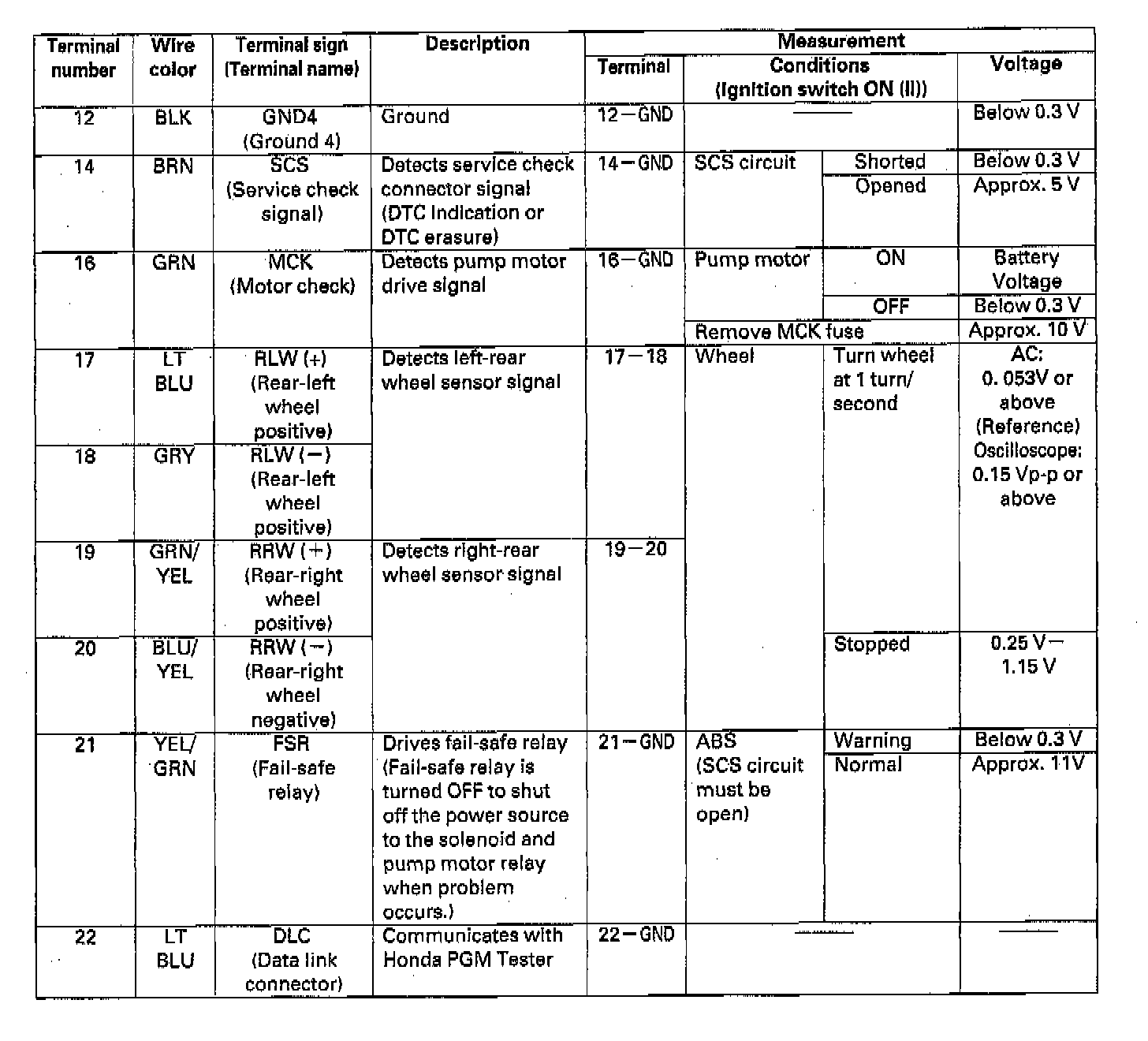

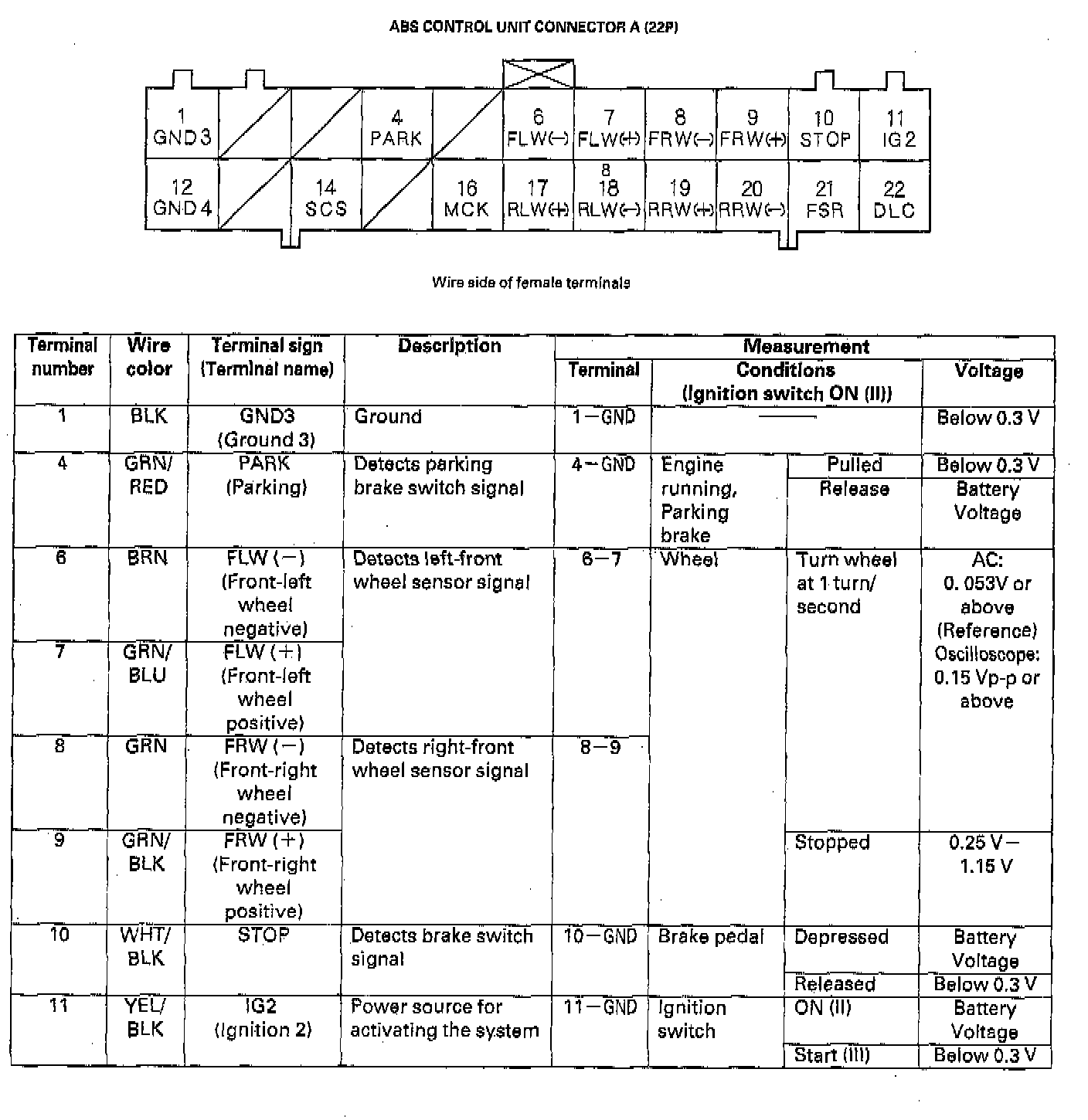

Part 1 Of 2:



Part 2 Of 2:
