Air Bag Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2000 Honda.

AI Repair Guides

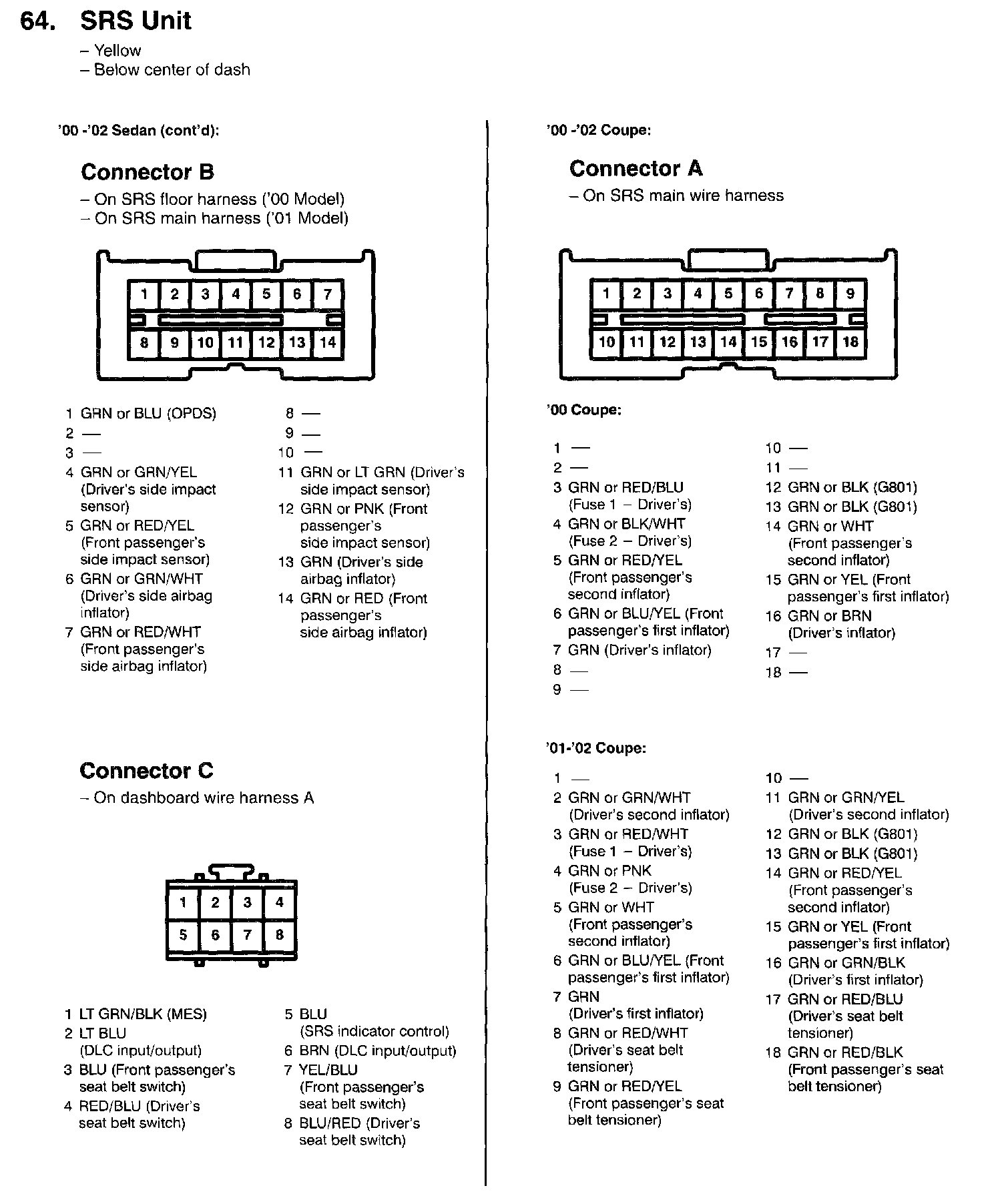

64. SRS Unit Connectors:

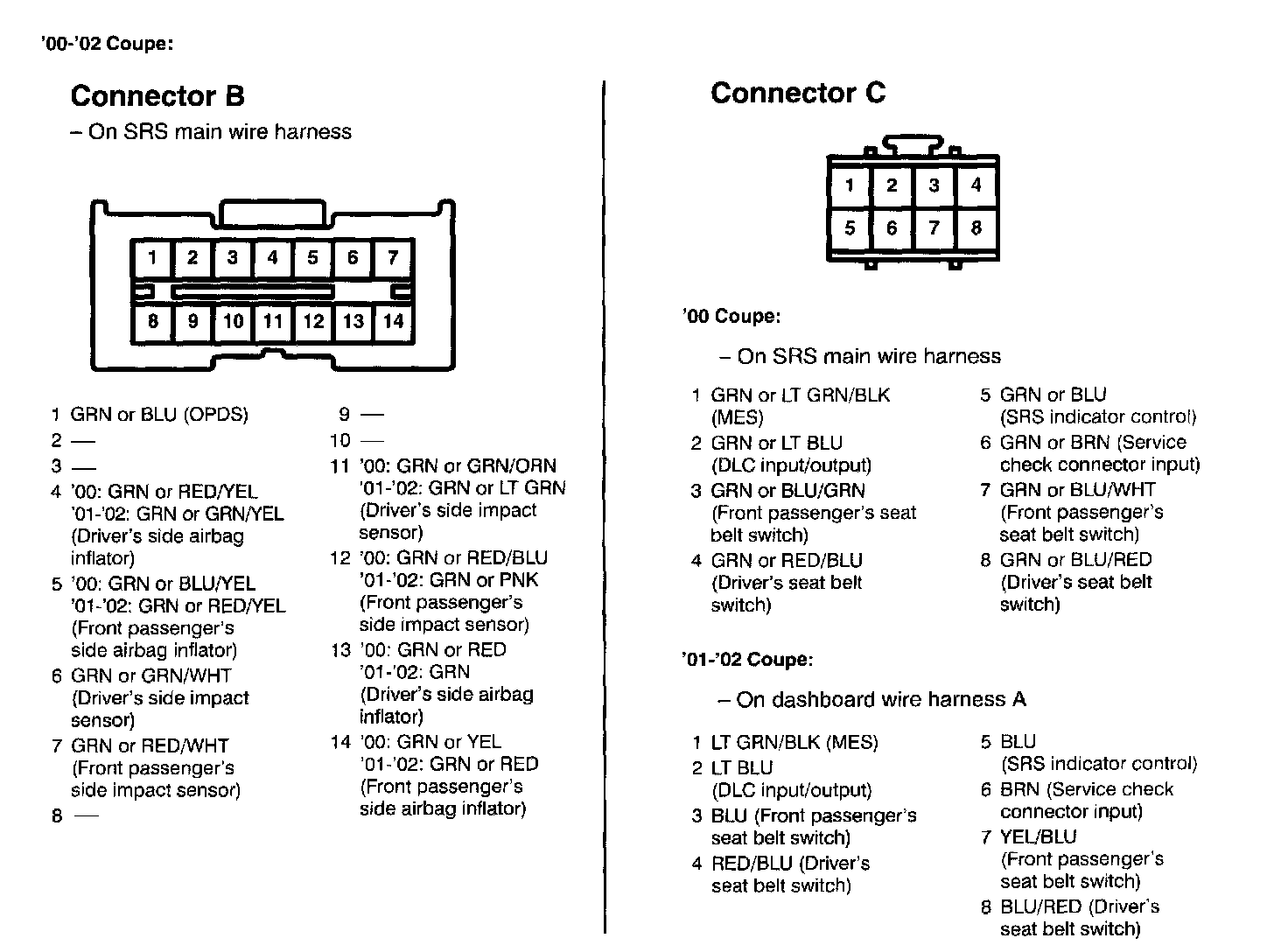

64. SRS Unit Connectors:

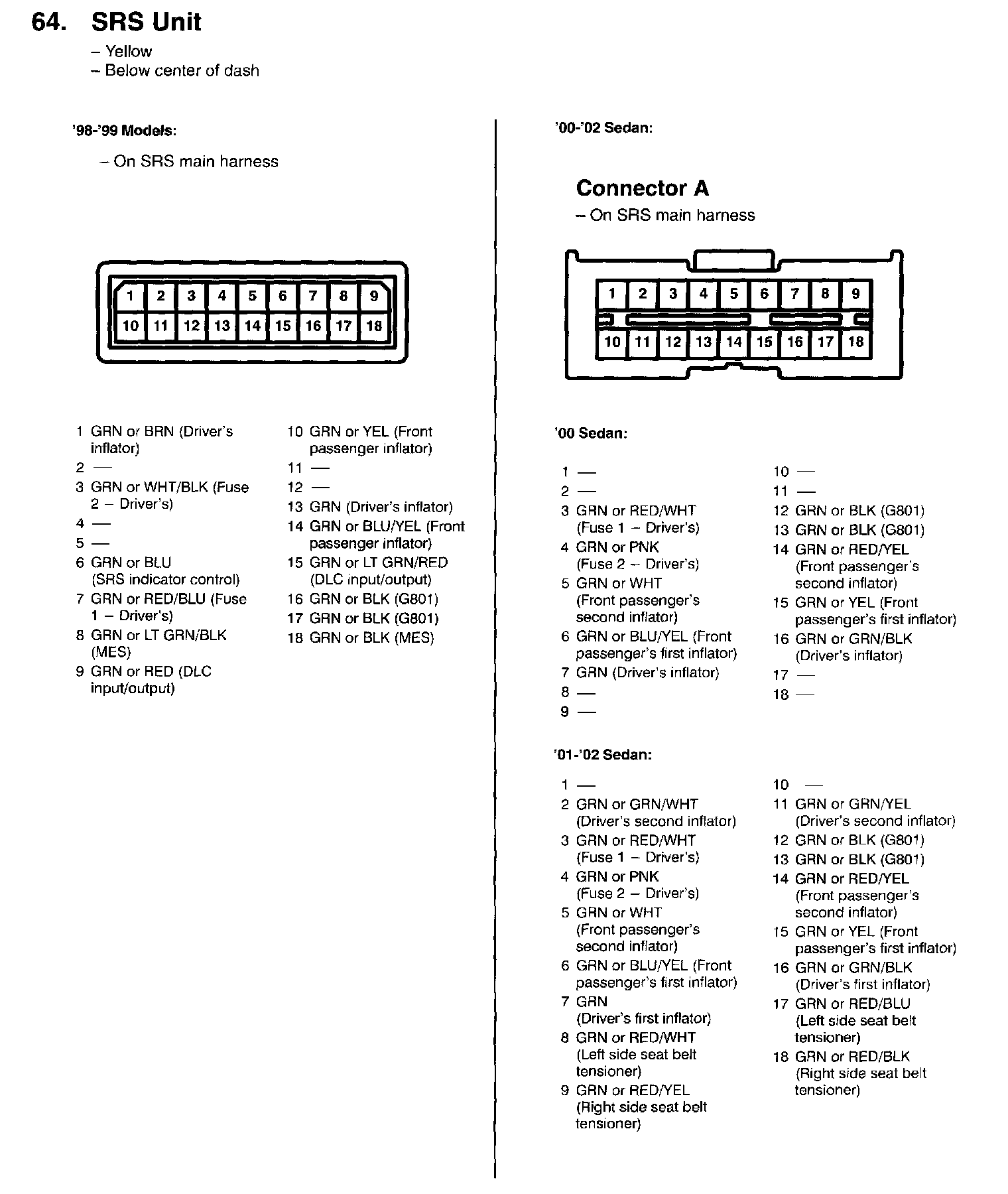

64. SRS Unit Connectors:

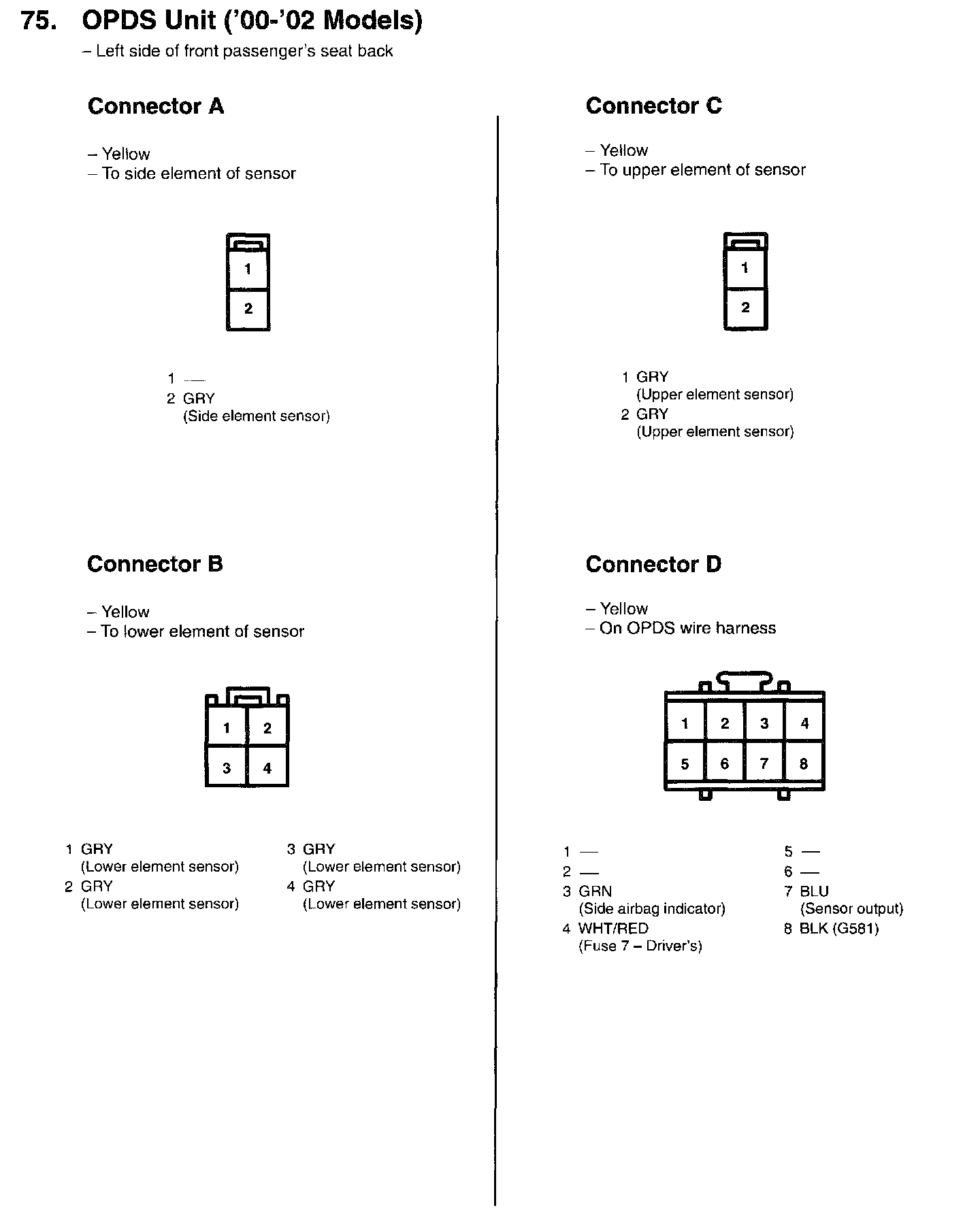

75. OPDS Unit Connectors:
