Lock-Up System

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1995 Honda.

AI Repair Guides
From sensor input signals, the TCM determines whether to turn the lock-up "ON" or "OFF" and activates lock-up control solenoid valve A and/or B accordingly.

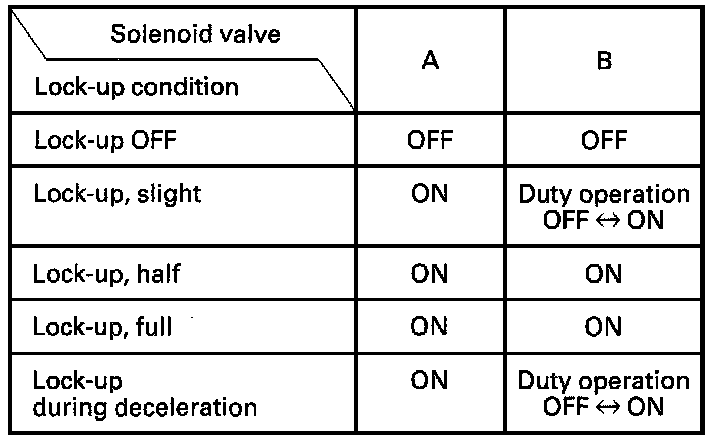

The combination of driving signals to lock-up control solenoid valves A and B is shown in the table.
← Back to Description and OperationAll Makes
