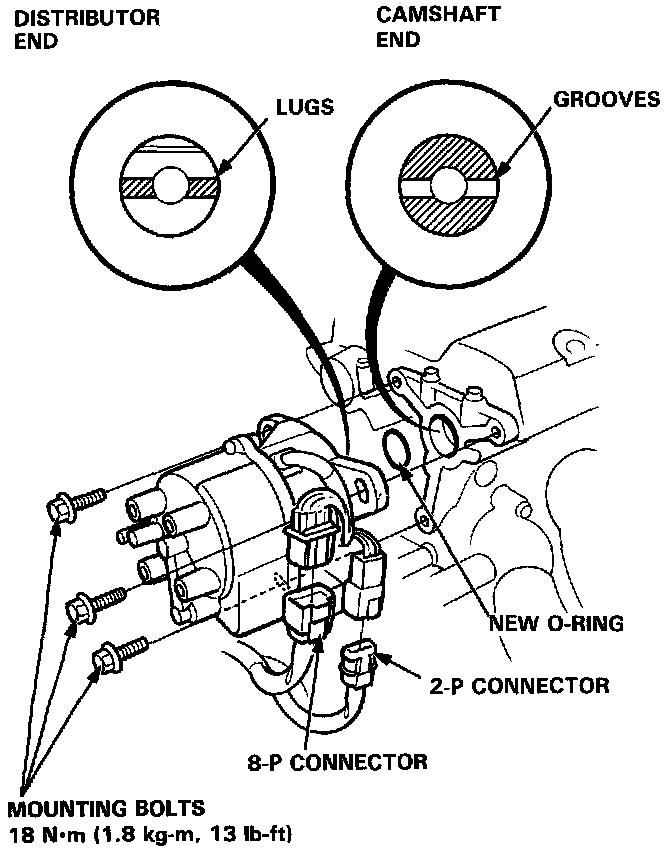

2. Slip the Distributor into position.
NOTE: The Lugs on the end of the Distributor and their mating grooves in the Camshaft end are both offset to eliminate the possibility of installing the Distributor 180° out of time.
3. Install the Mounting Bolts, and tighten them lightly.
4. Connect the 2 P and 8 P Connectors to the Distributor.

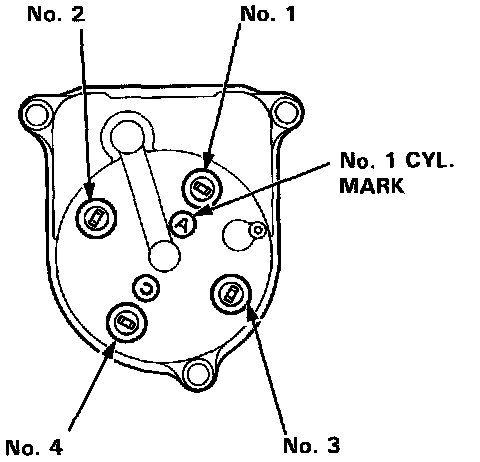

5. Connect the Ignition Wires as shown.
6. Set the Timing with a Timing Light.
7. After setting the Timing, tighten the Mounting Bolts.
