Reassembly

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1995 Honda.

AI Repair Guides
Reassemble the Distributor Shaft and Ignition Housing in the reverse order of disassembly.

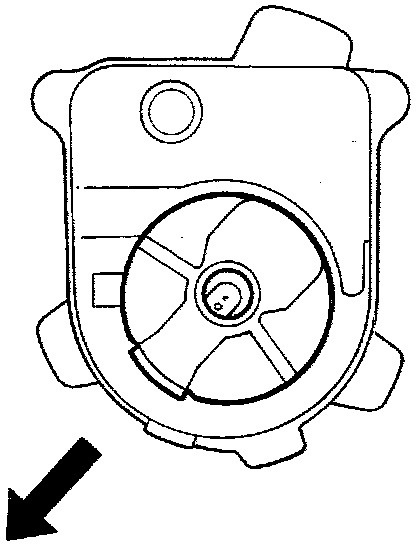

Rotor:




1. Install the Rotor, then turn it so that it faces in the direction shown (toward the No.1 Cylinder).
2. Slip the Thrust Washer and Coupling onto the Shaft.

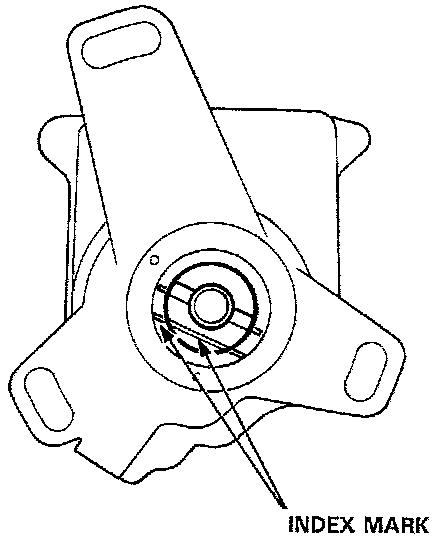

Index Mark:




3. Check that the Rotor is still pointing toward the No.1 Cylinder, then align the index mark on the Housing with the index mark on the Coupling.
4. Drive in the Pin and secure it with the Pin Retainer.
