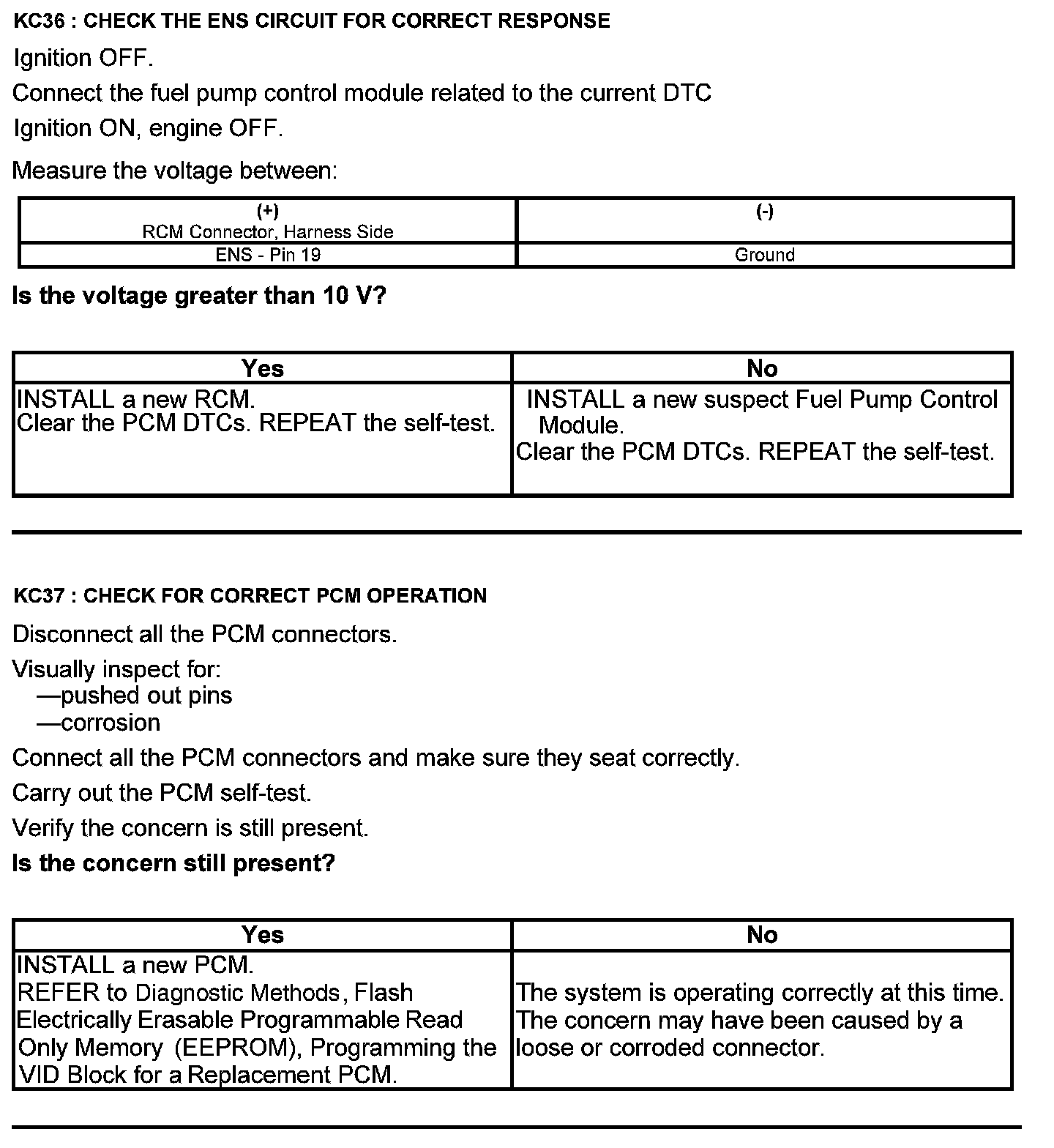

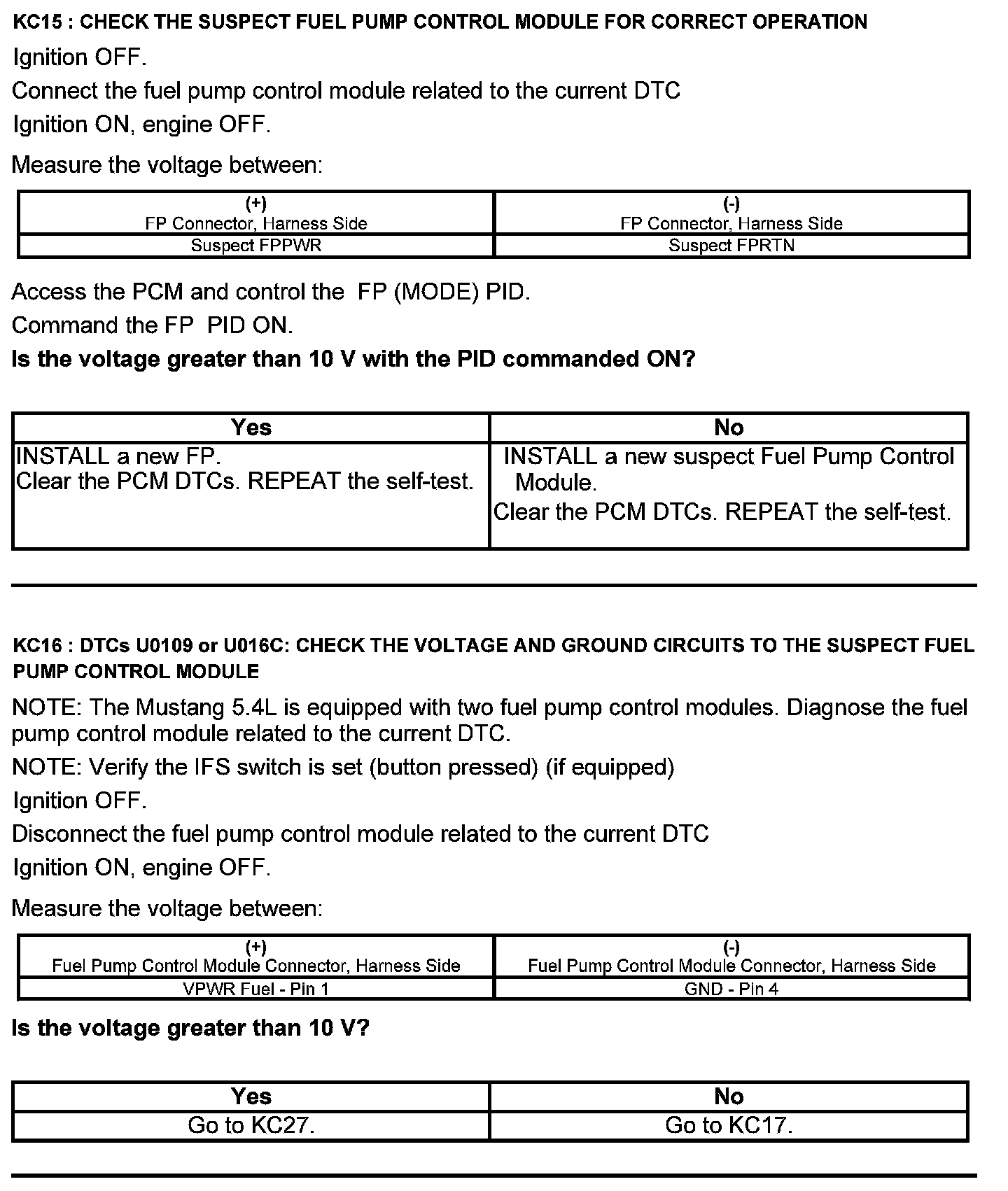

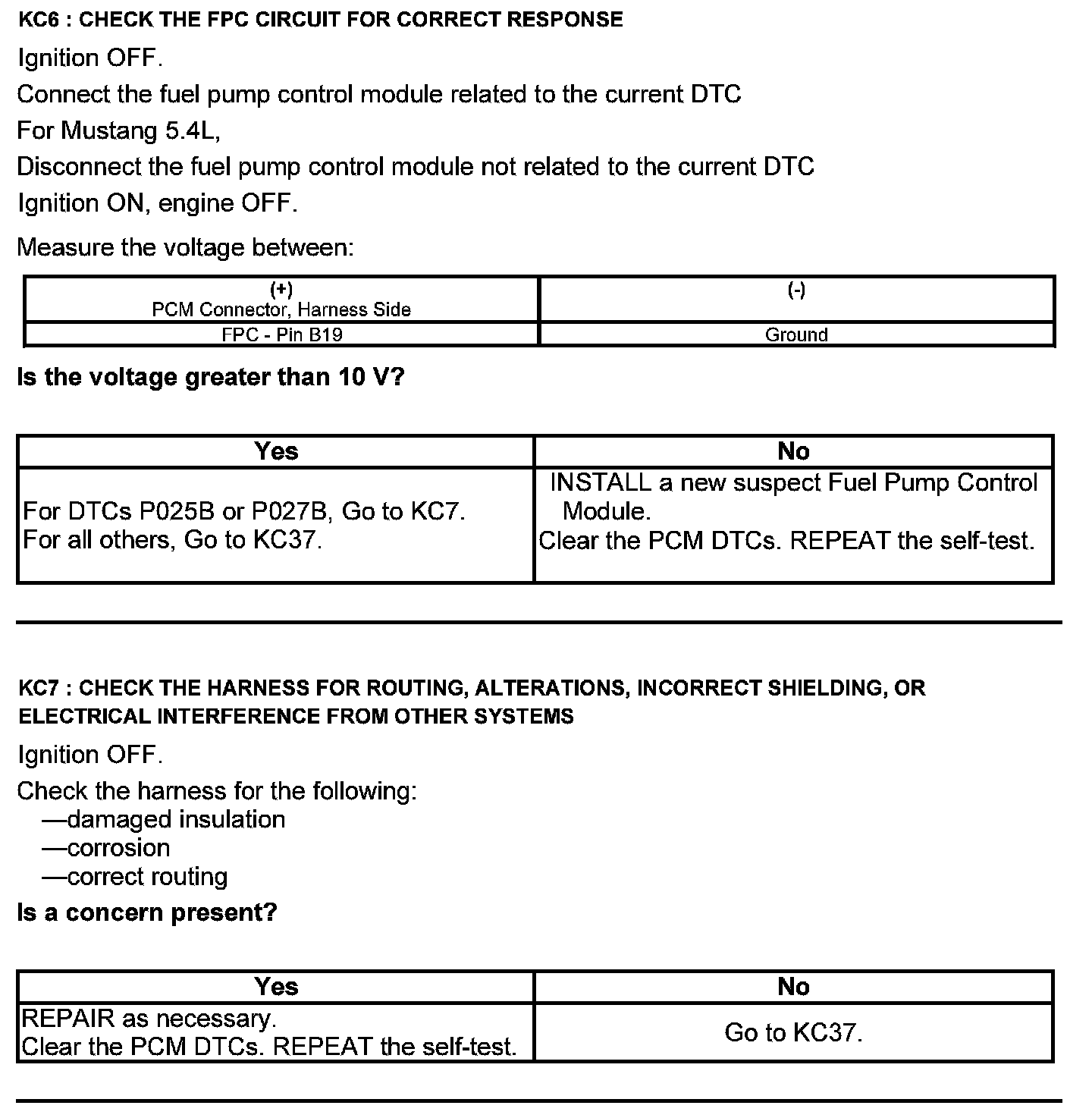

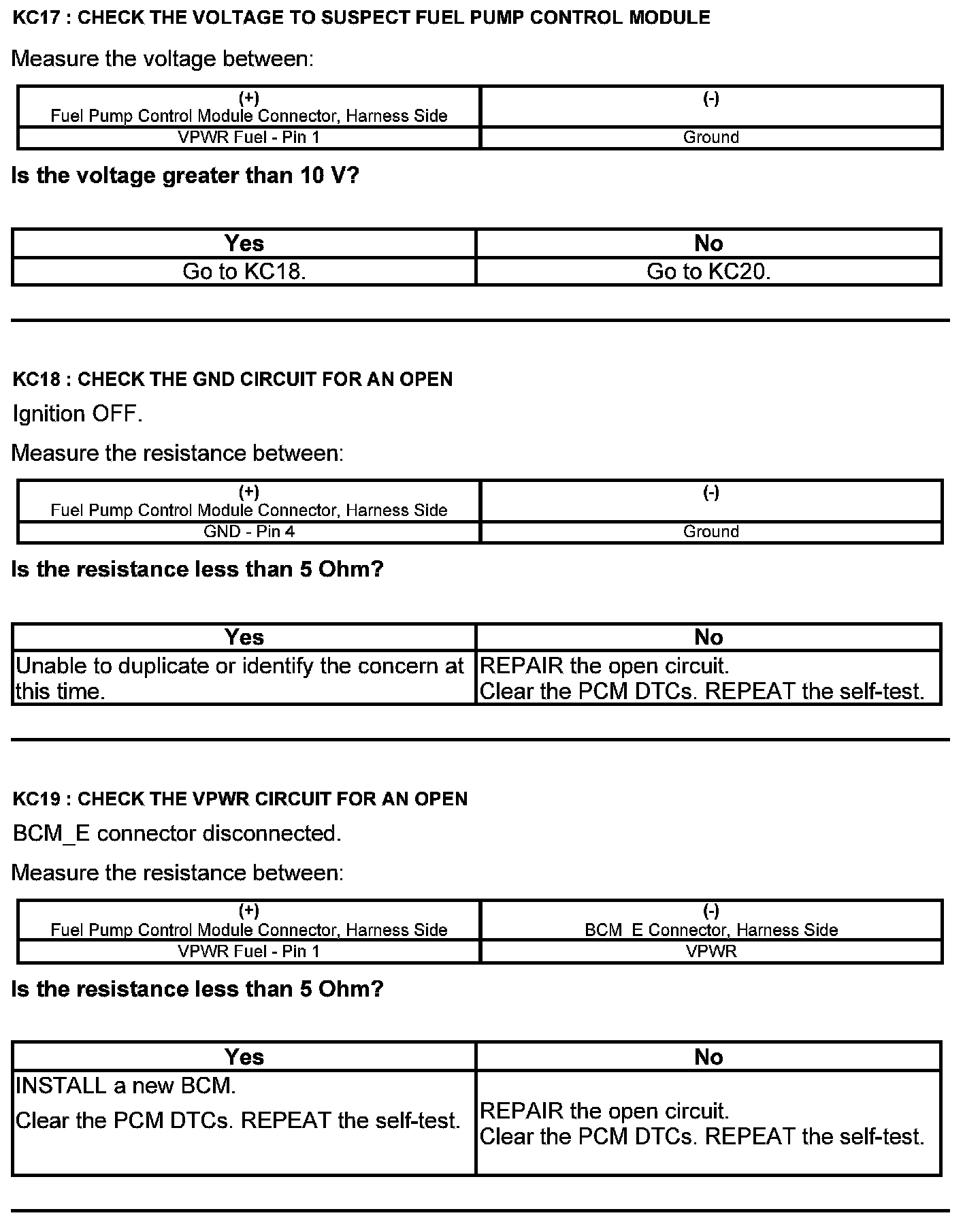

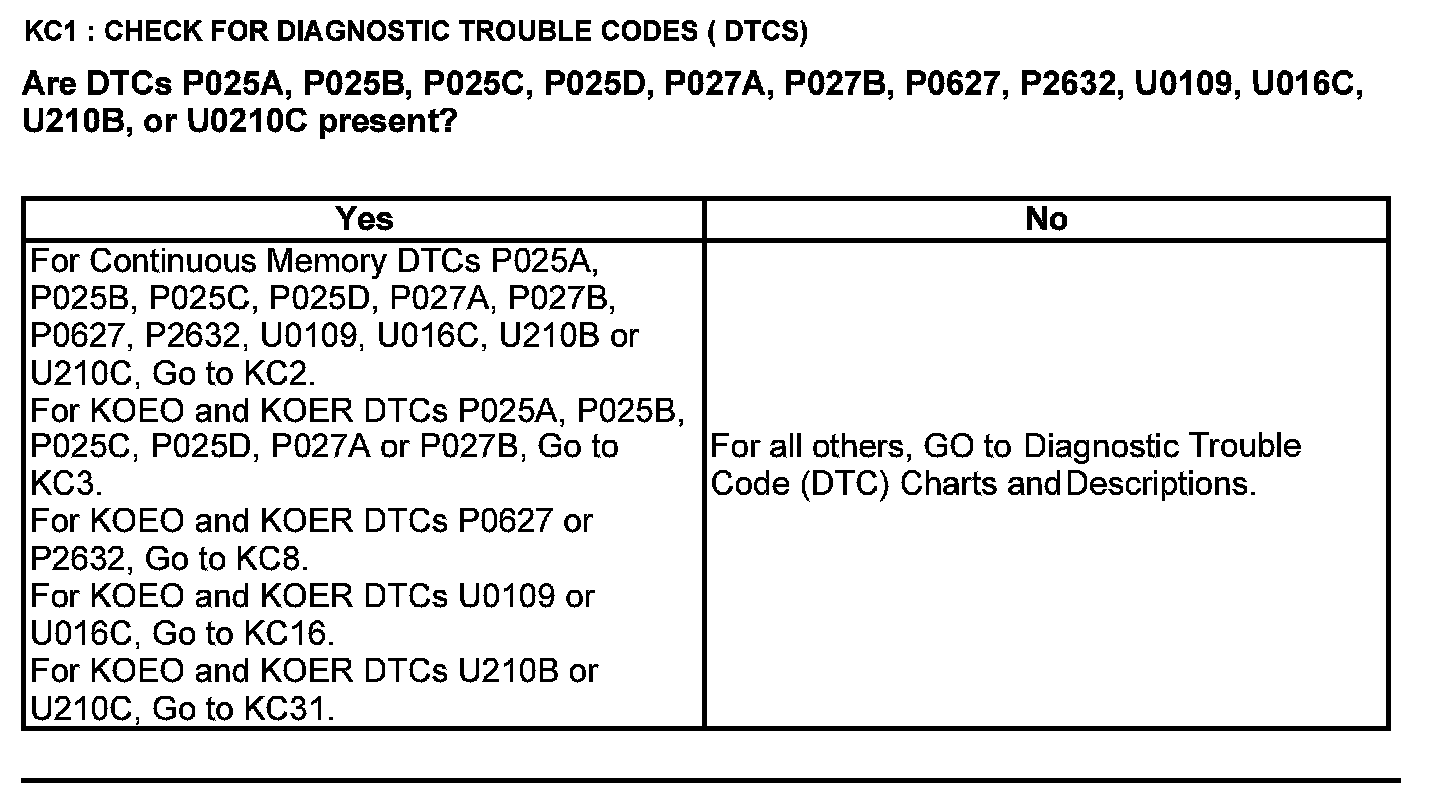

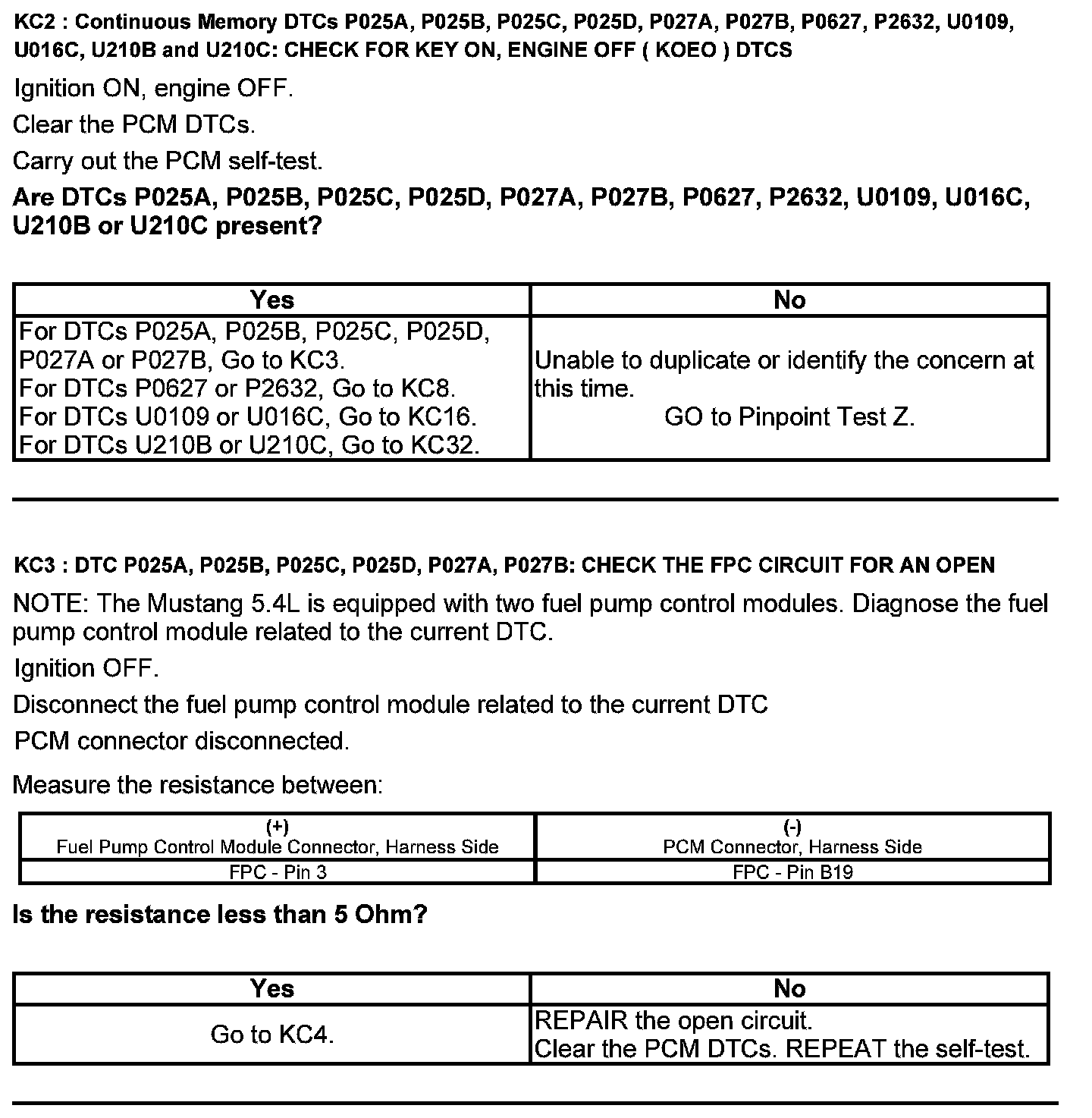

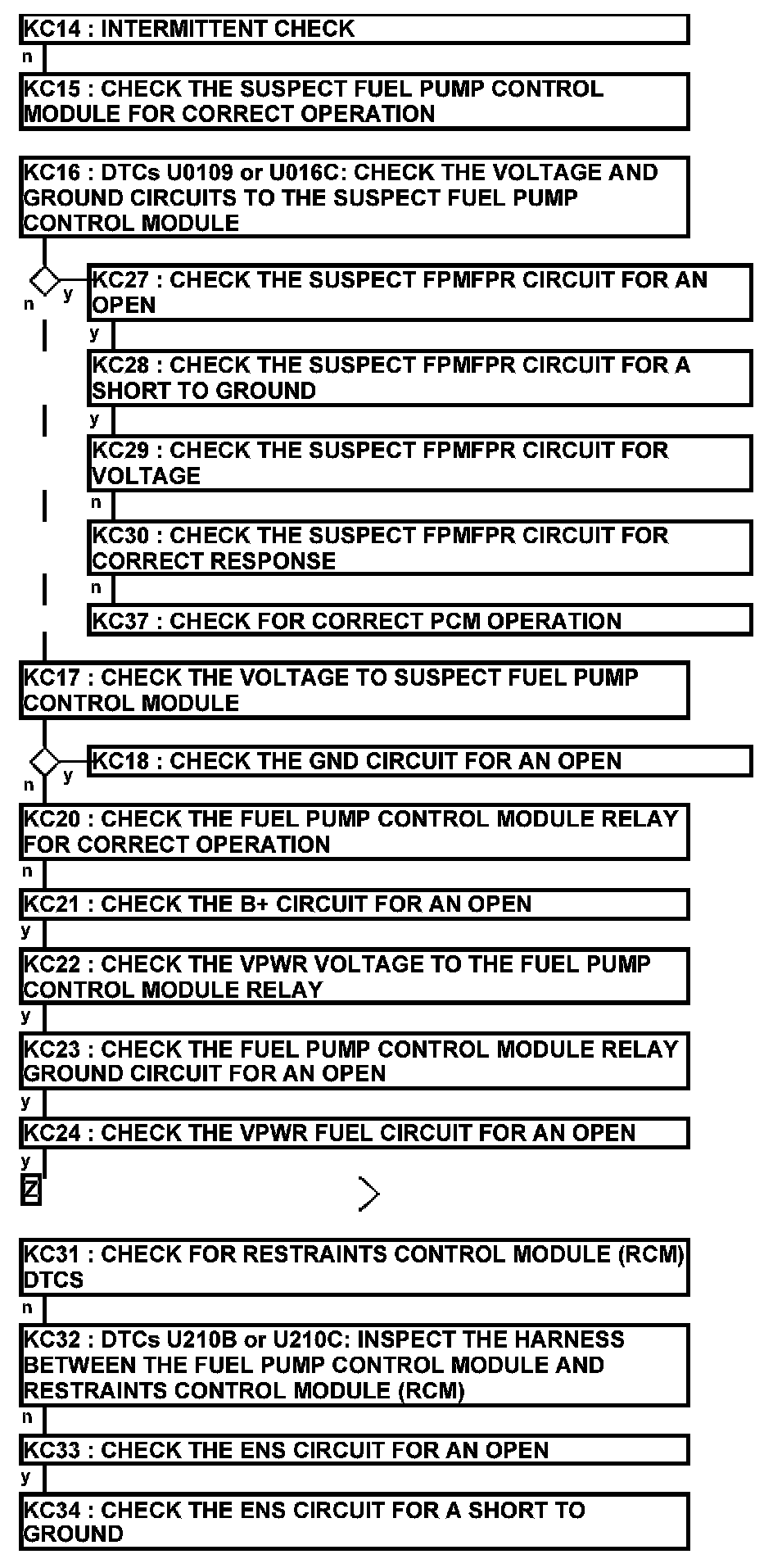

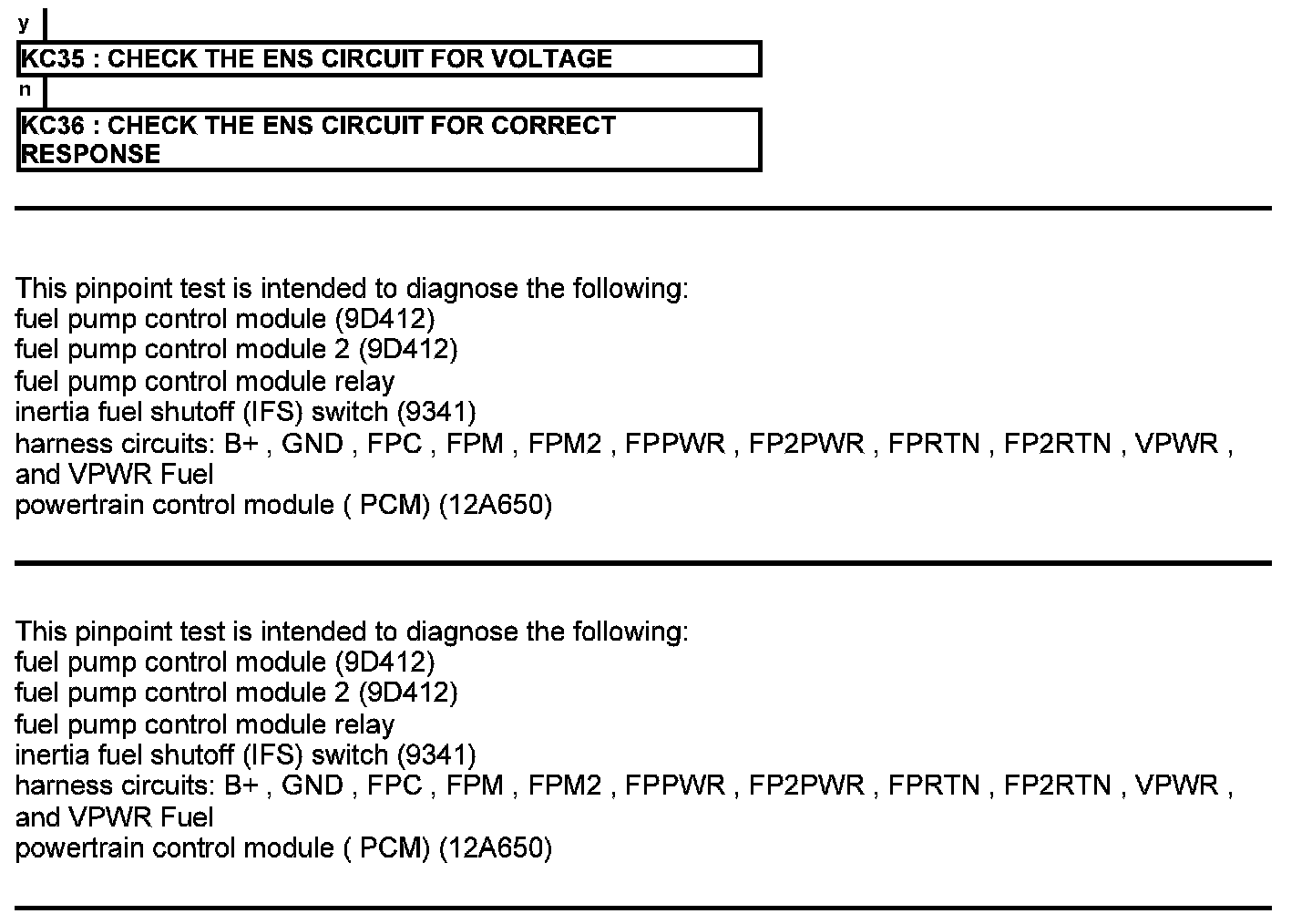

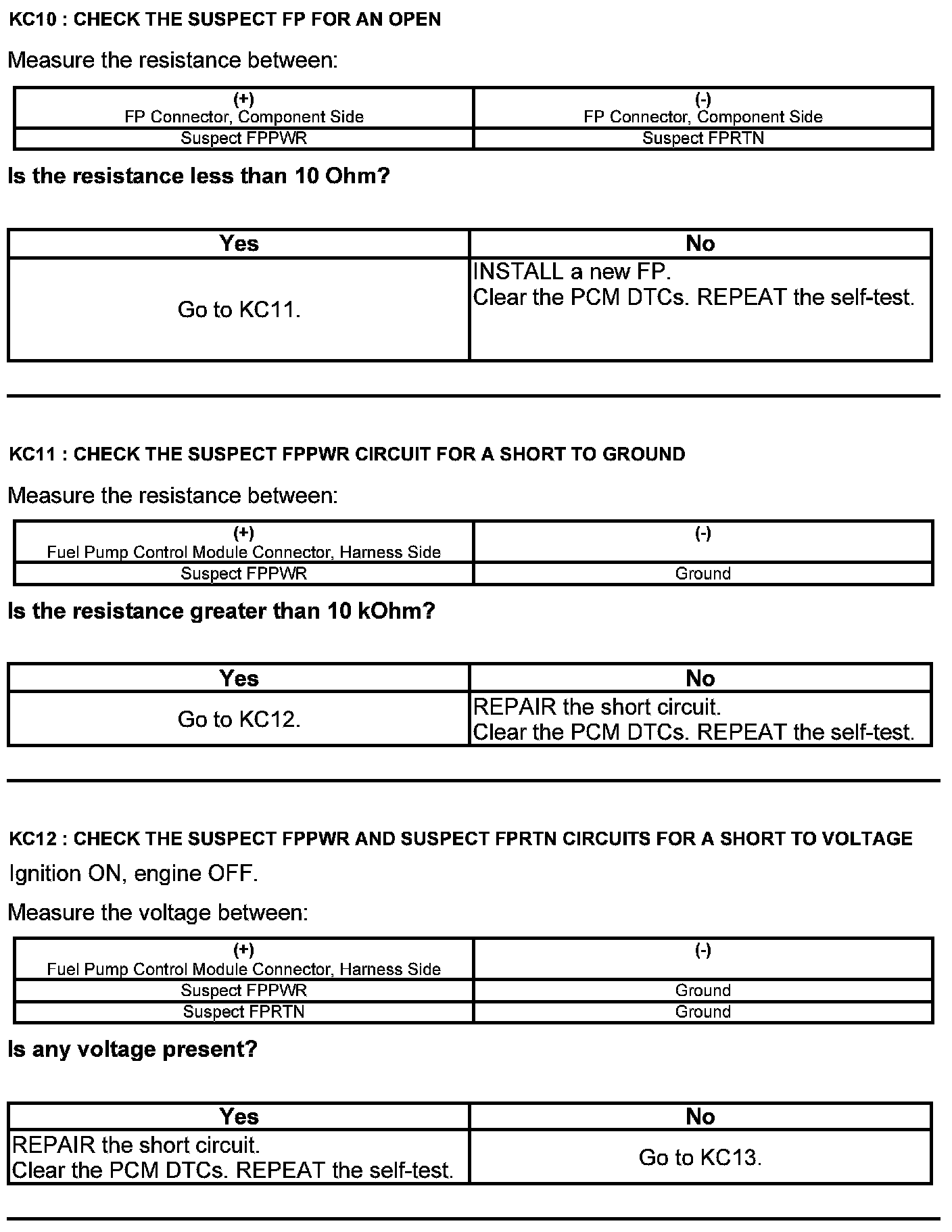

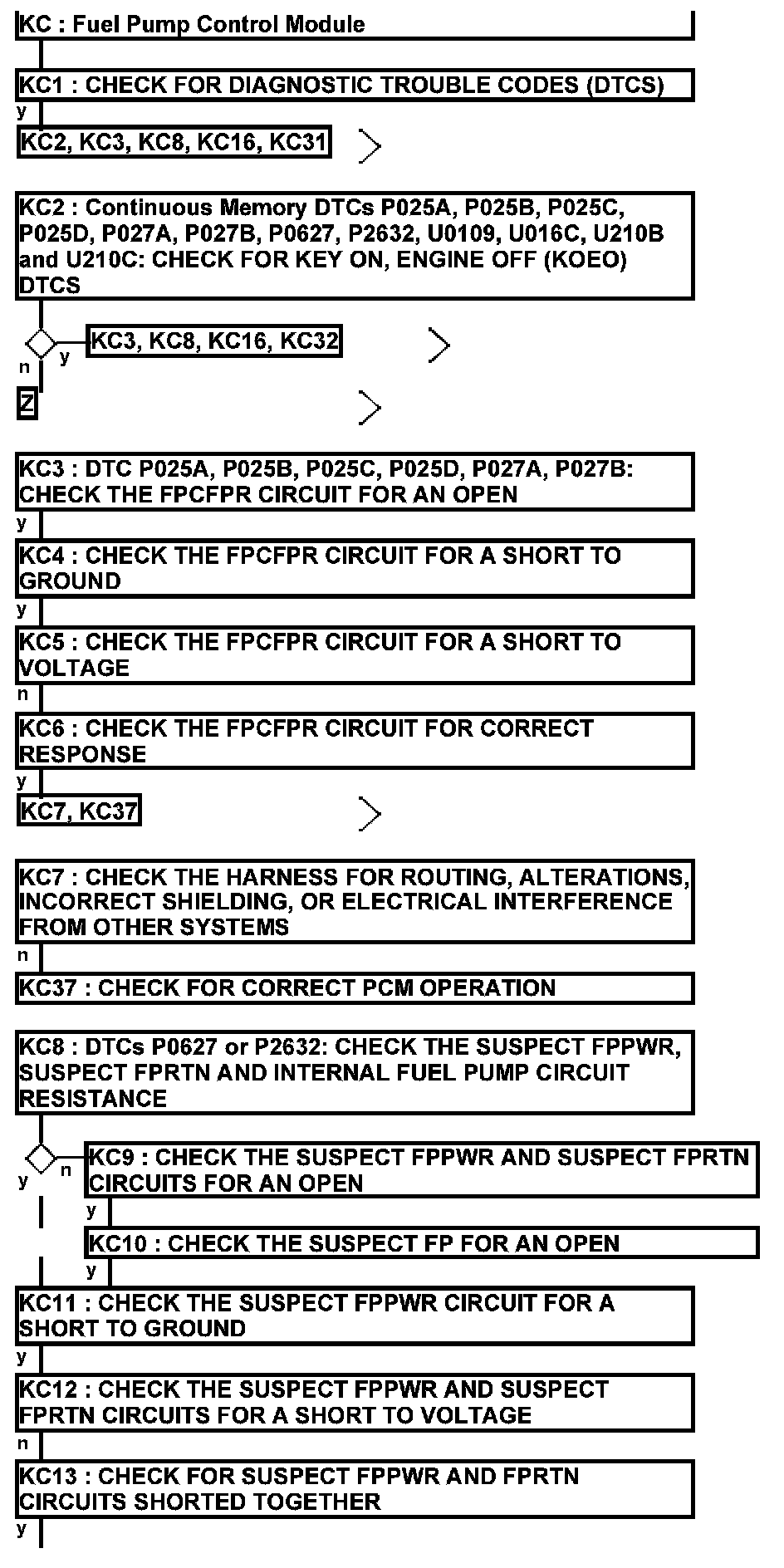

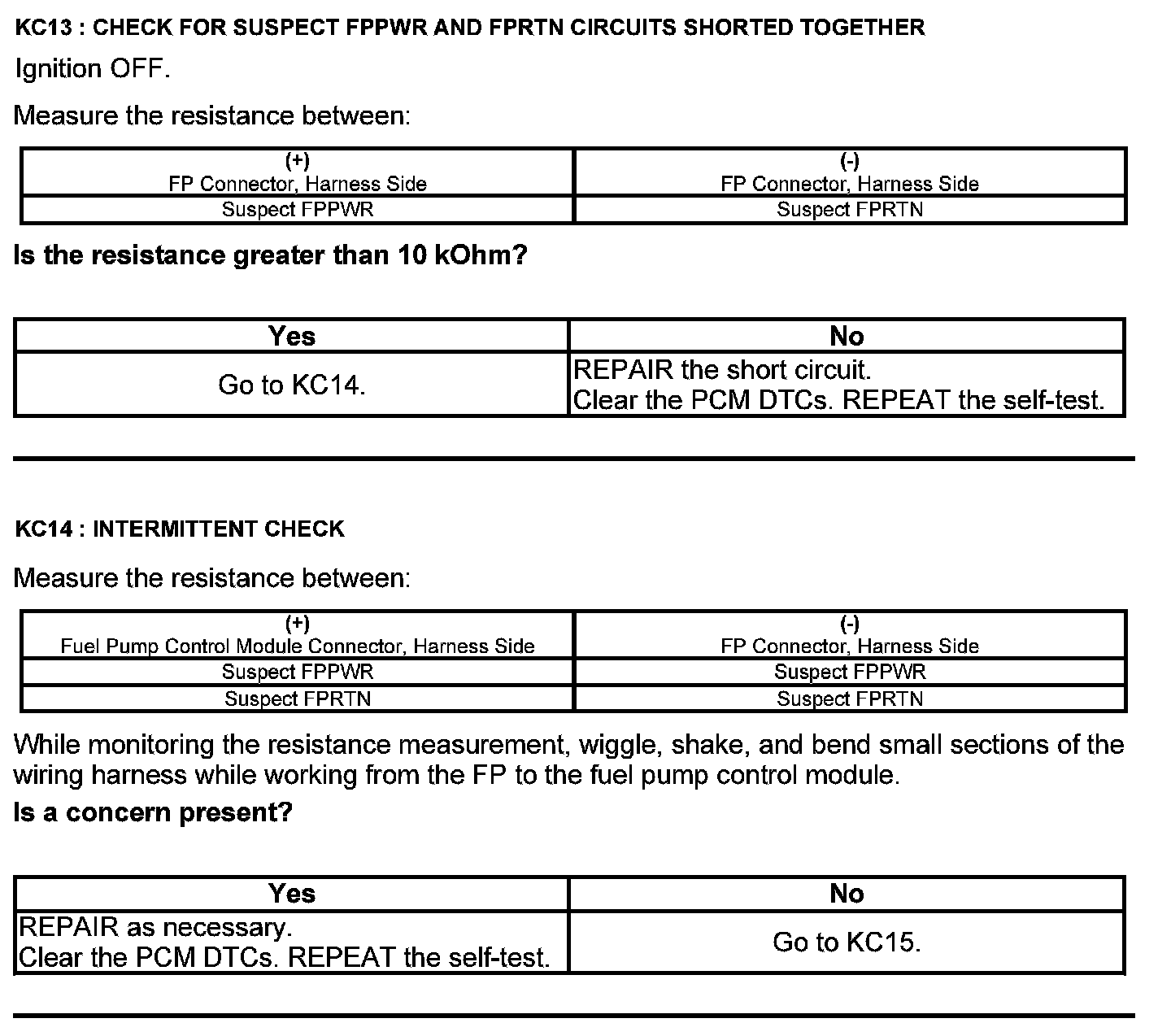

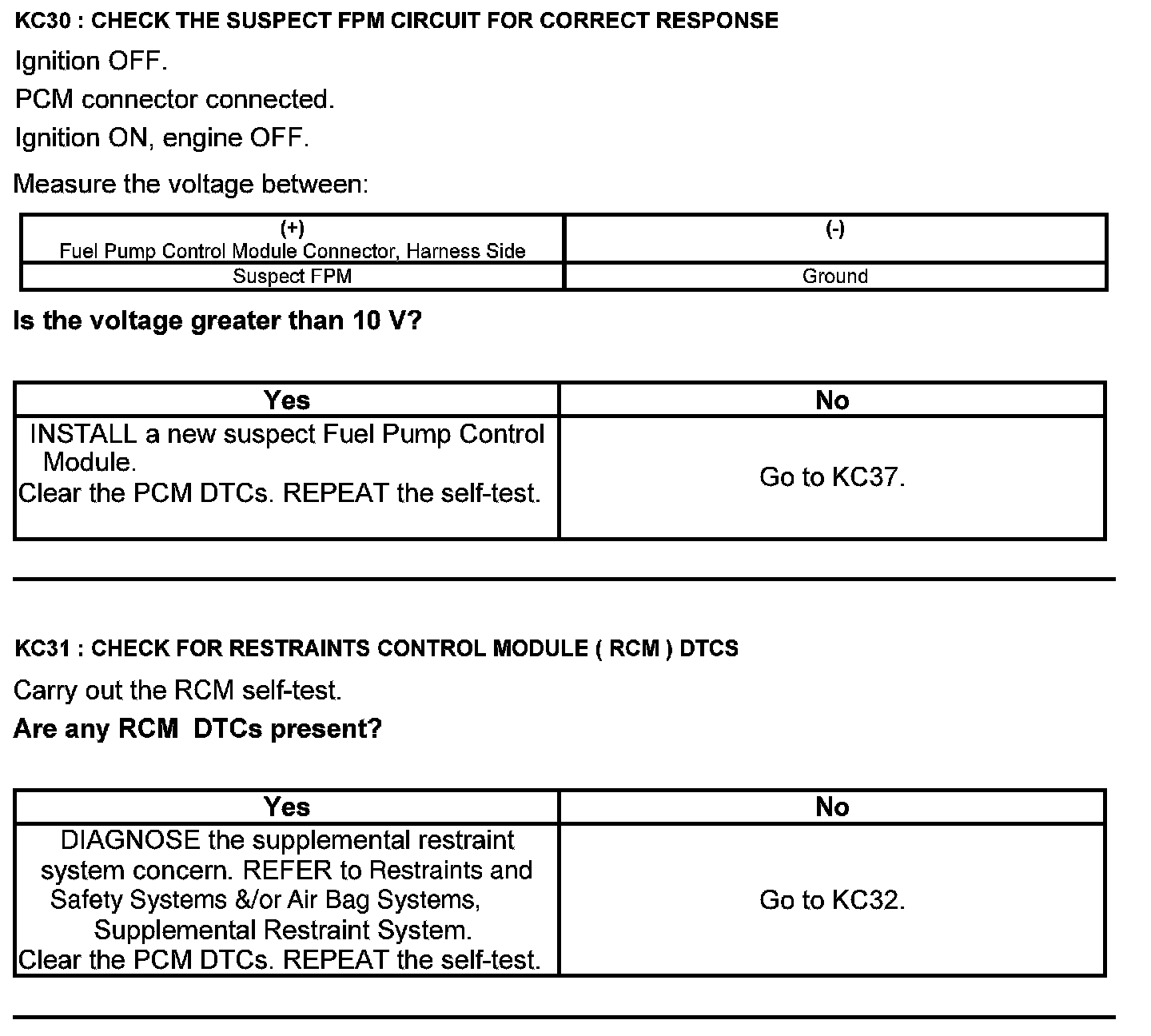

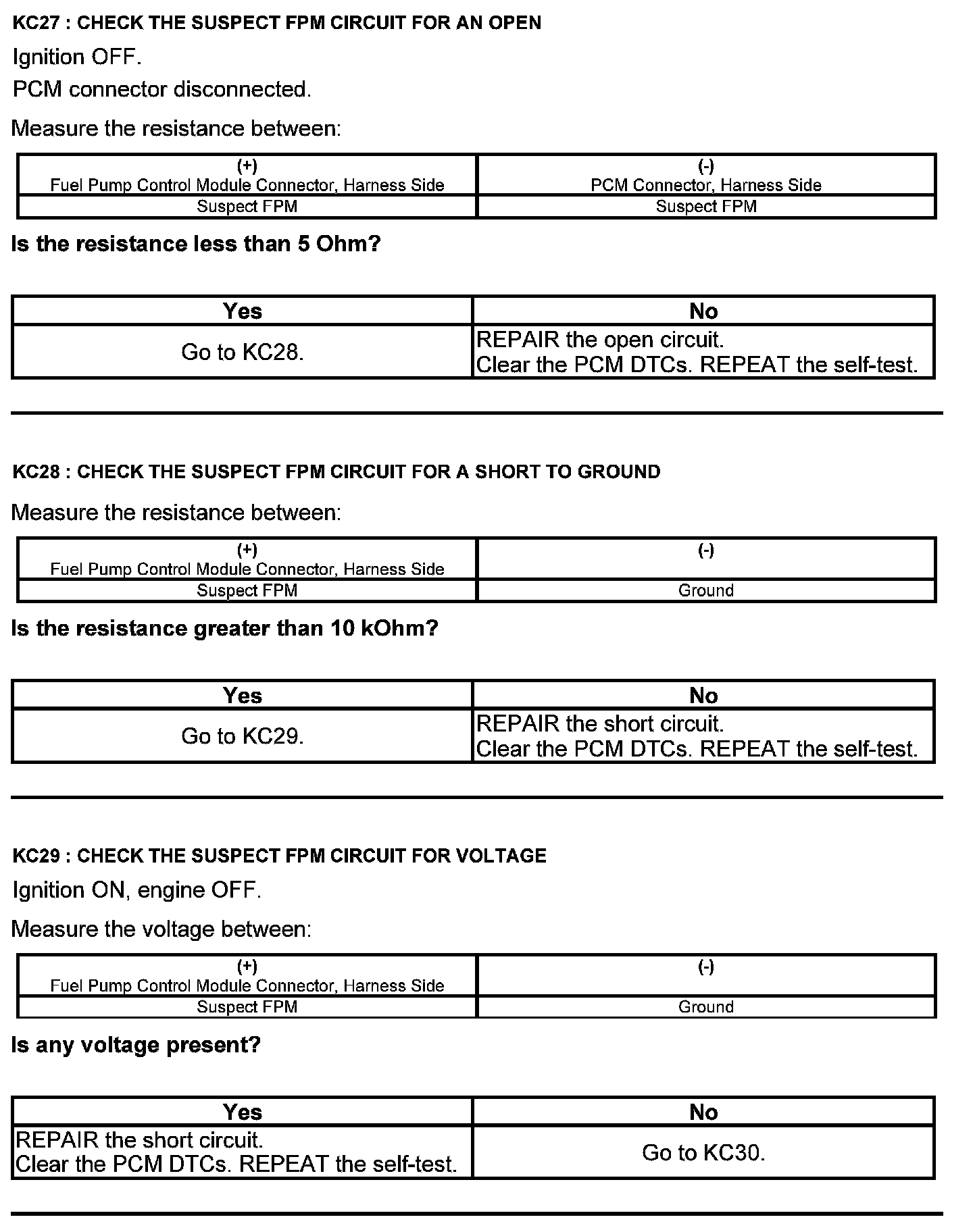

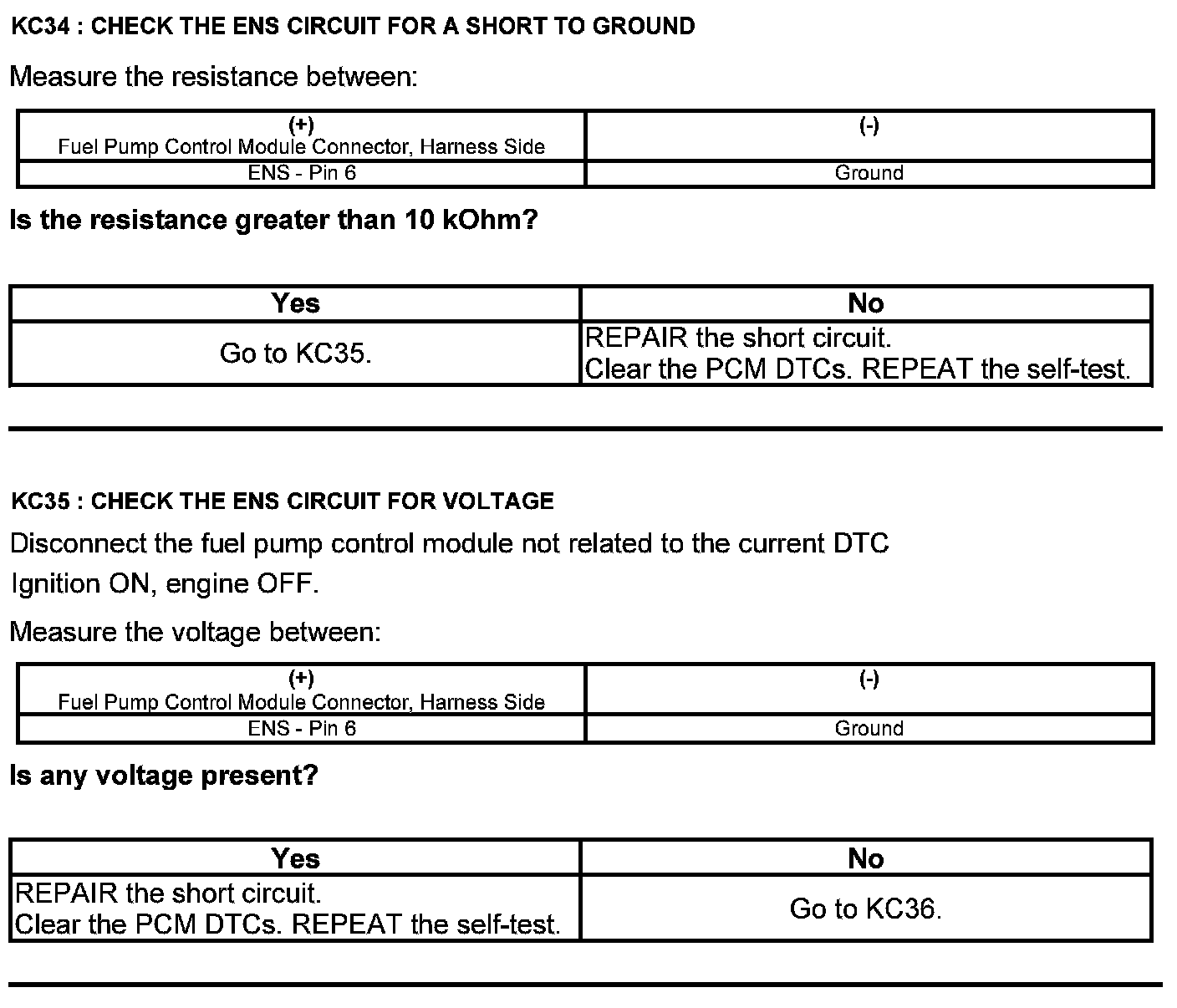

Fuel Pump Control Module - Automatic Transmission

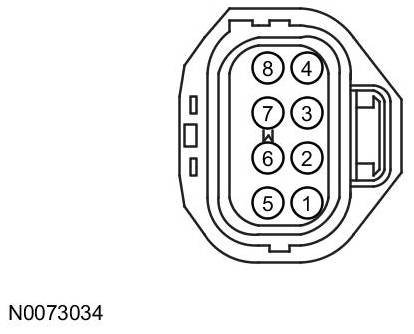

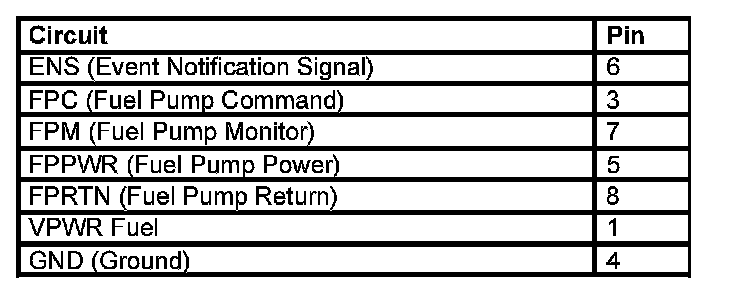

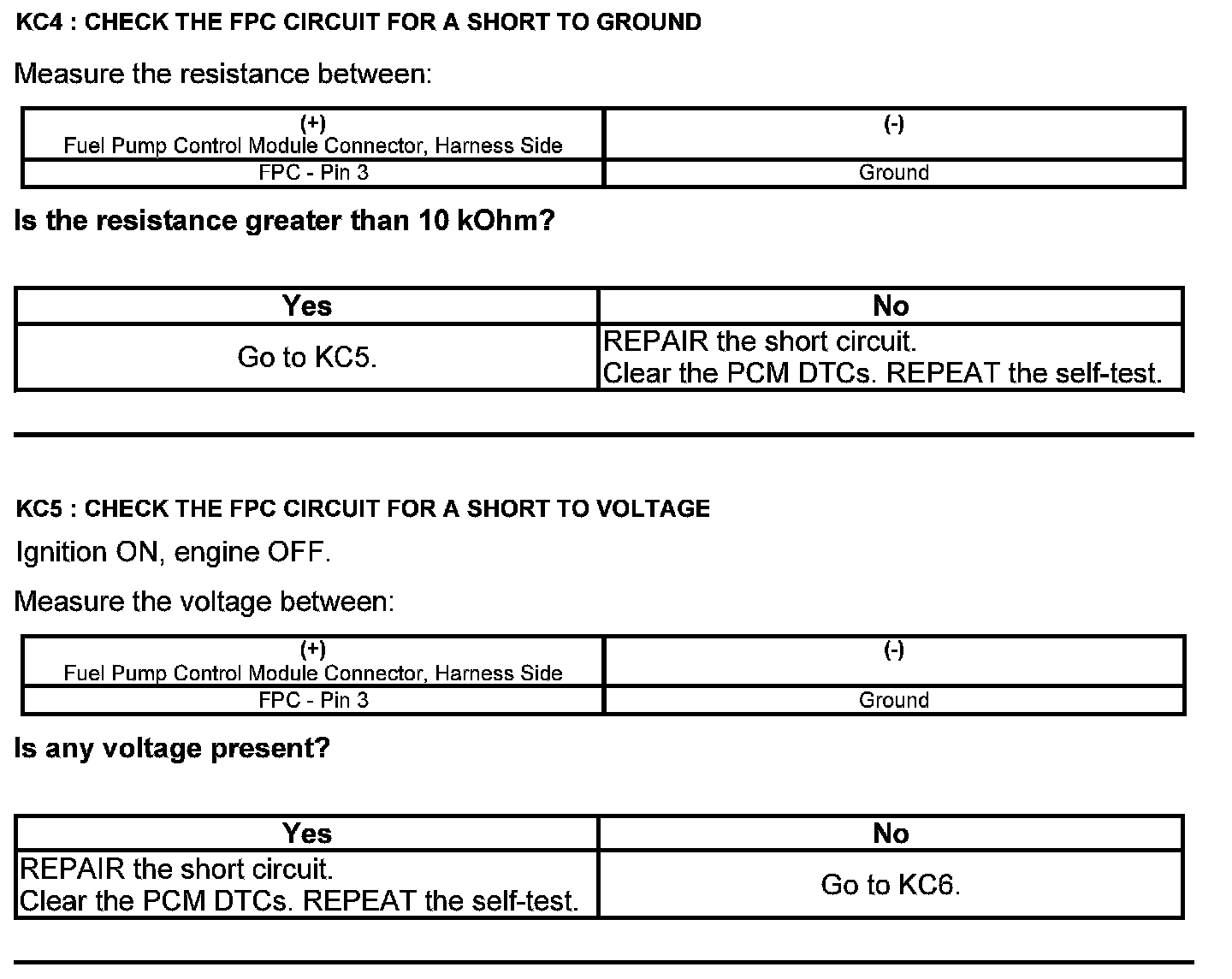

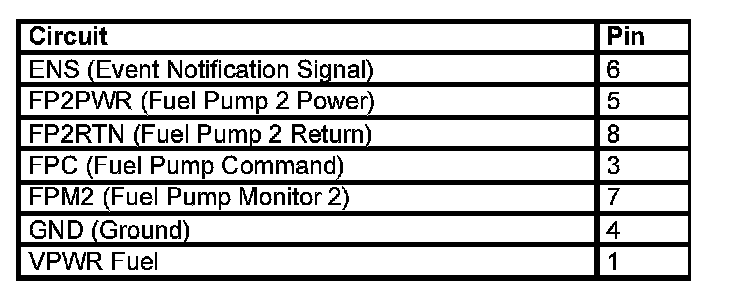

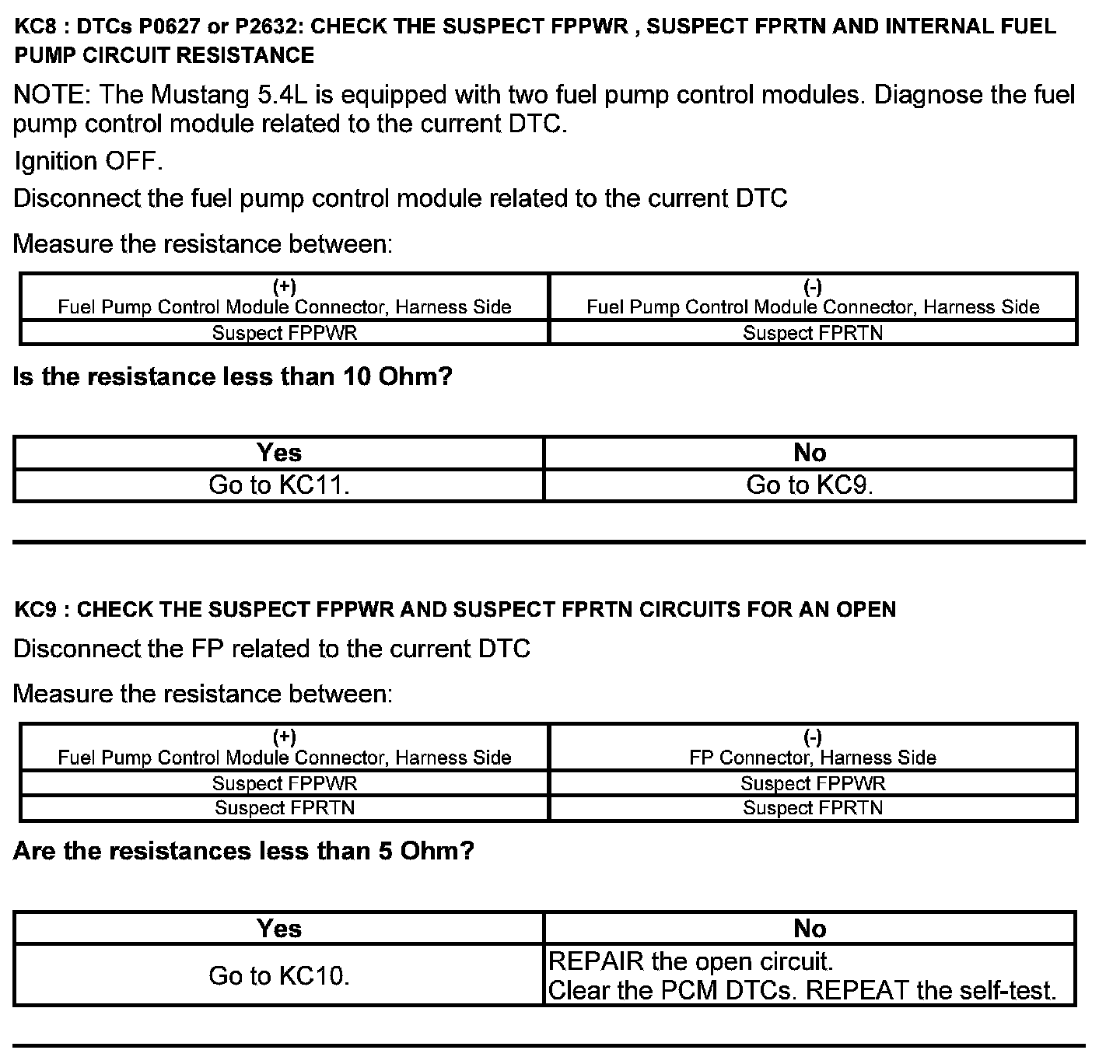

Fuel Pump Control Module Connector





Harness Side

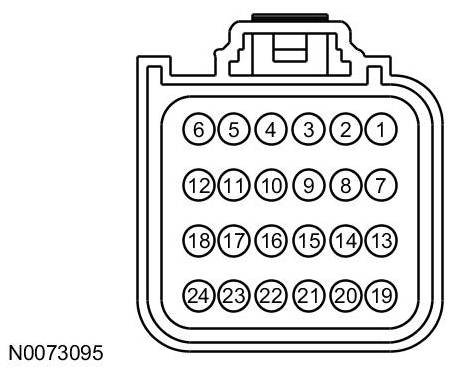

Fuel Pump Control Module 2 Module Connector





Harness Side

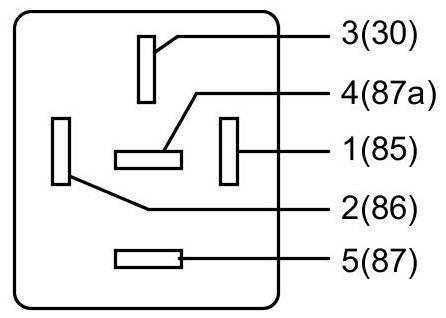

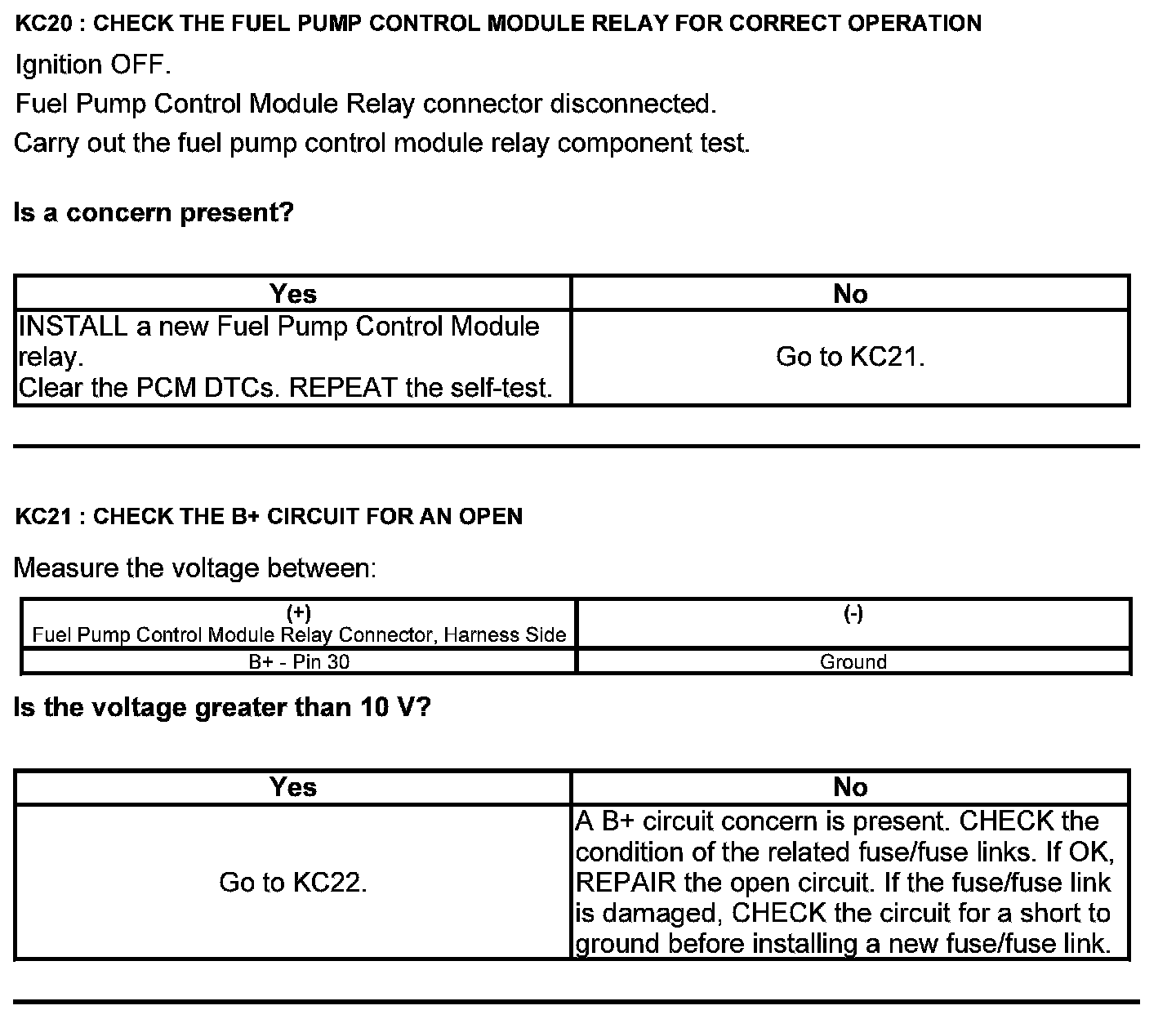

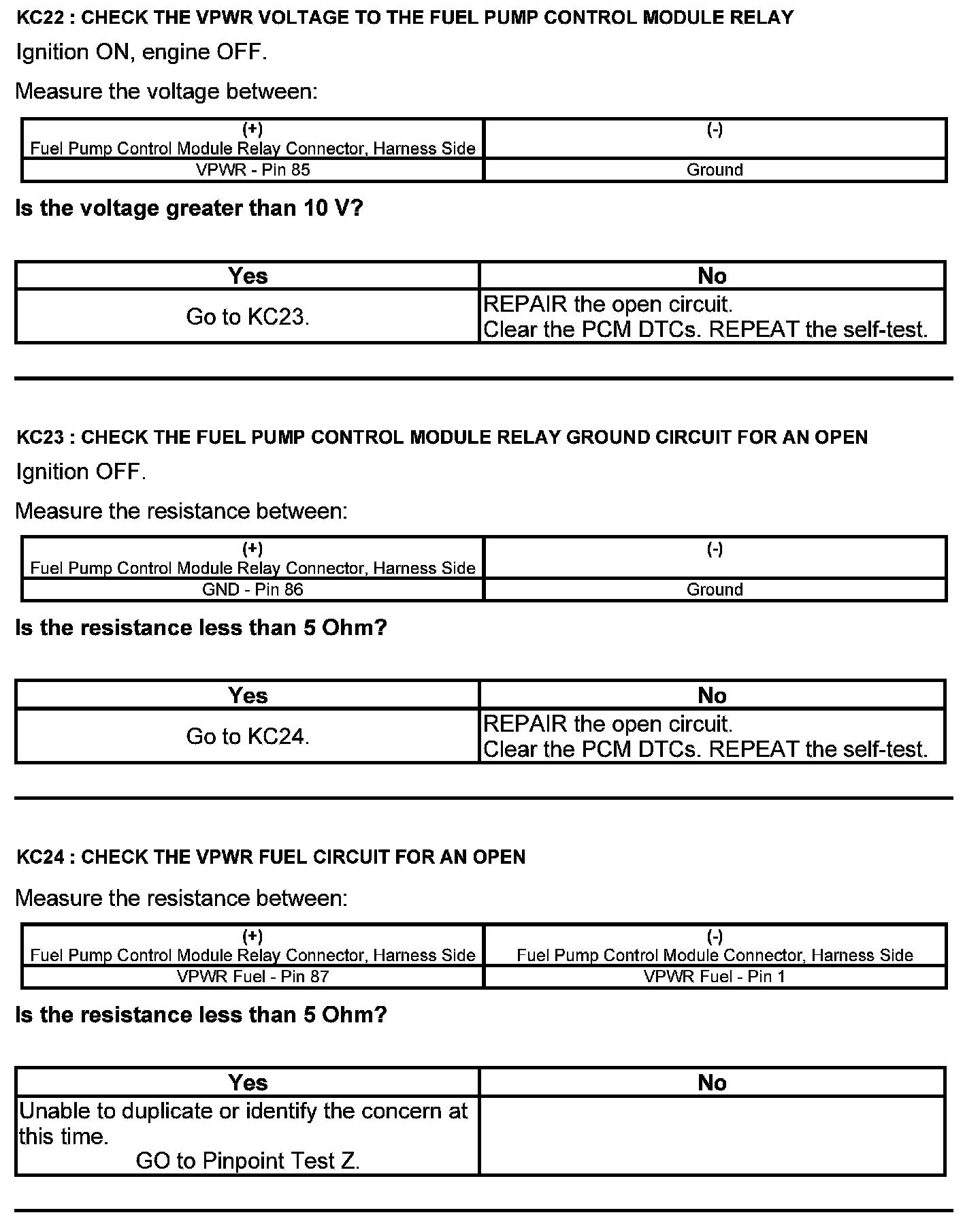

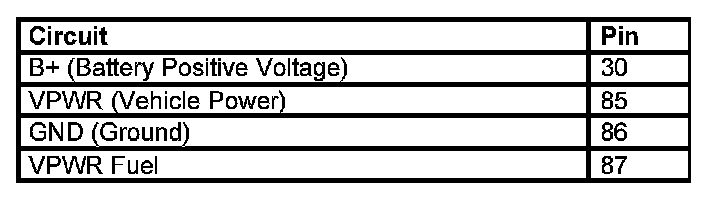

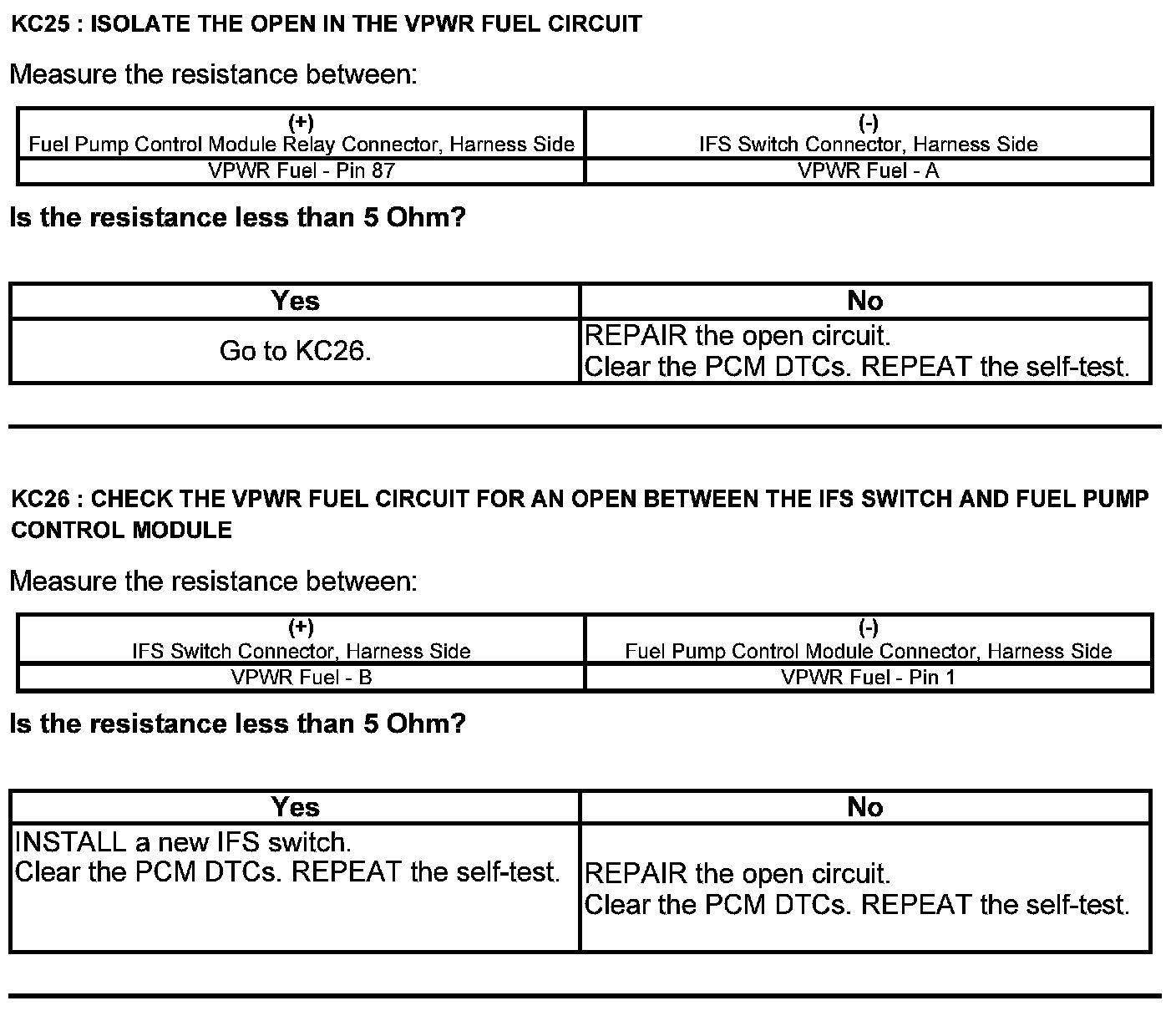

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.





Harness Side






Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side






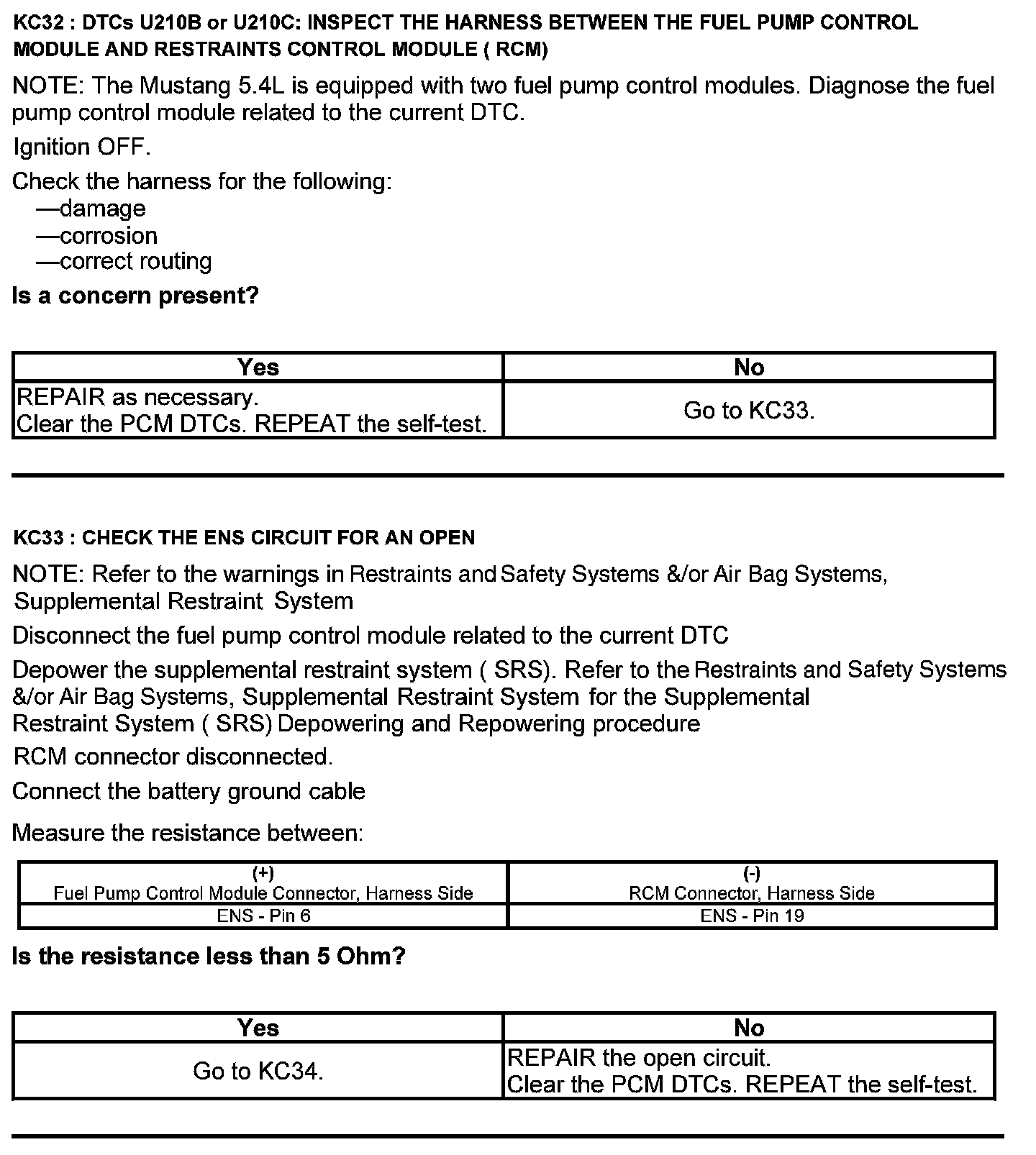

Restraints Control Module (RCM) Connector





Harness Side

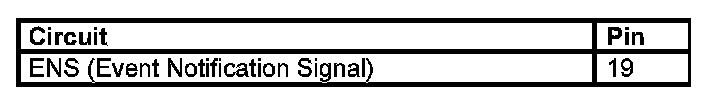

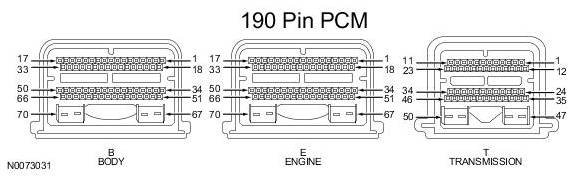

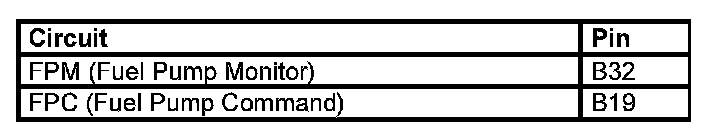

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
