Grille Shutter Actuator
WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

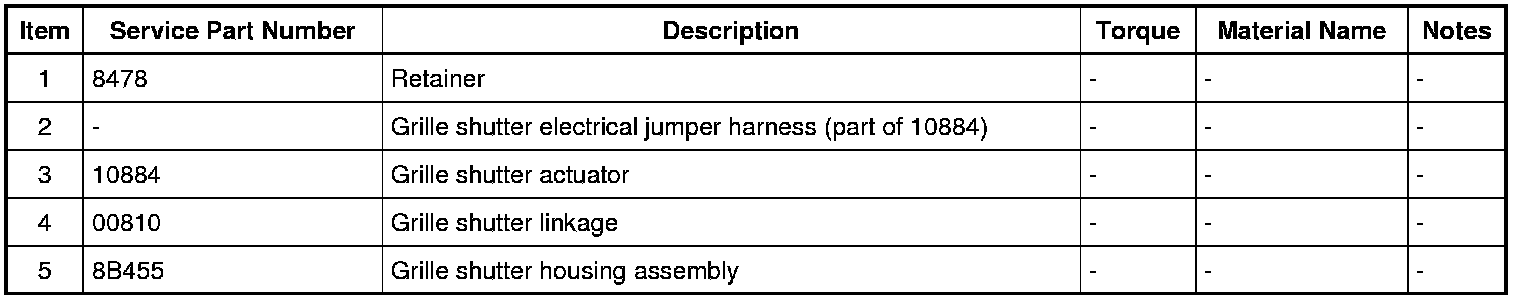

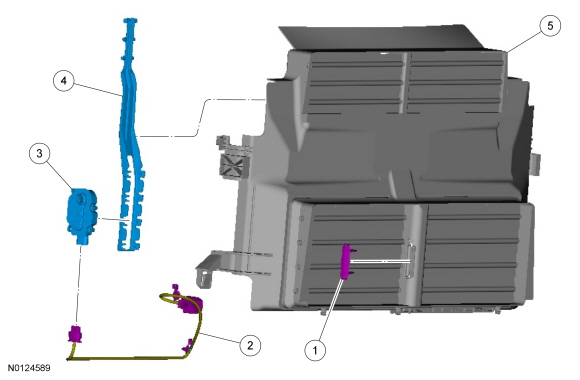

Exploded View
Removal
NOTE: The removal steps in this procedure may include installation details.
1. Remove the grille shutter assembly. REFER to Grille Shutter Assembly .
2.
3.
4.

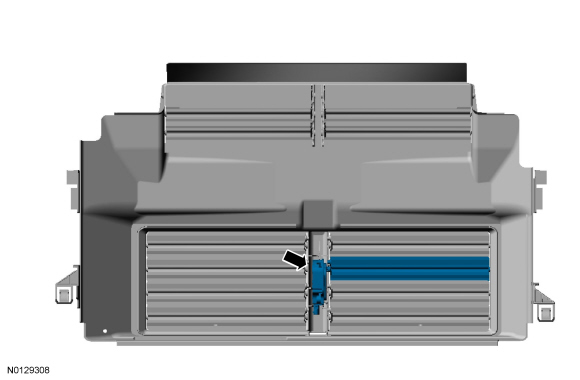

5. NOTE: Shutter 3R is attached to the shutter actuator.
Installation
1. To install, reverse the removal procedure.
