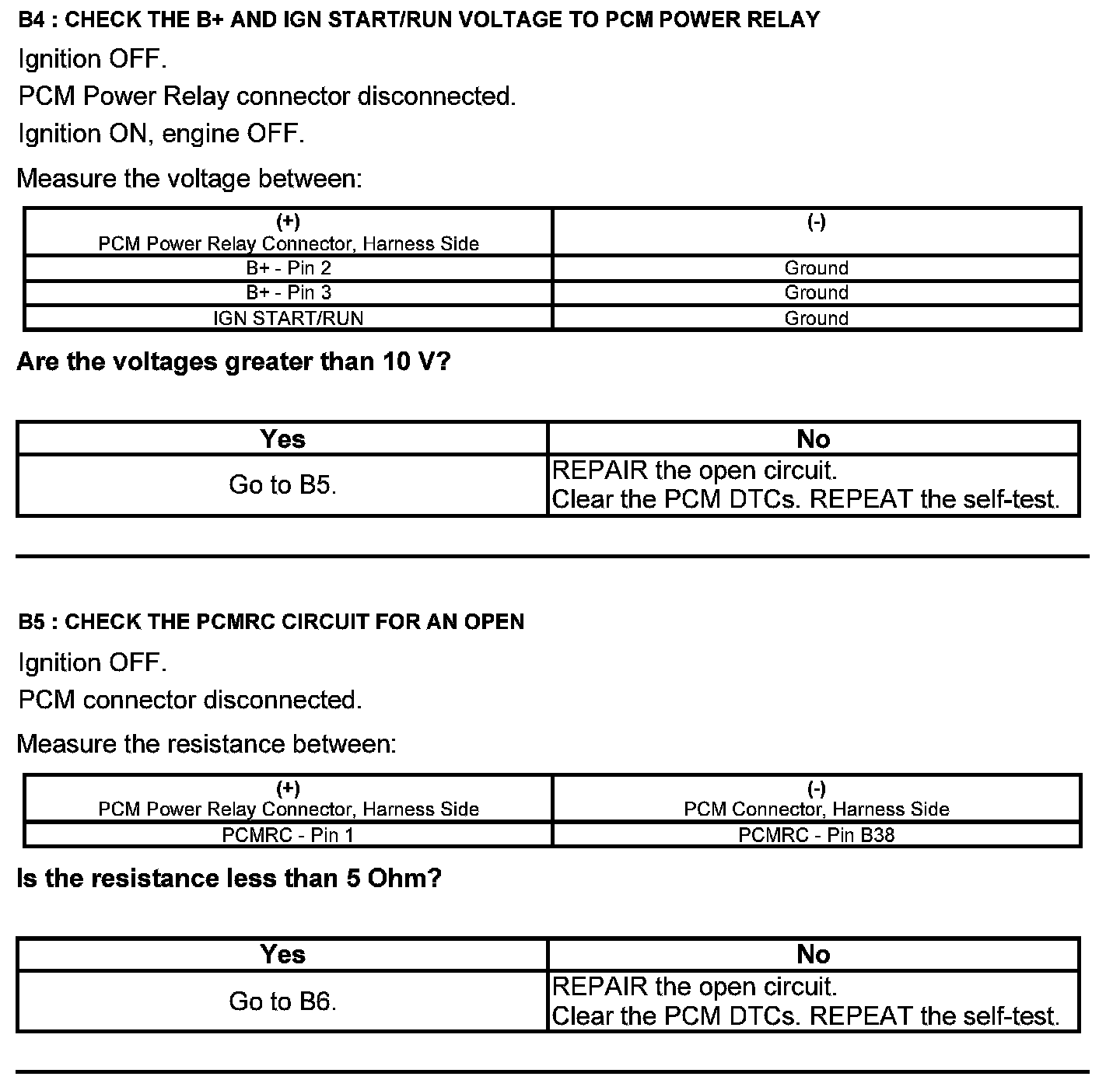

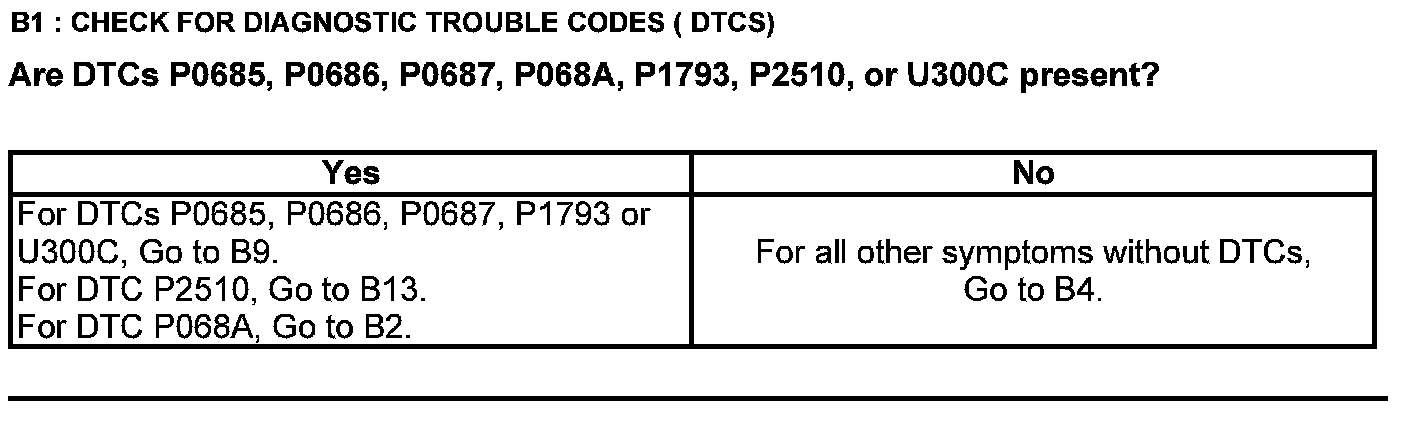

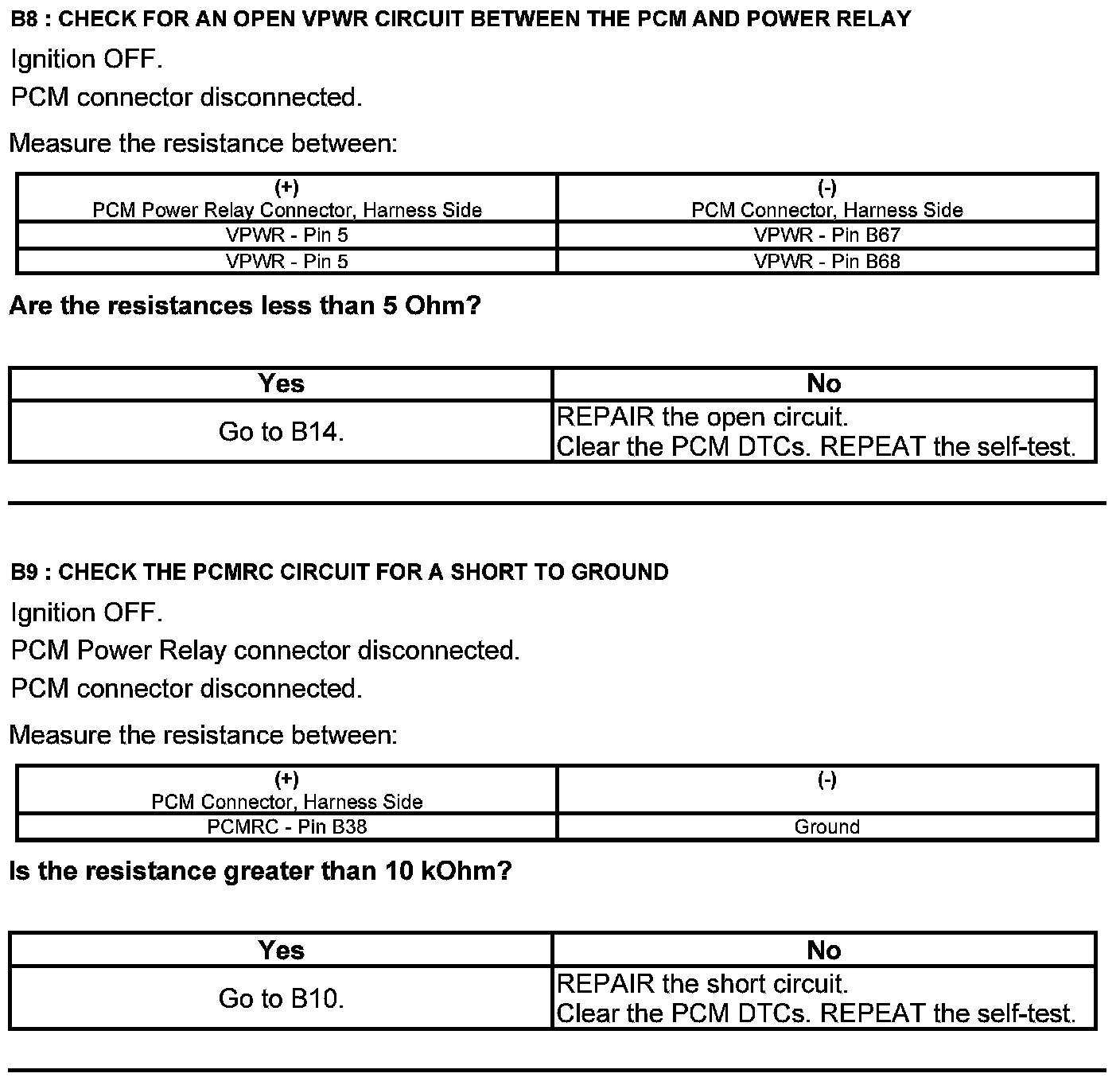

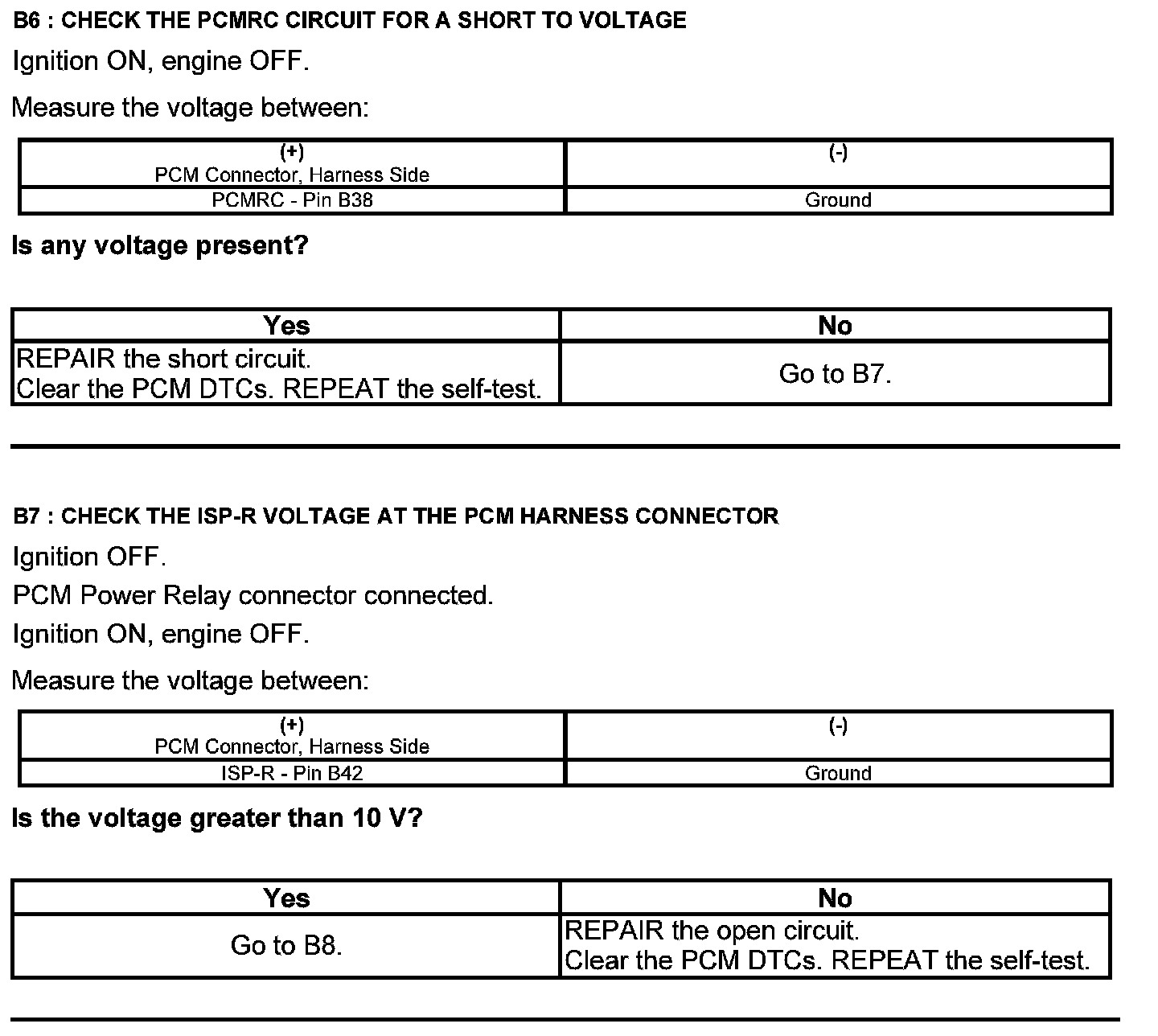

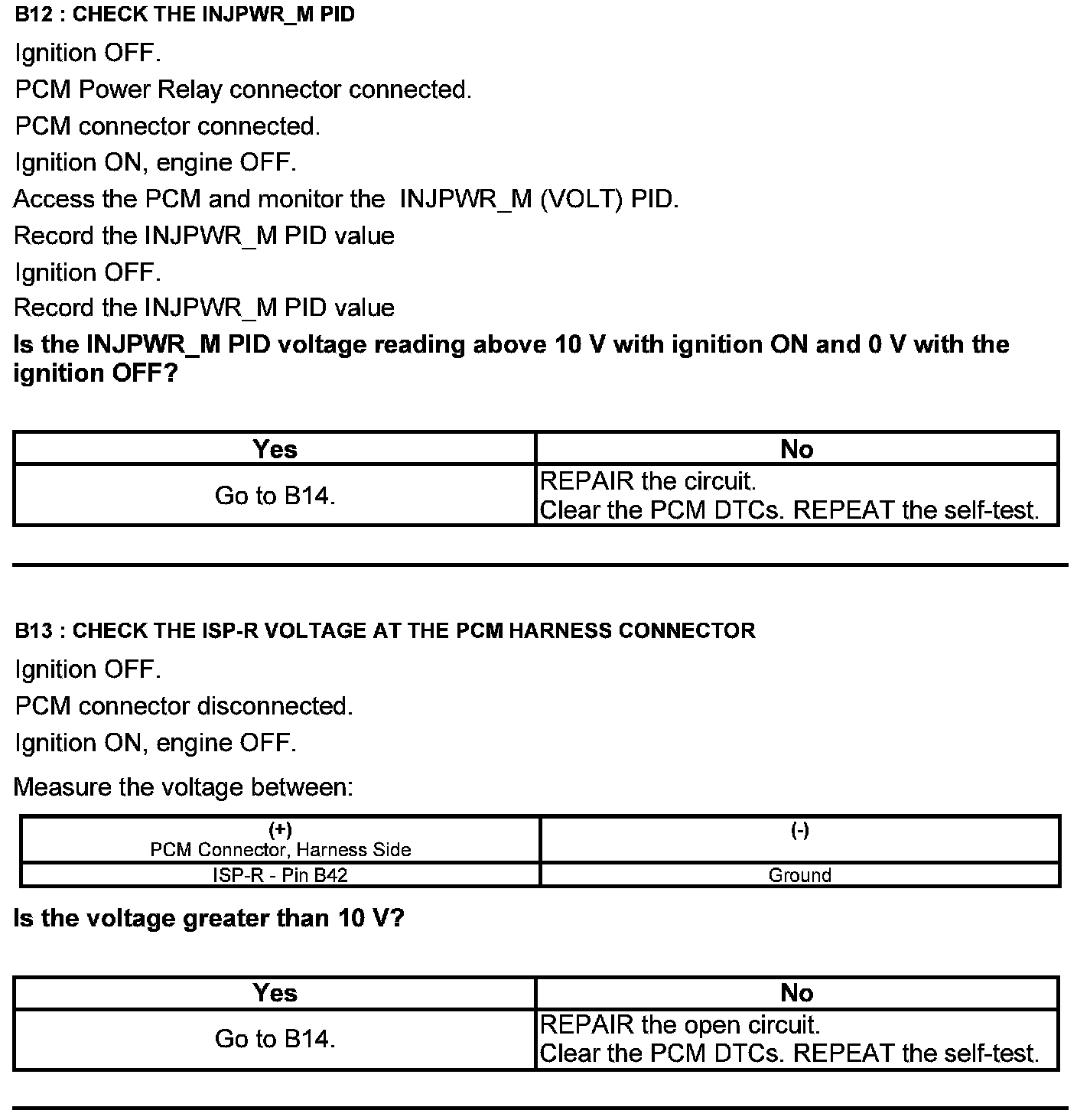

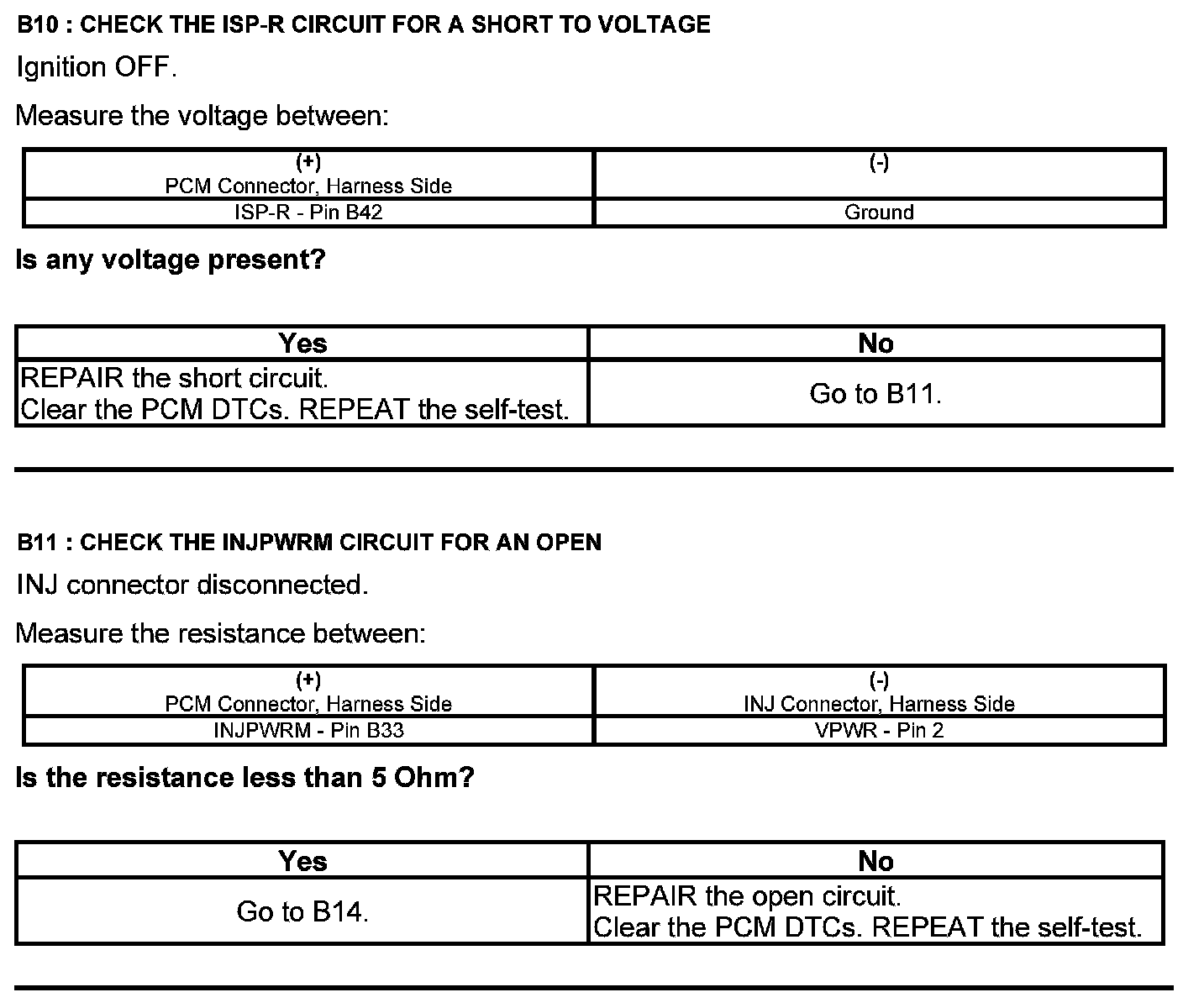

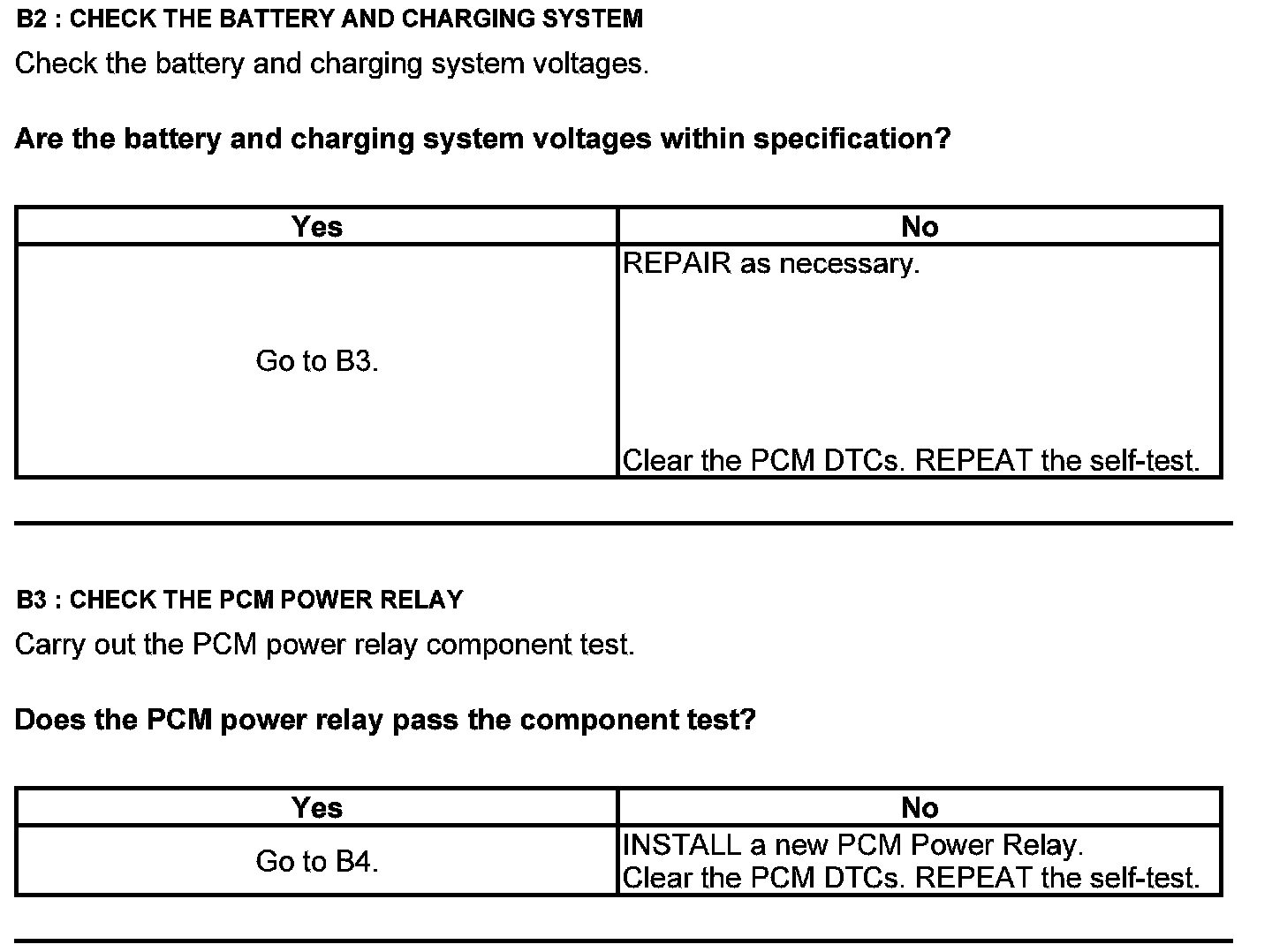

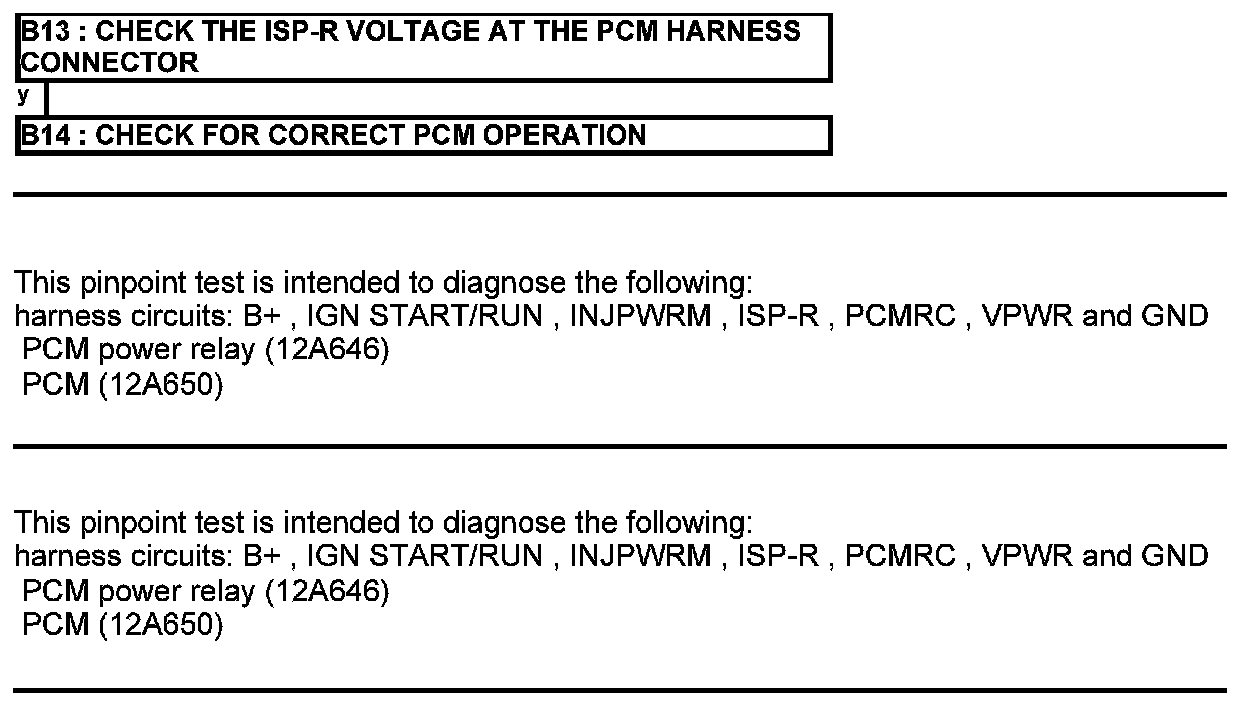

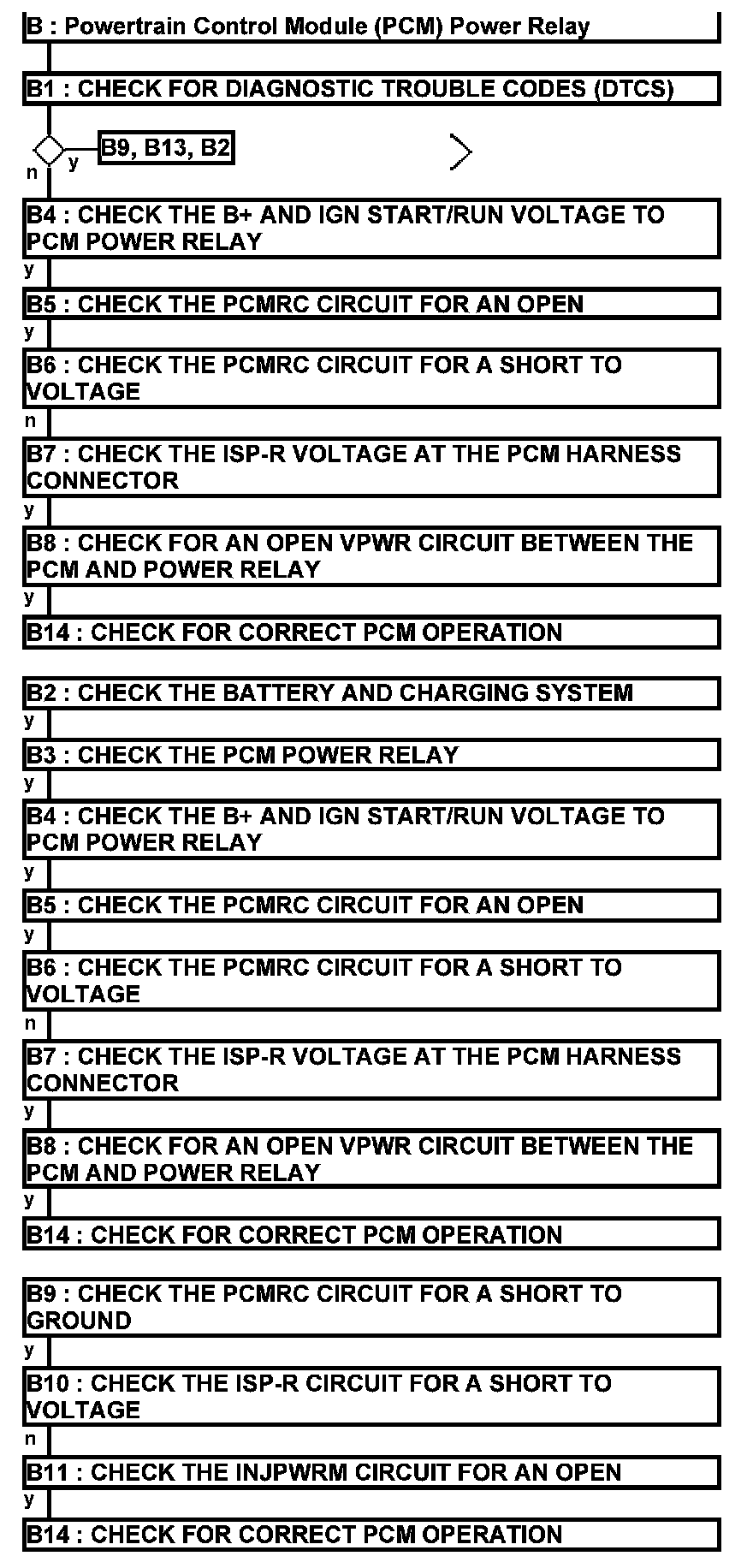

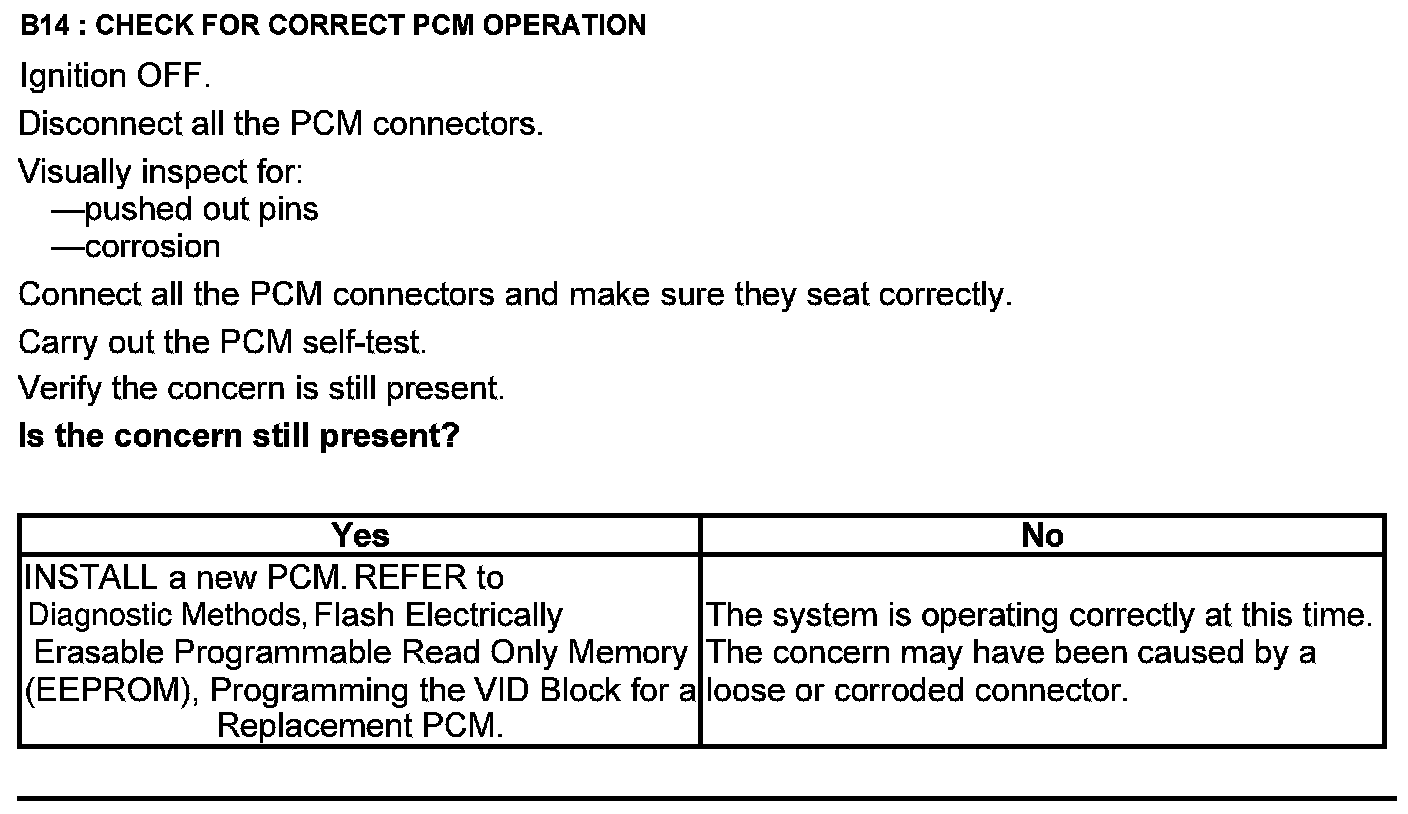

Test B: Powertrain Control Module (PCM) Power Relay

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford.

AI Repair Guides

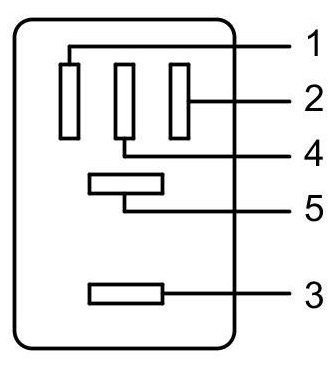

Powertrain Control Module (PCM) Power Relay

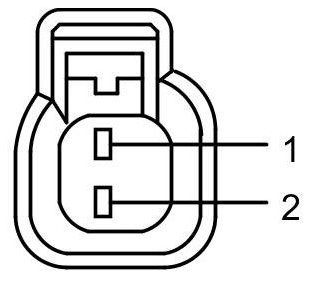

Injector (INJ) Connector






Harness Side

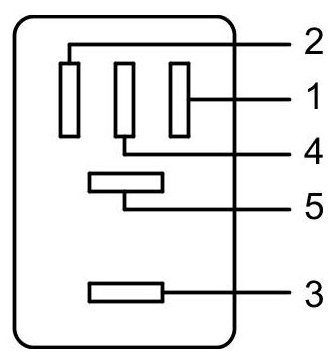

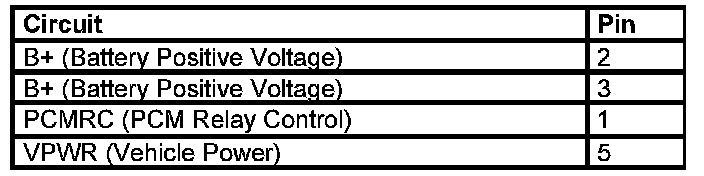

Powertrain Control Module Power (PCM Power) Relay Connector






Harness Side






Component side

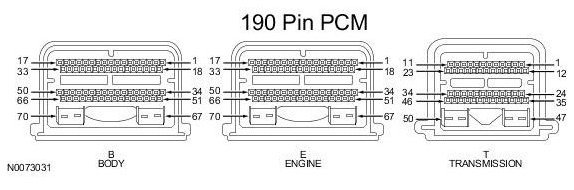

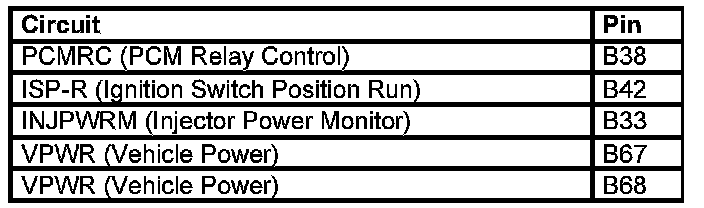

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
