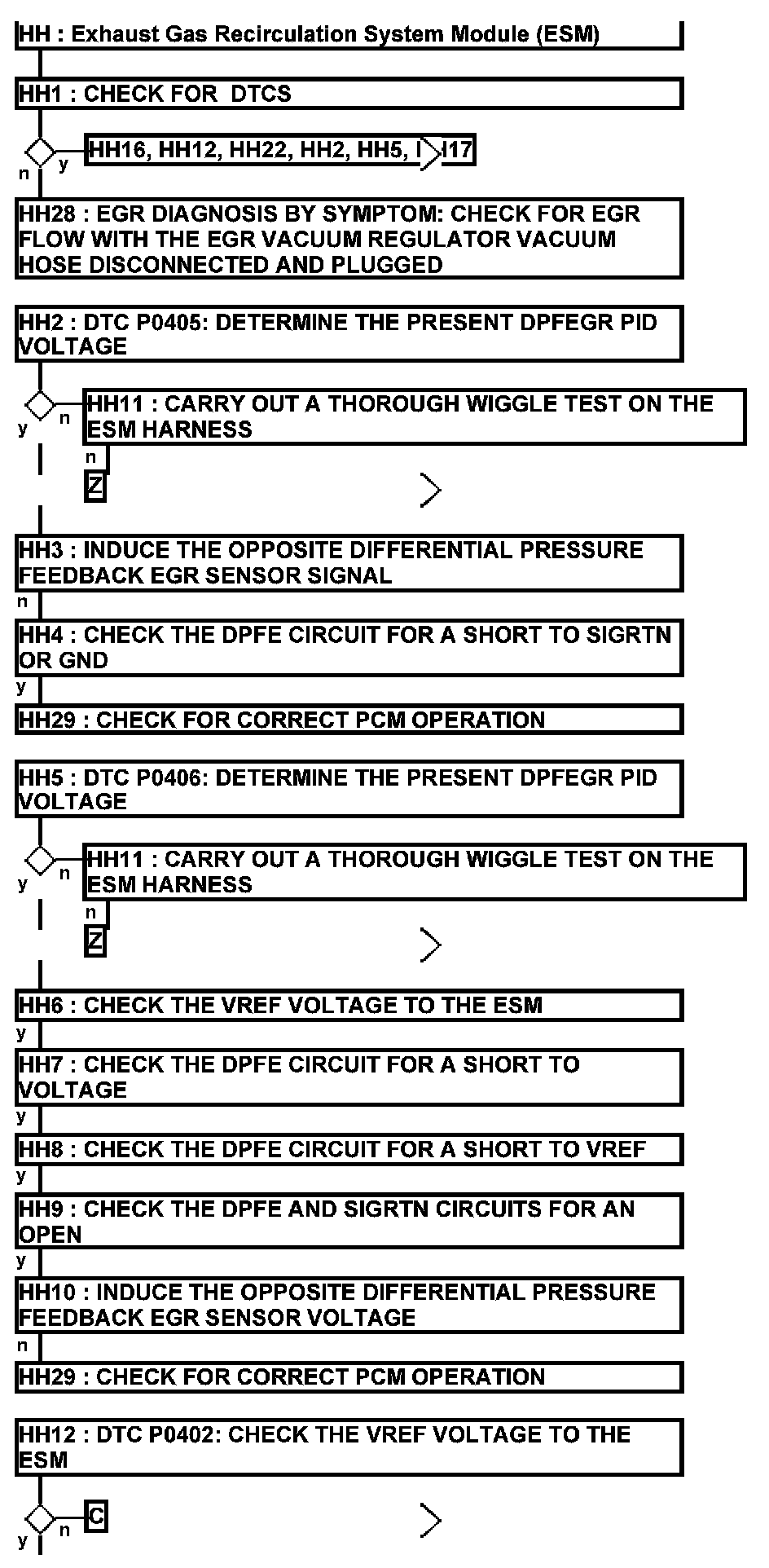

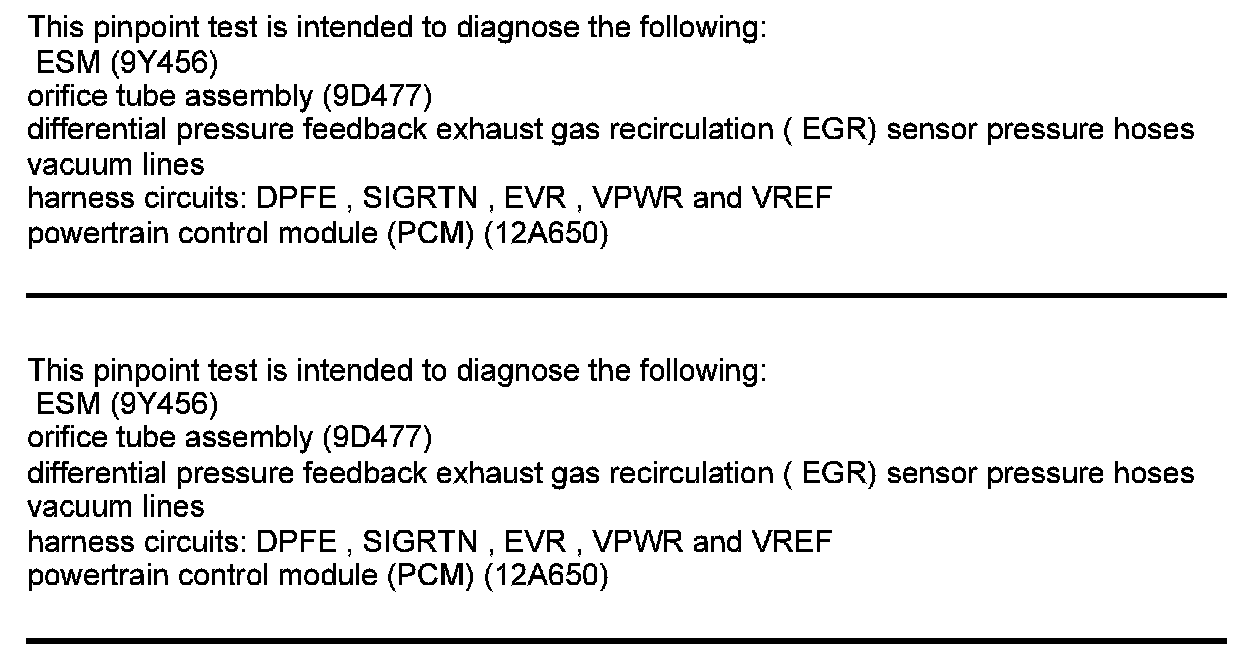

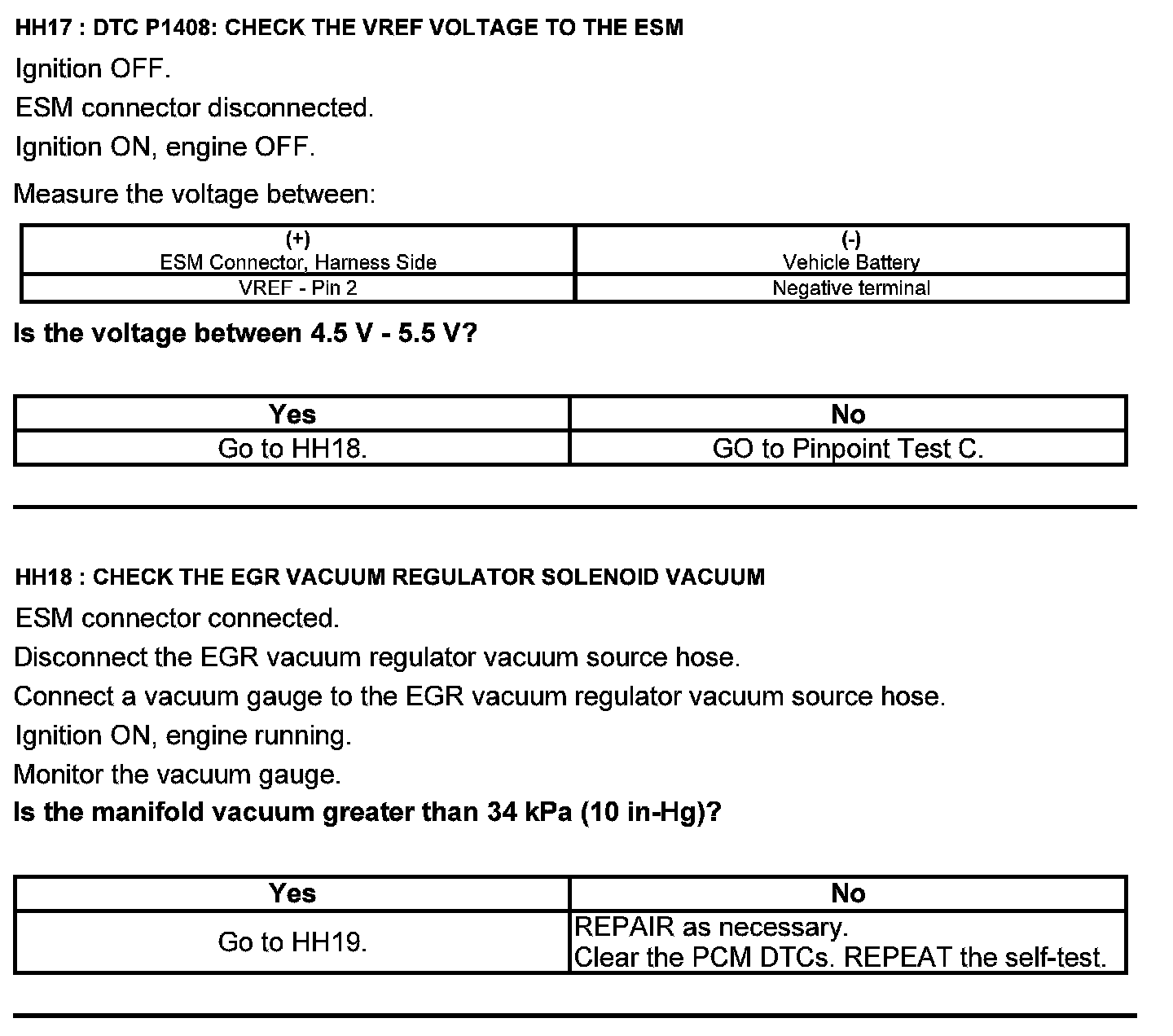

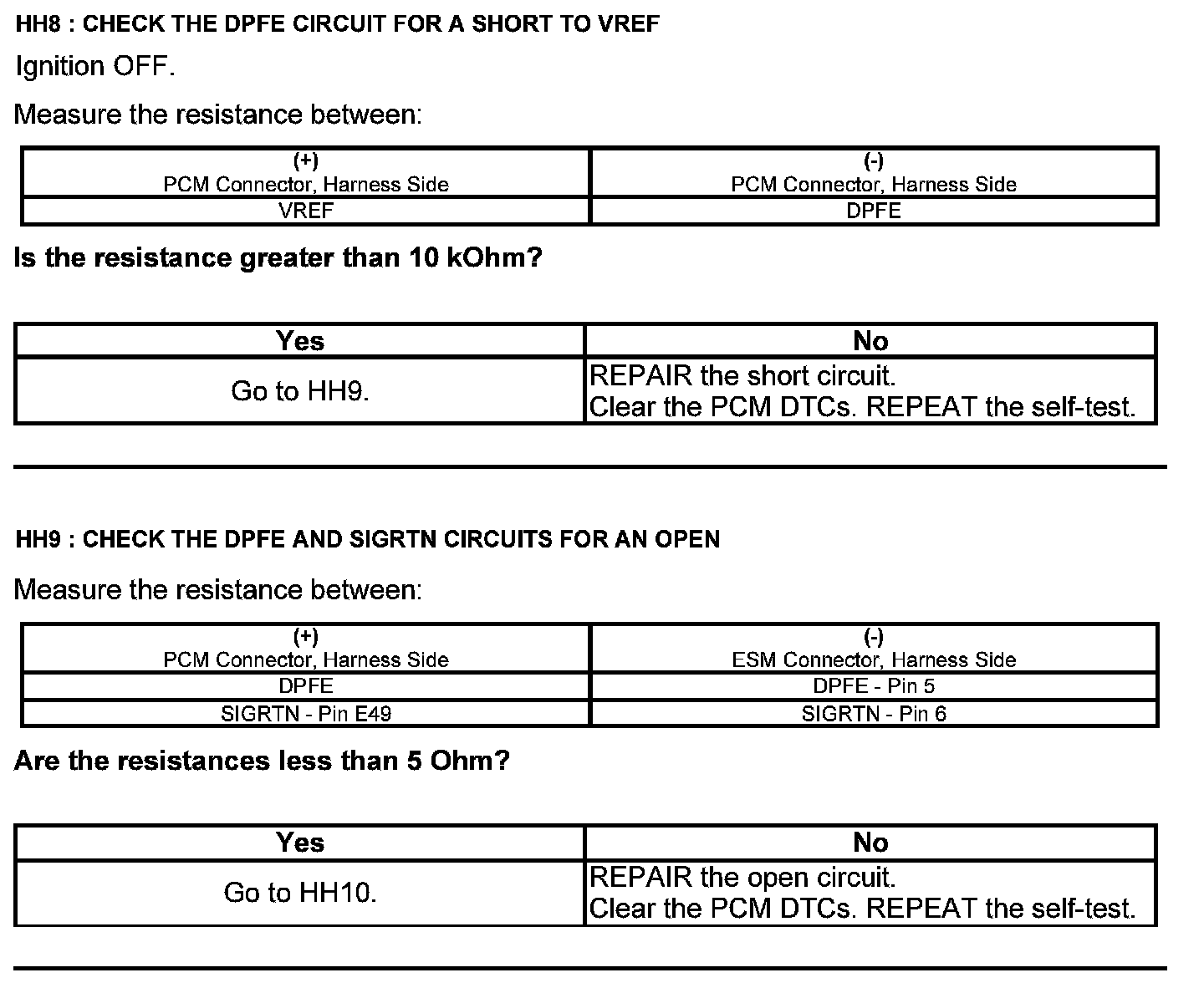

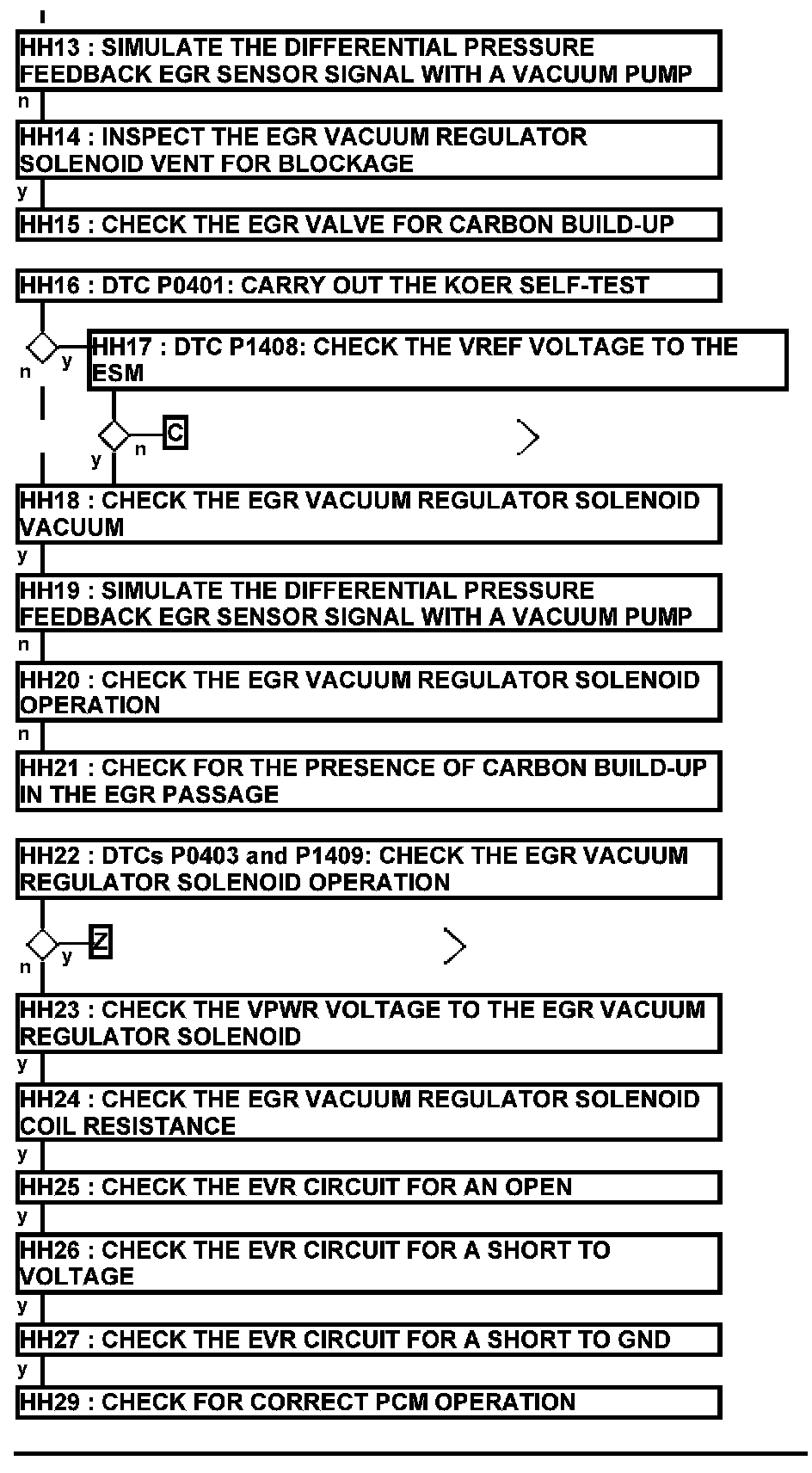

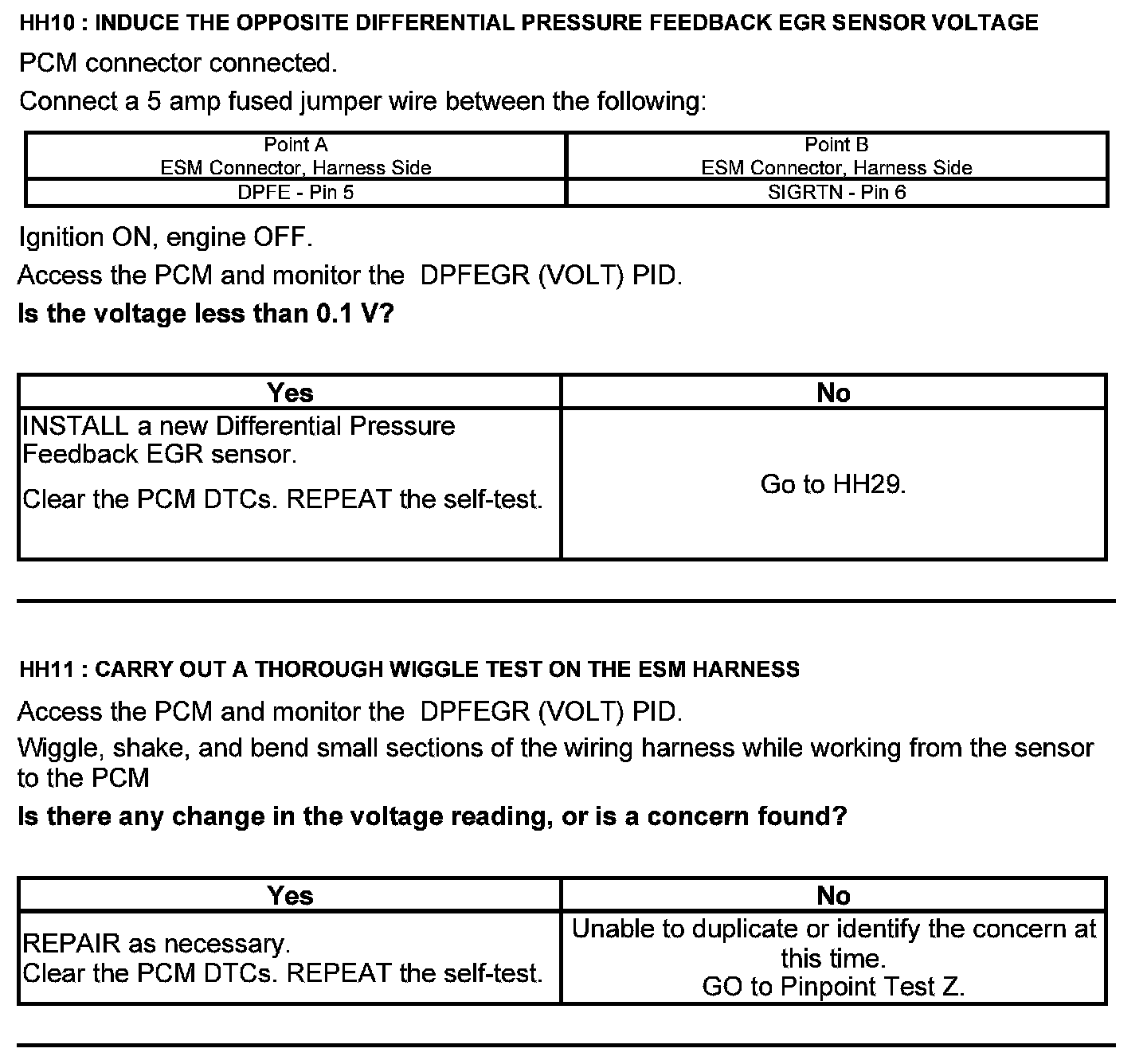

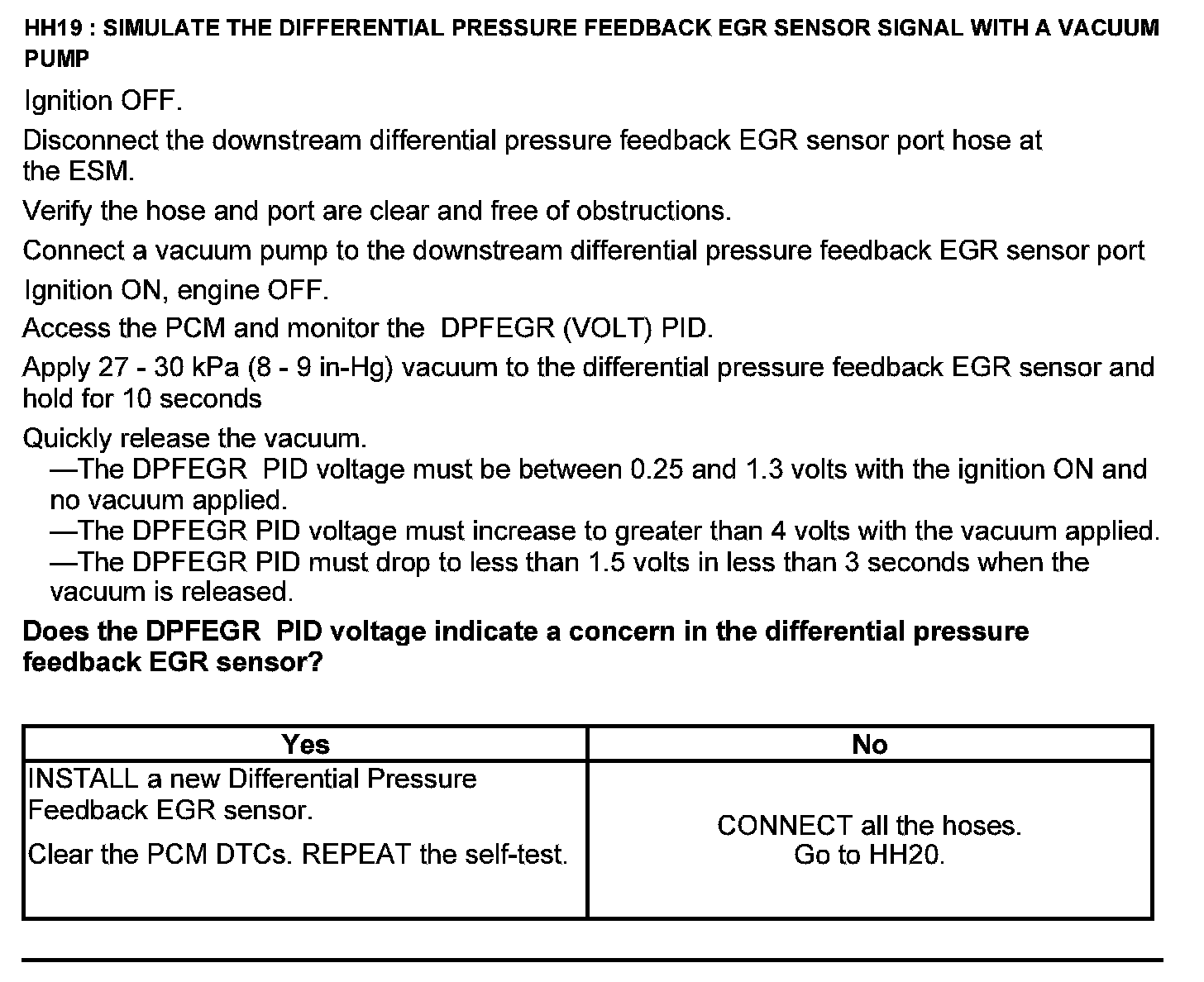

Exhaust Gas Recirculation System Module (ESM) - Manual Transmission

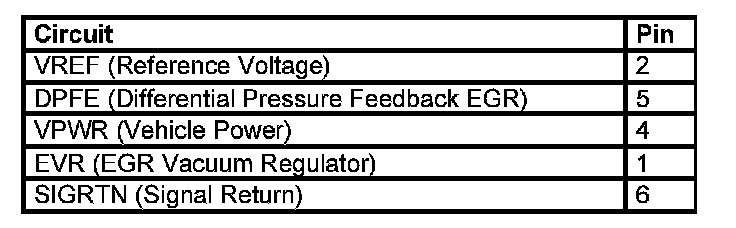

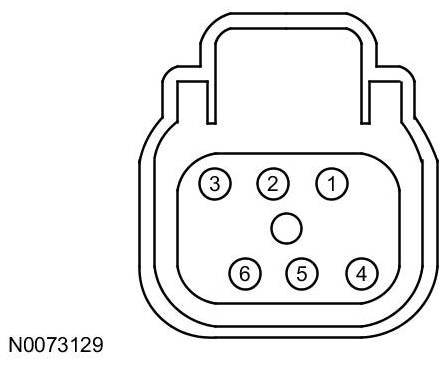

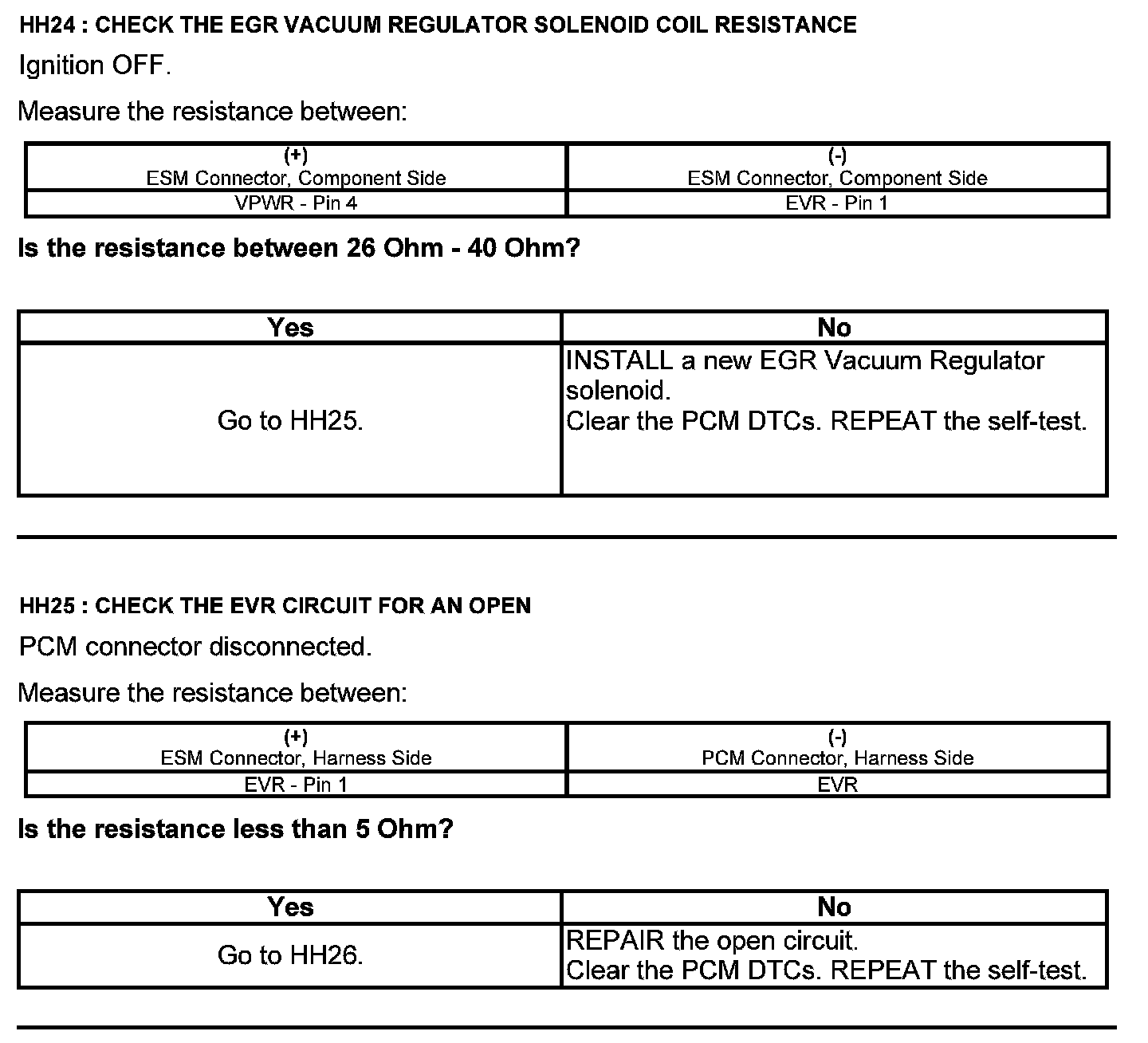

EGR System Module (ESM) Connector





Harness Side

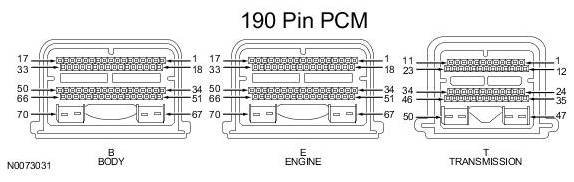

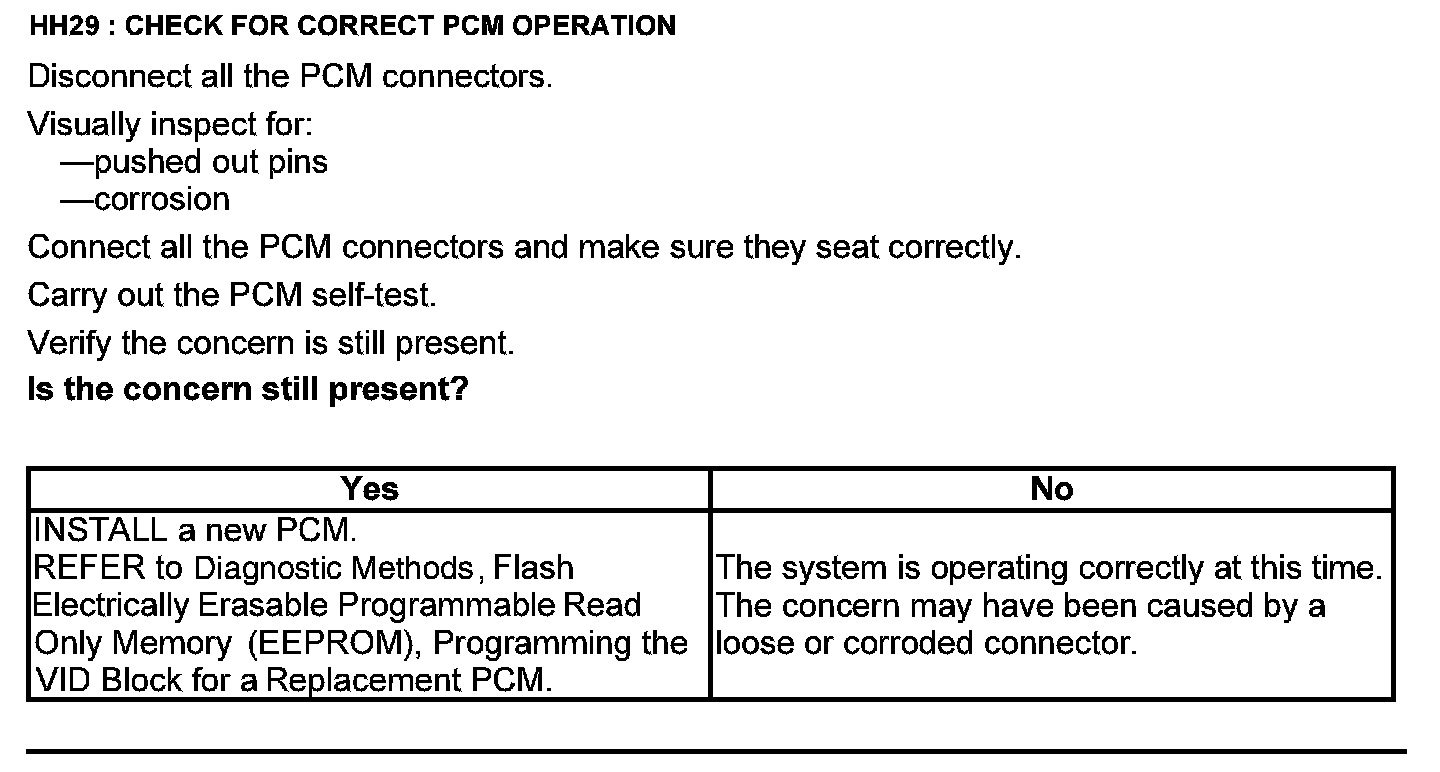

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
