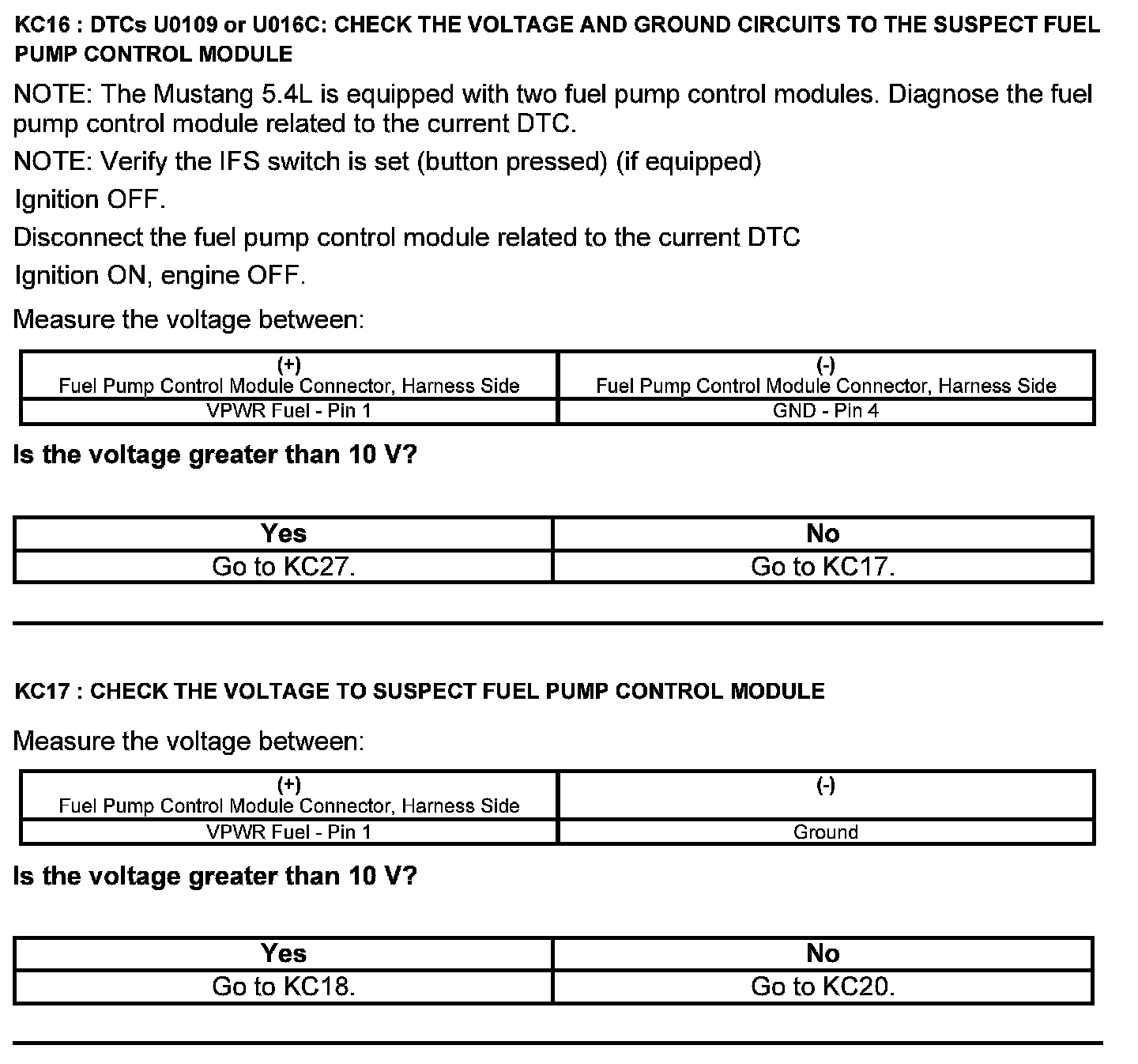

Fuel Pump Control Module - All Others

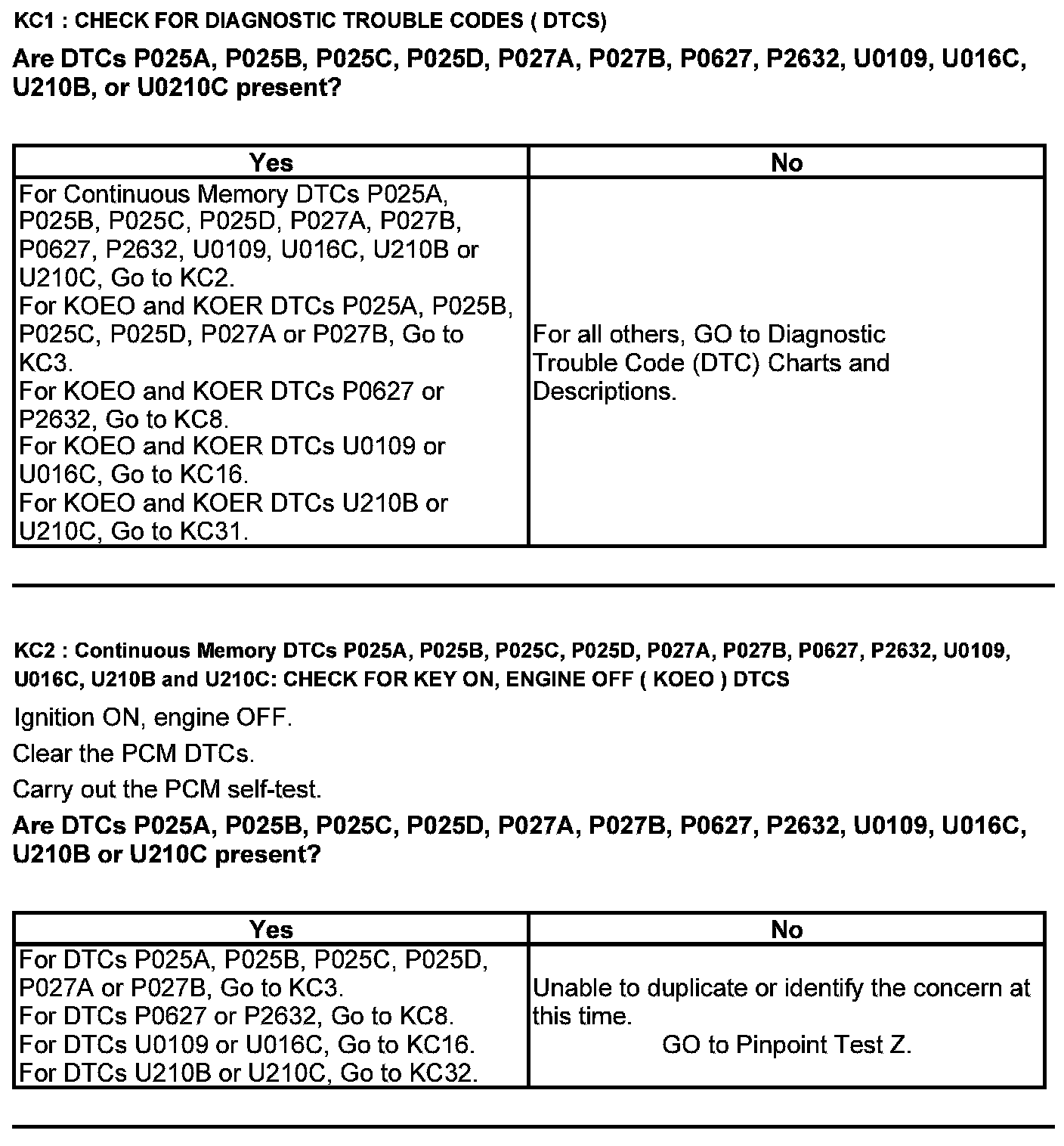

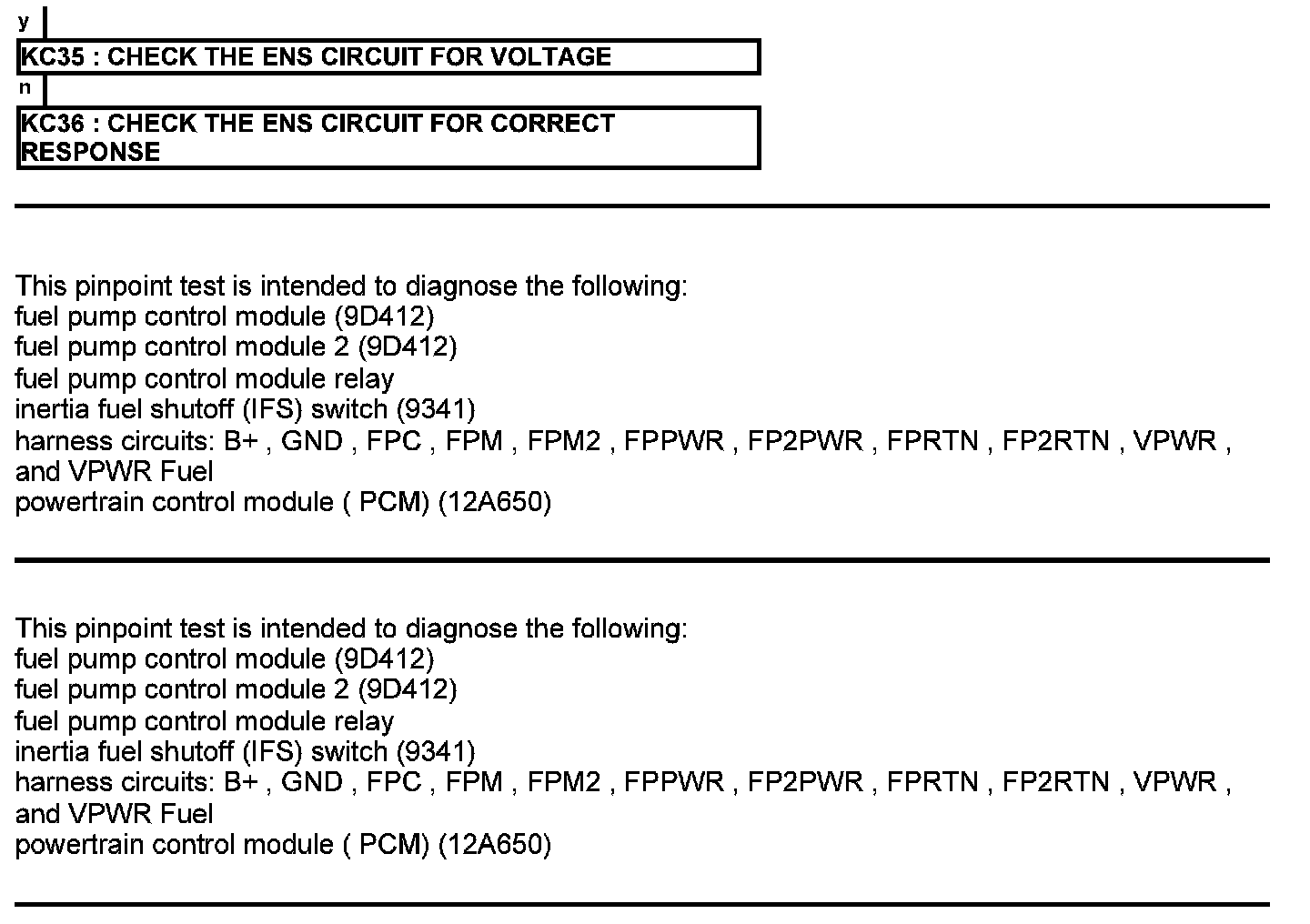

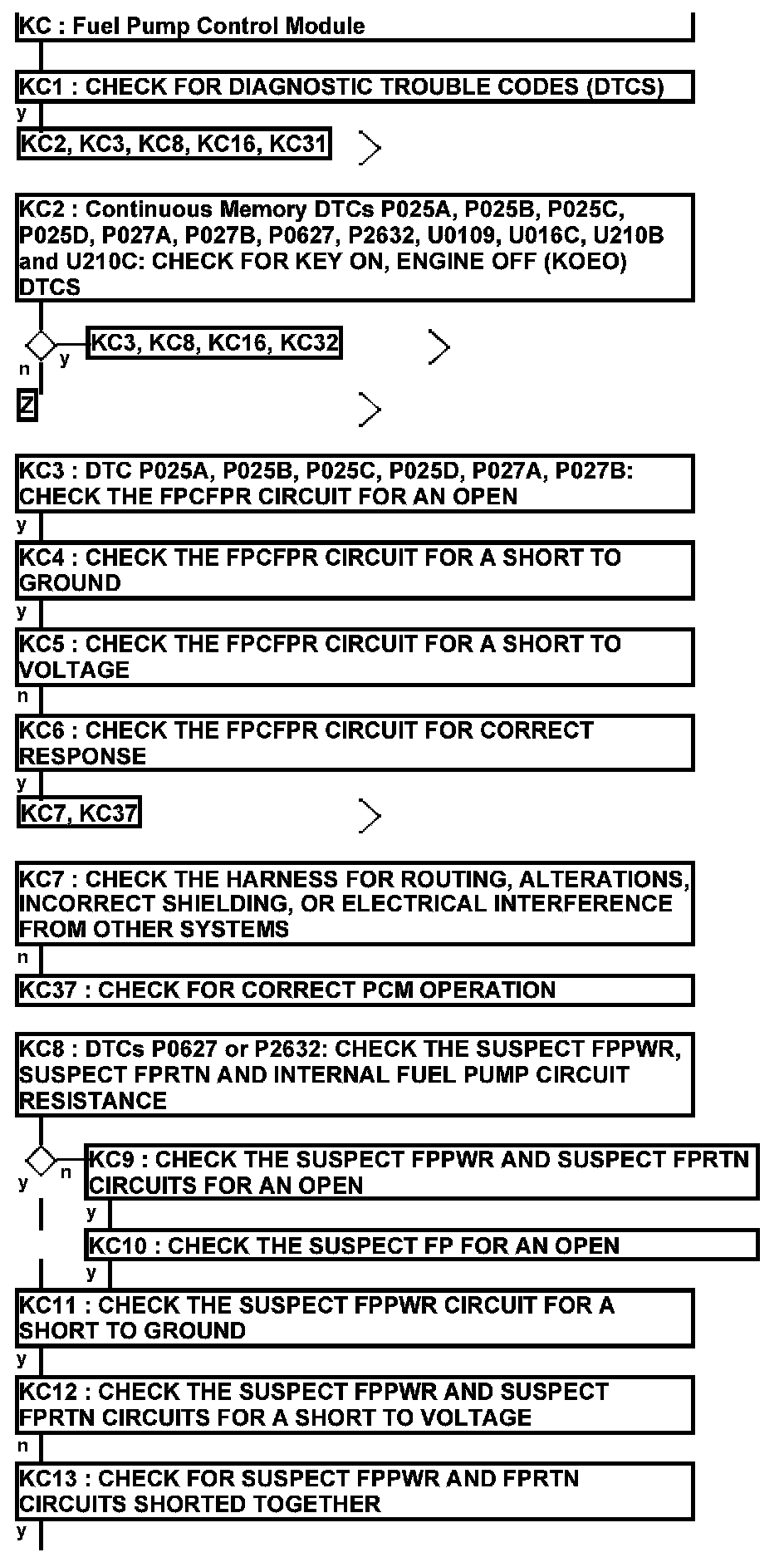

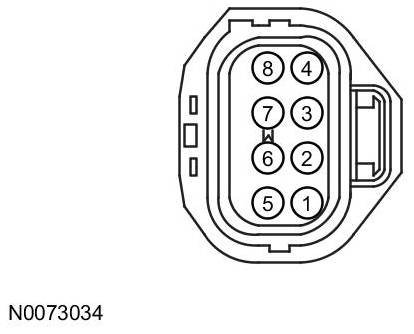

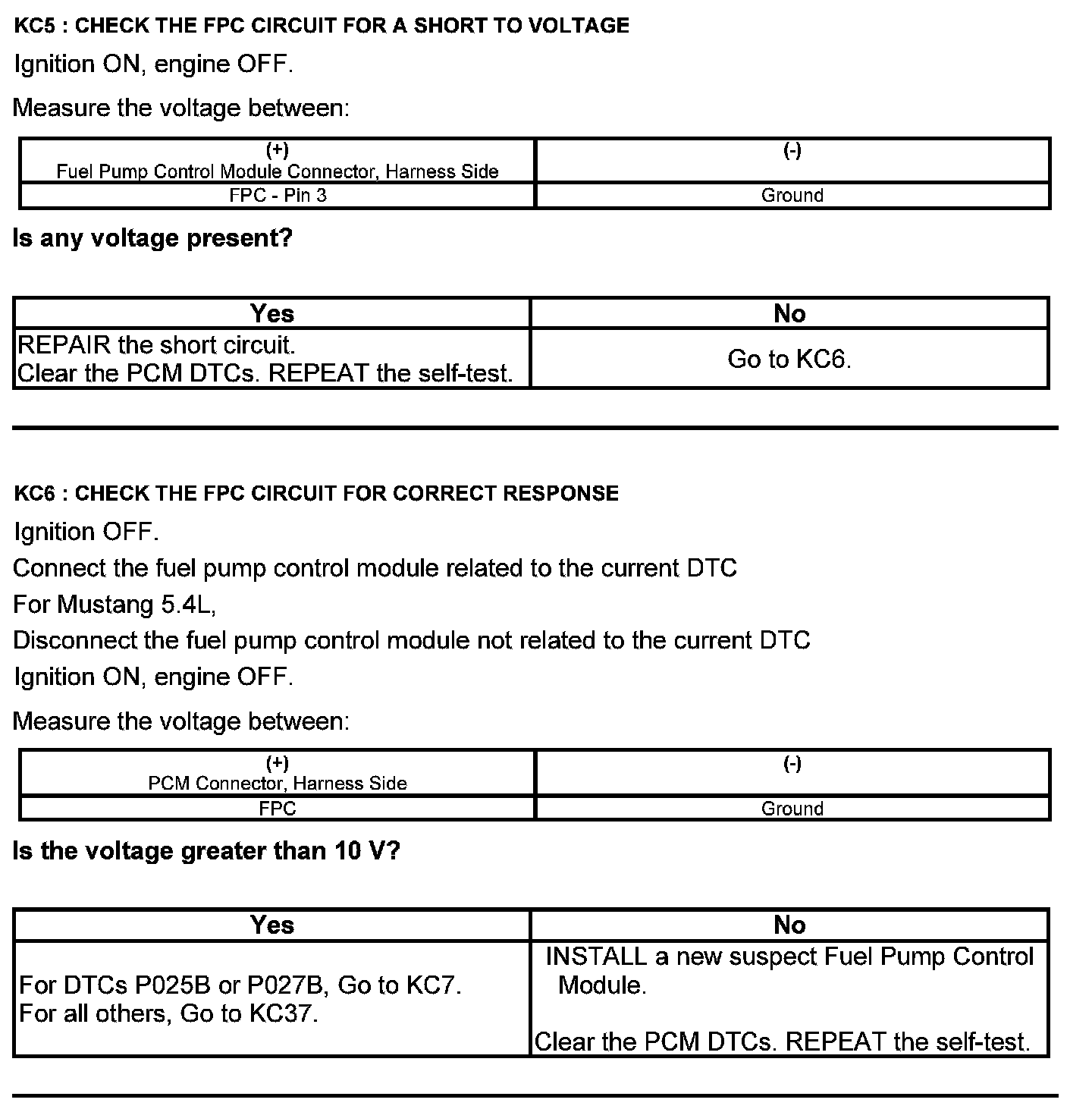

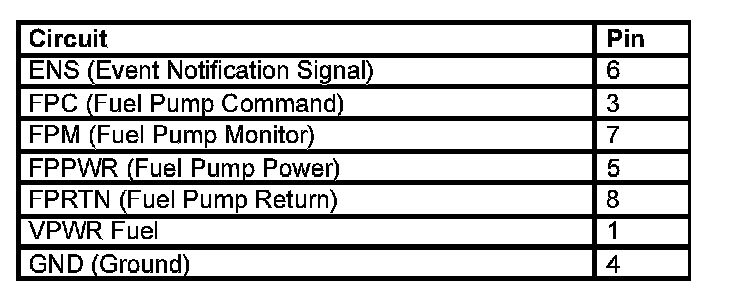

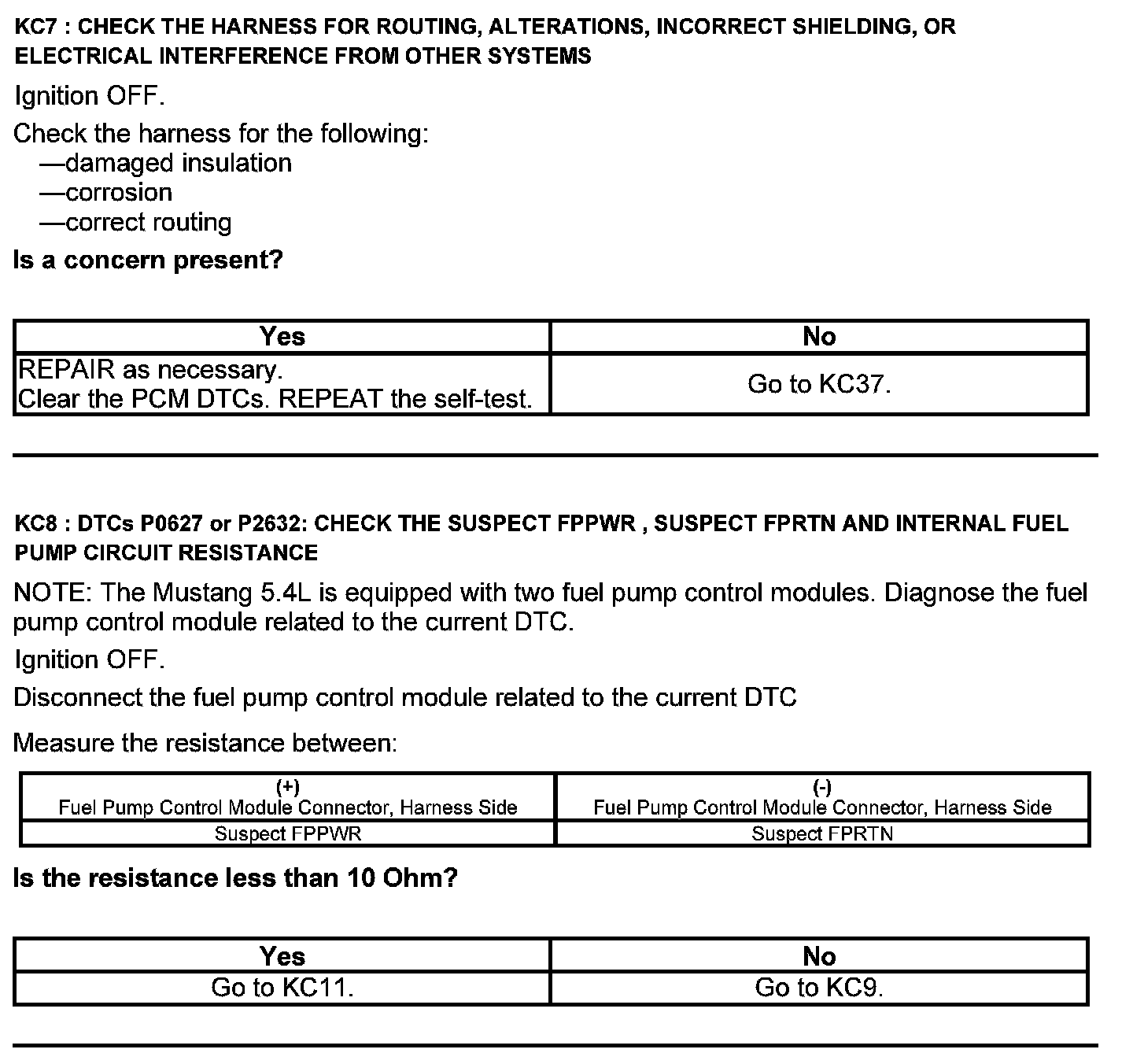

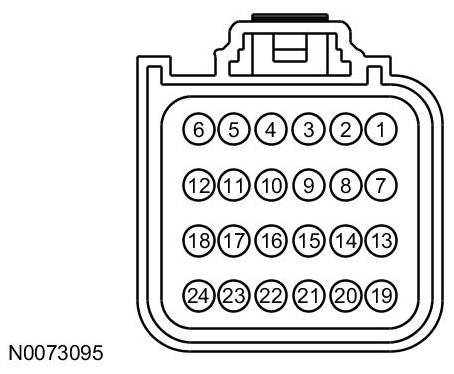

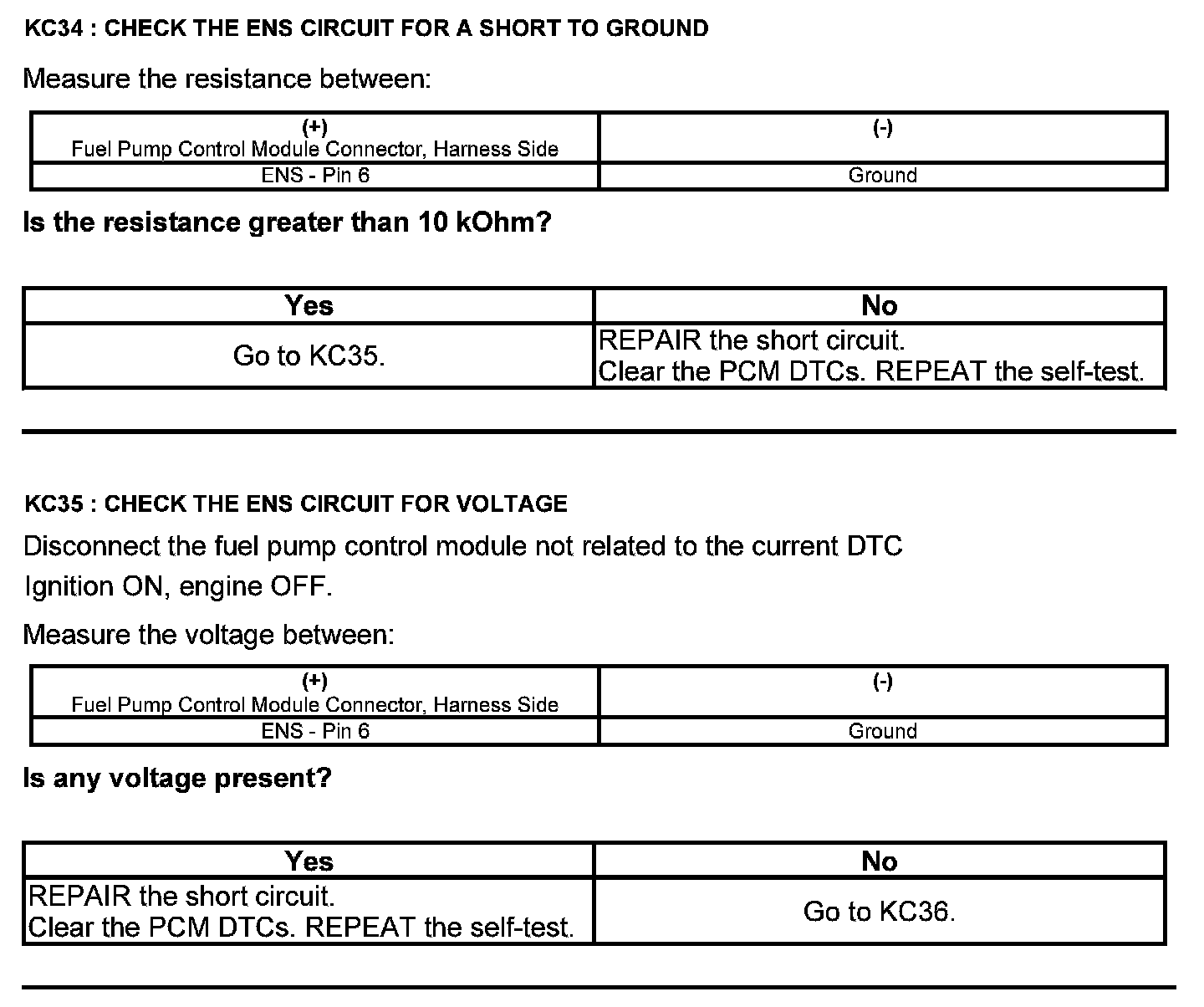

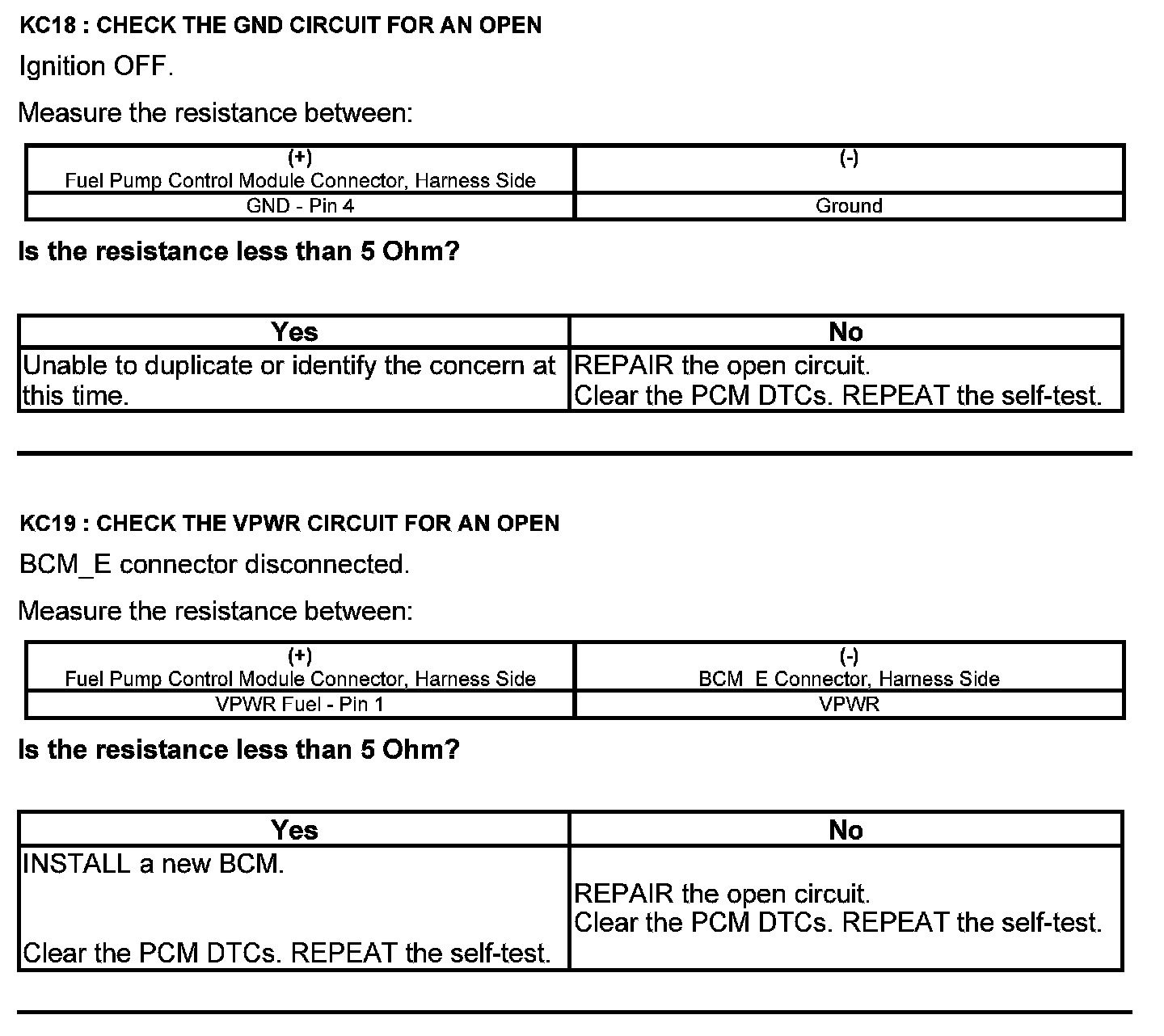

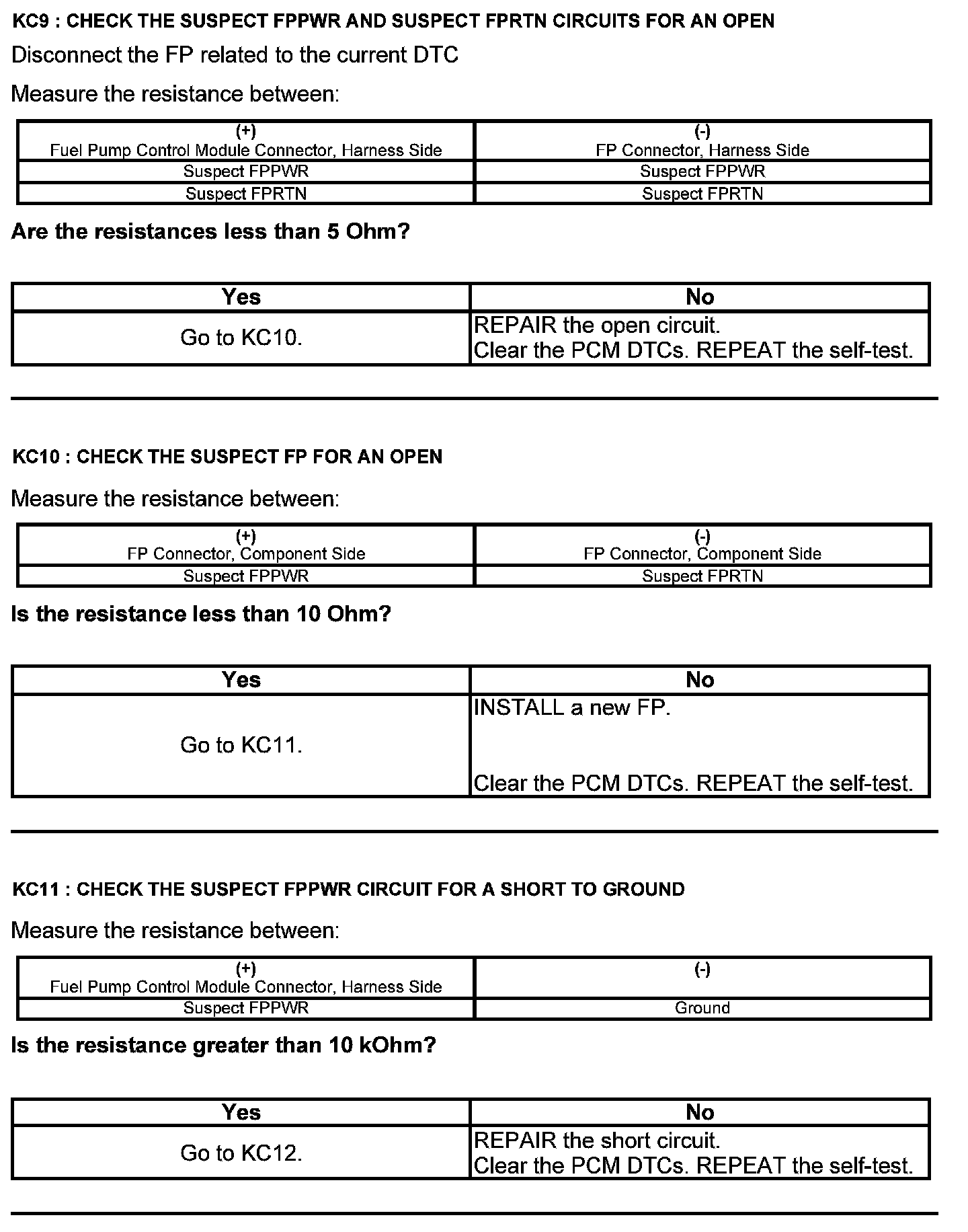

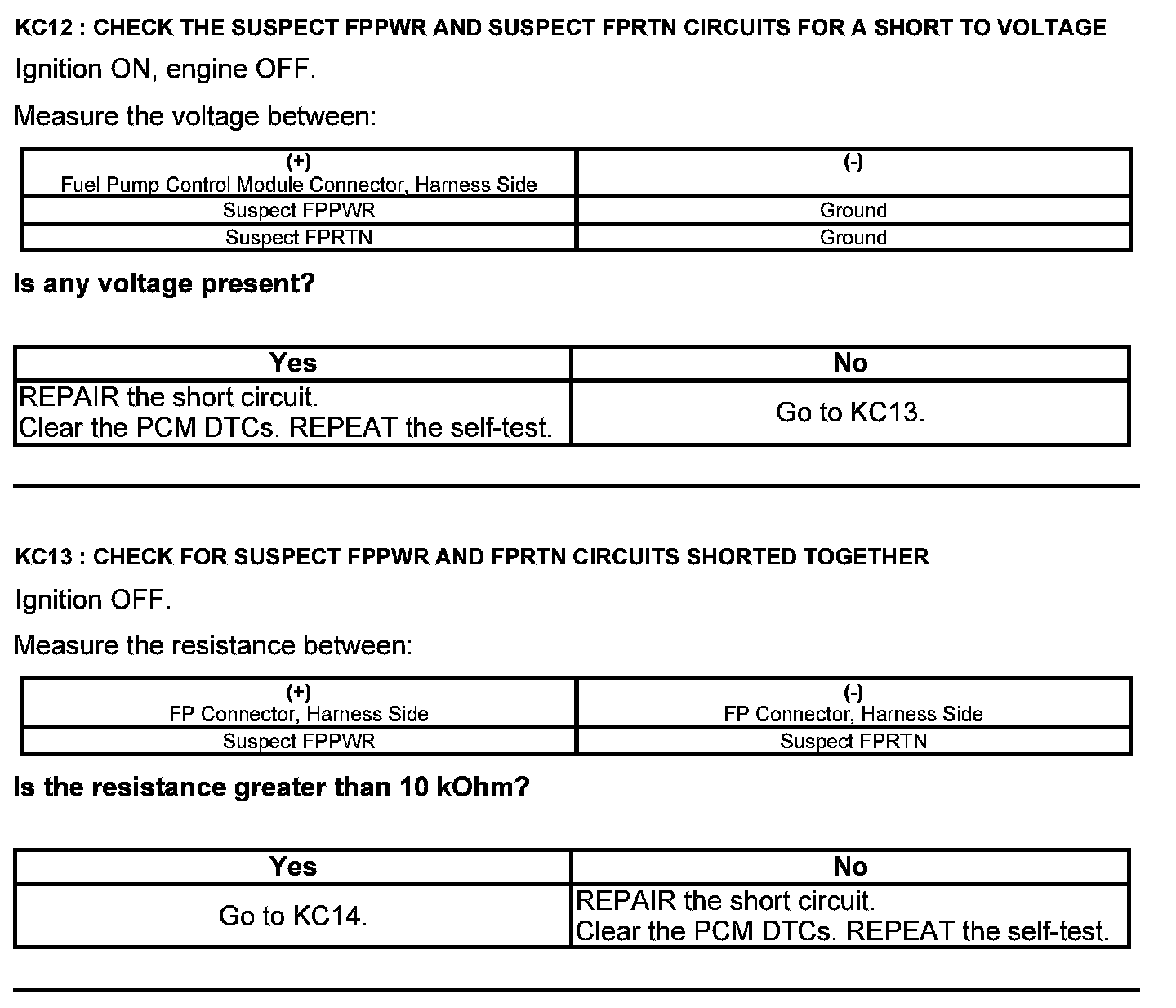

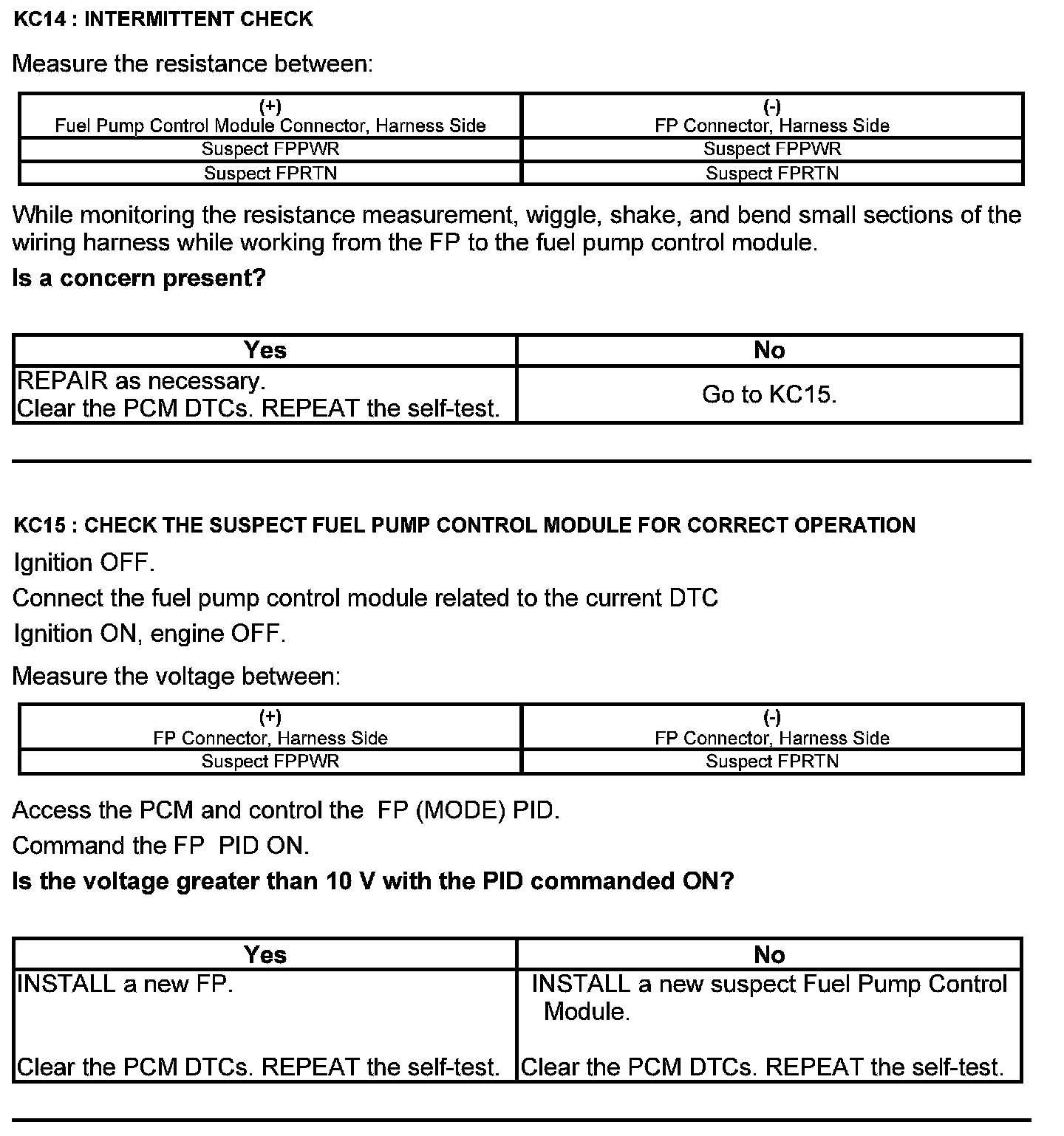

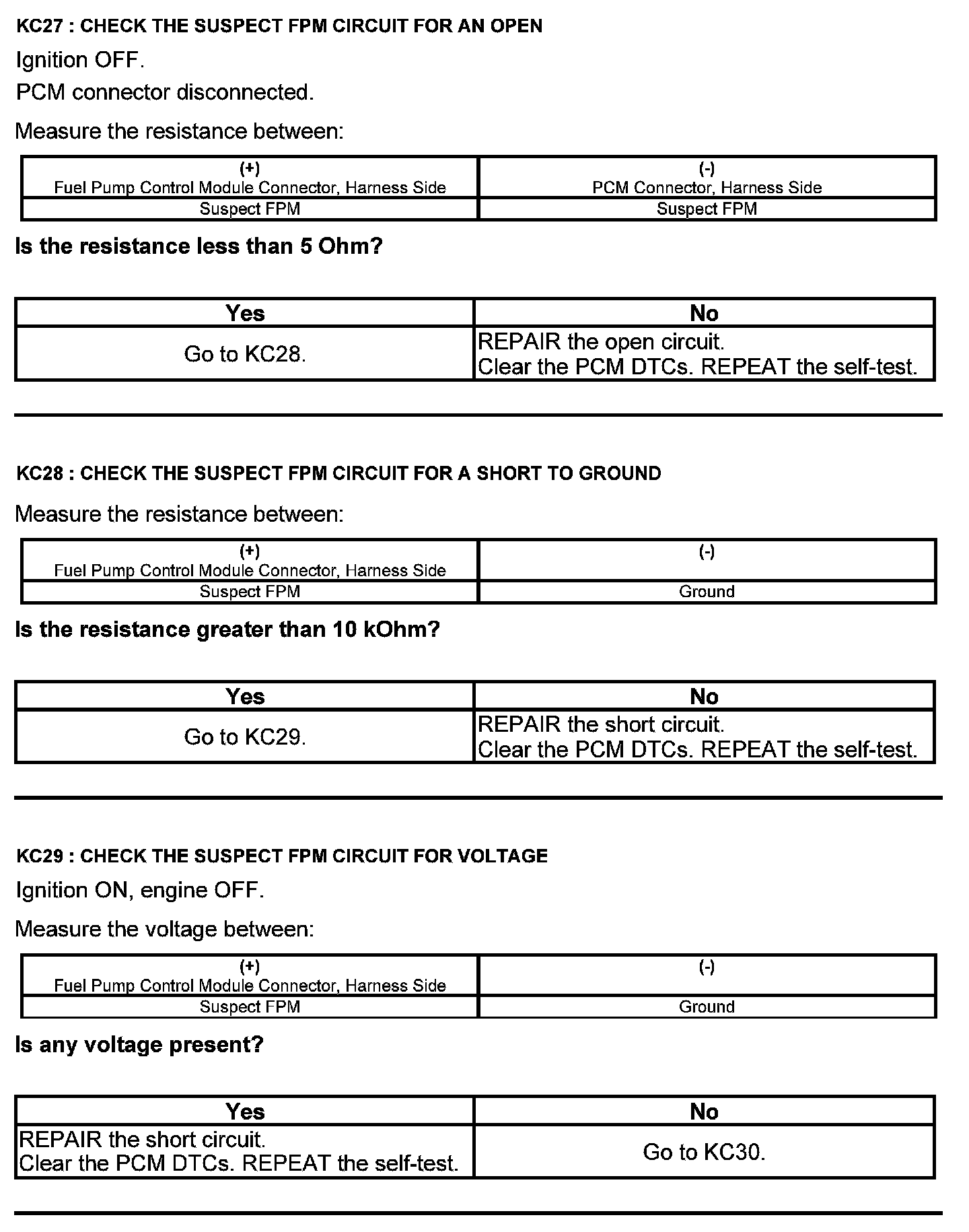

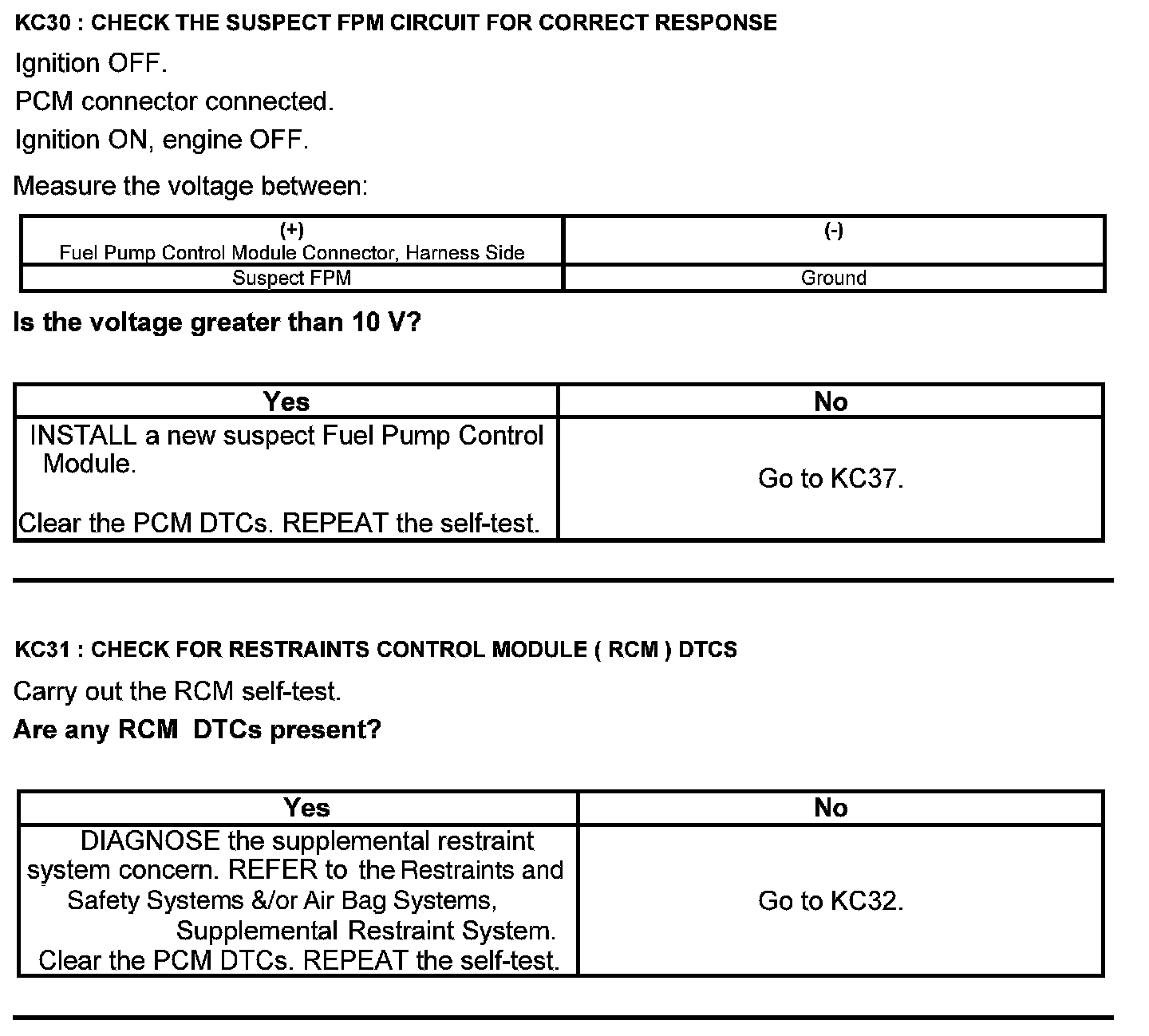

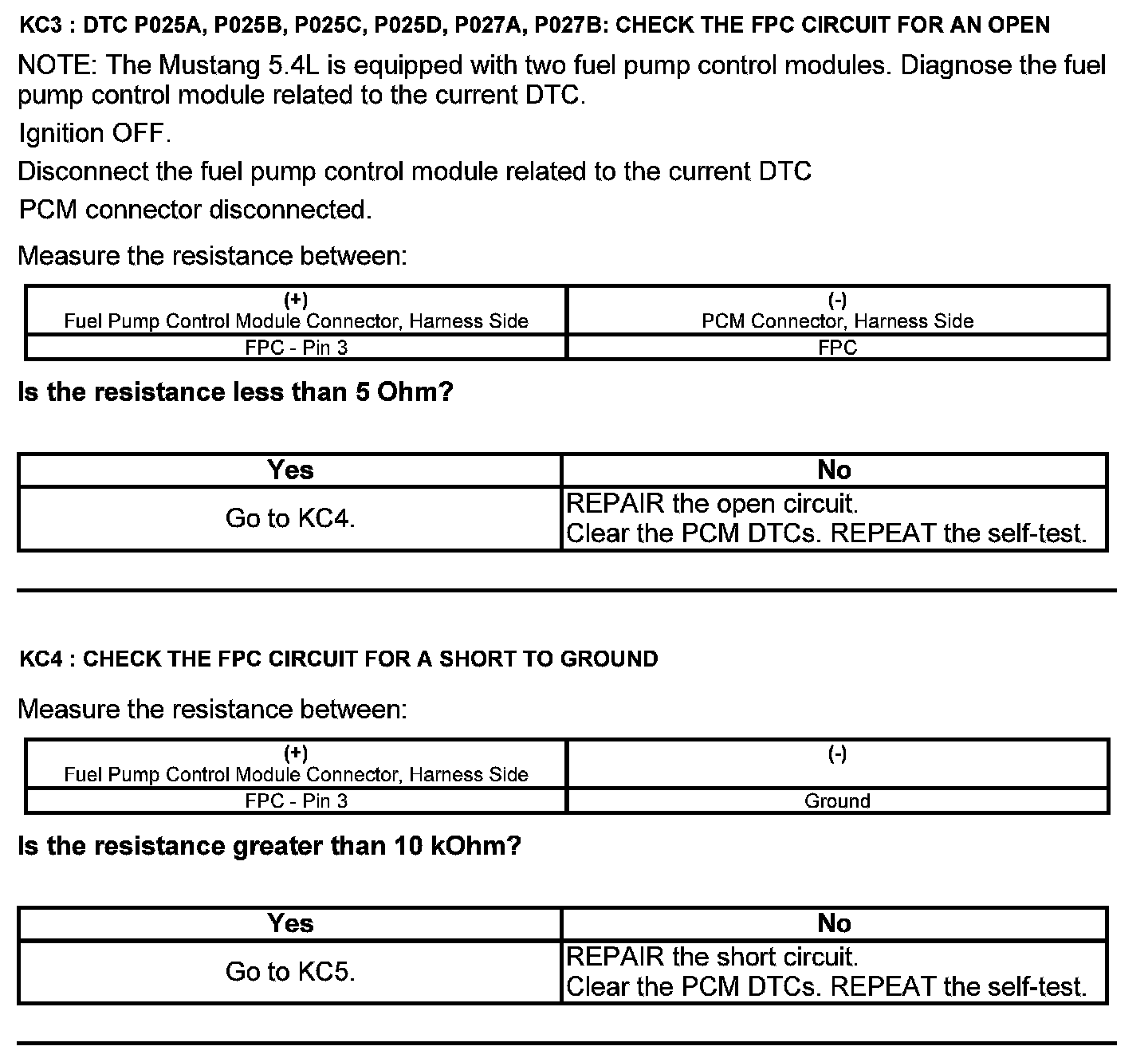

Fuel Pump Control Module Connector





Harness Side

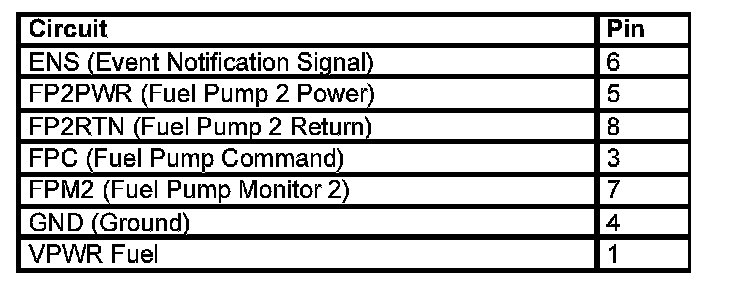

Fuel Pump Control Module 2 Module Connector





Harness Side

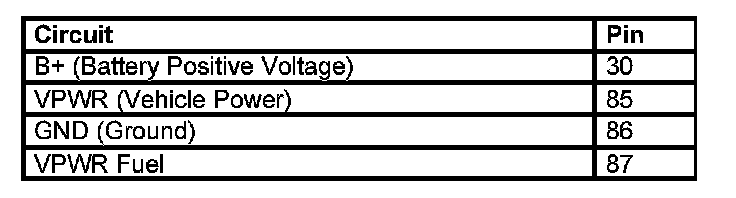

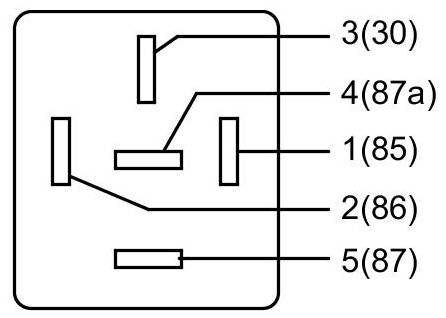

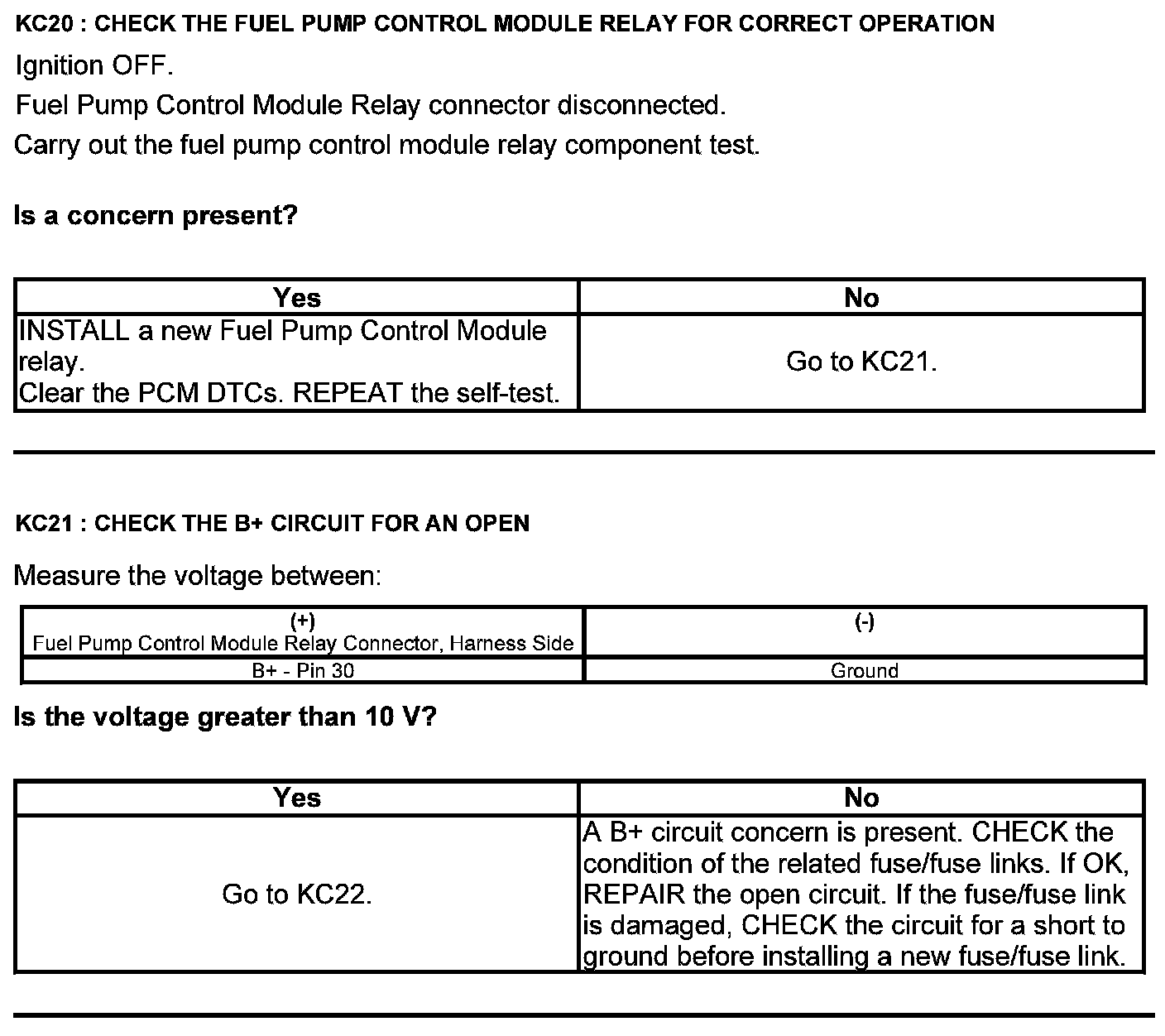

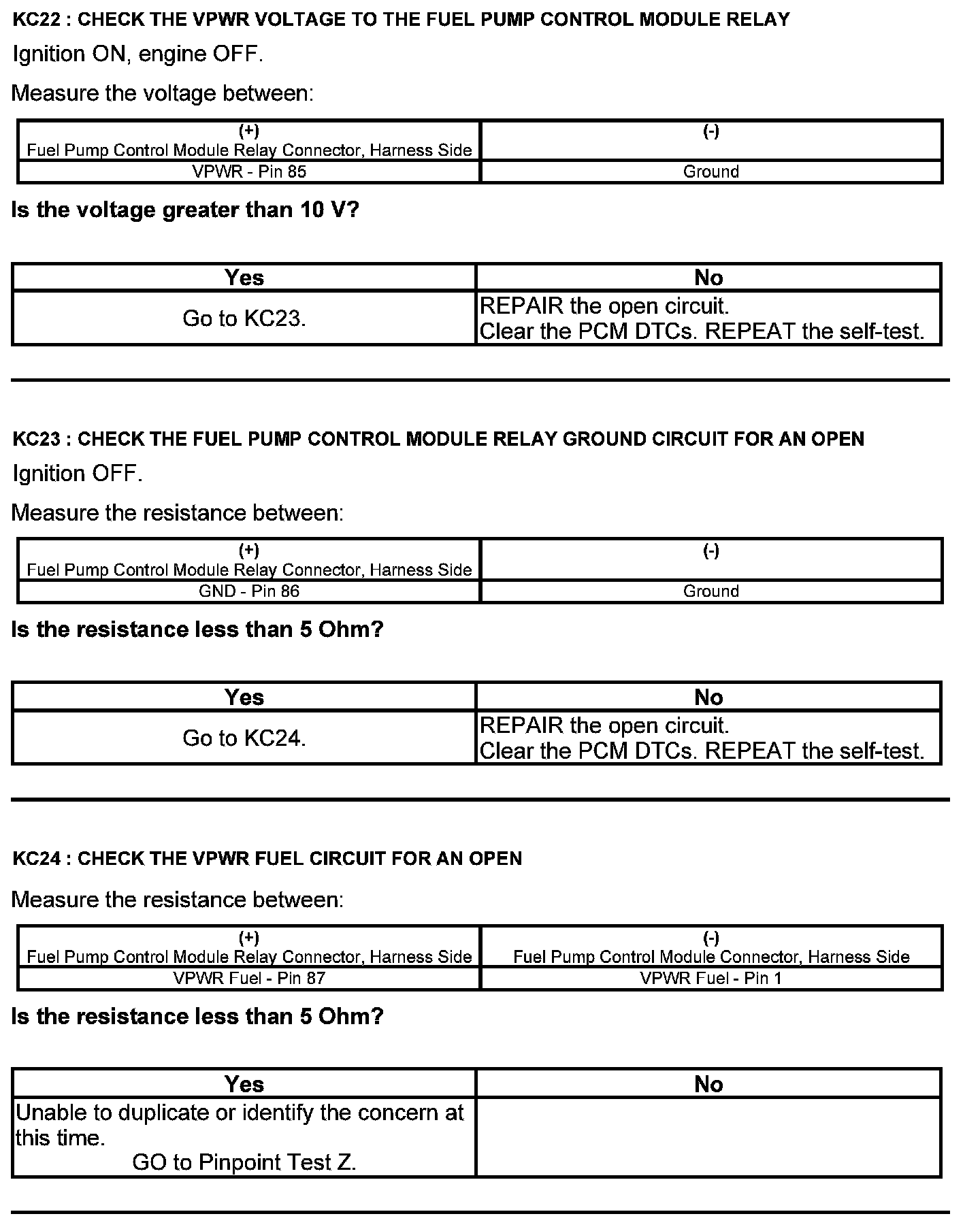

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.





Harness Side






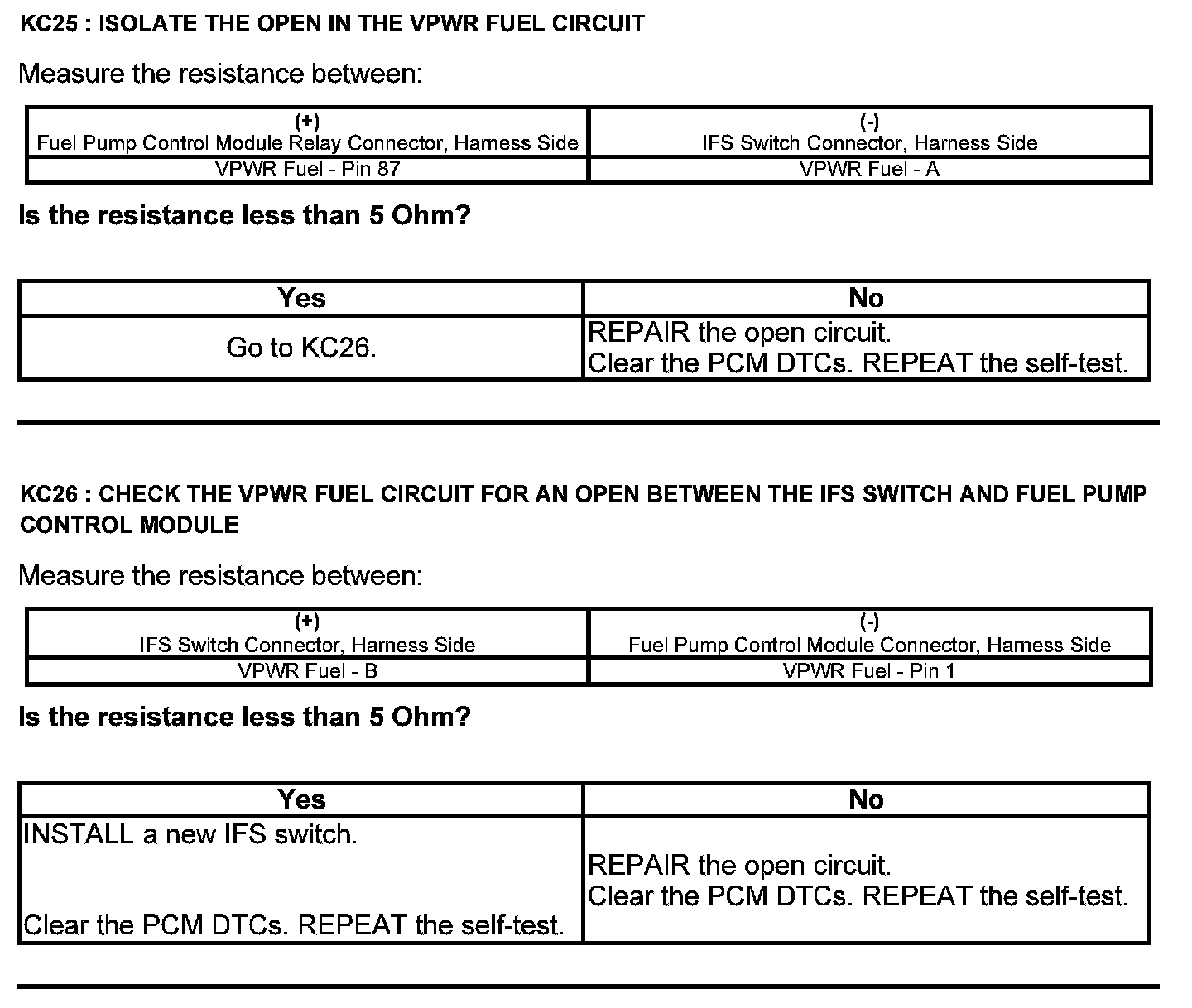

Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side

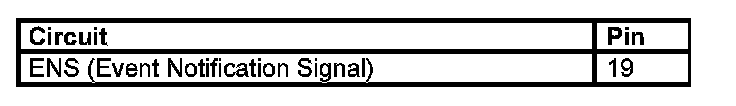

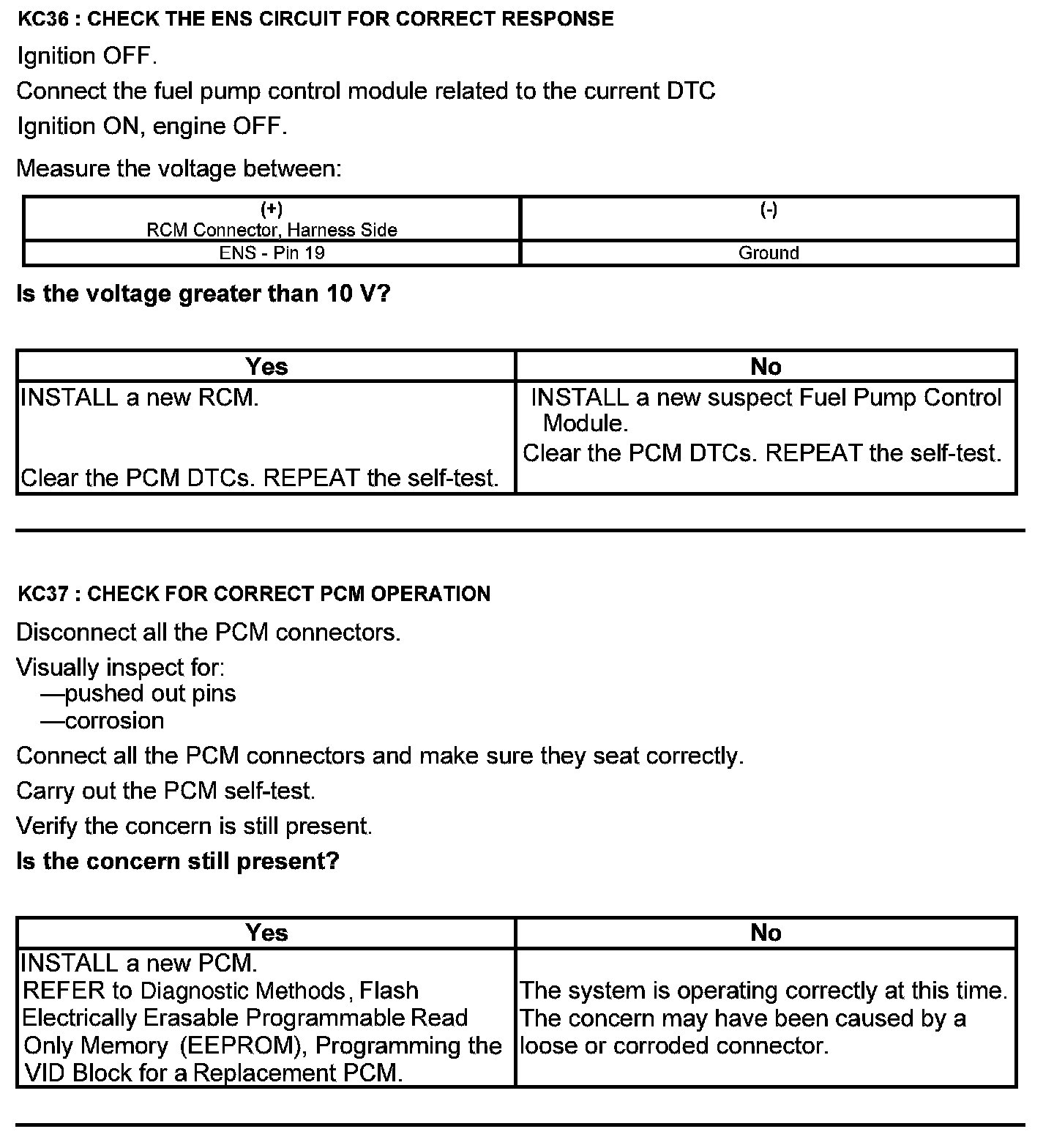

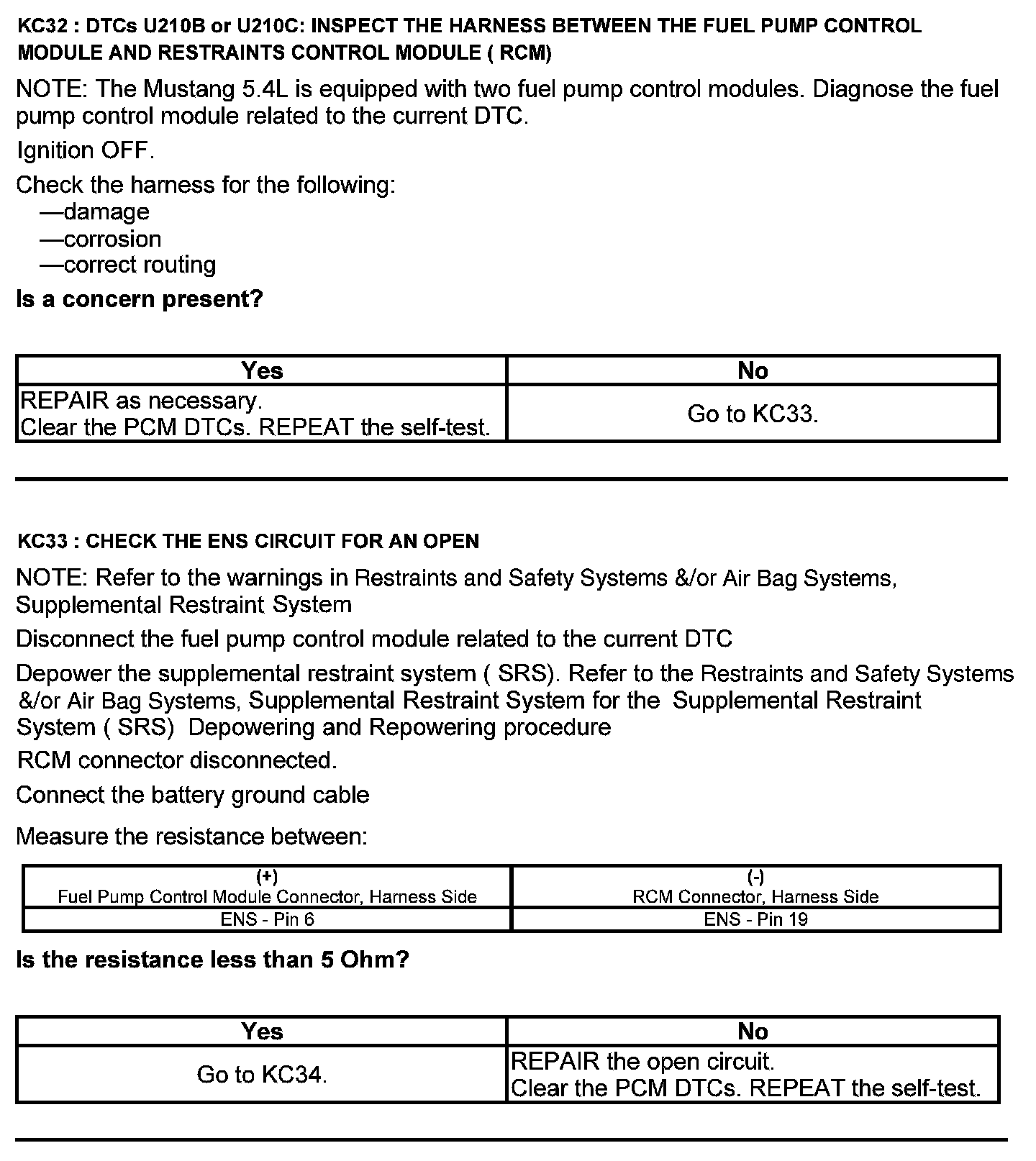

Restraints Control Module (RCM) Connector





Harness Side
