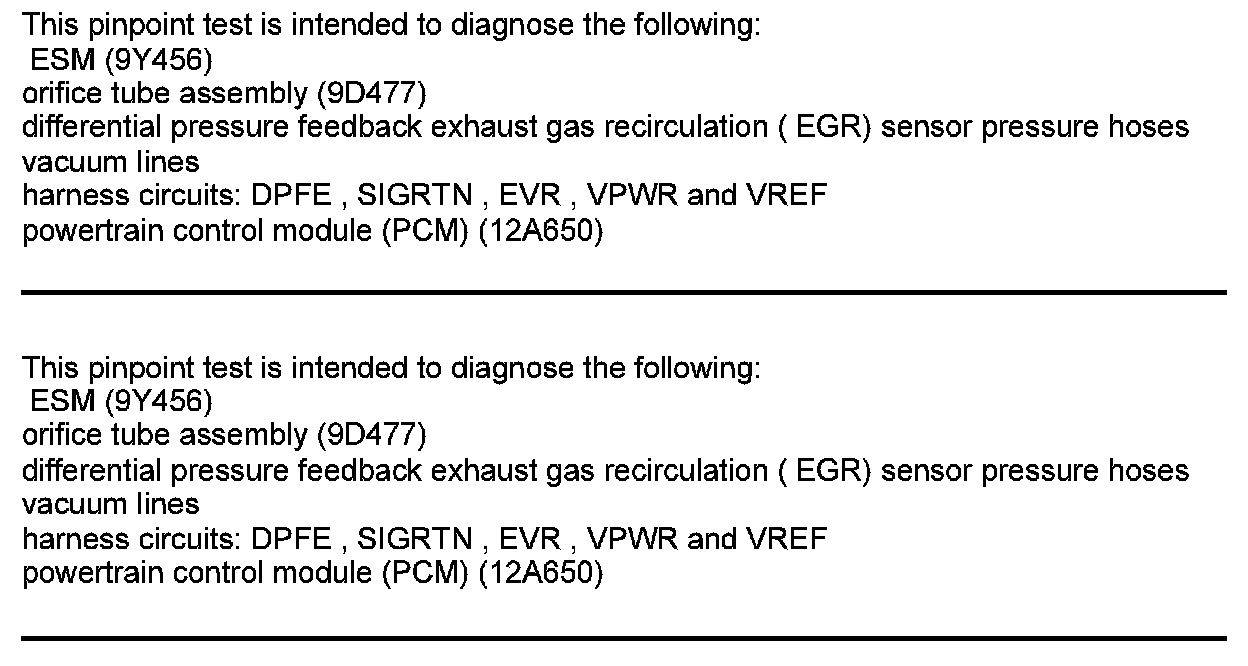

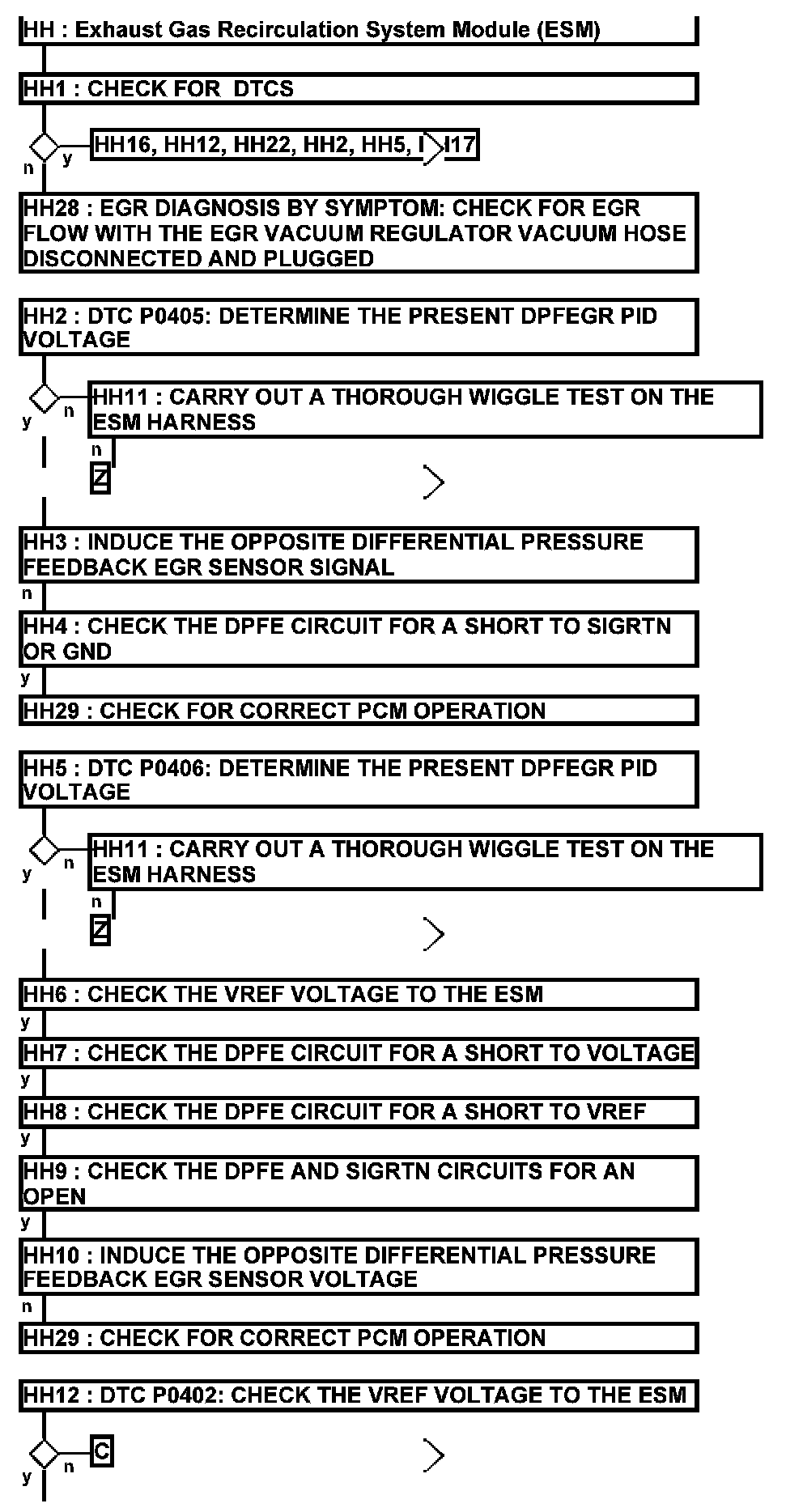

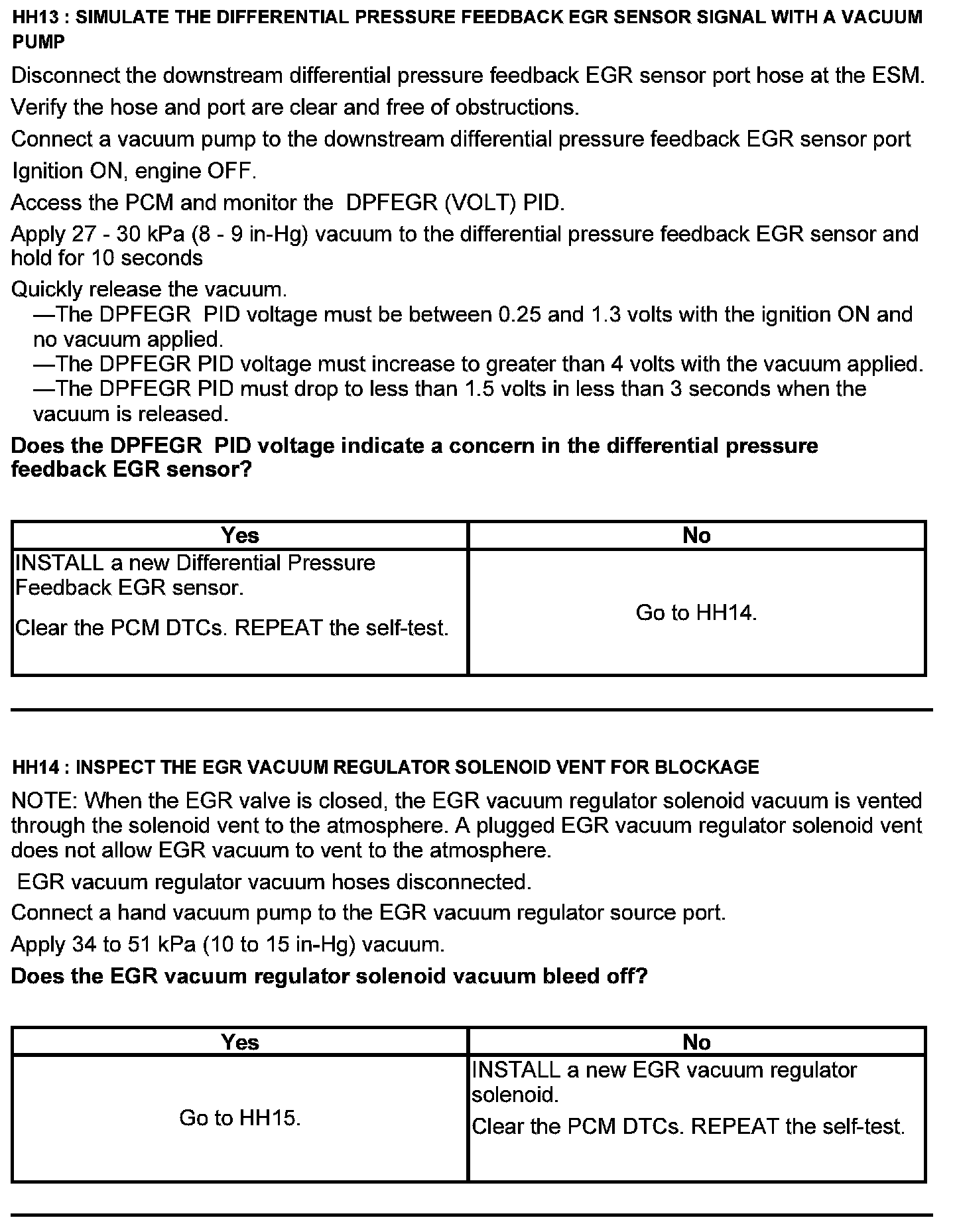

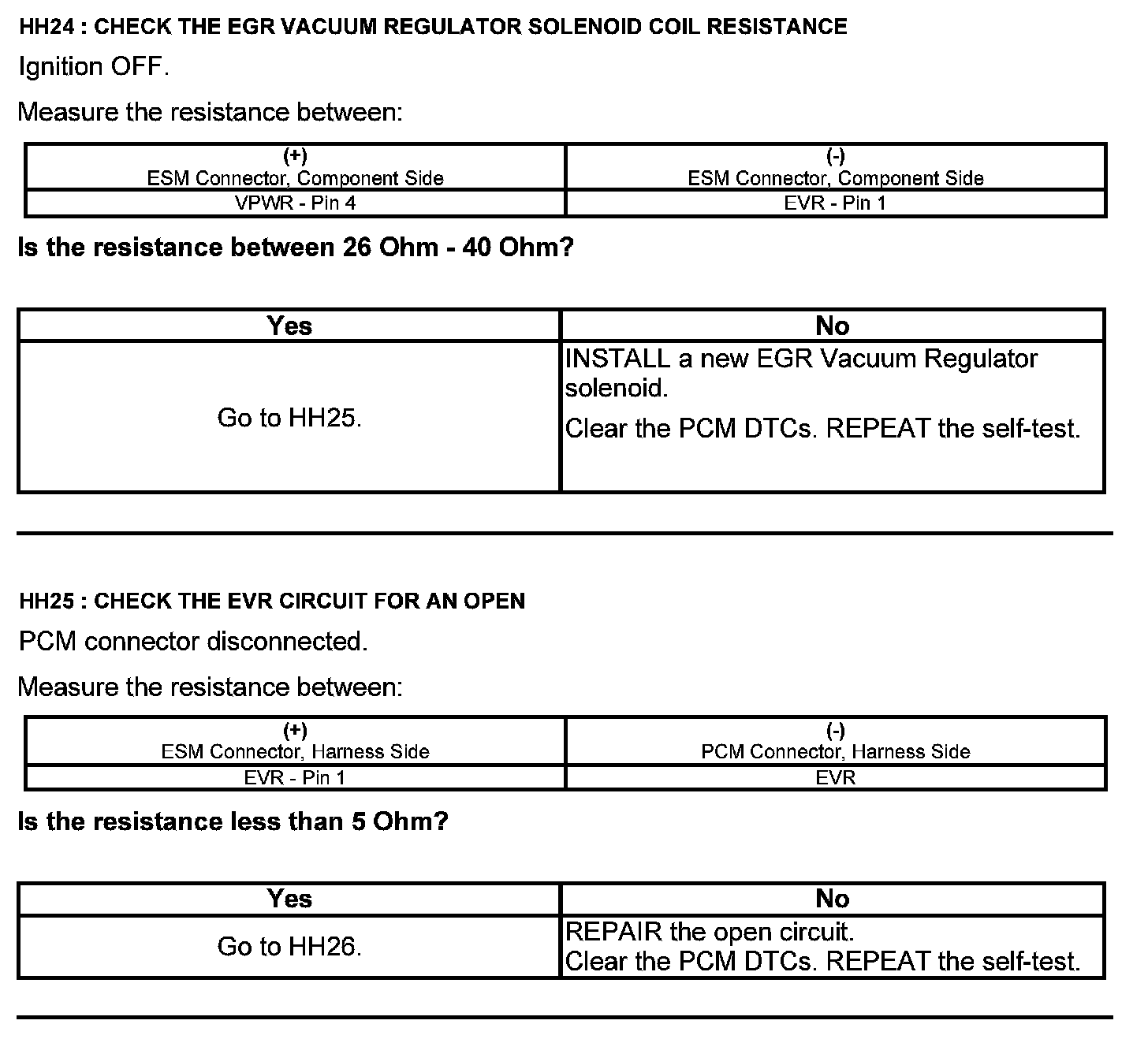

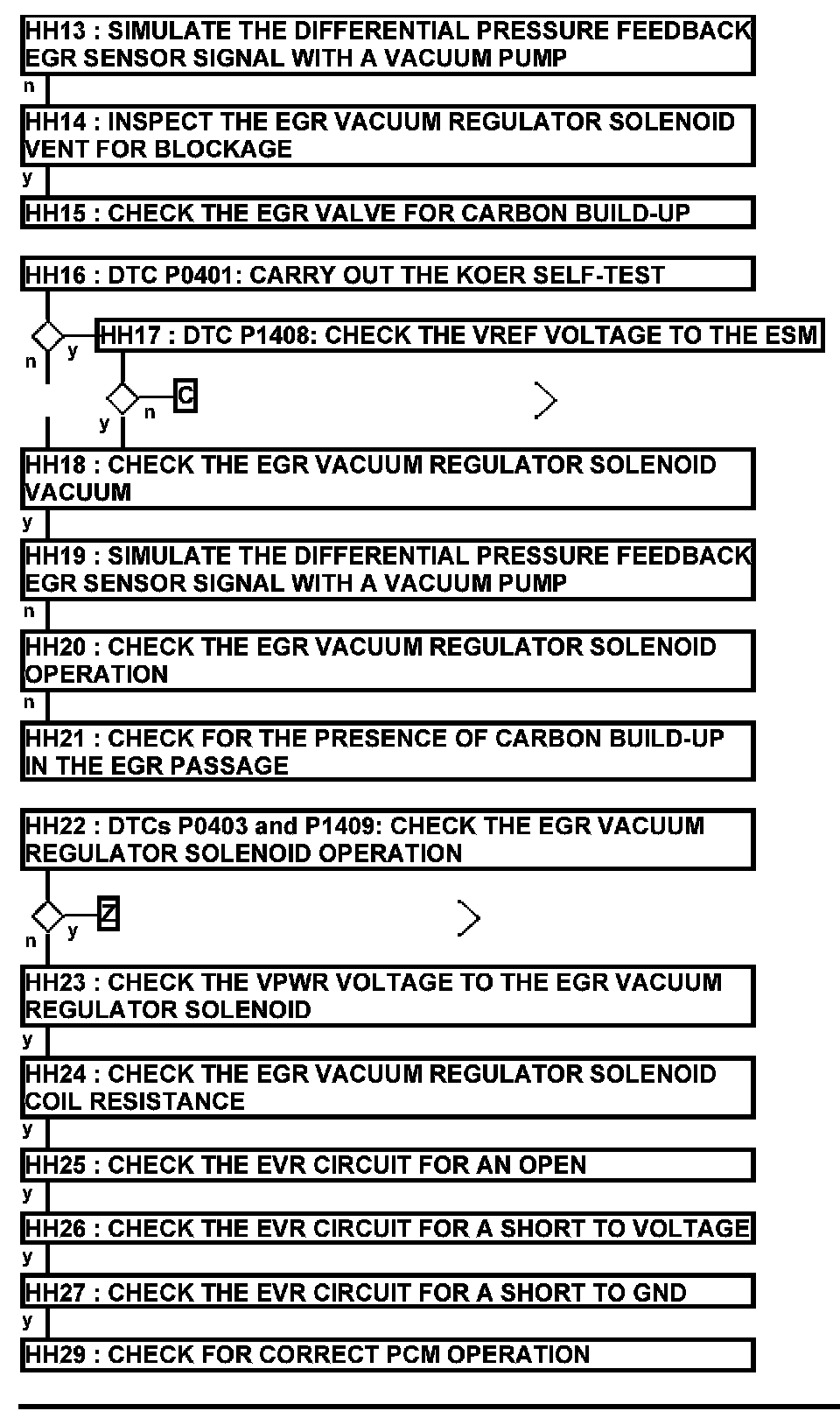

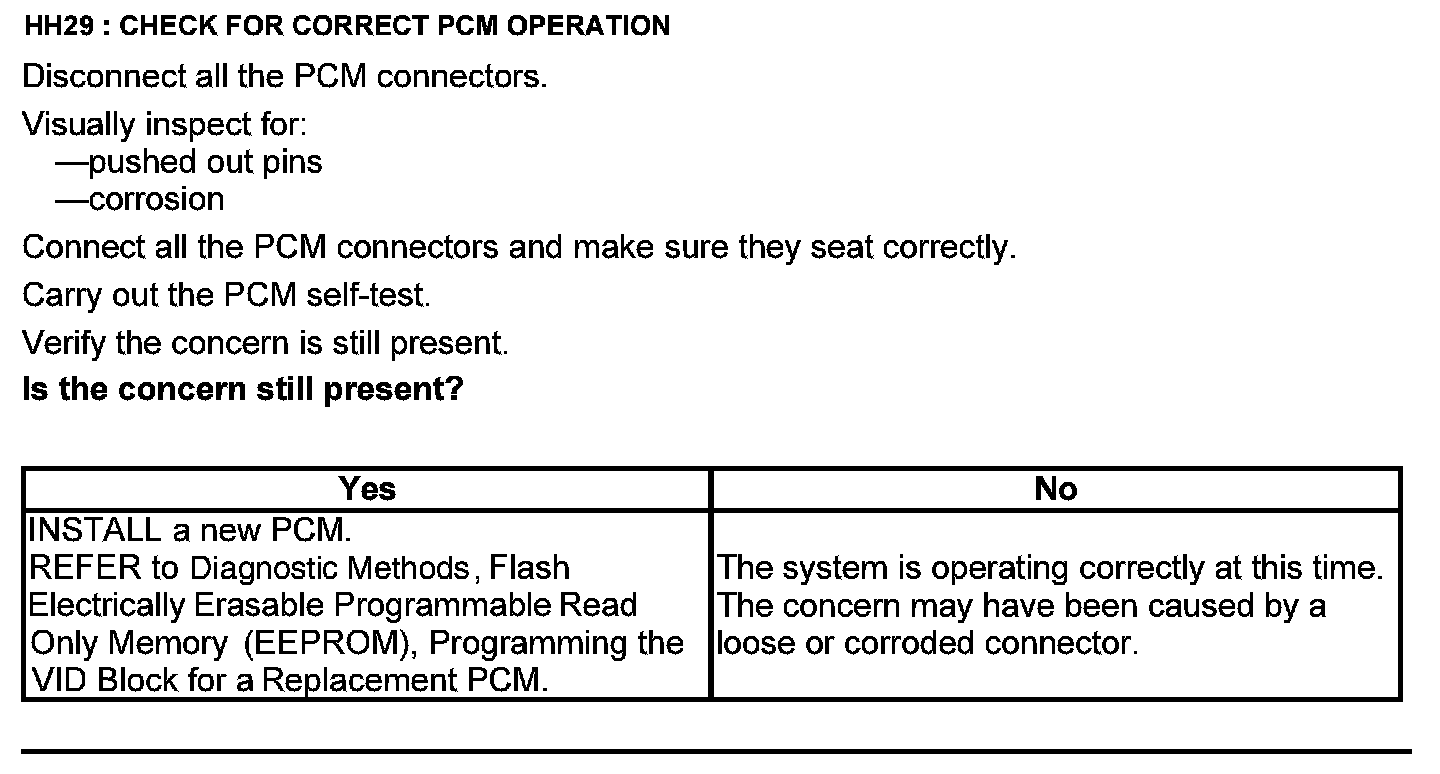

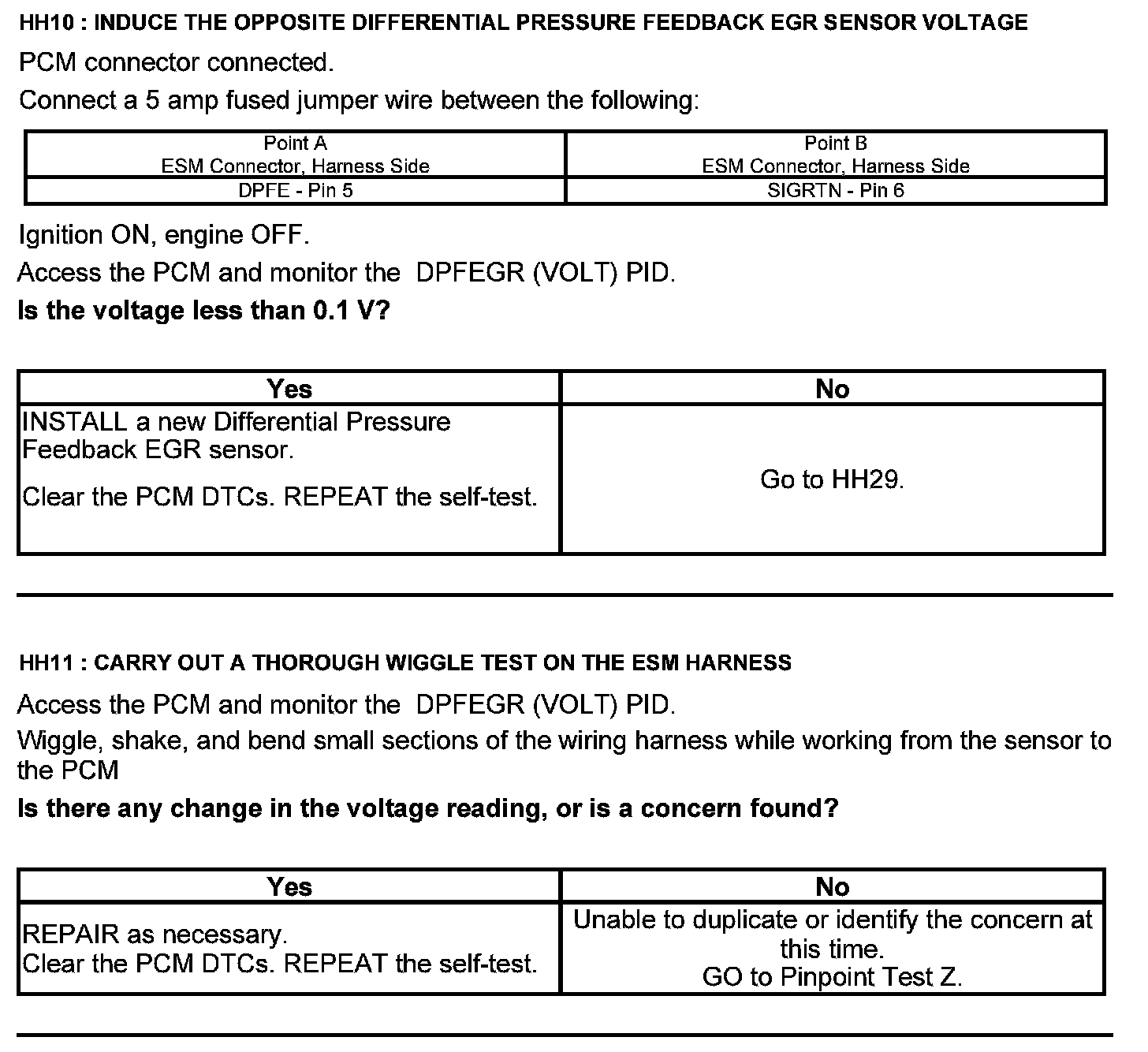

Exhaust Gas Recirculation System Module (ESM) - All Others

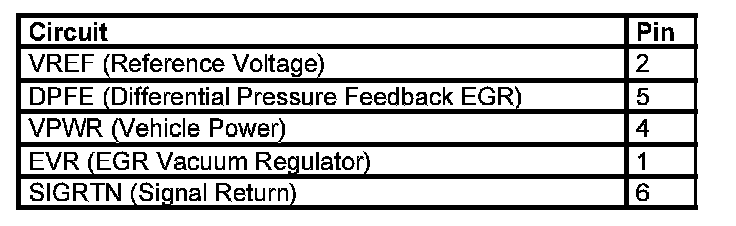

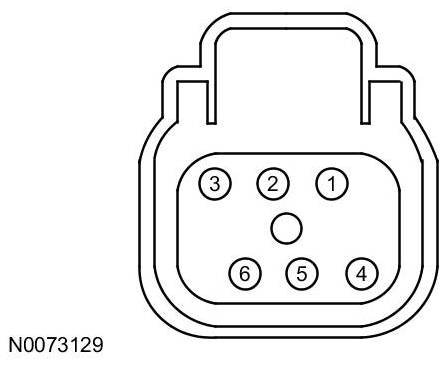

EGR System Module (ESM) Connector

Harness Side
