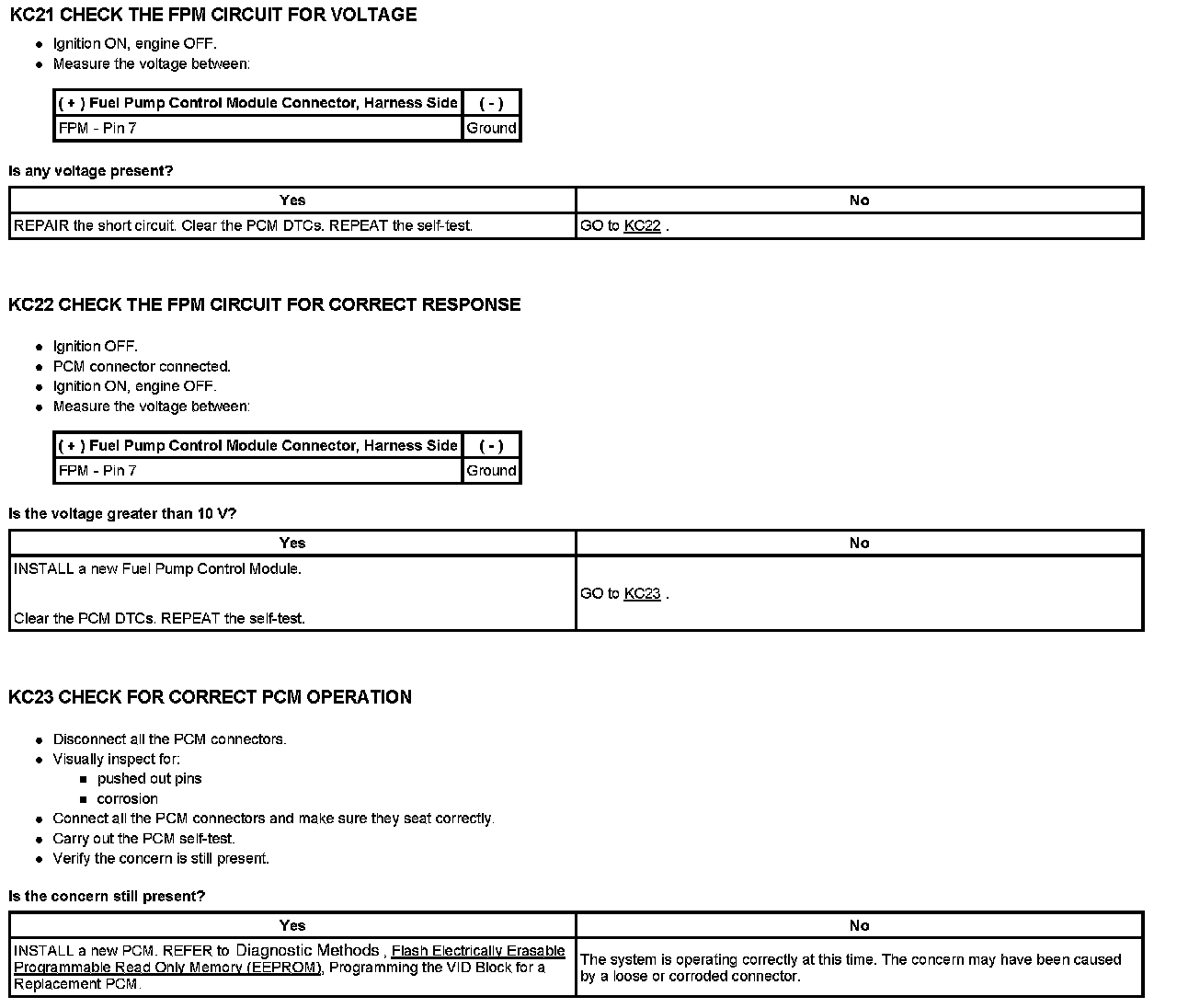

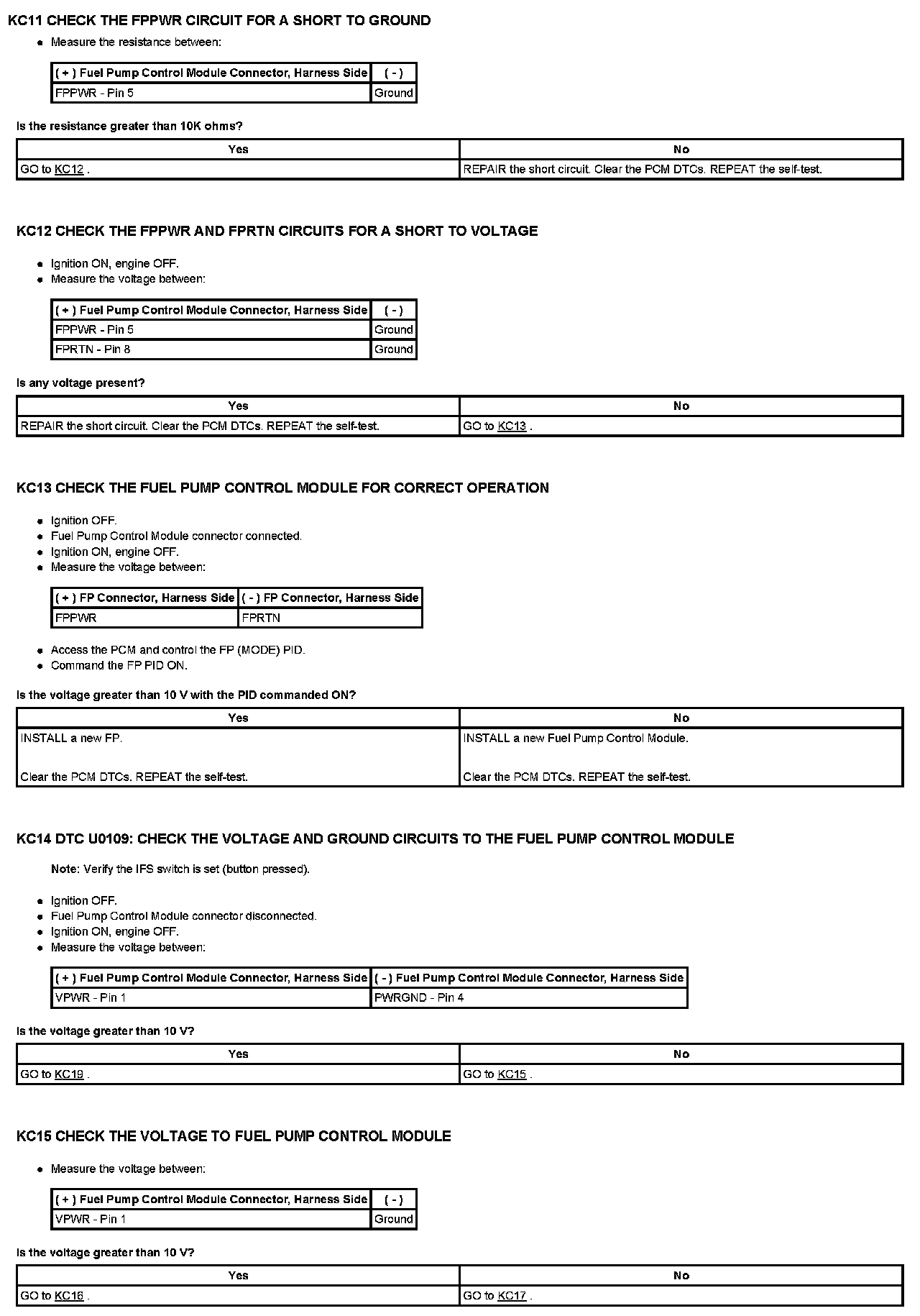

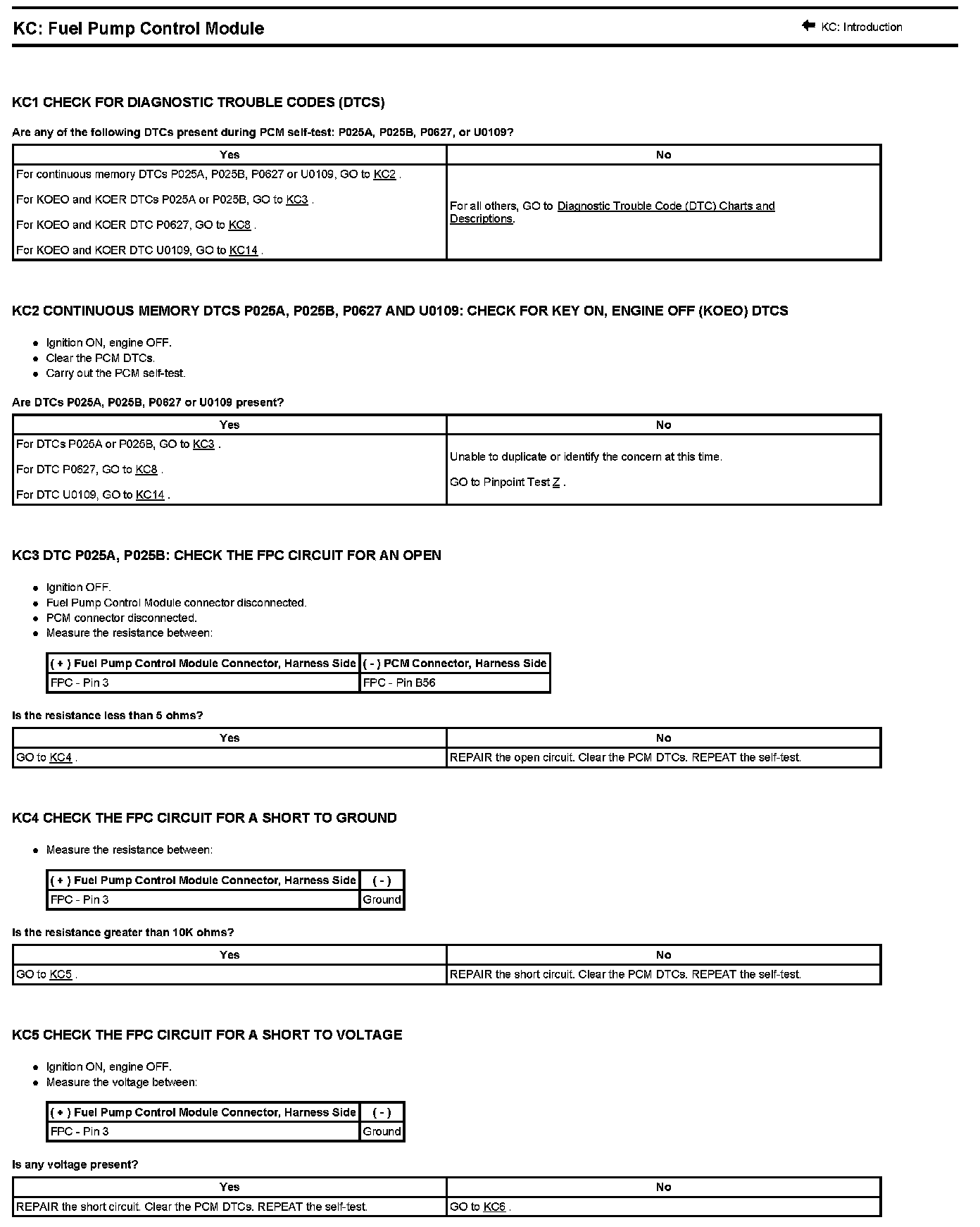

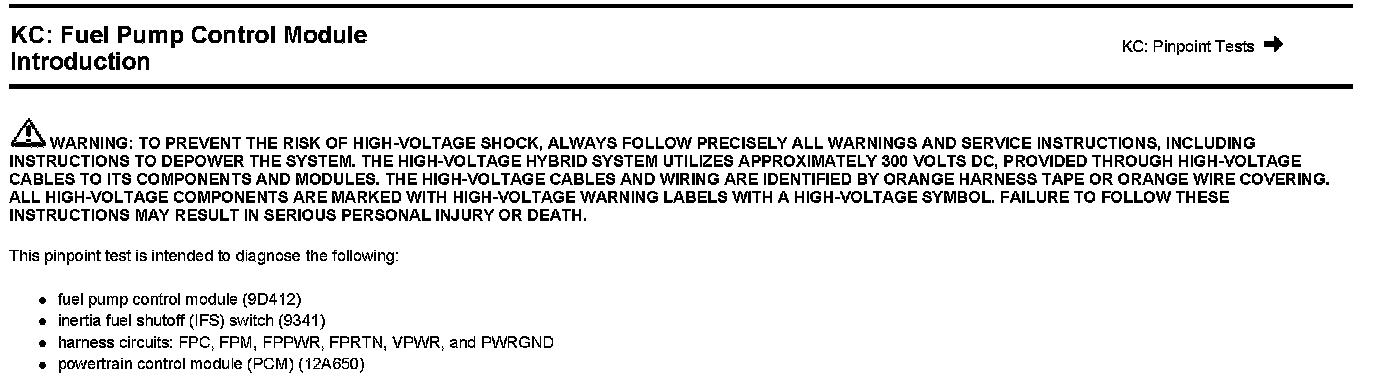

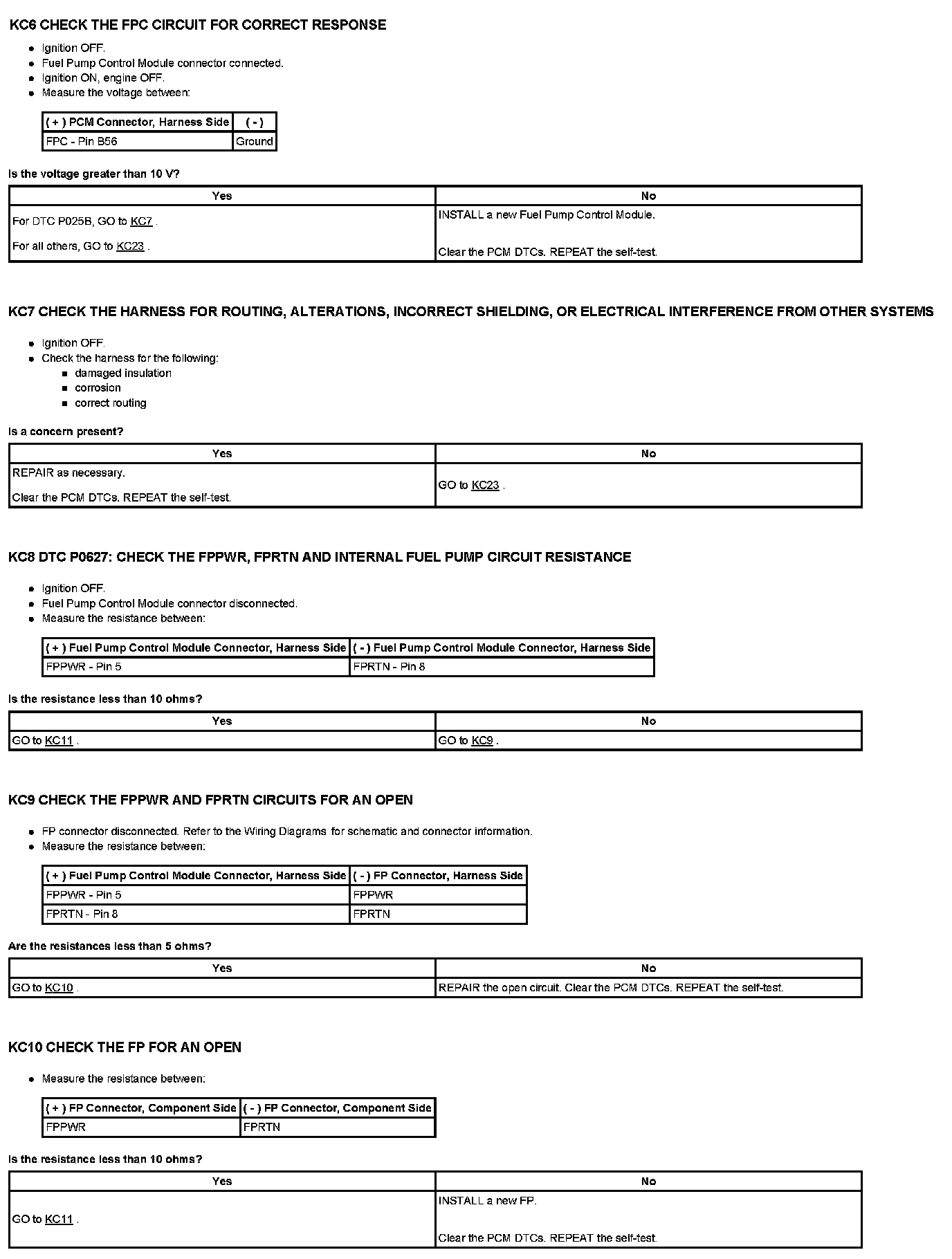

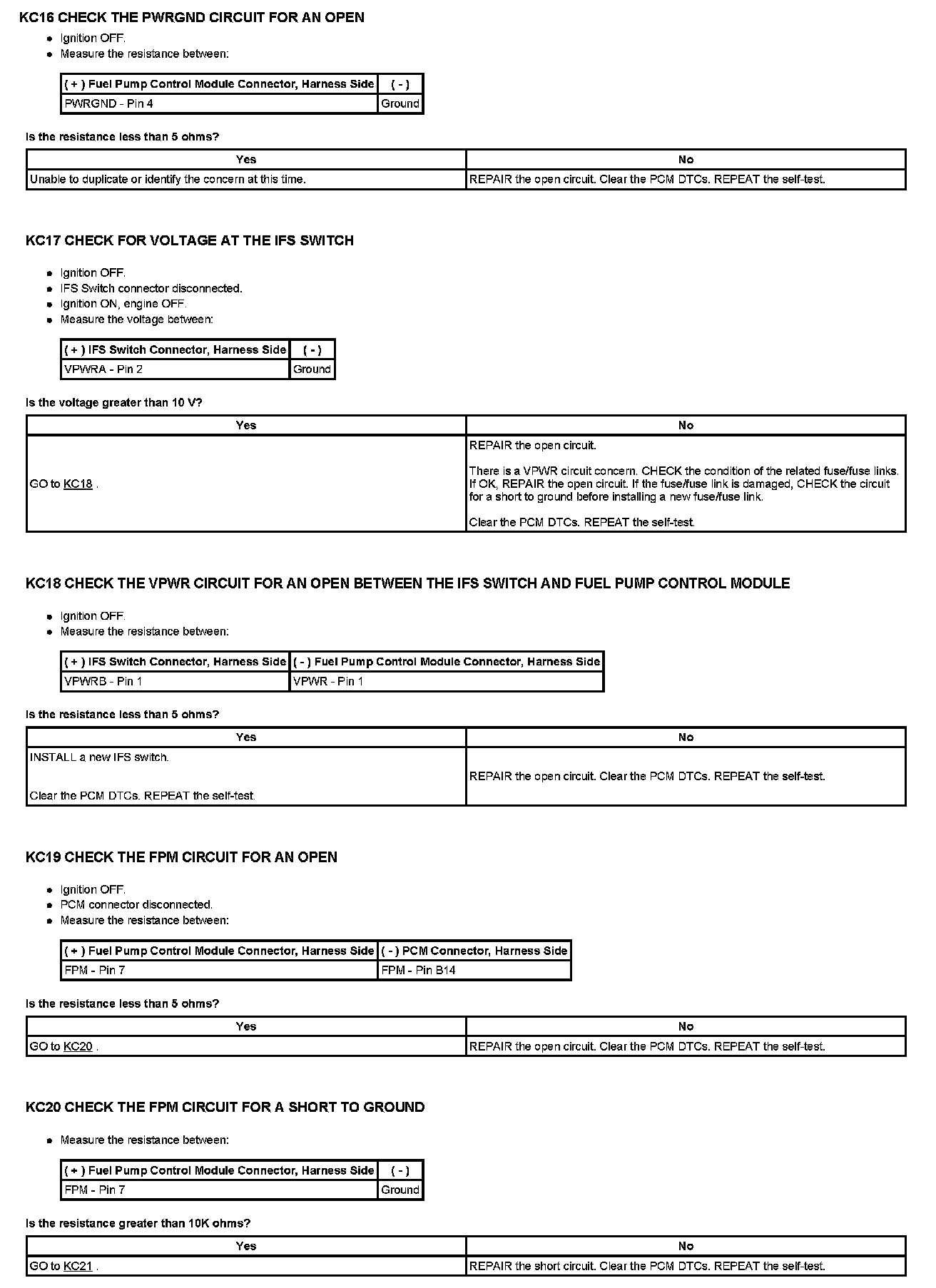

KC: FUEL PUMP CONTROL MODULE







Fuel Pump Control Module Connector

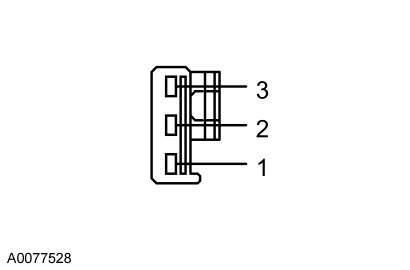

Inertia Fuel Shutoff (IFS) Switch Connector

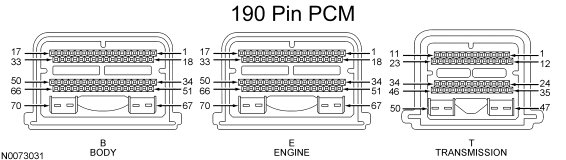

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to Reference Values.
