Test B: Powertrain Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Ford.

AI Repair Guides

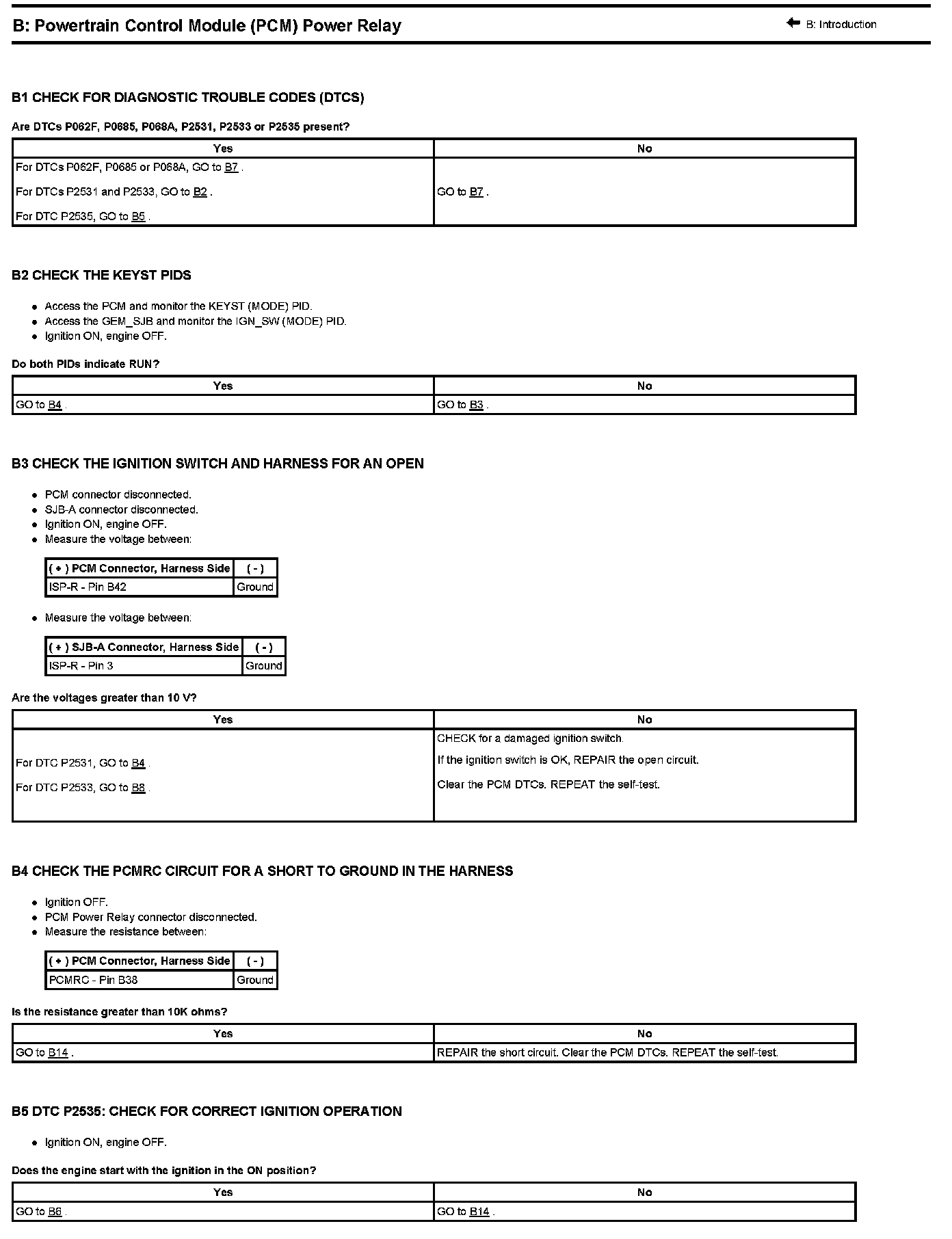

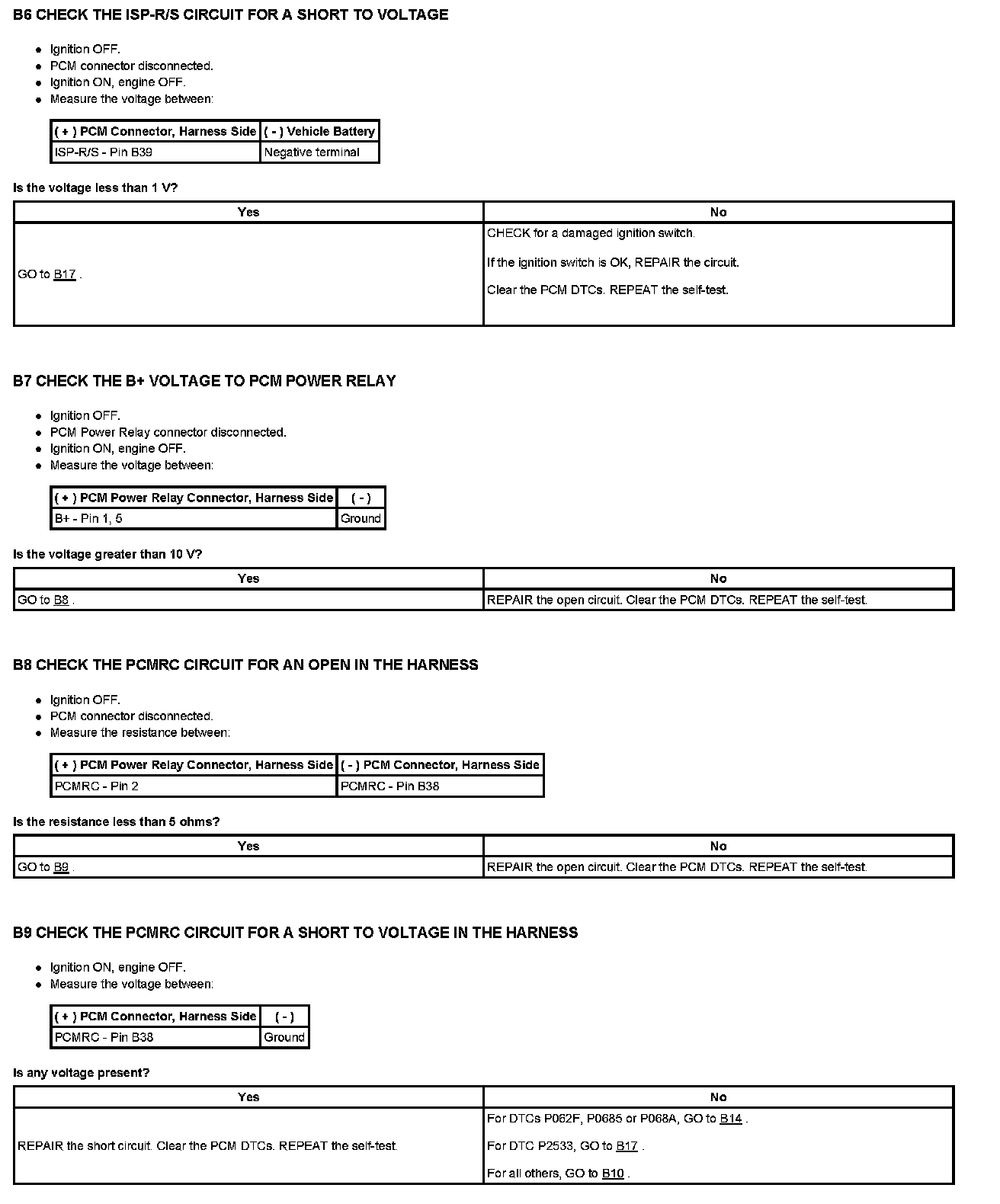

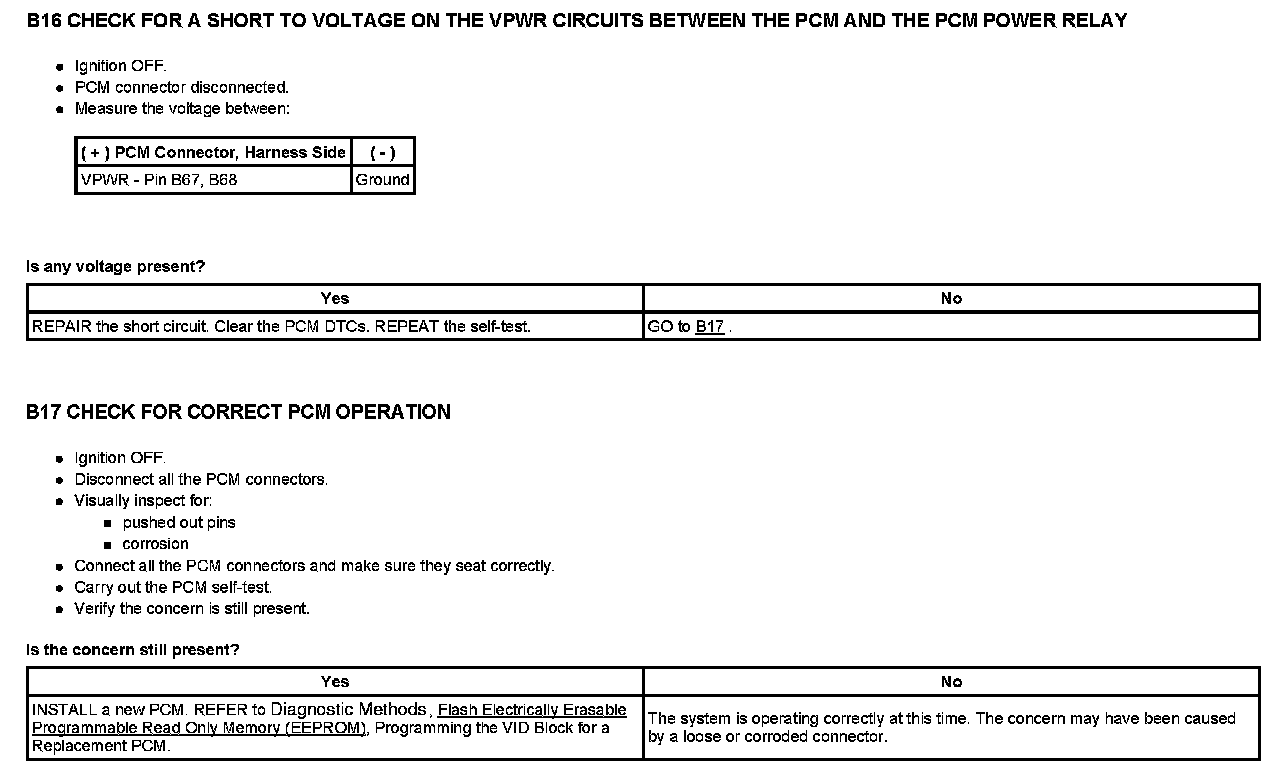

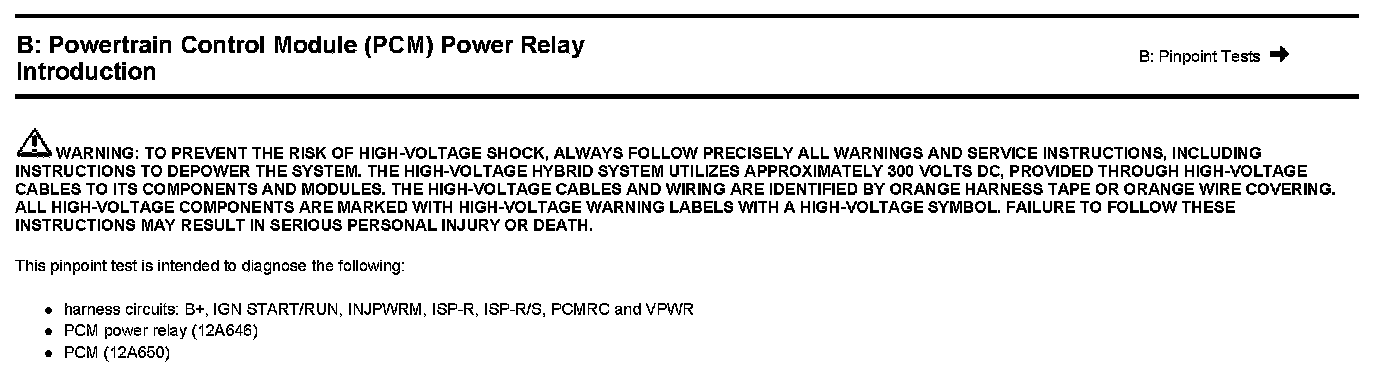

B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

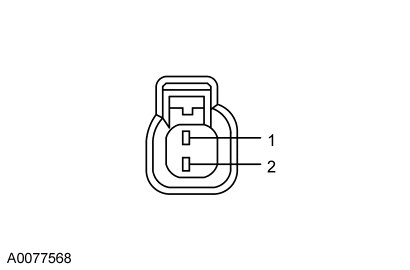

Fuel Injector Connector

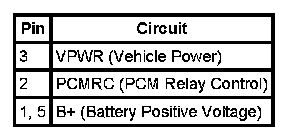

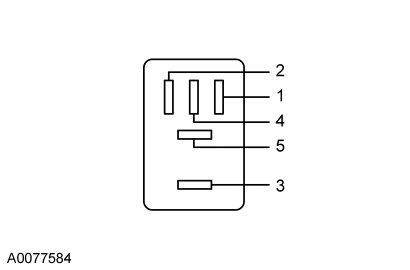

Powertrain Control Module Power (PCM Power) Relay Connector












SJB-A Connector

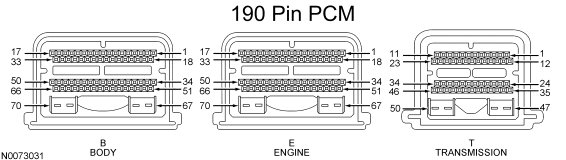

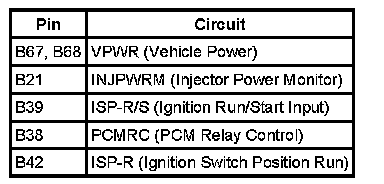

Powertrain Control Module (PCM) Connector
