Specifications

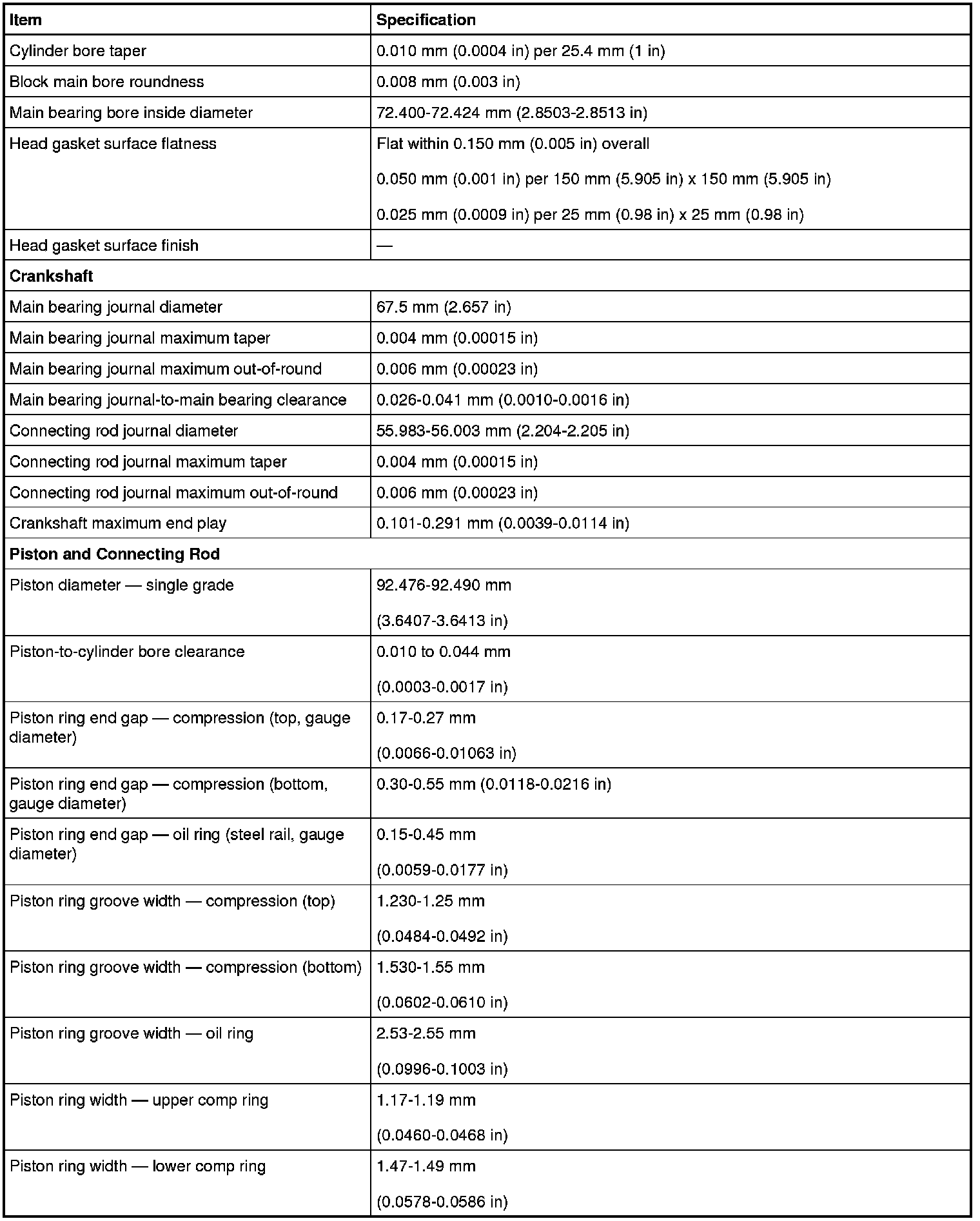

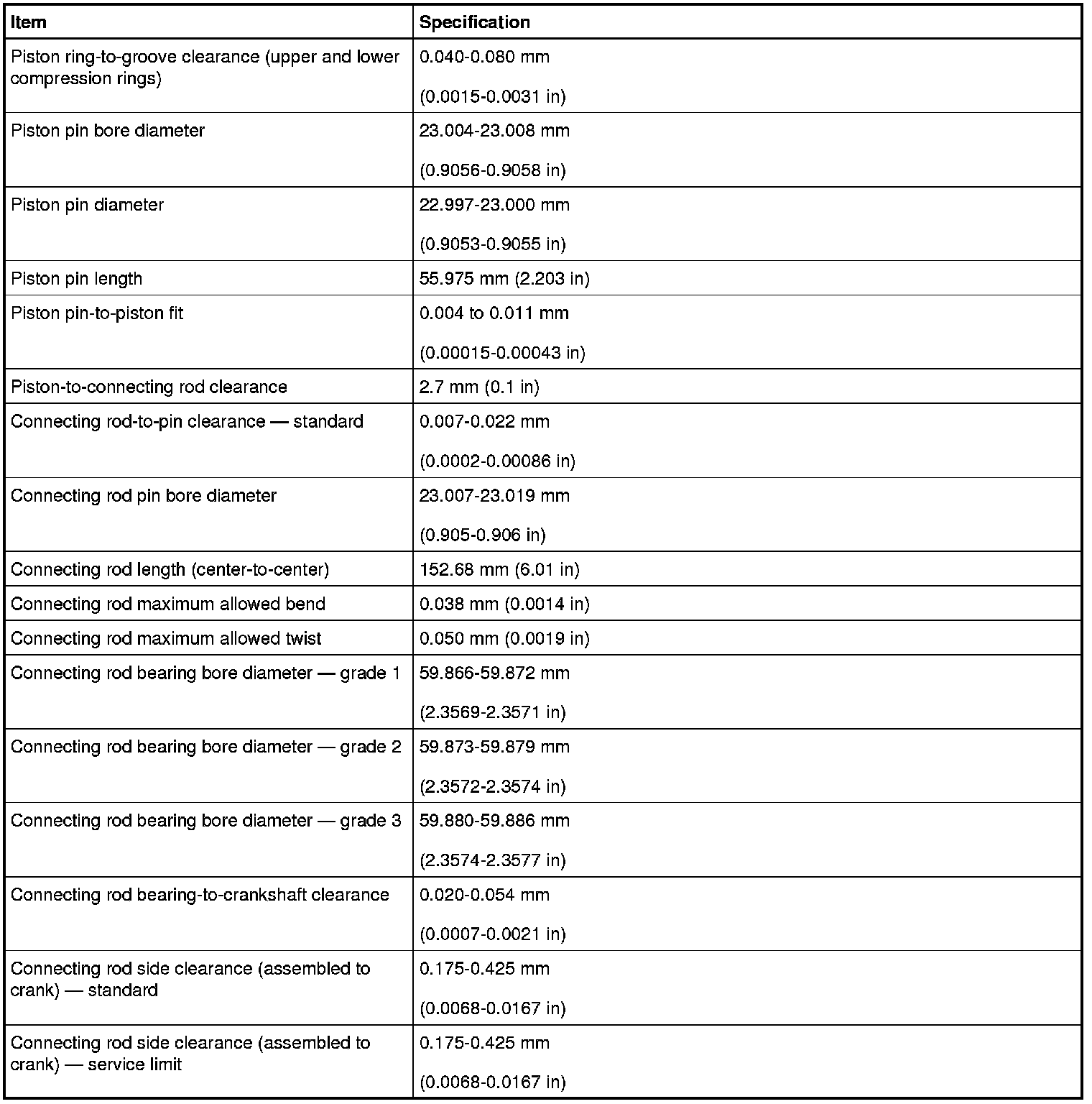

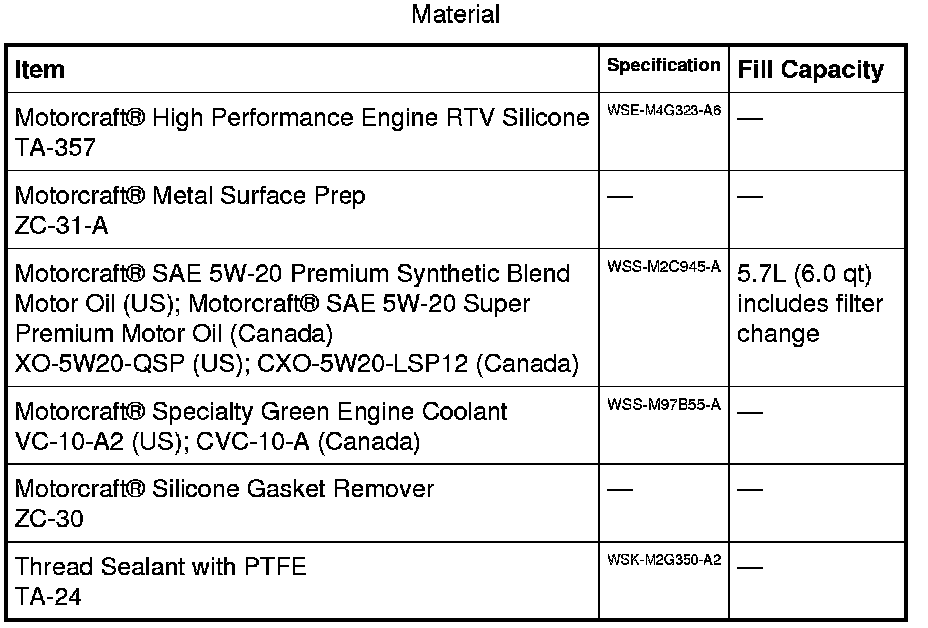

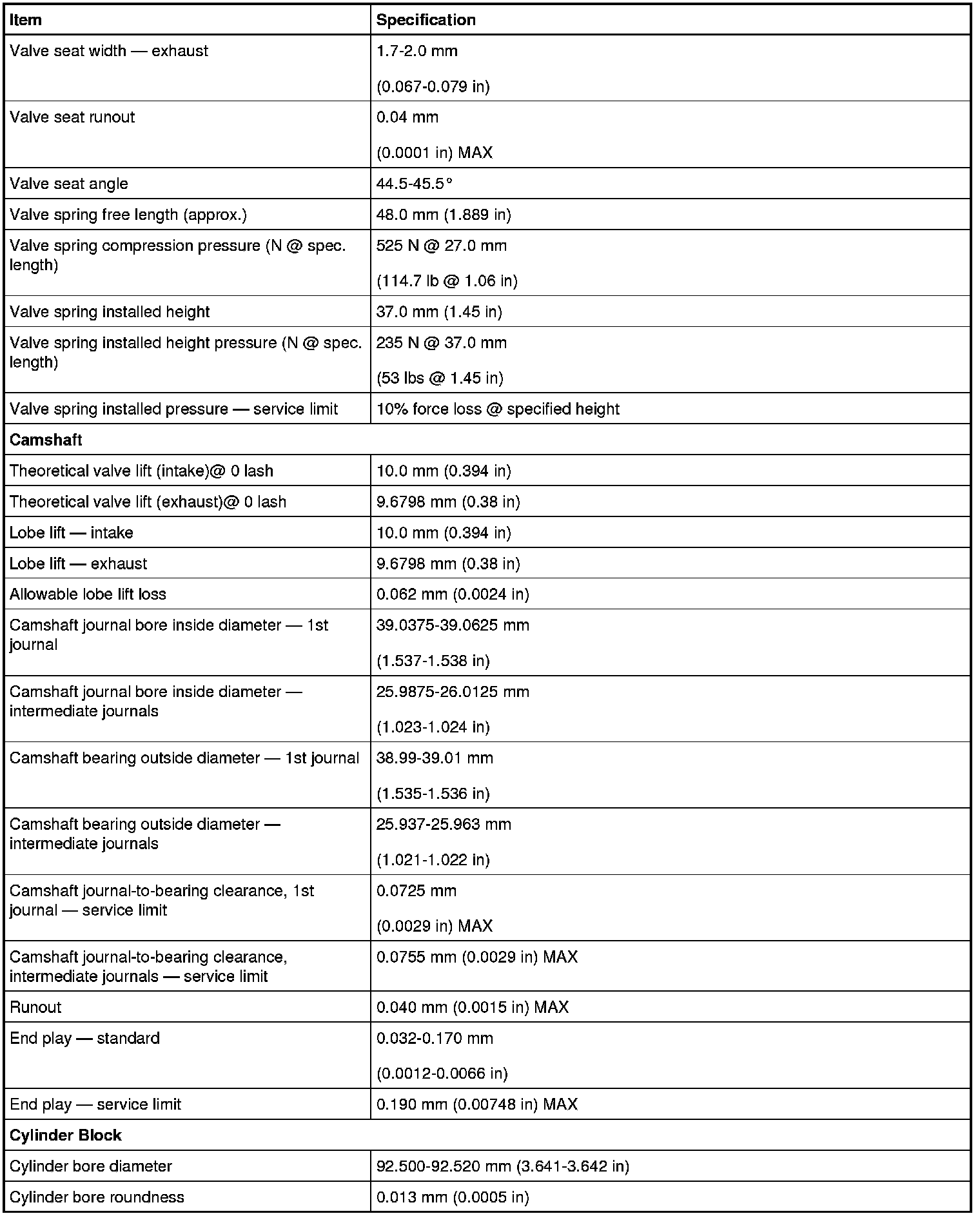

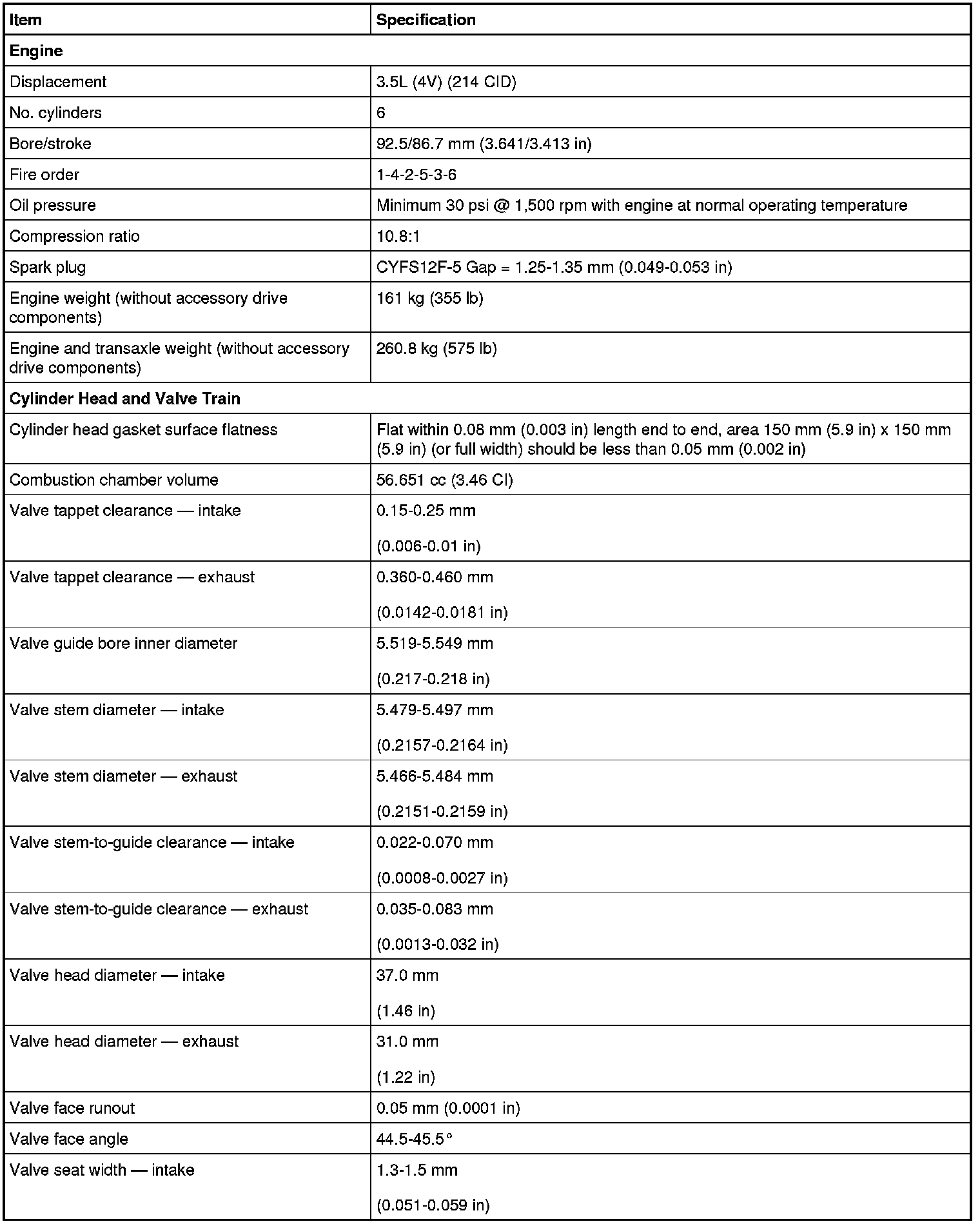

General Specifications

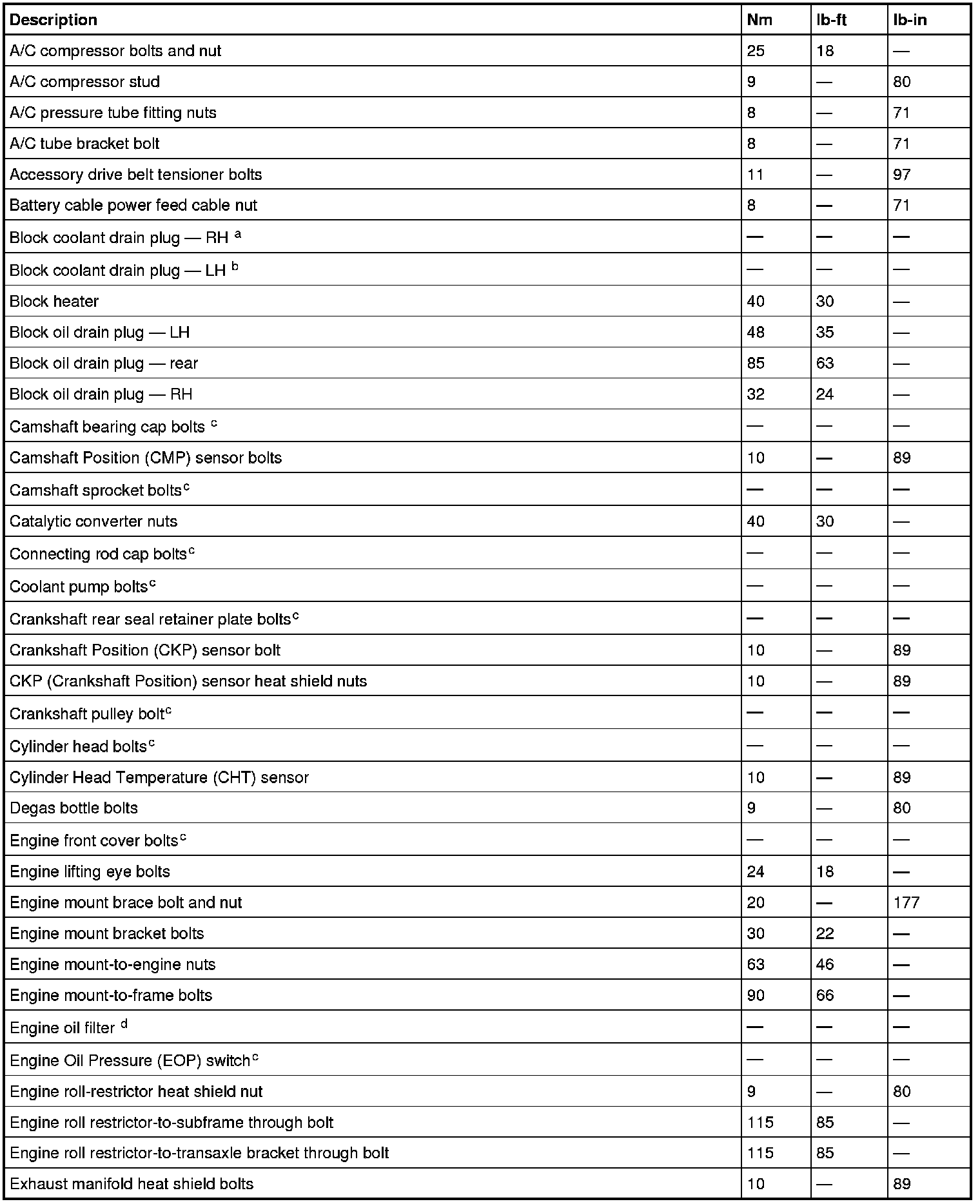

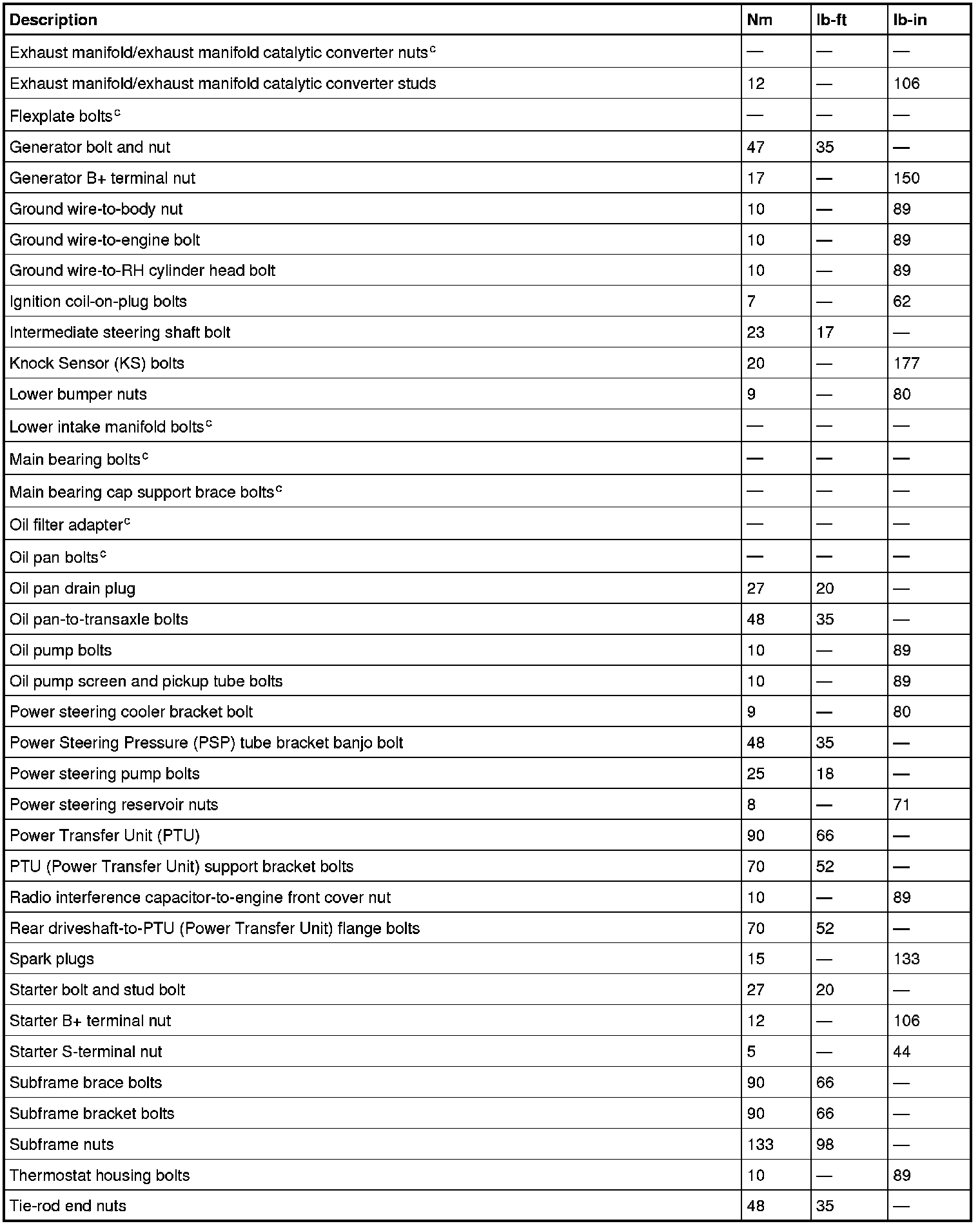

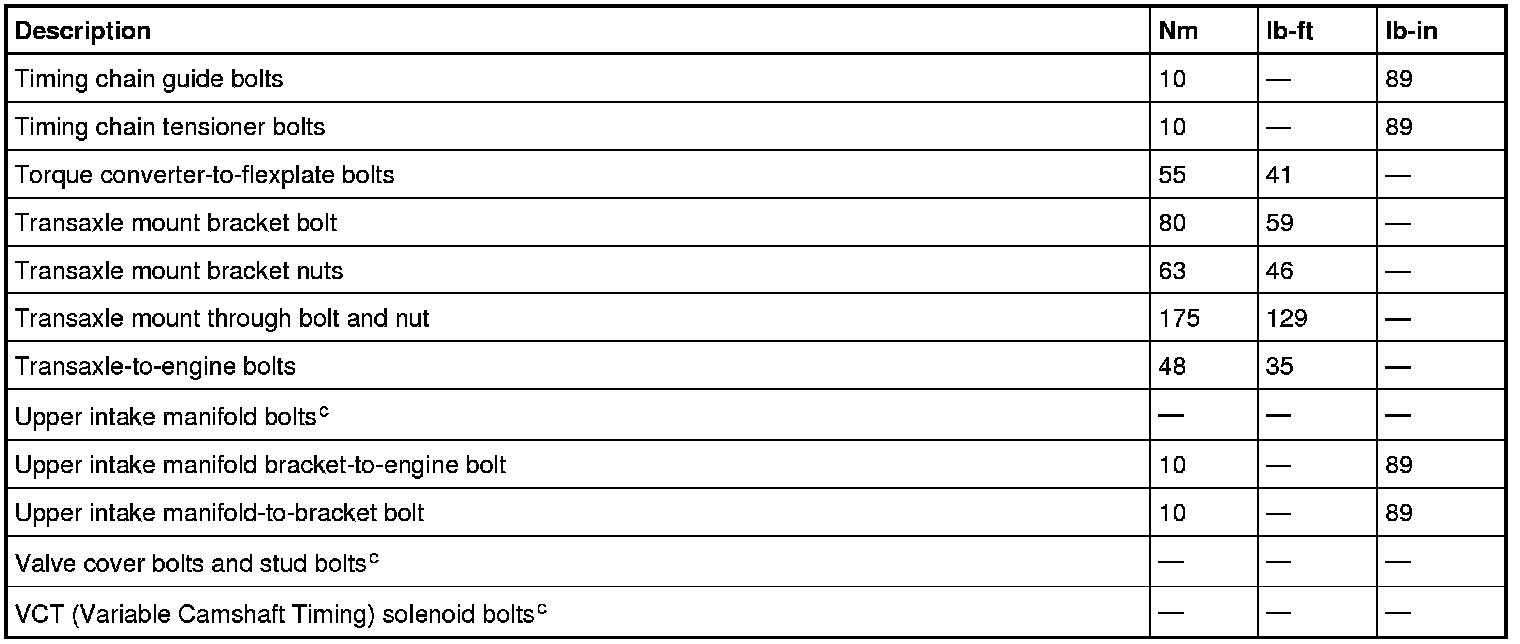

Torque Specifications













a Tighten to 10 Nm (89 lb-in) plus an additional 720 degrees.

b Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.

c Refer to the procedure in Engine.

d Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.
