Refer to Vehicle/Diagrams, Shift Interlock for schematic and connector information.
TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

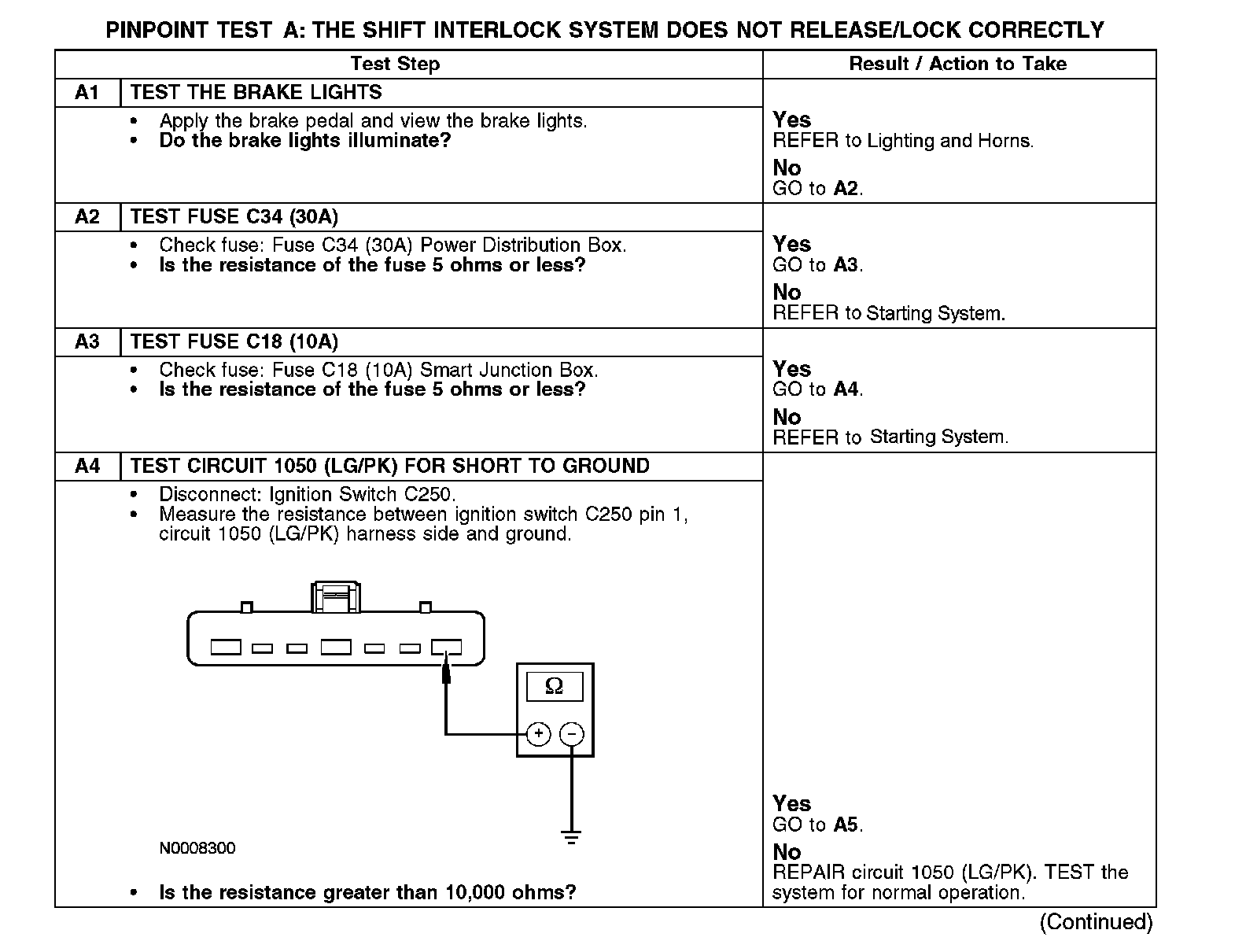

A1-A4:

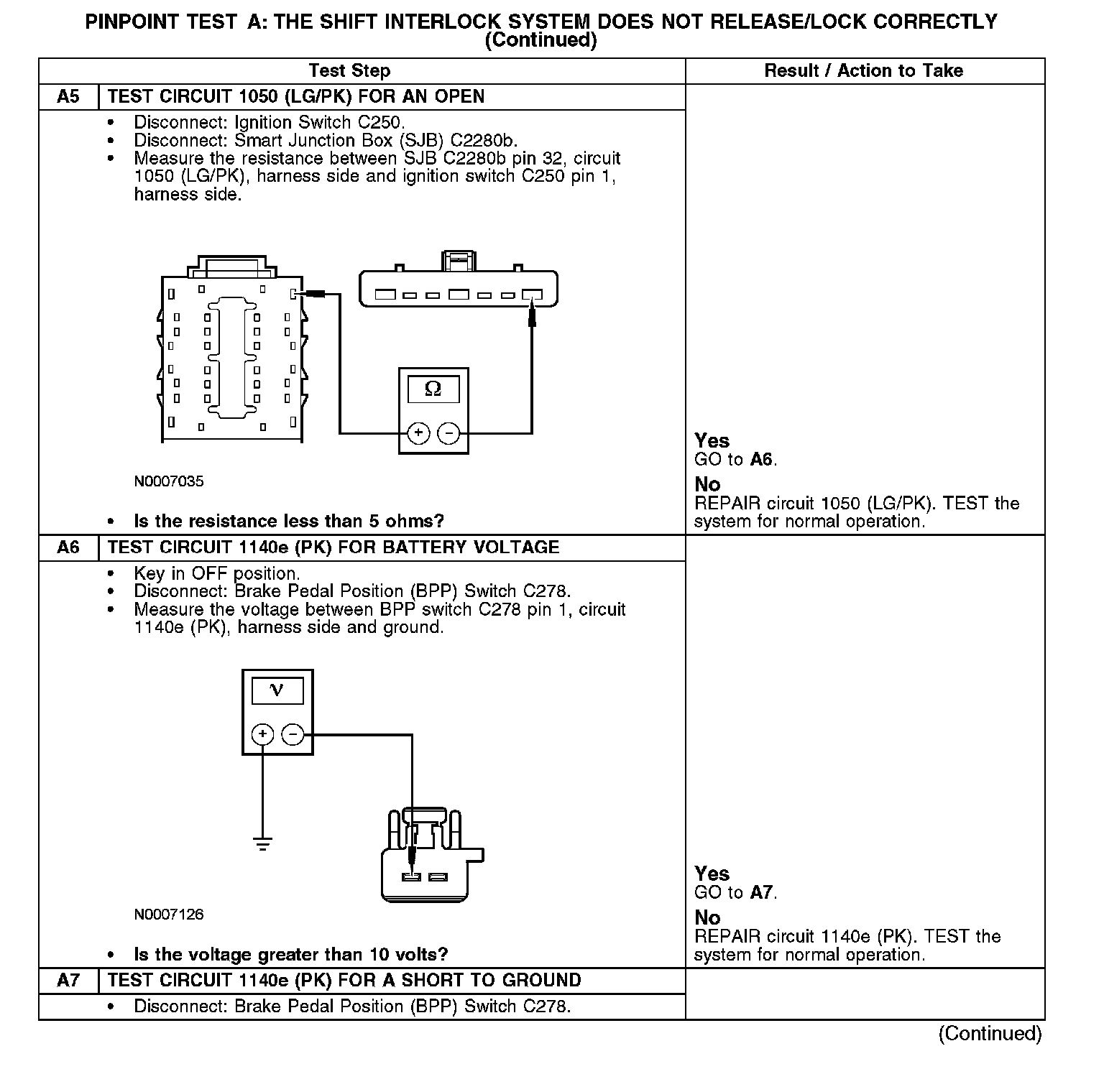

A5-A7:

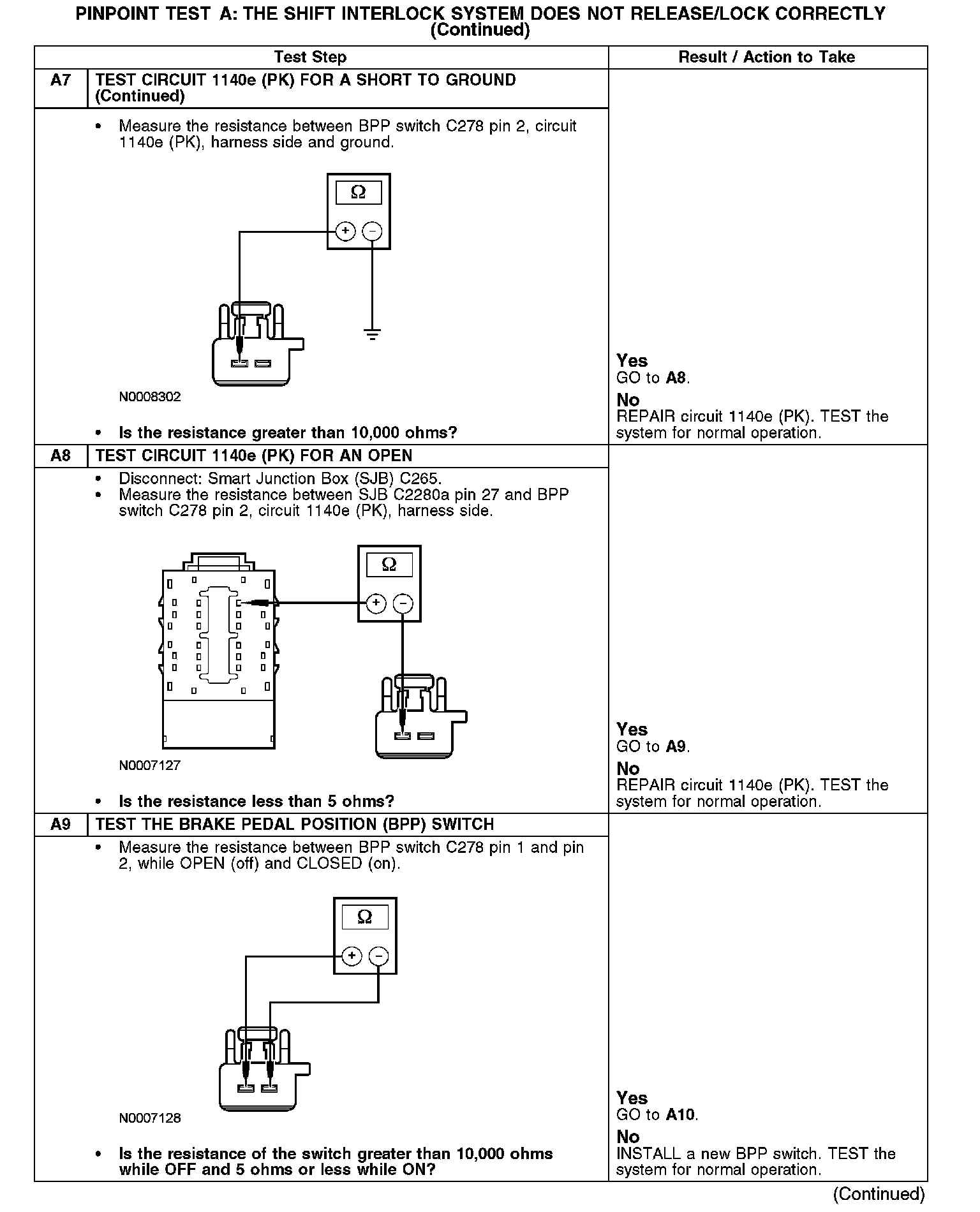

A7-A9:

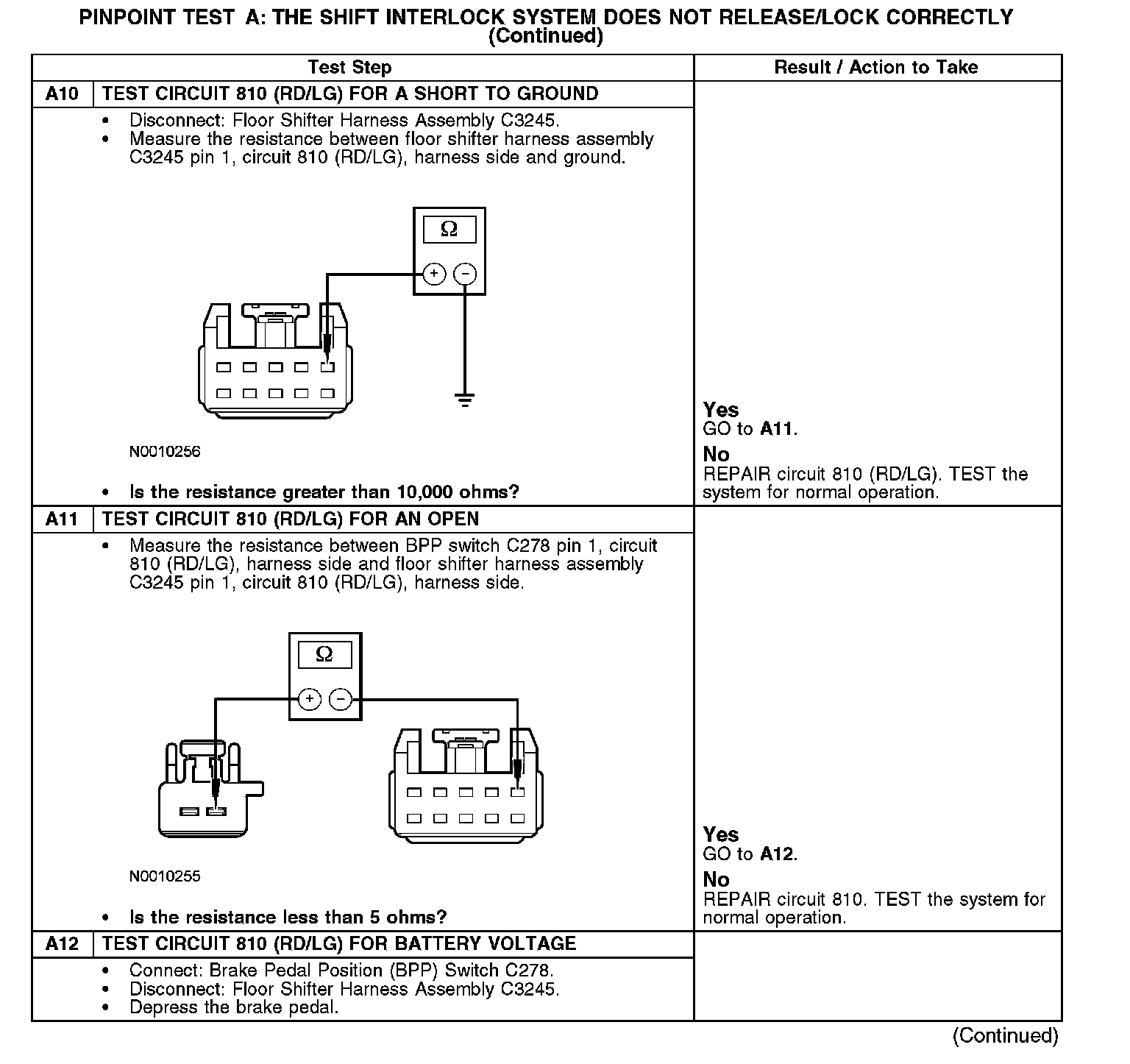

A10-A12:

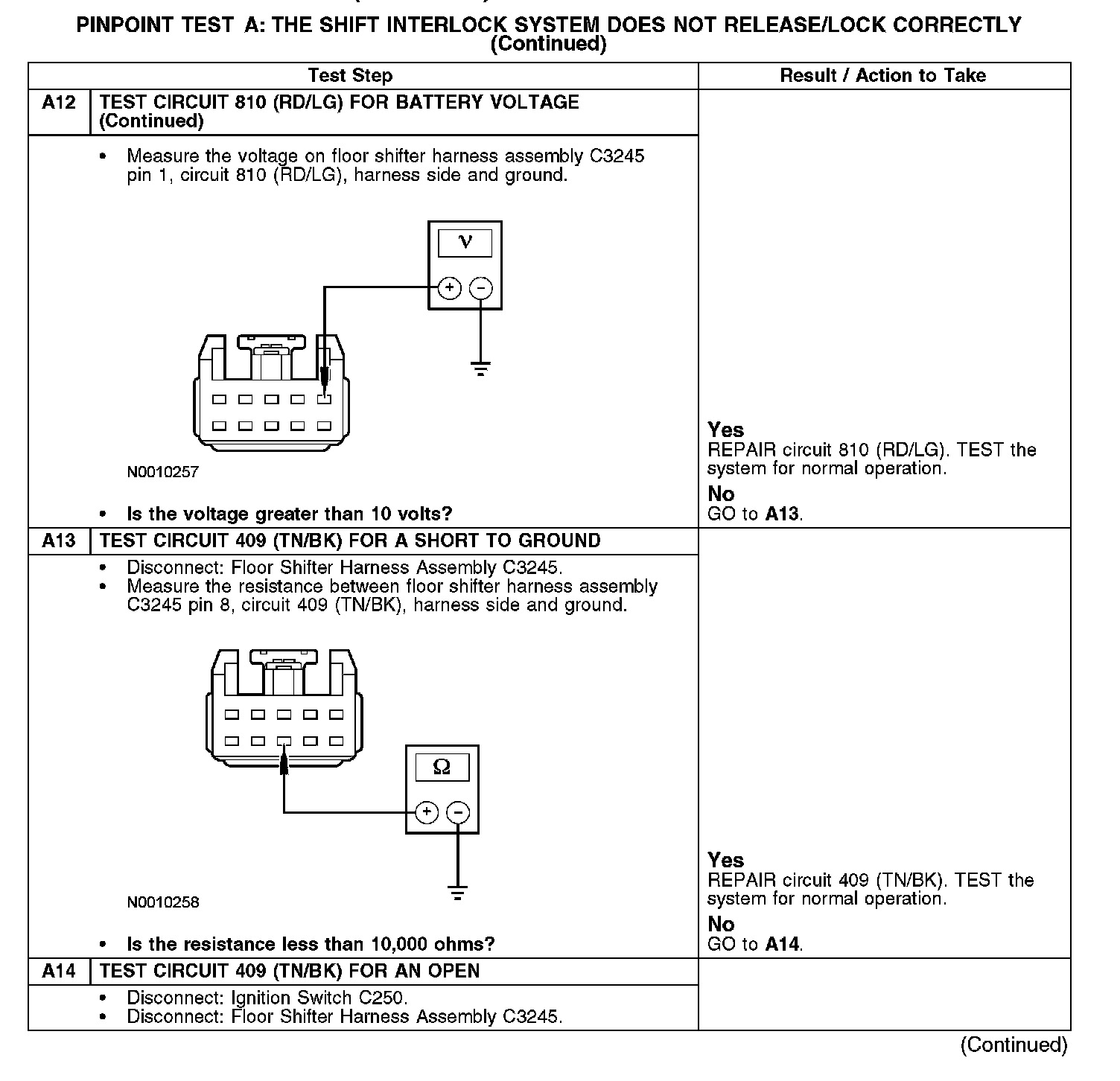

A12-A14:

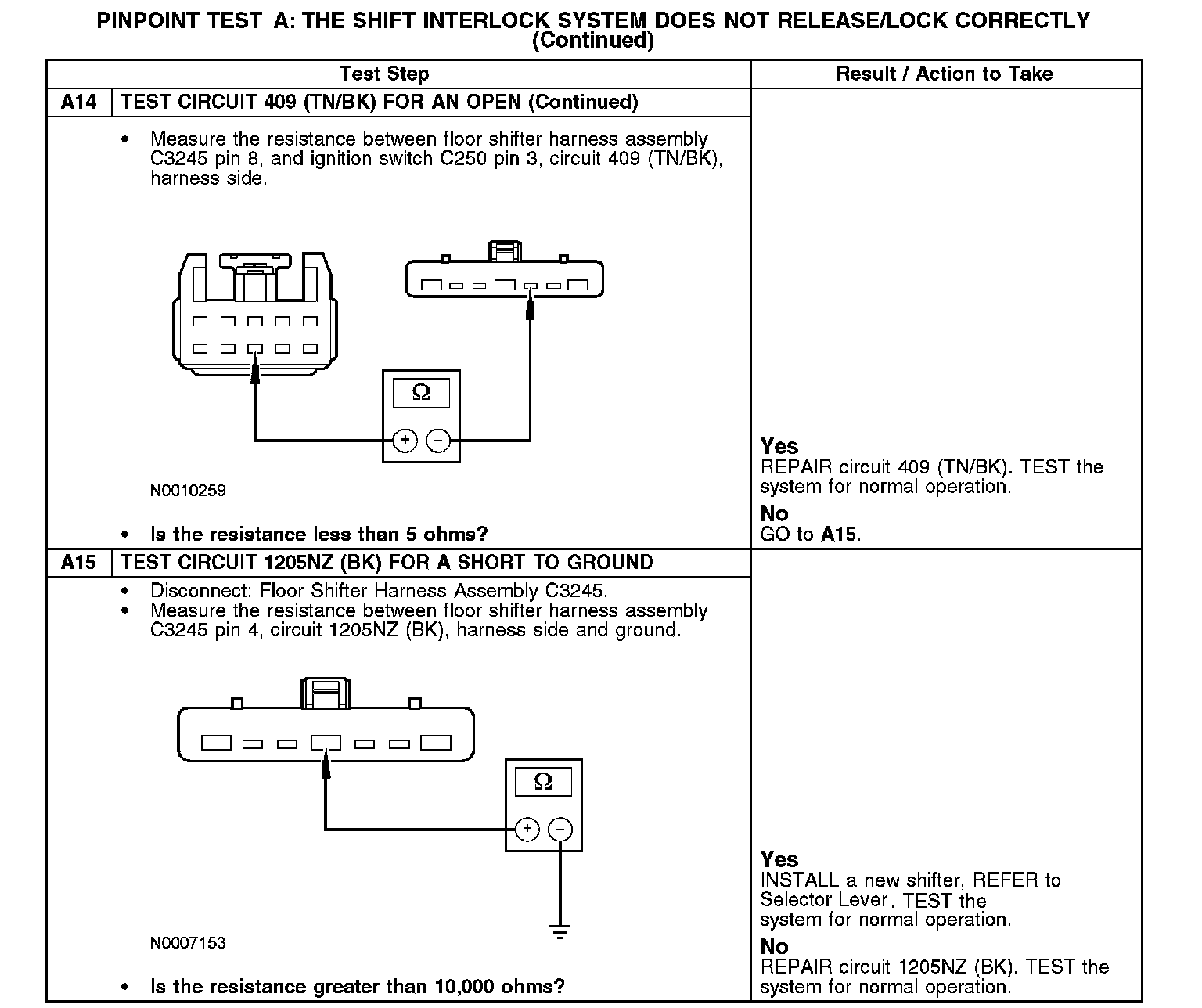

A14-A15:
