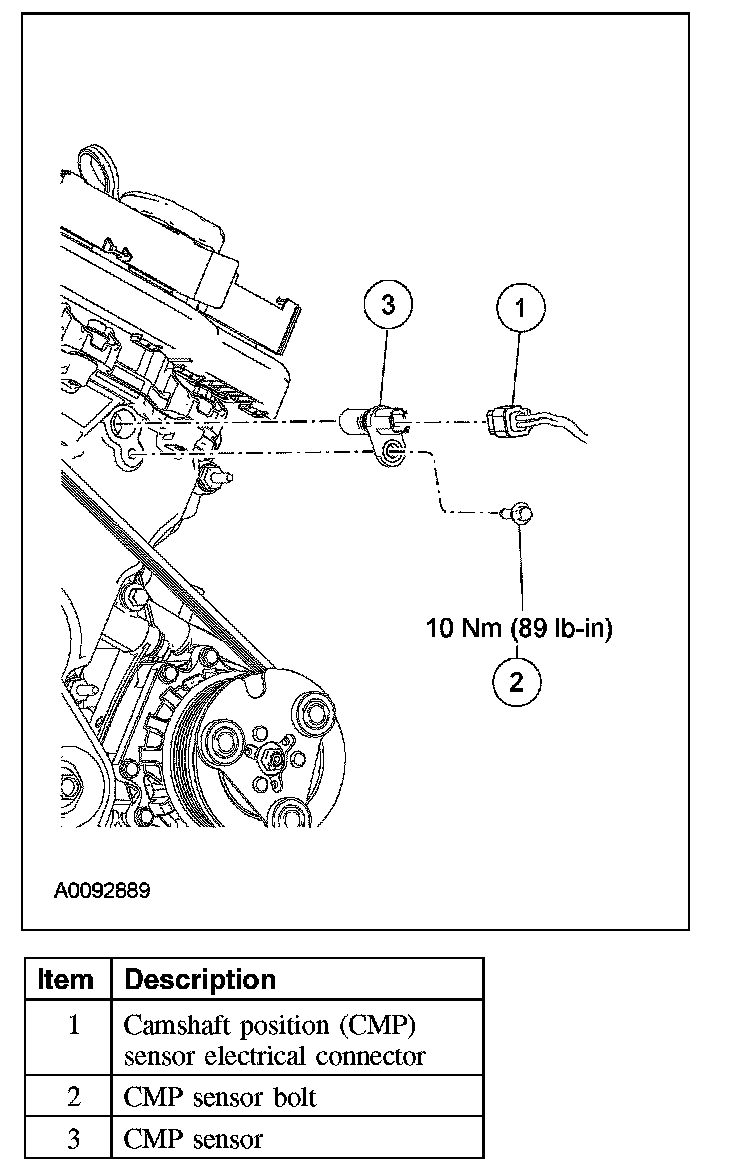

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the CMP sensor electrical connector.
3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).
4. To install, reverse the removal procedure.
Camshaft Position Sensor: Service and Repair
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.
Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the CMP sensor electrical connector.
3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).
4. To install, reverse the removal procedure.
