PINPOINT TEST KG: FUEL INJECTOR

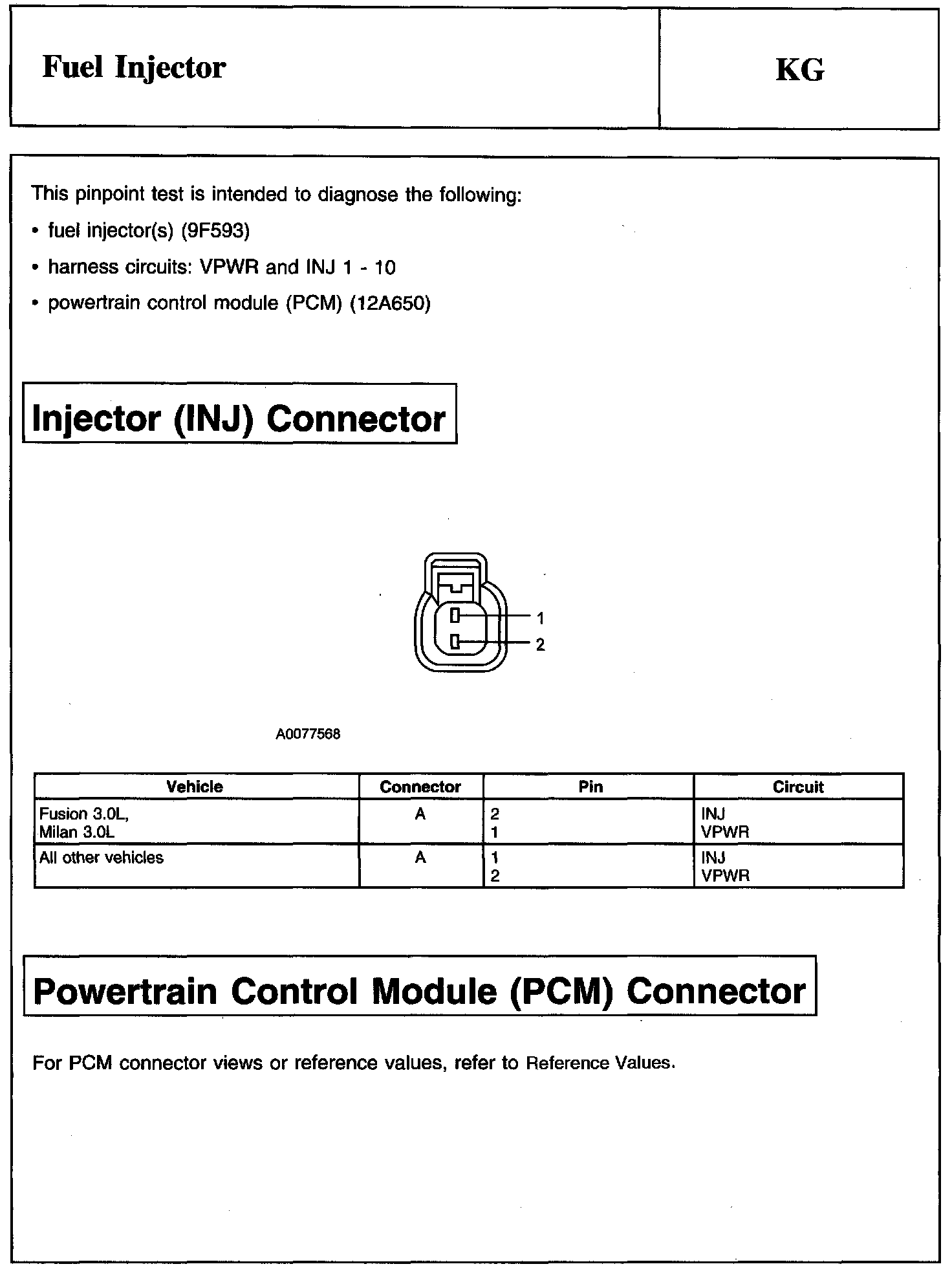

Injector (INJ) Connector And Powertrain Control Module (PCM) Connector:

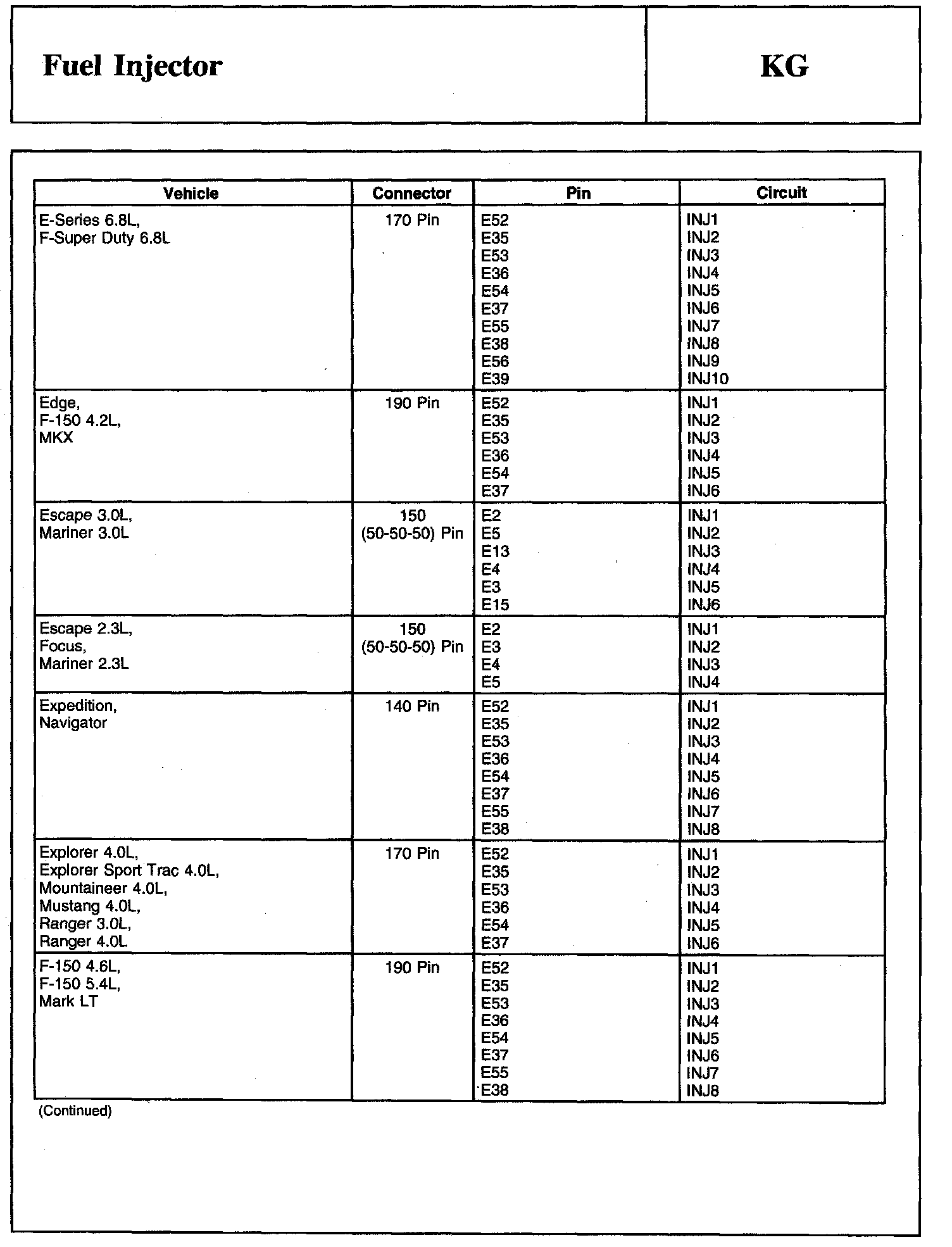

Powertrain Control Module (PCM) Connector Continued:

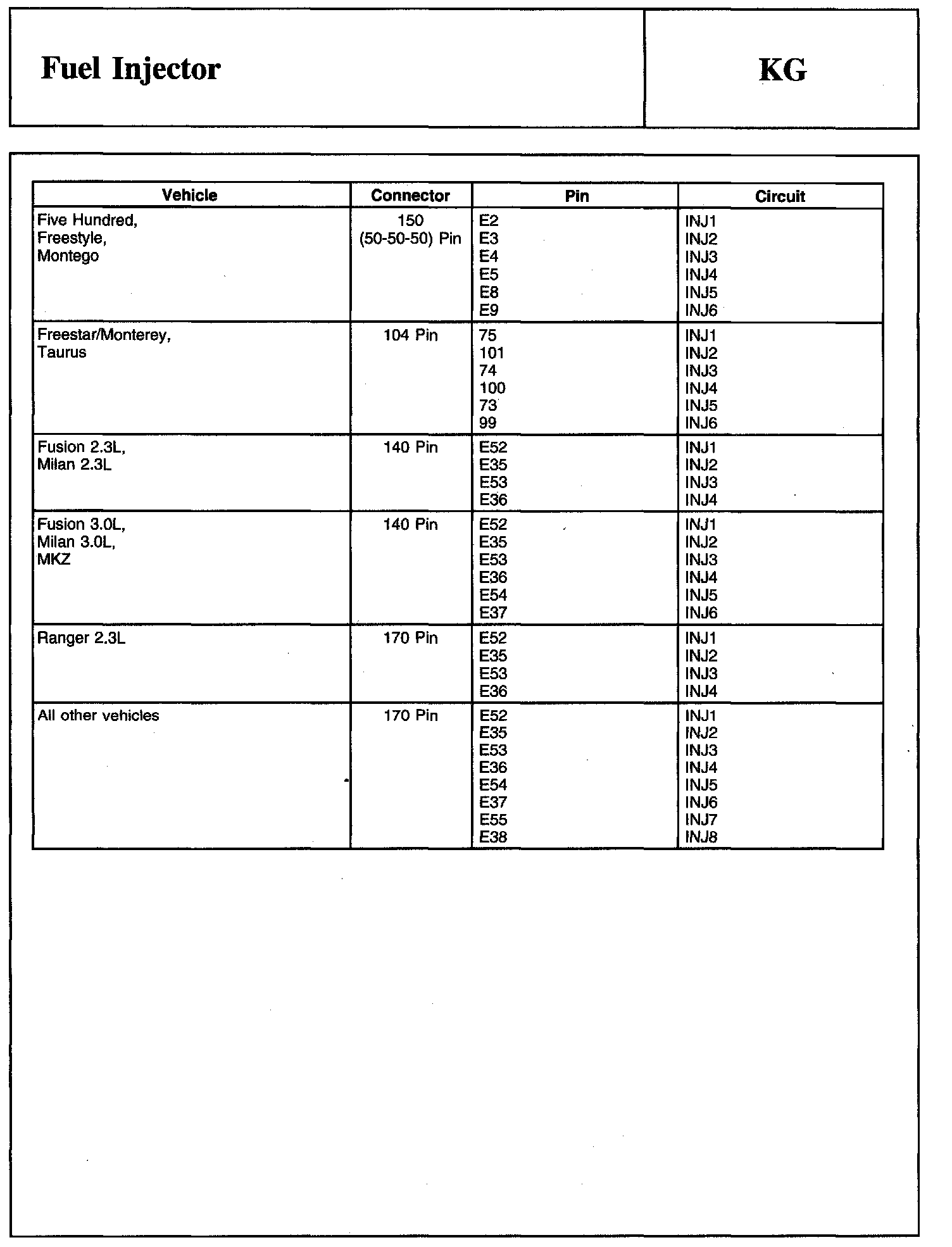

Powertrain Control Module (PCM) Connector Continued:

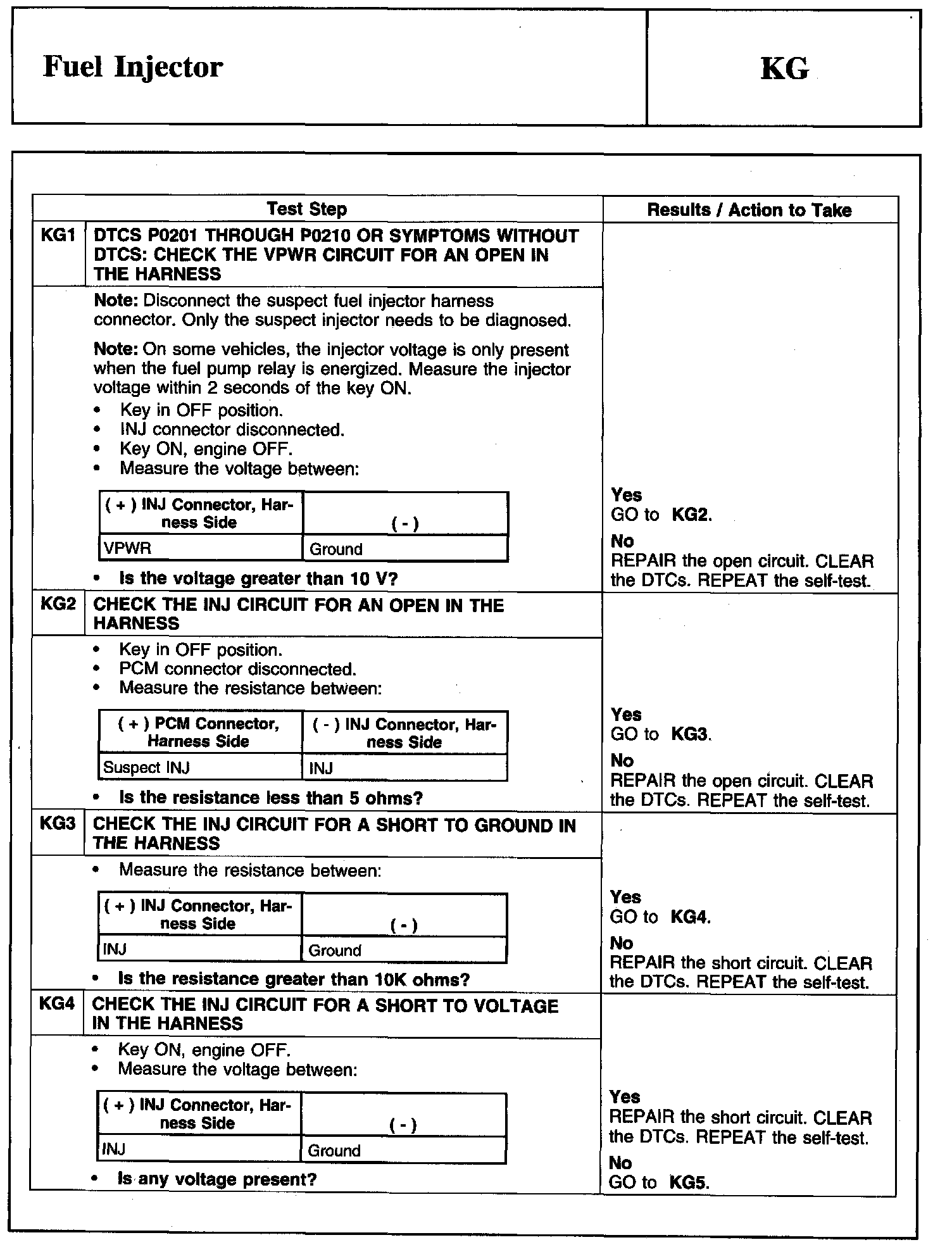

KG1-KG4:

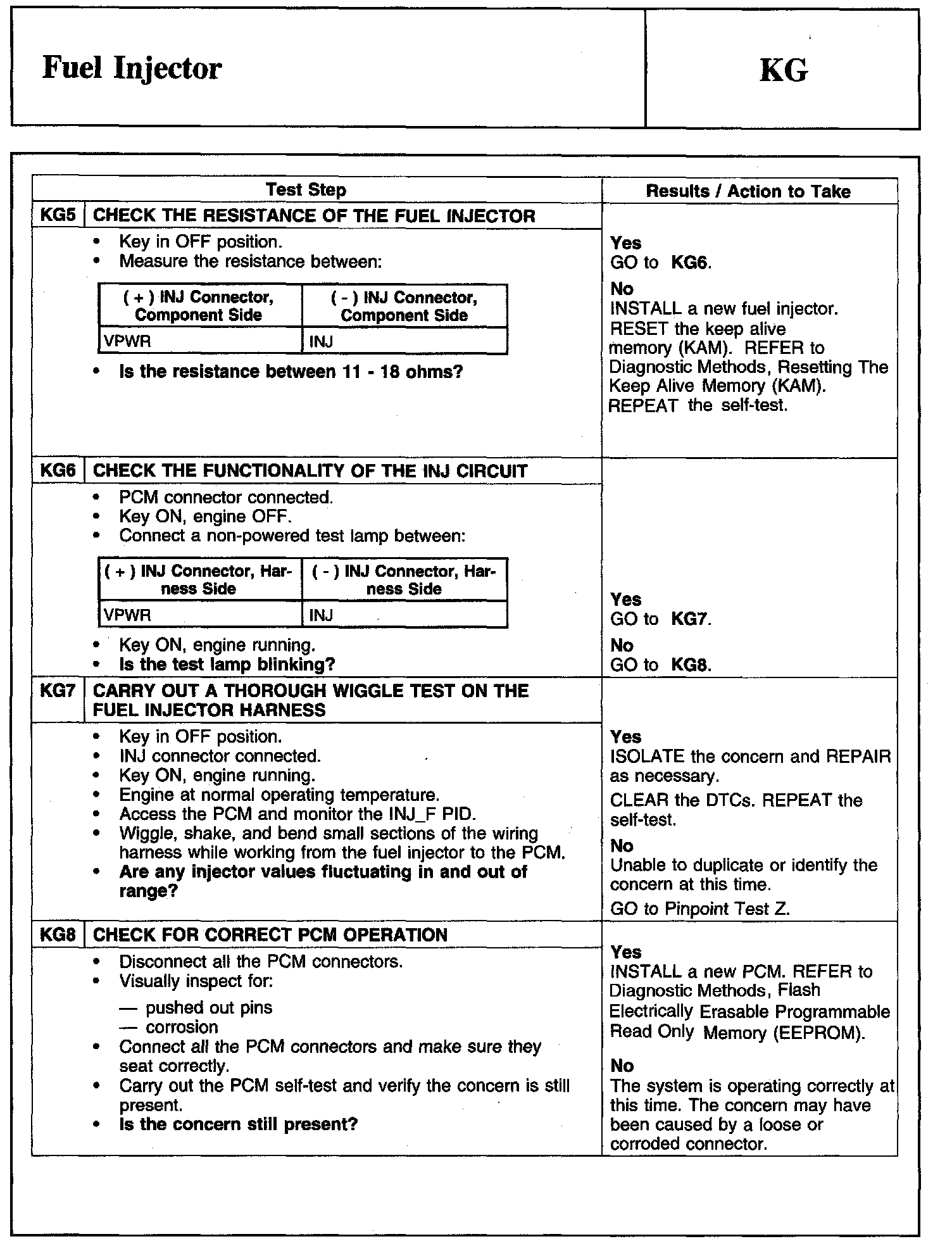

KG5-KG8:
