PINPOINT TEST KD: ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) SYSTEM

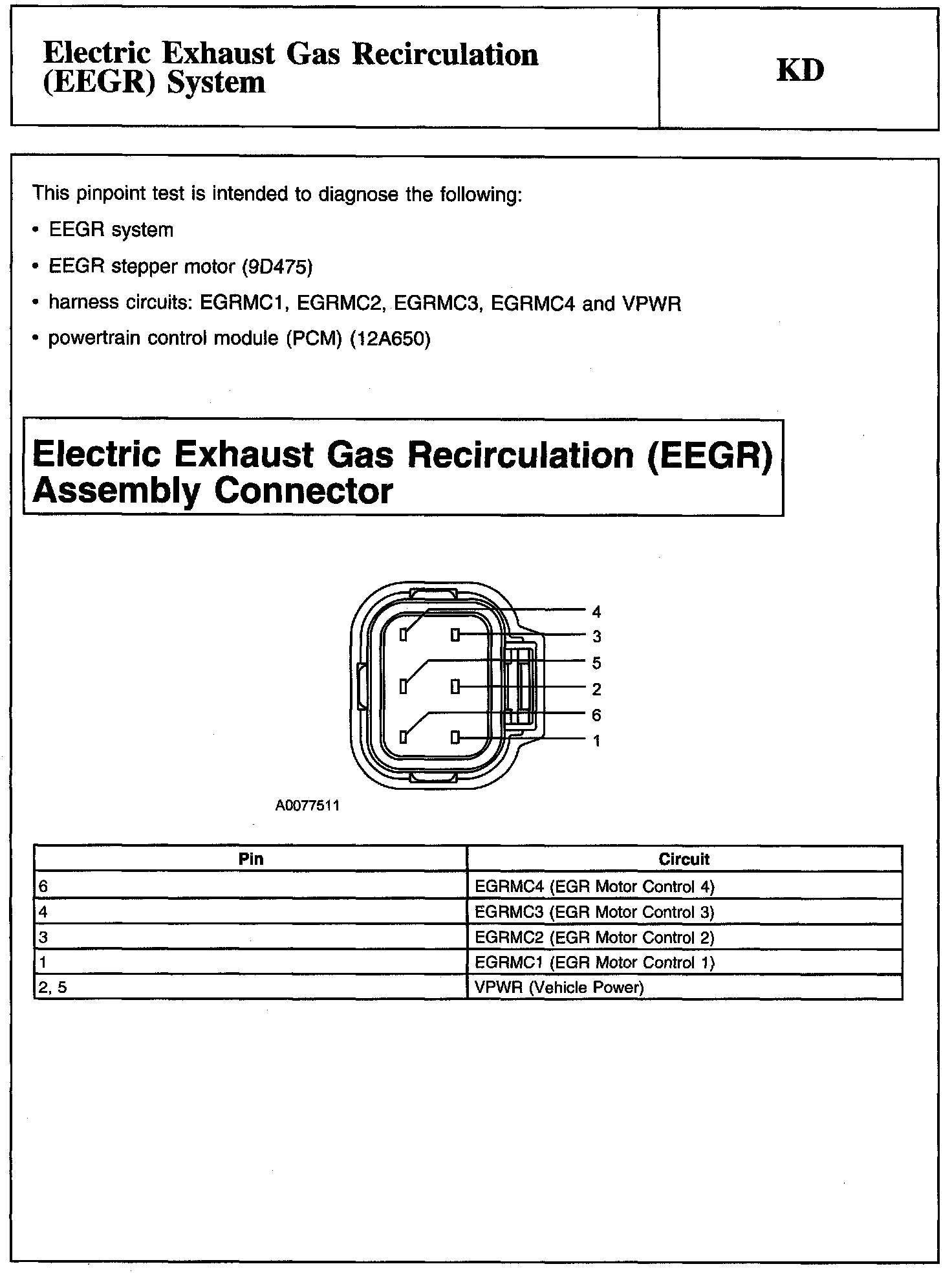

Electric Exhaust Gas Recirculation (EEGR) Assembly Connector:

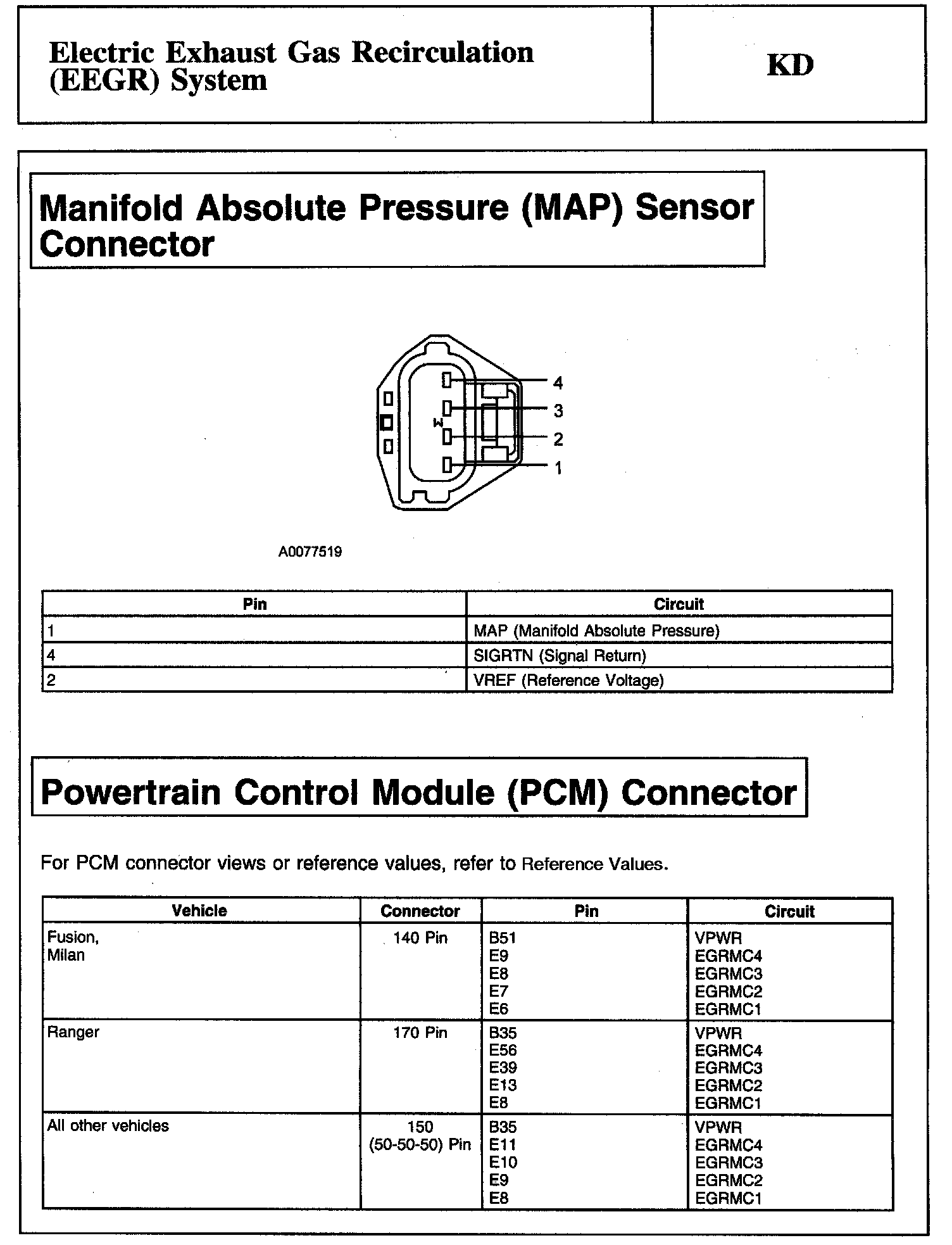

Manifold Absolute Pressure (MAP) Sensor Connector And Powertrain Control Module (PCM) Connector:

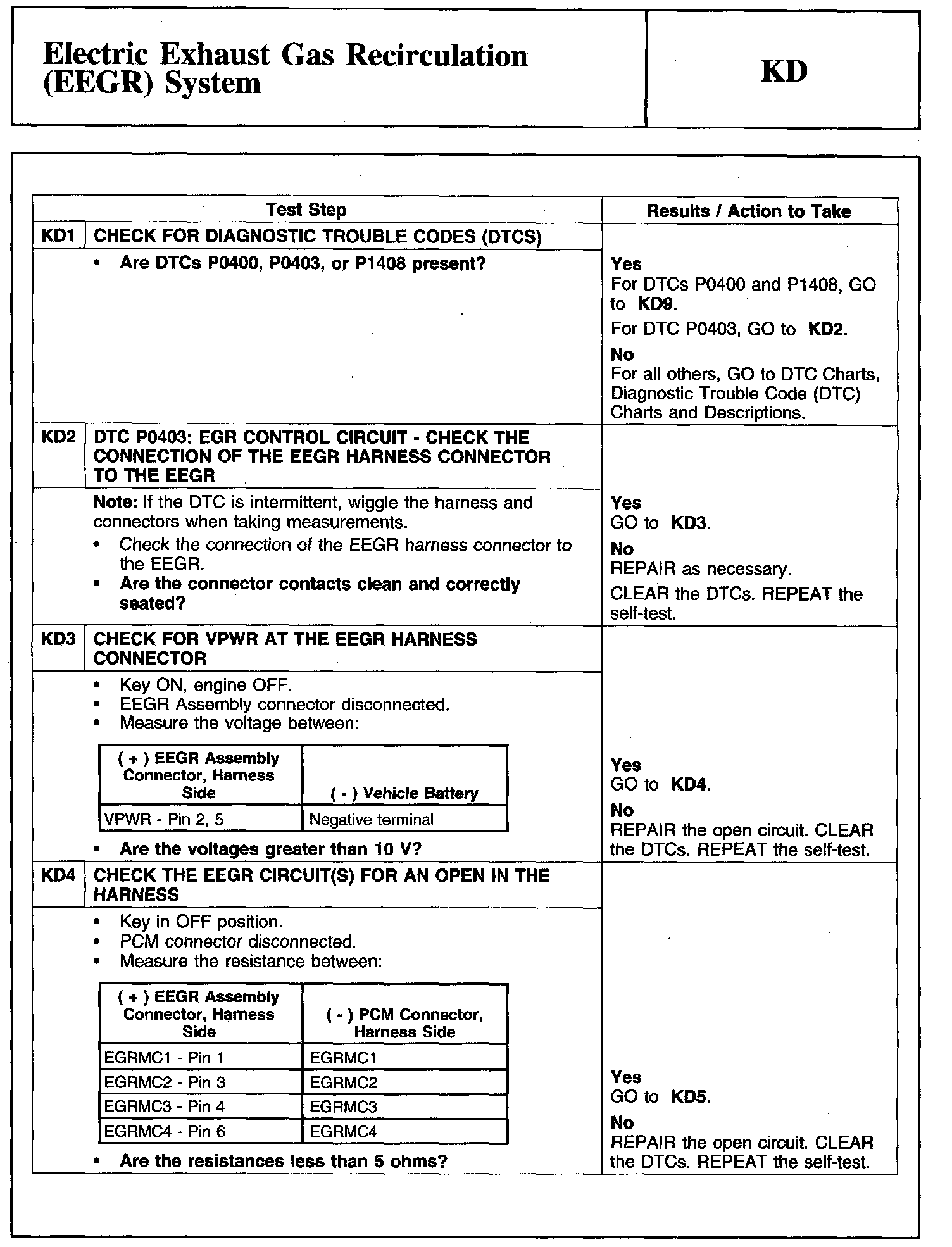

KD1-KD4:

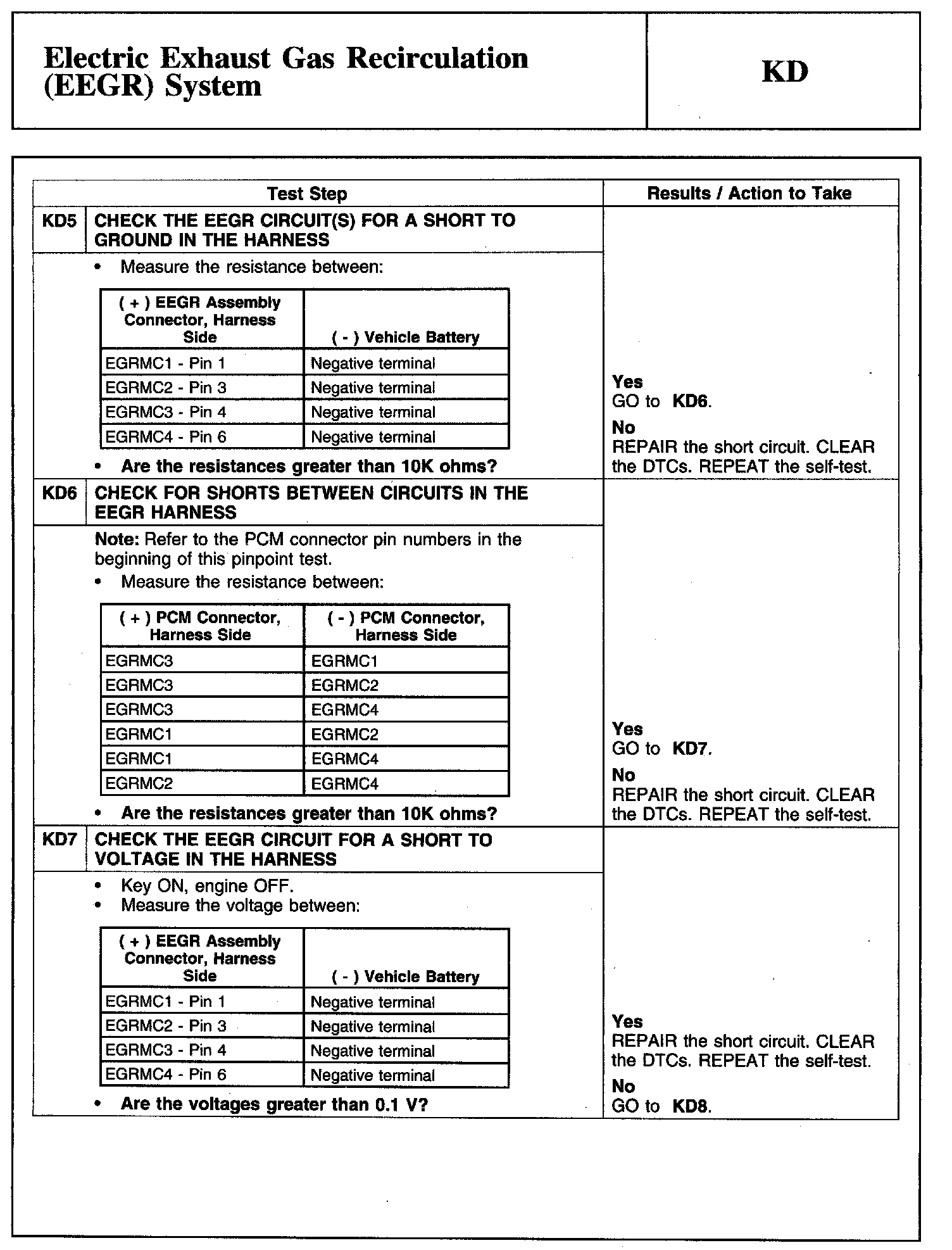

KD5-KD7:

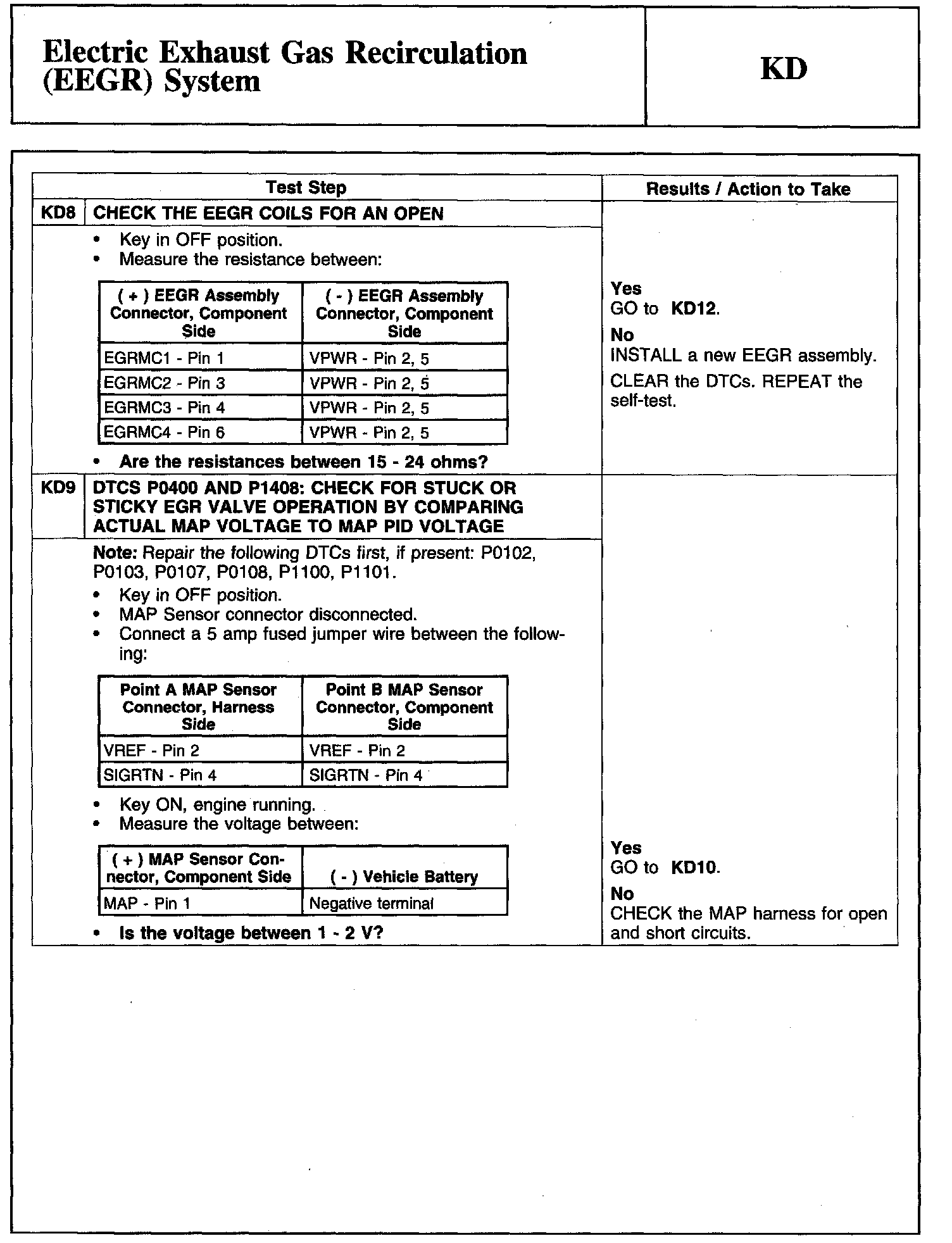

KD8-KD9:

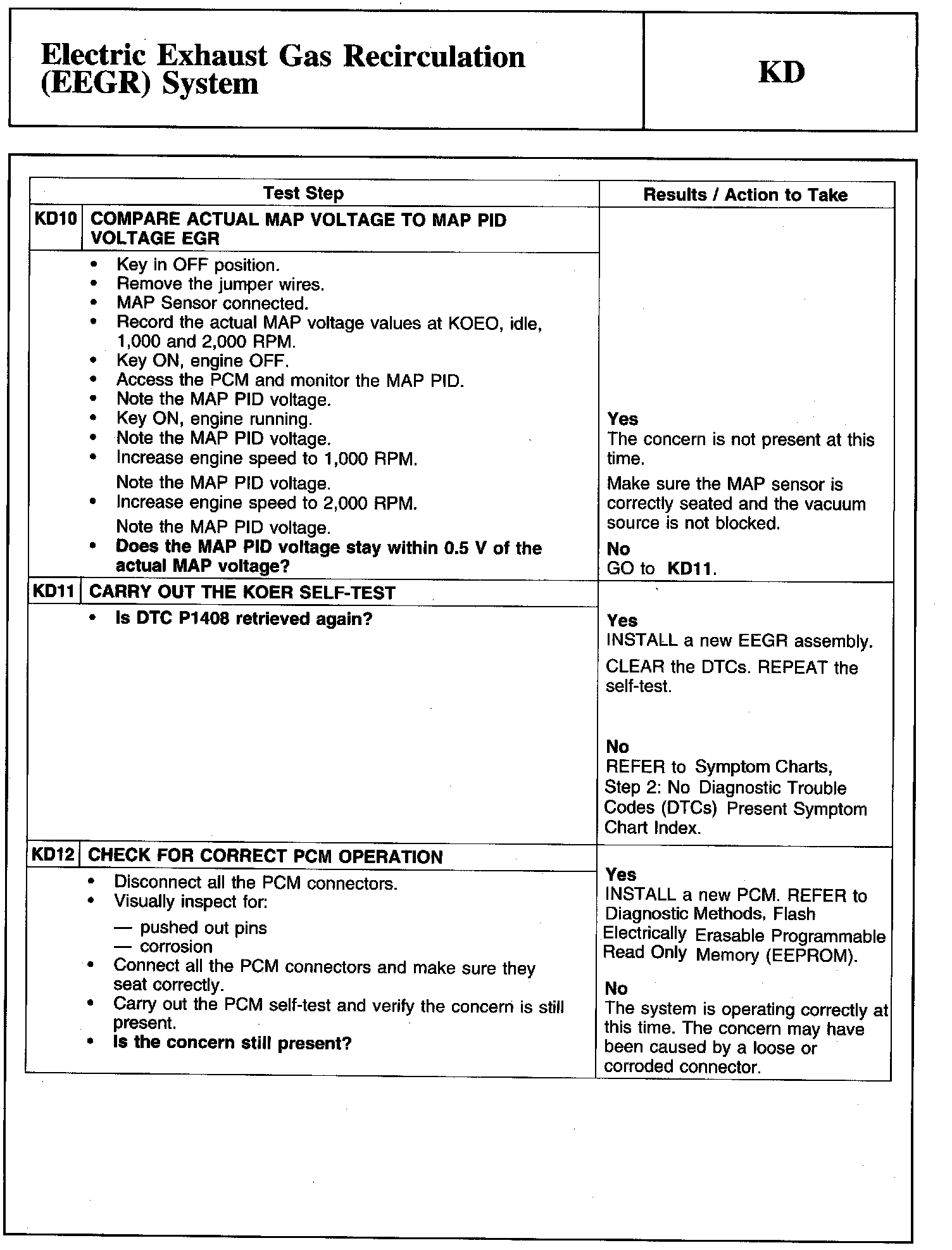

KD10-KD12:
