PINPOINT TEST KA: FUEL PUMP (FP) RELAY

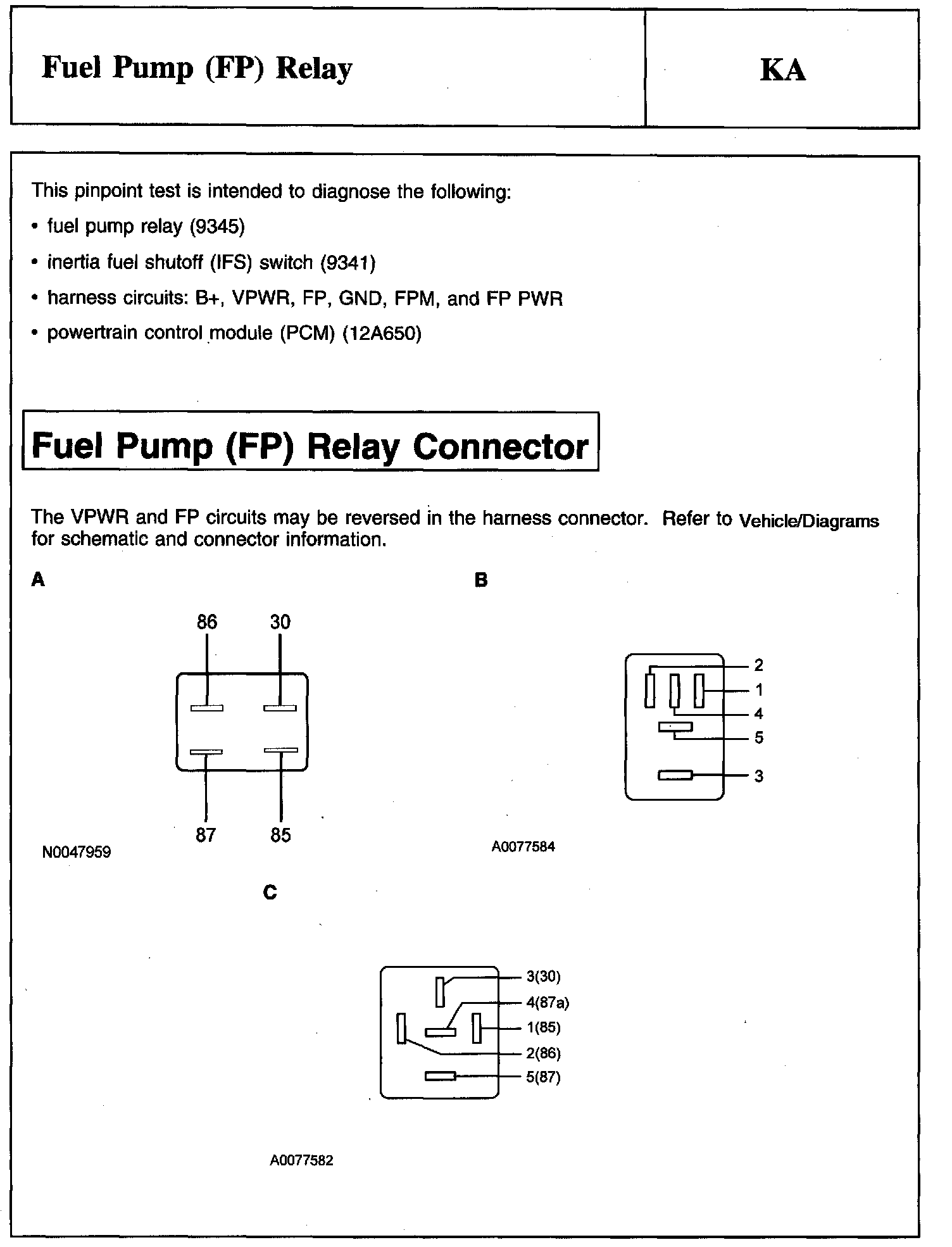

Fuel Pump (FP) Relay Connector:

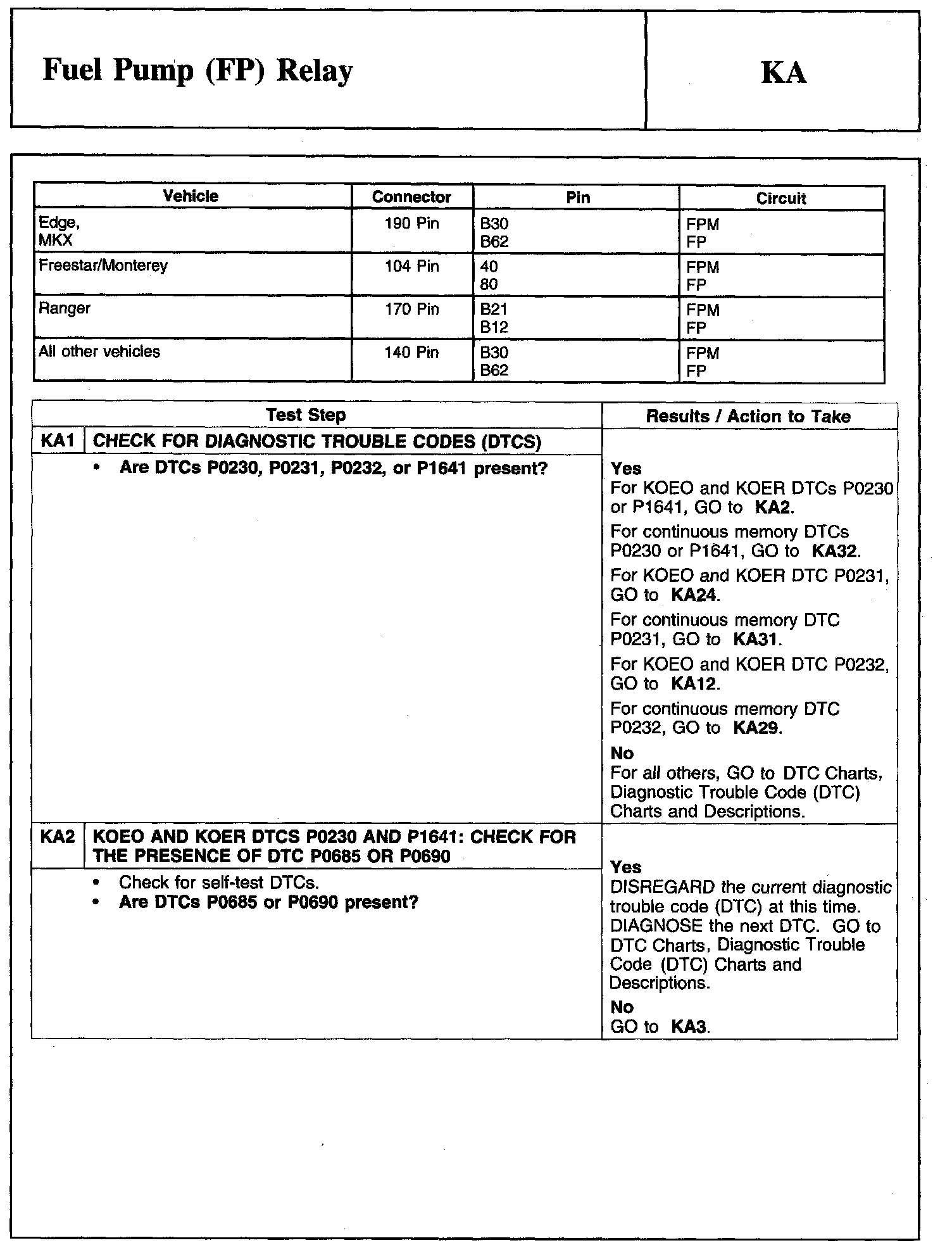

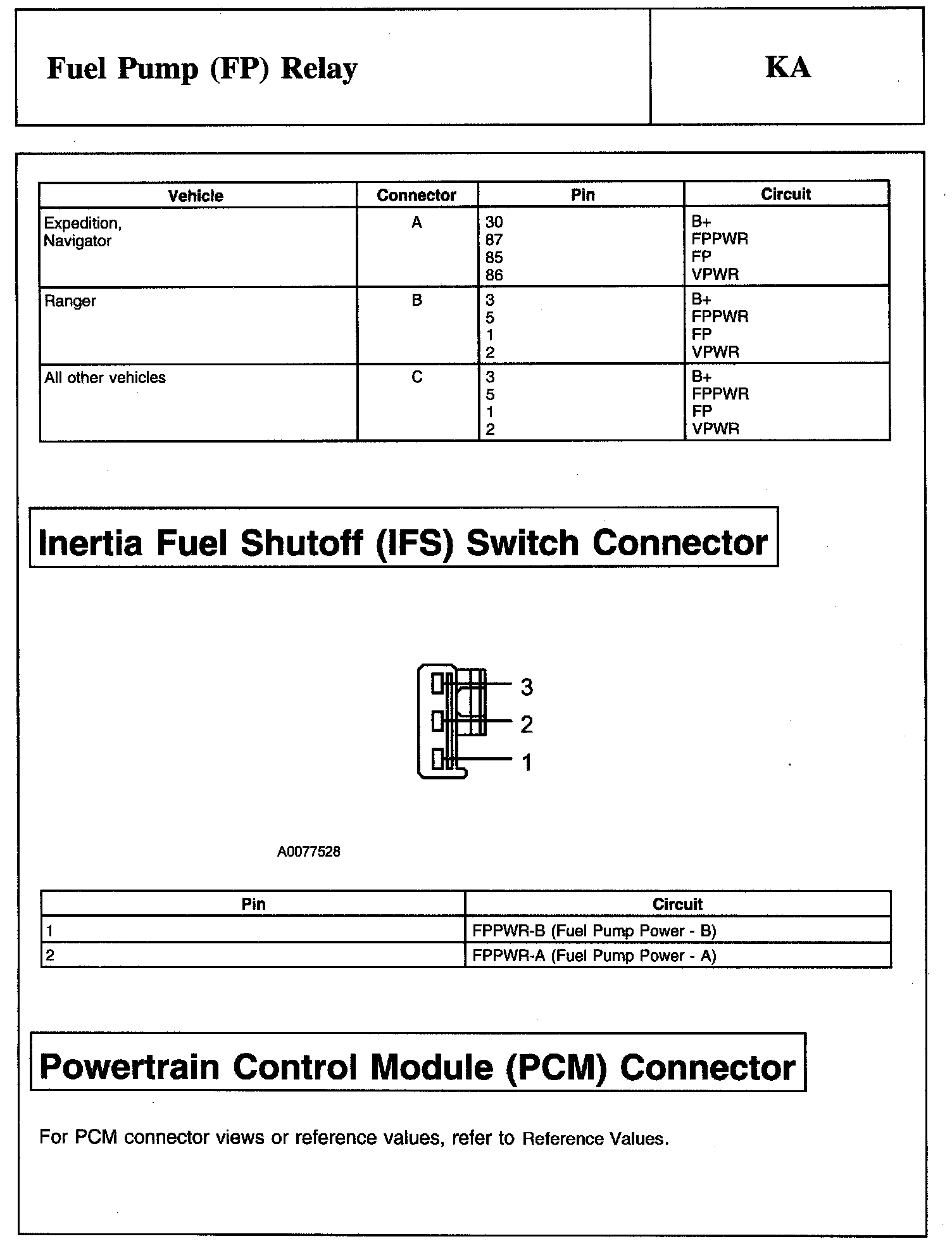

Fuel Pump (FP) Relay Connector And Inertia Fuel Shutoff (IFS) Switch Connector And Powertrain Control Module (PCM) Connector:






KA1-KA2:

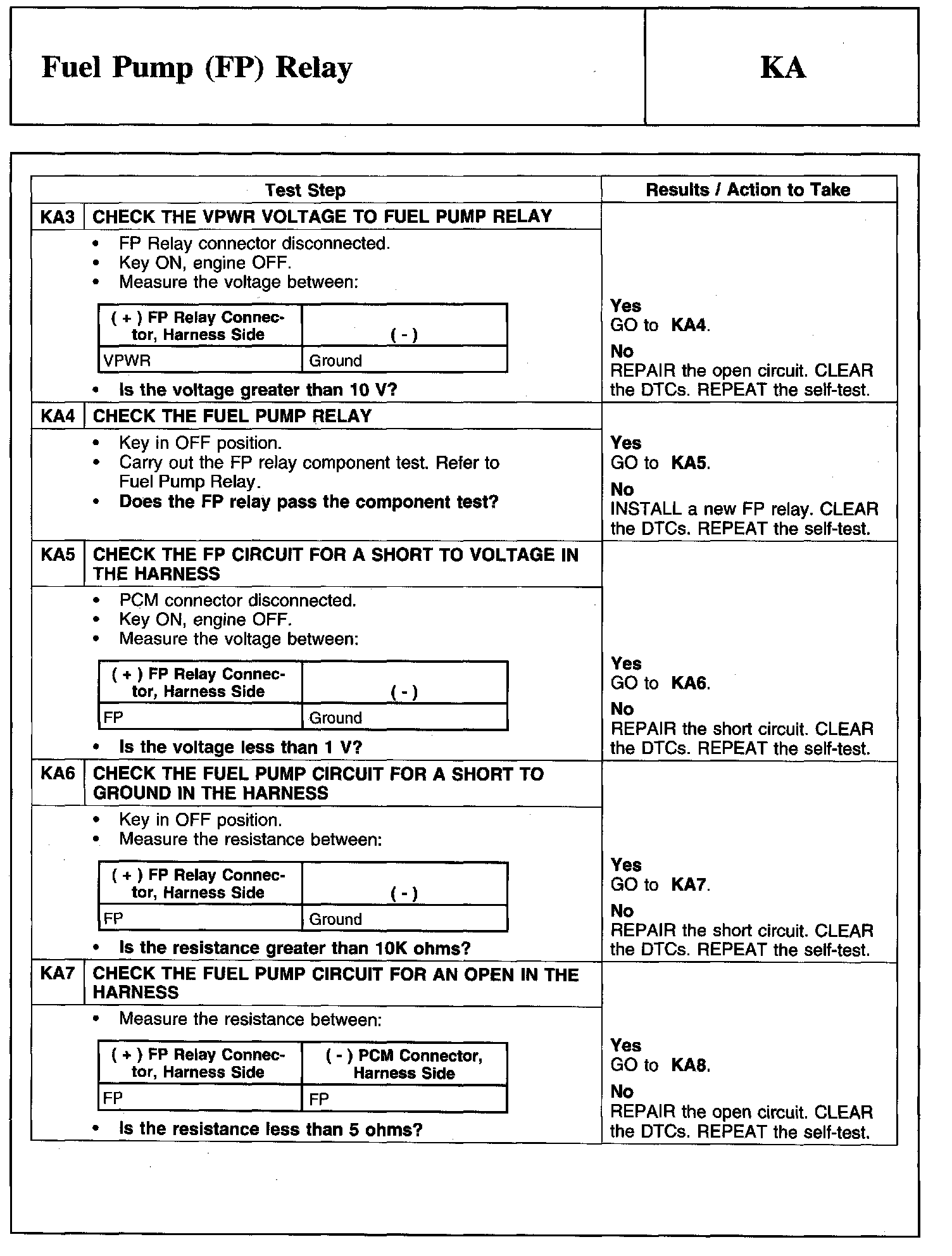

KA3-KA7:

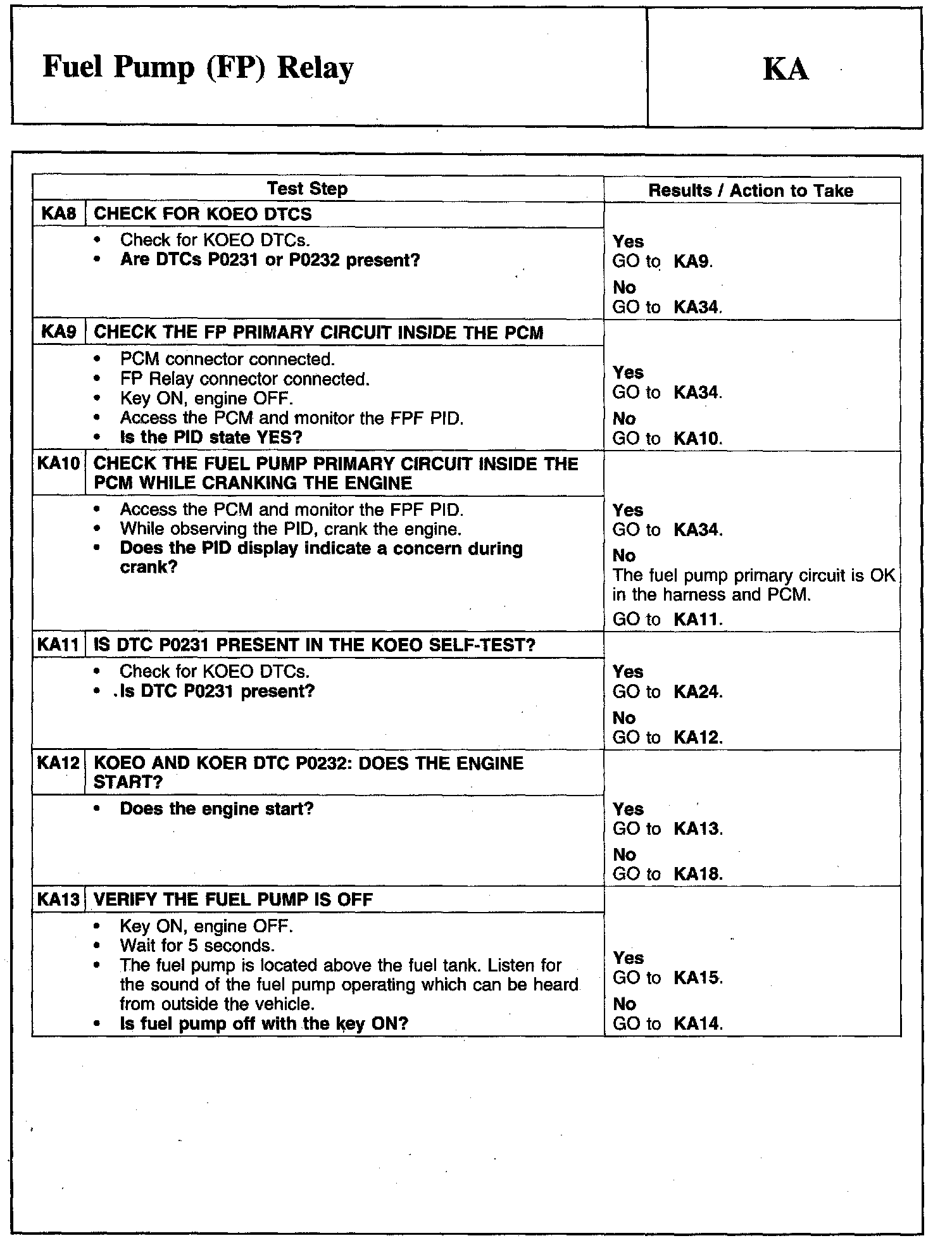

KA8-KA13:

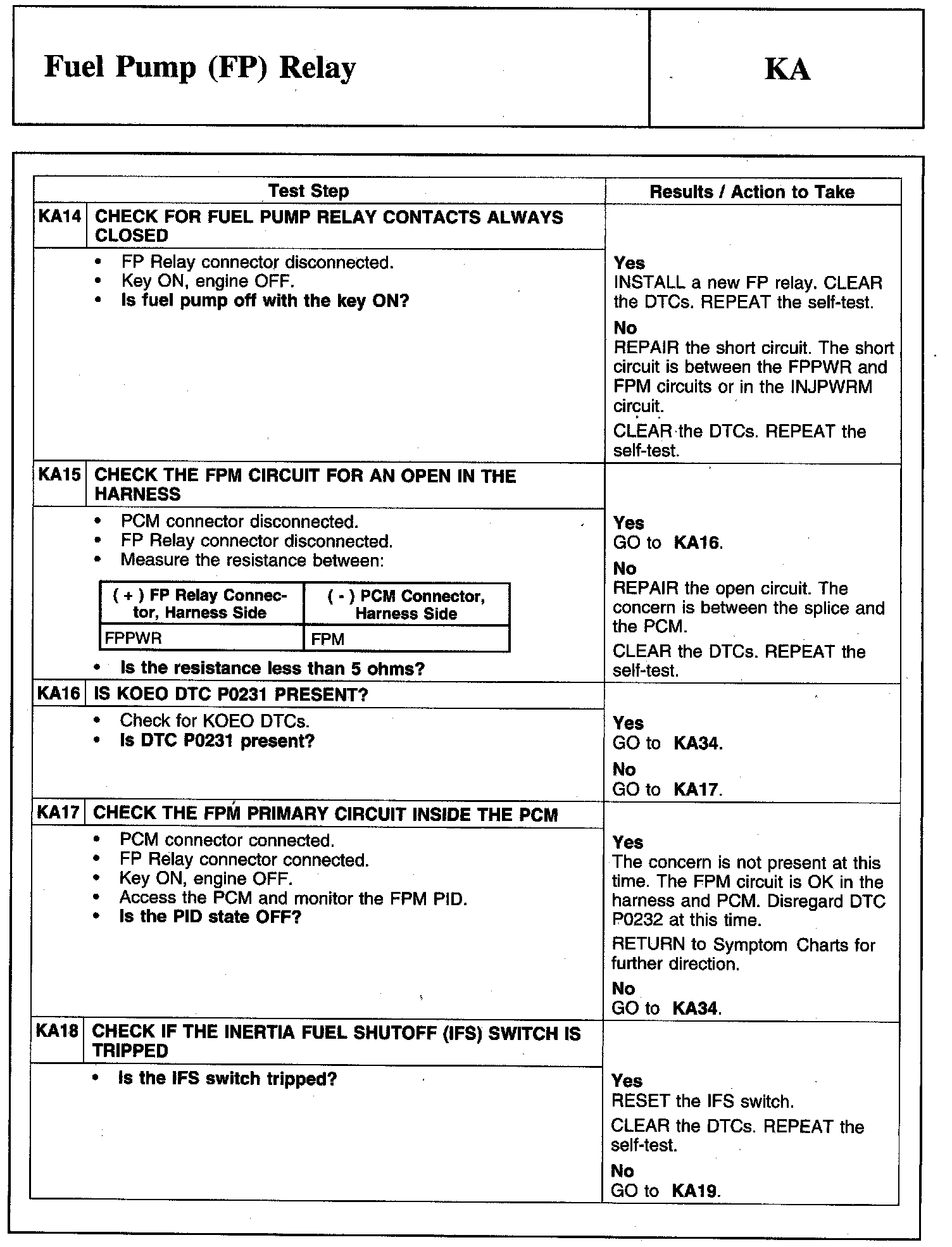

KA14-KA18:

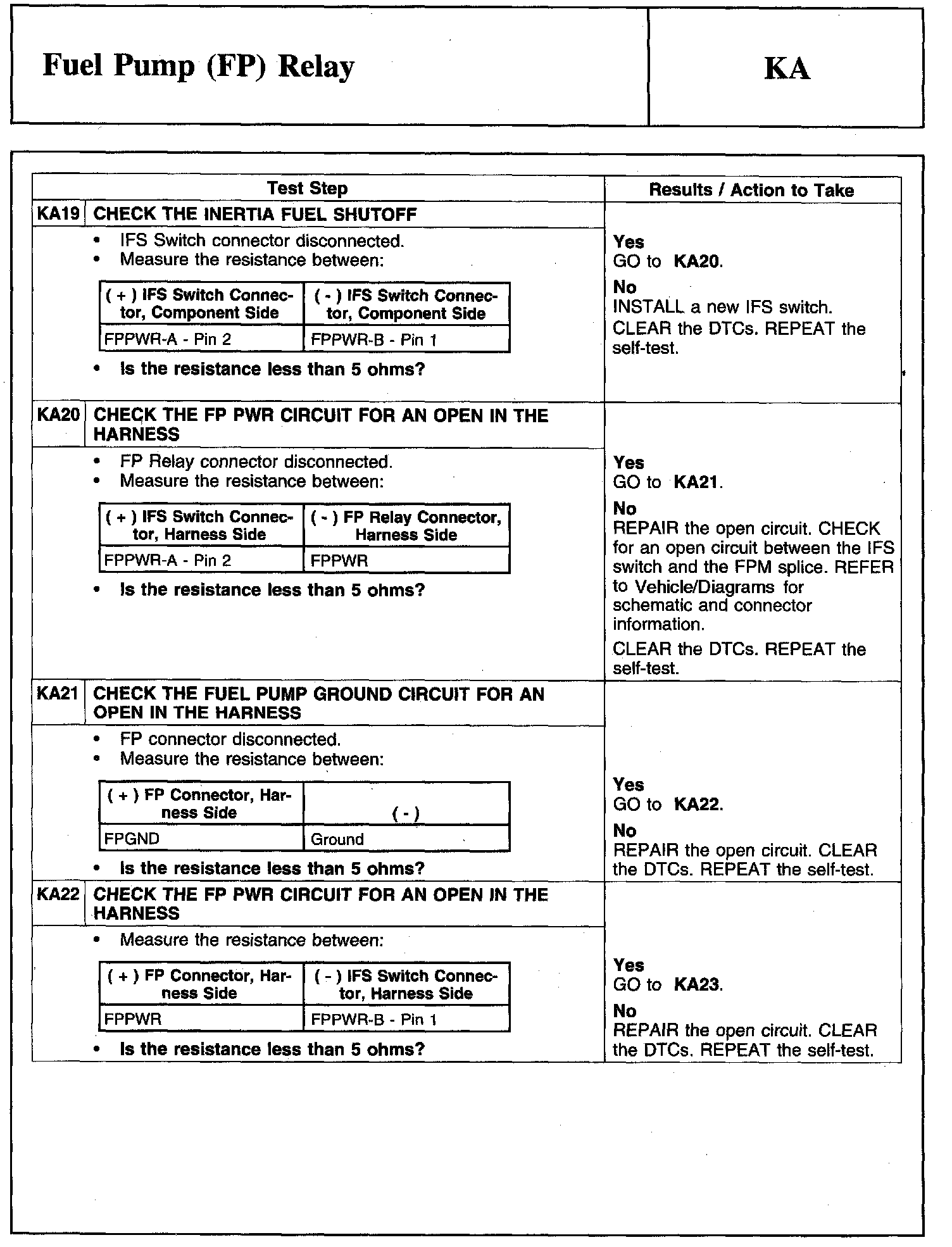

KA19-KA22:






KA23-KA27:

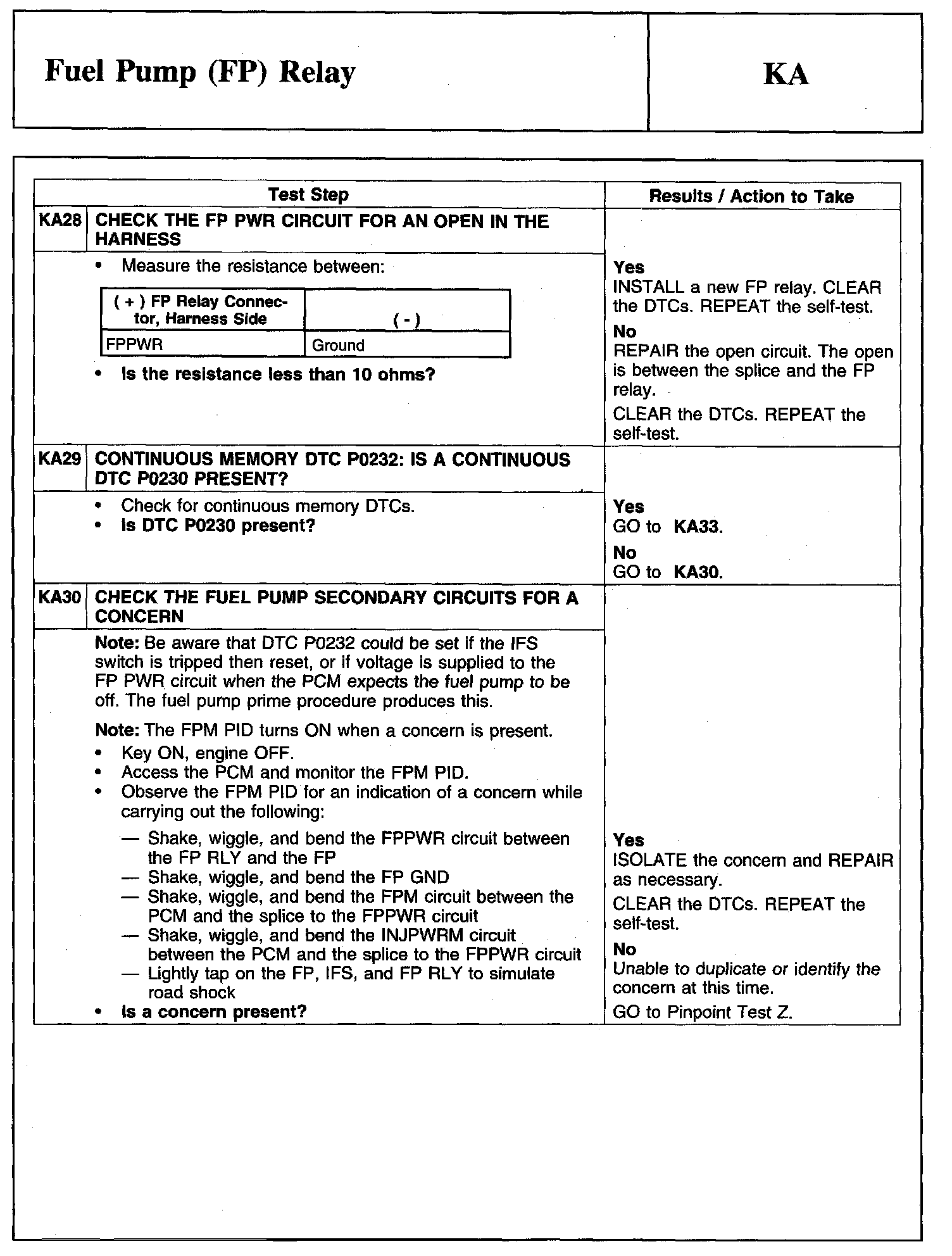

KA28-KA30:

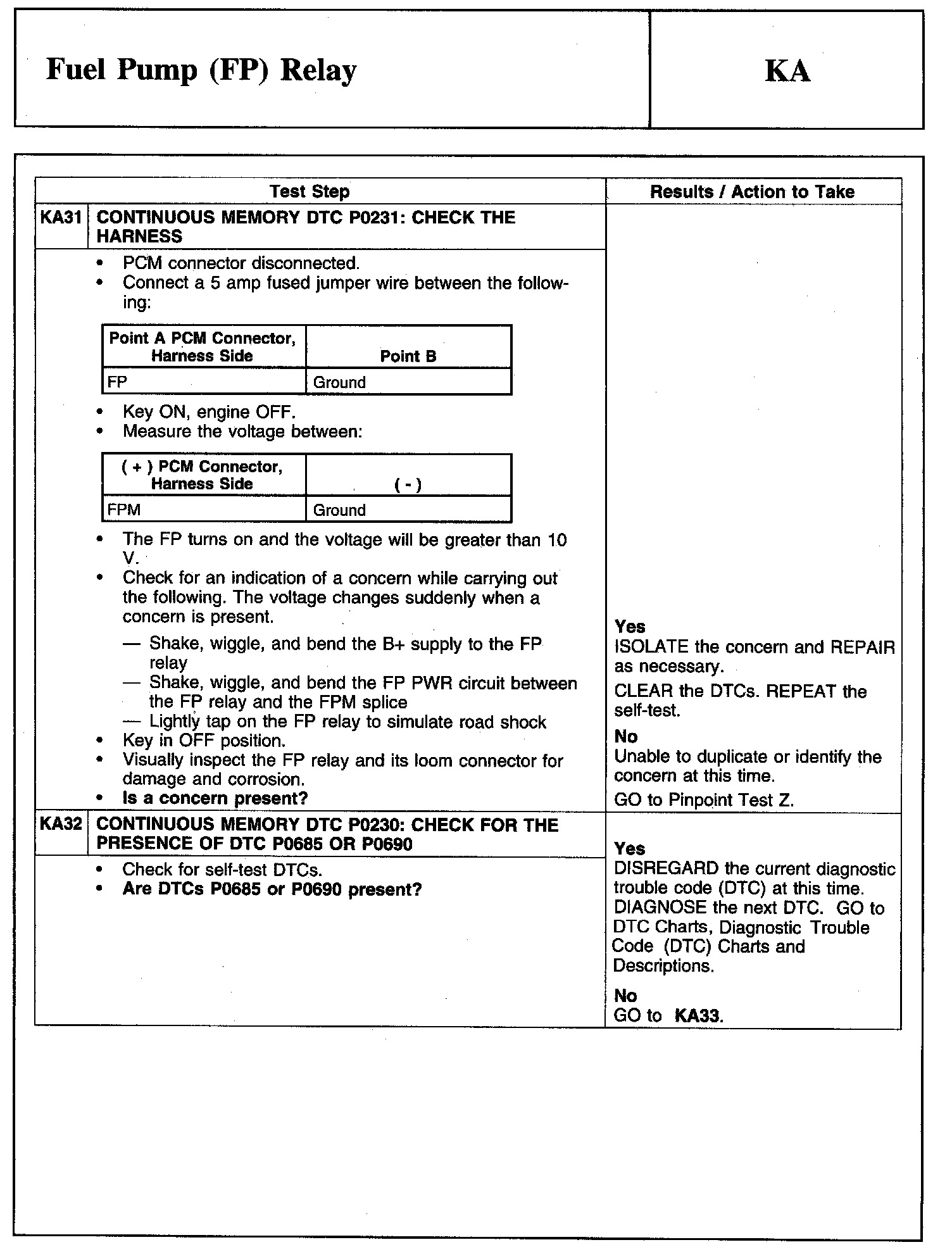

KA31-KA32:

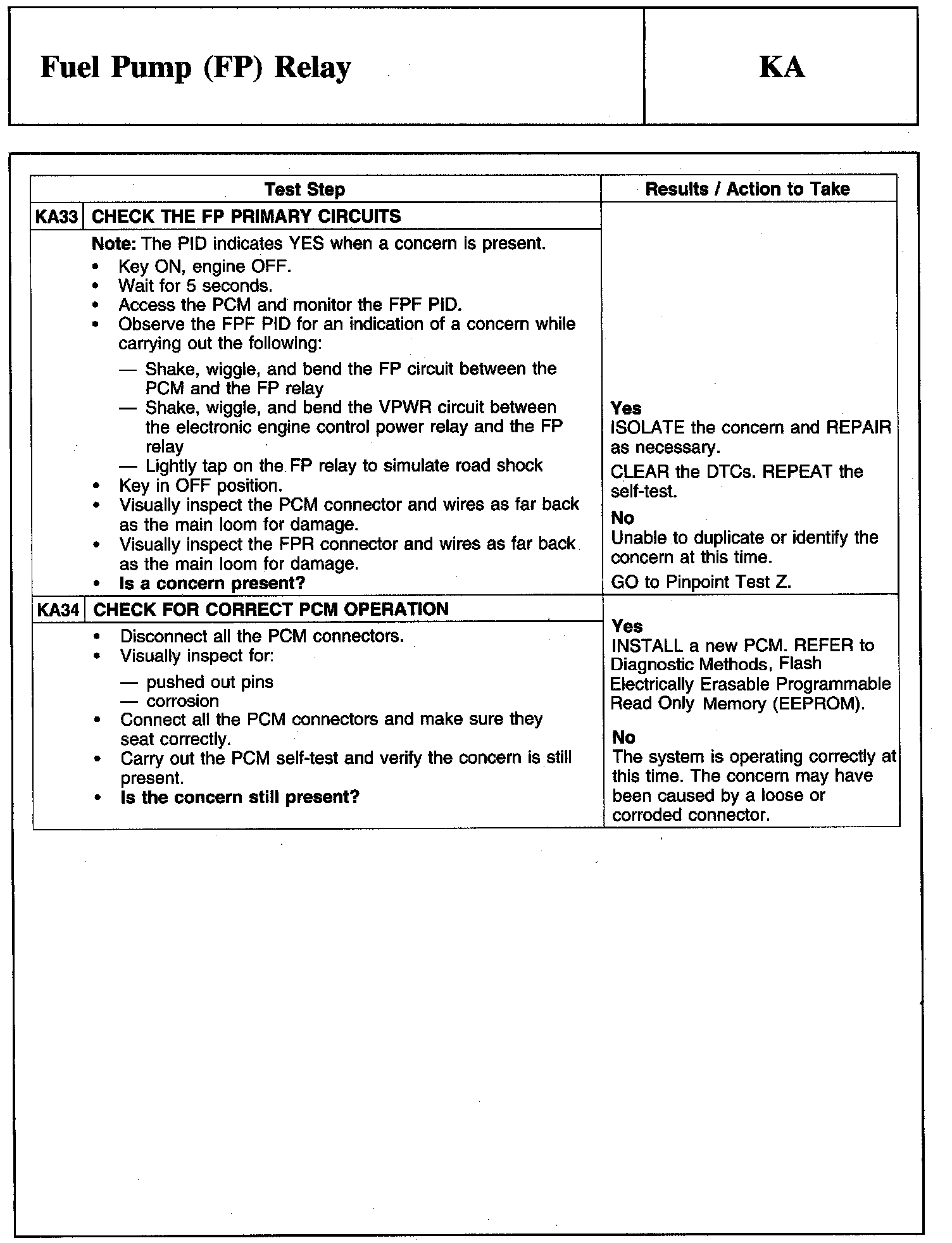

KA33-KA34:
