PINPOINT TEST JB: SECONDARY IGNITION (COP)

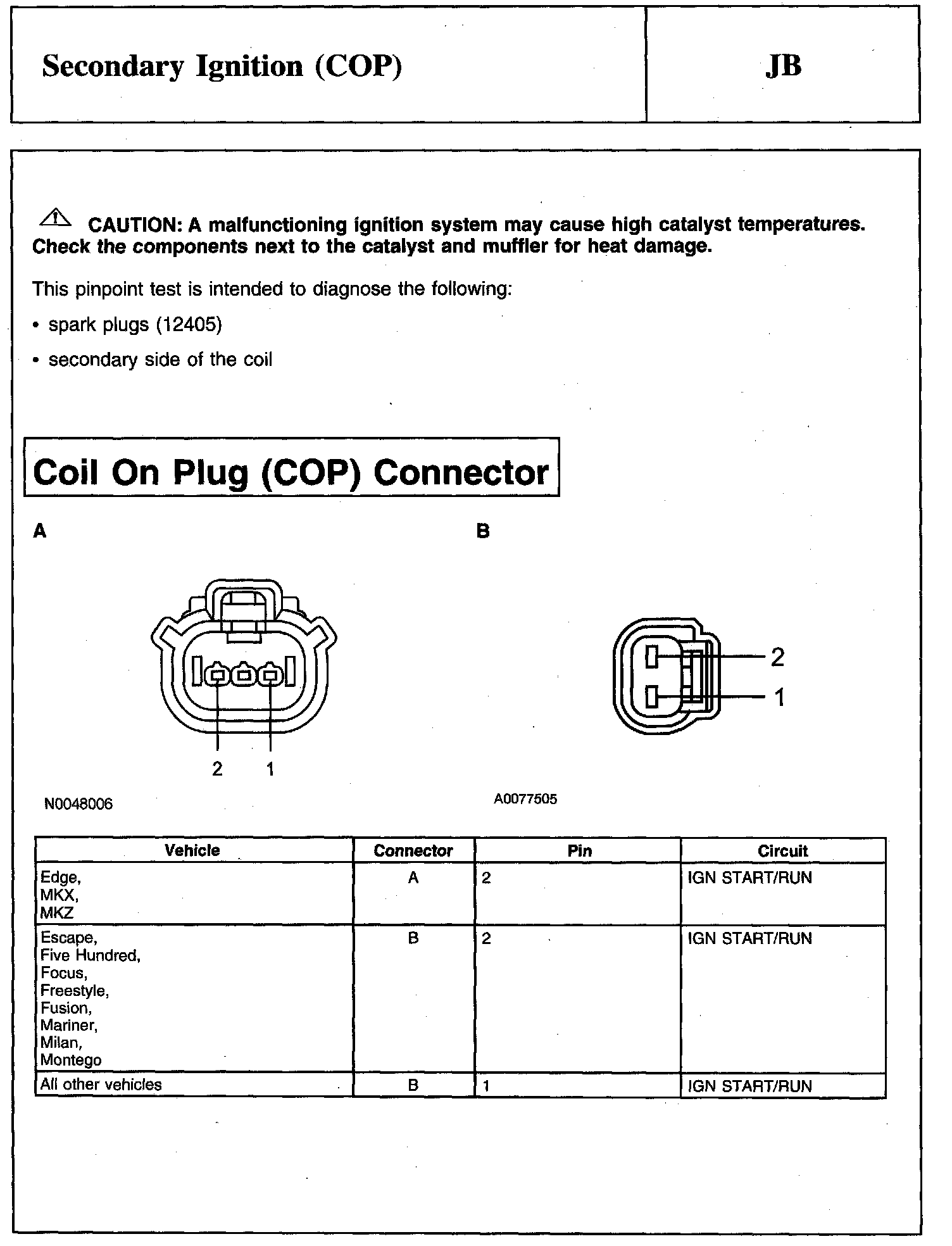

Caution And Coil On Plug (COP) Connector:

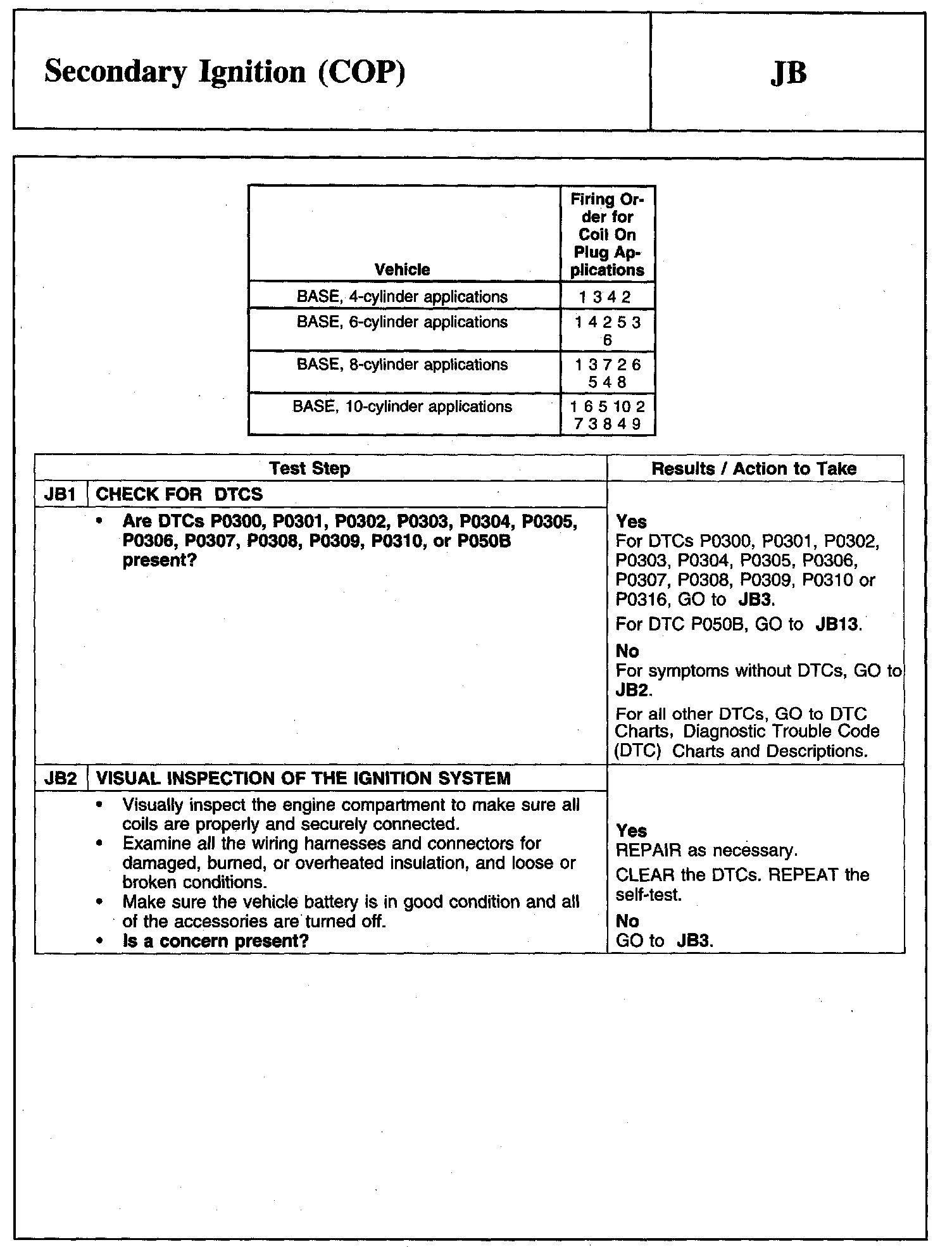

JB1-JB2:

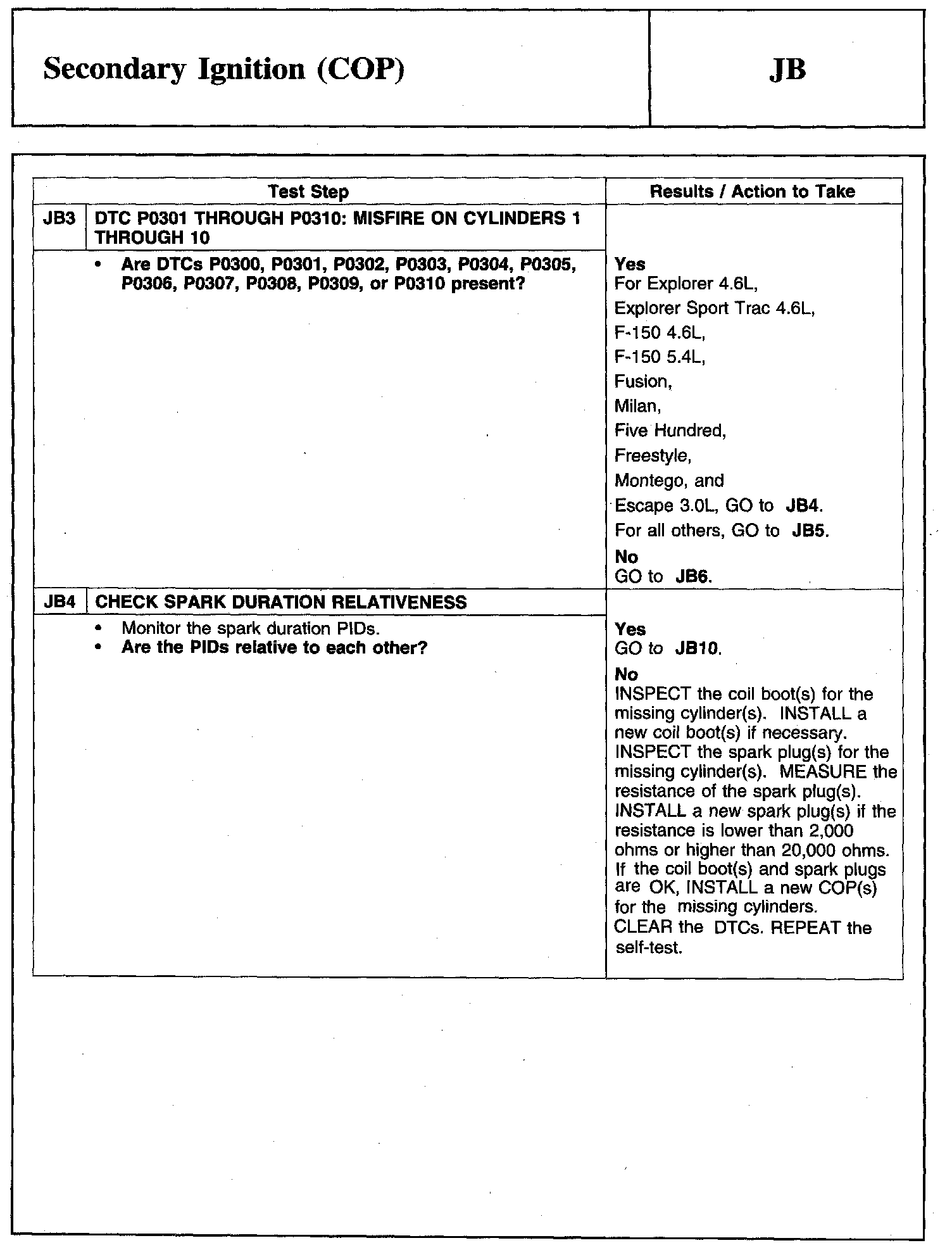

JB3-JB4:

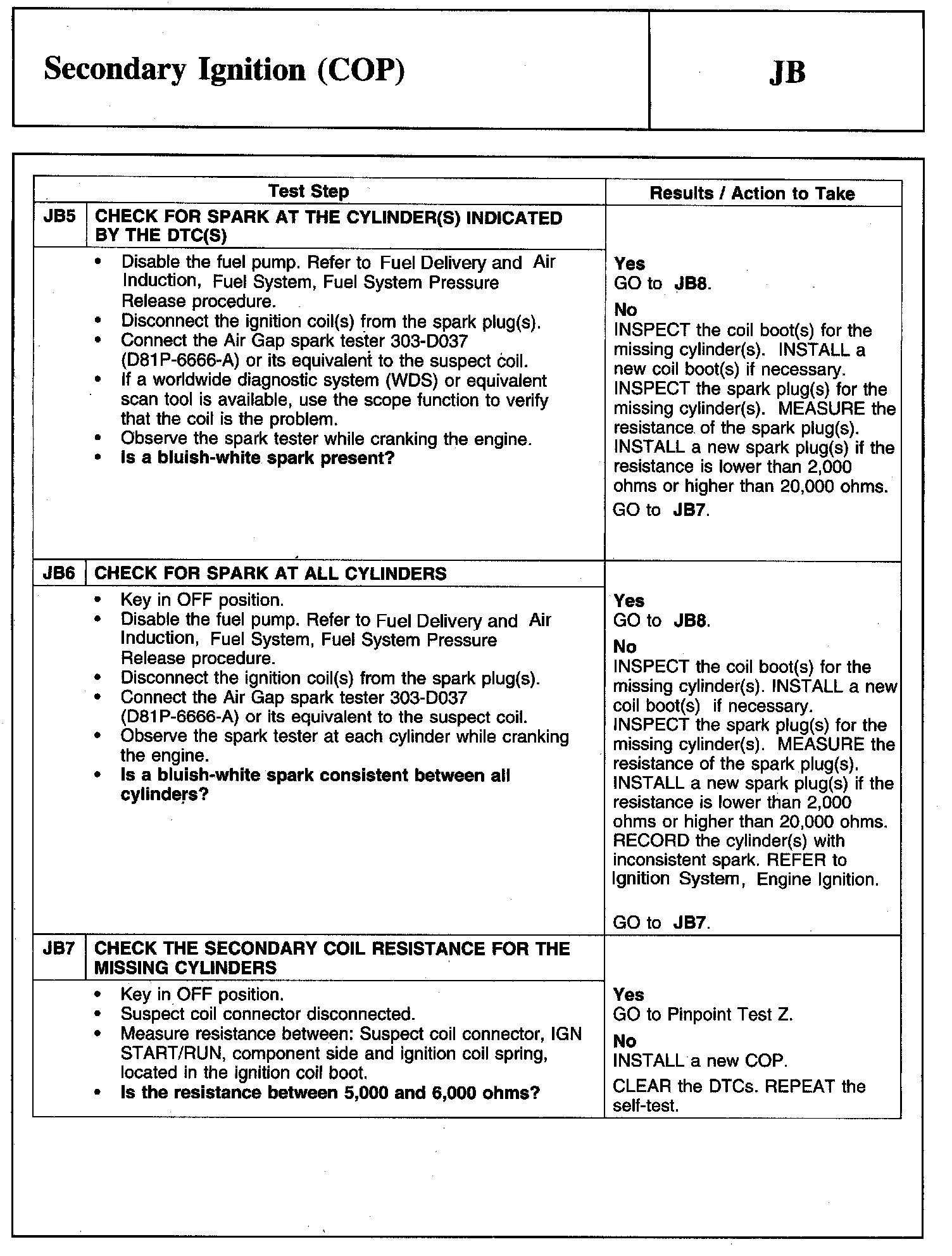

JB5-JB7:

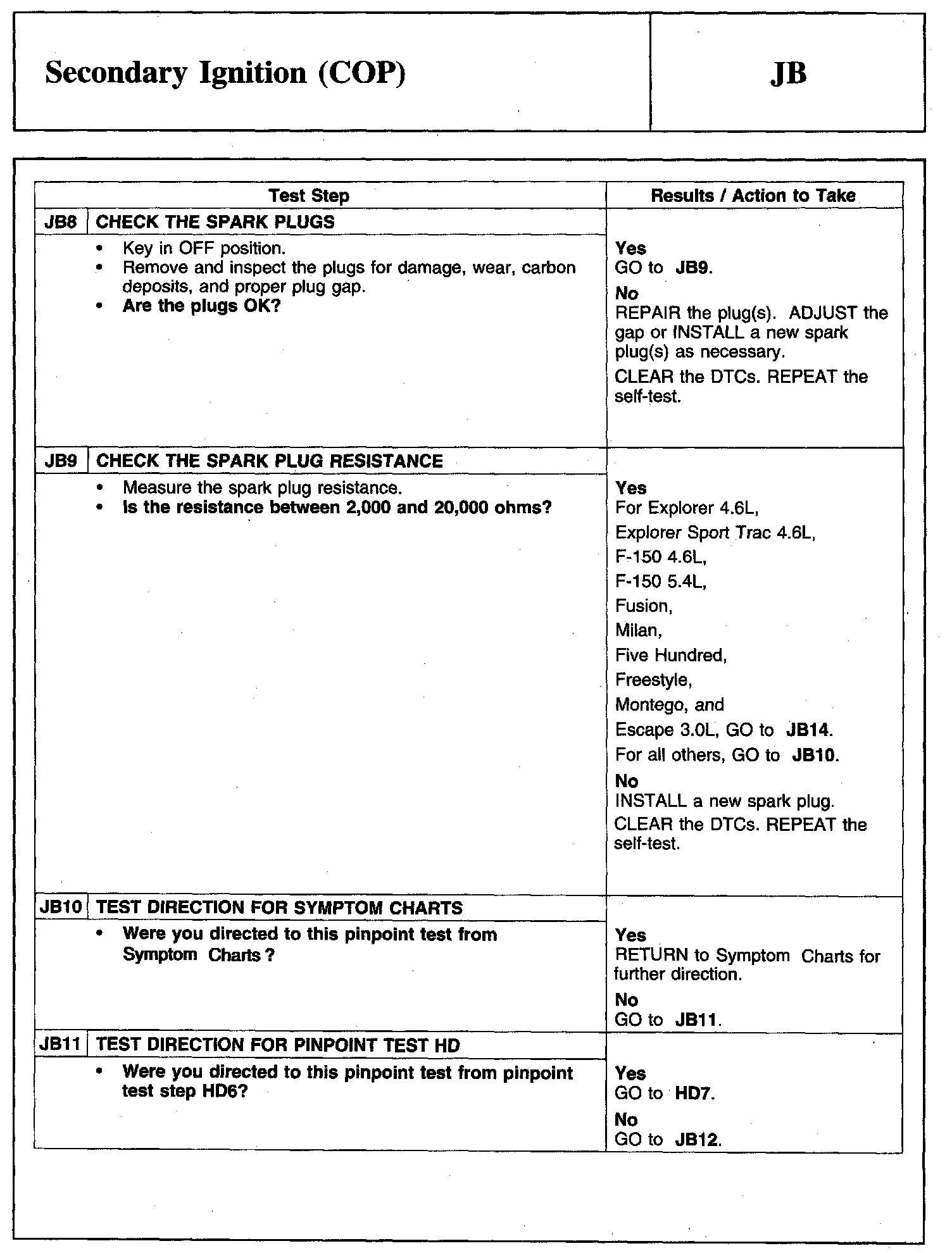

JB8-JB11:

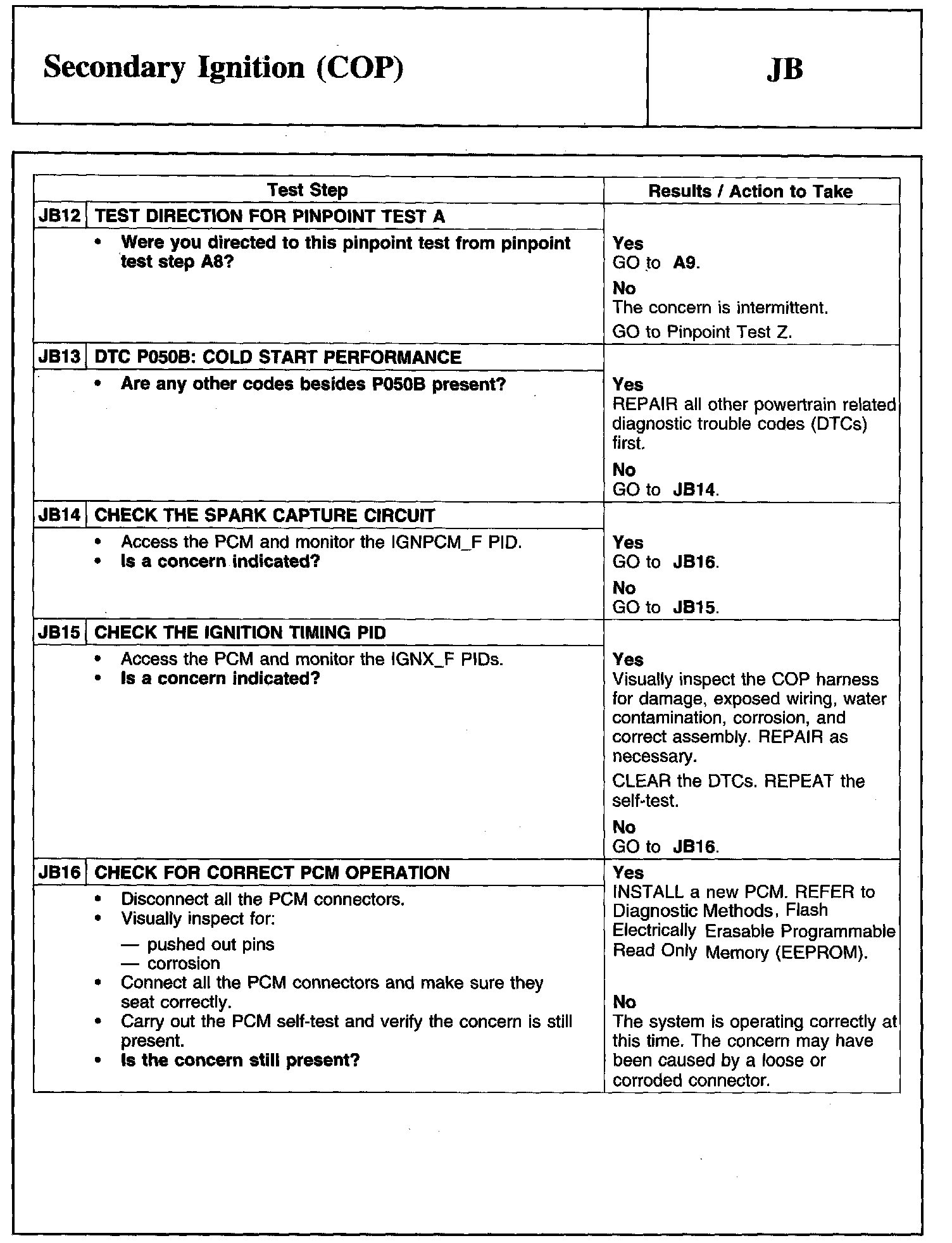

JB12-JB16:
