PINPOINT TEST DV: THROTTLE BODY ASSEMBLY ELECTRONIC THROTTLE CONTROL (ETC)

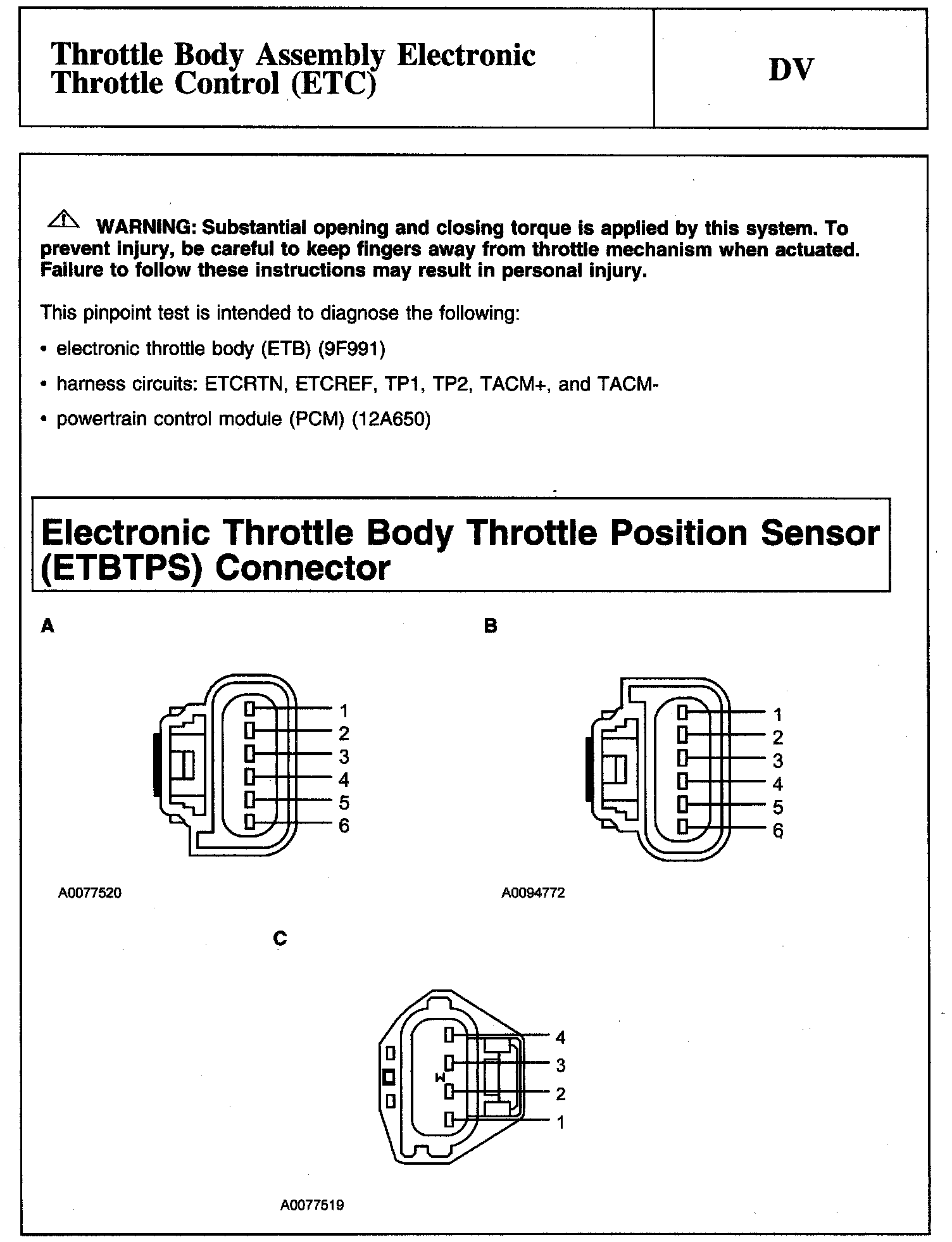

Warning And Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector:

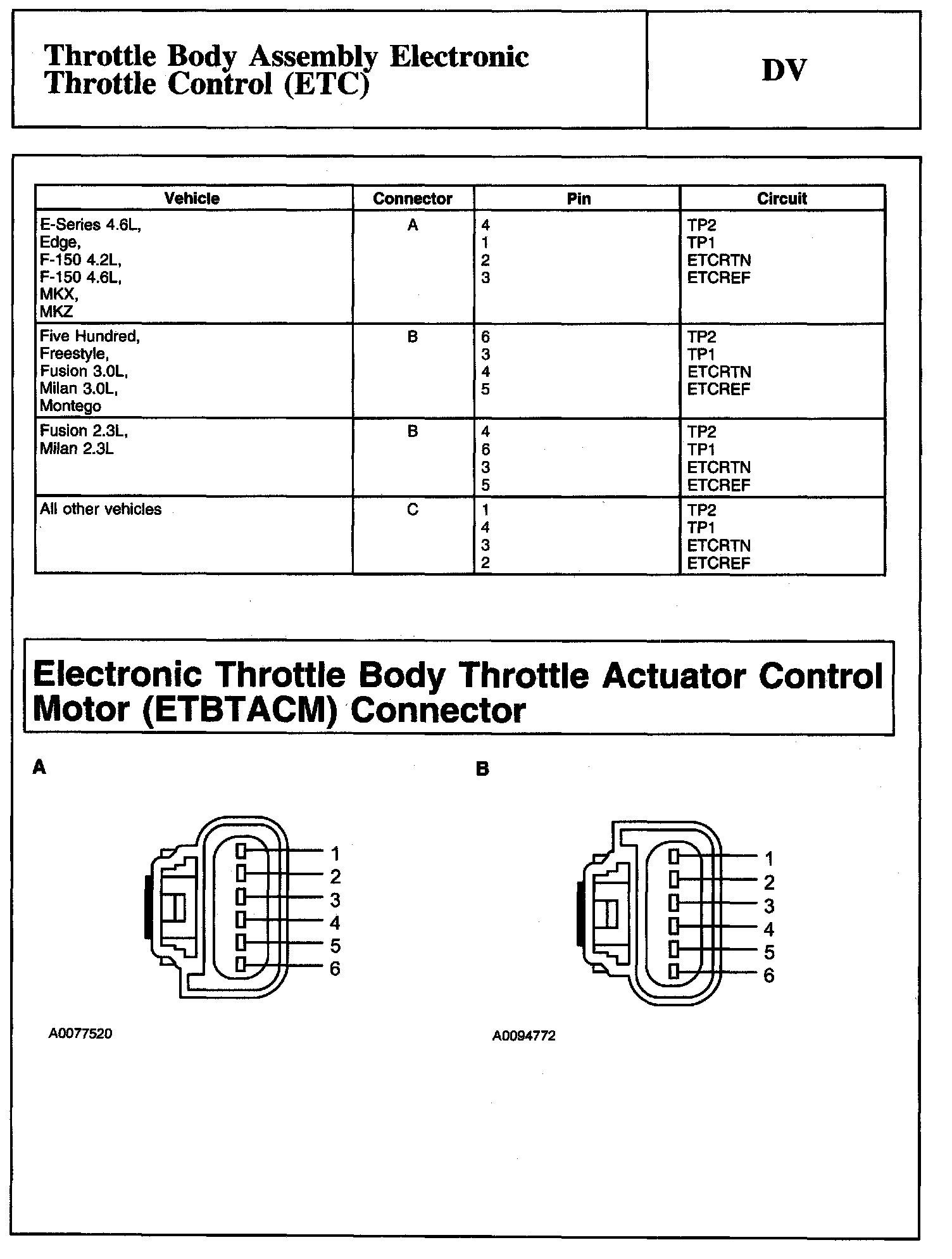

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector And Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector:

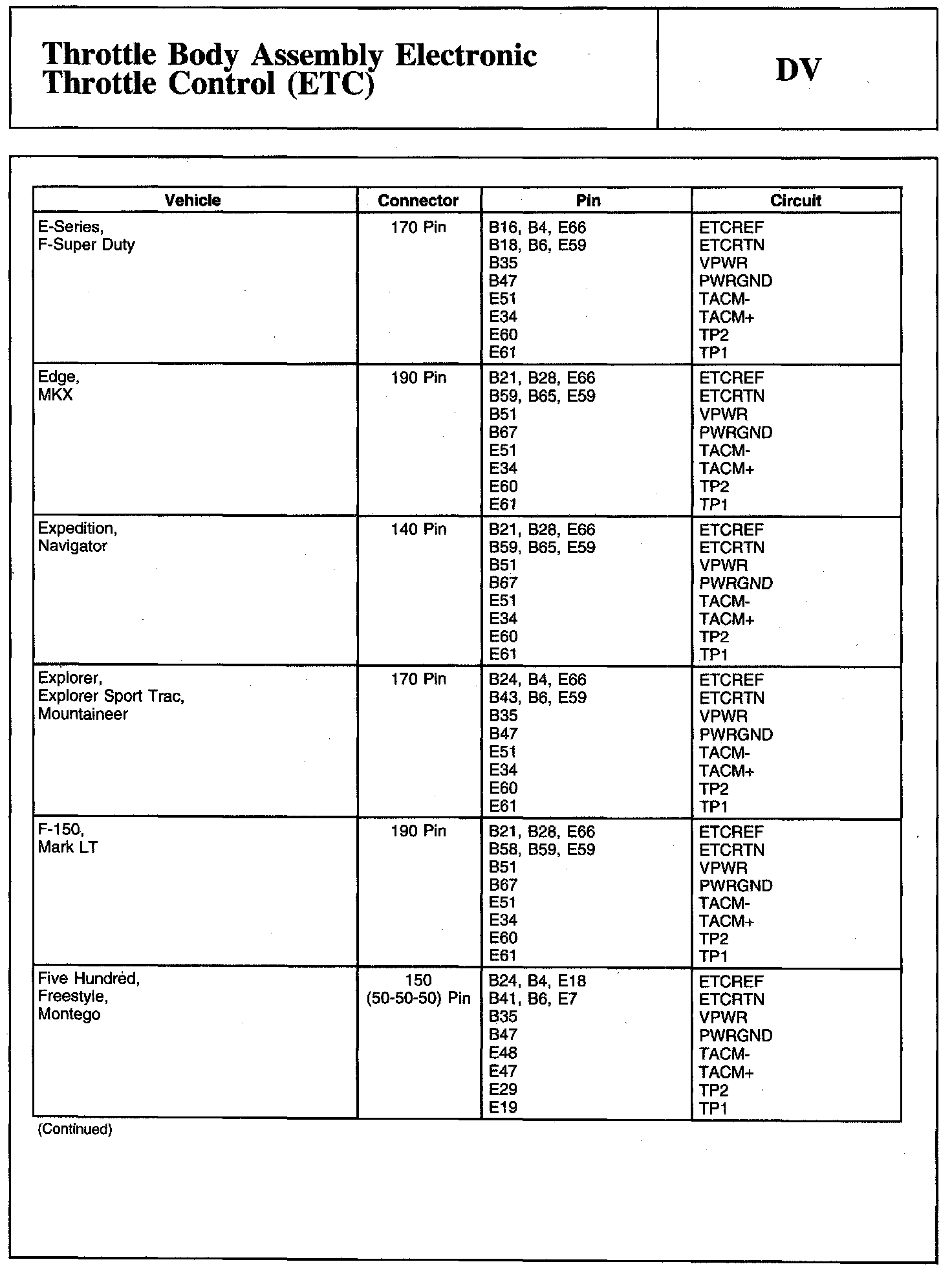

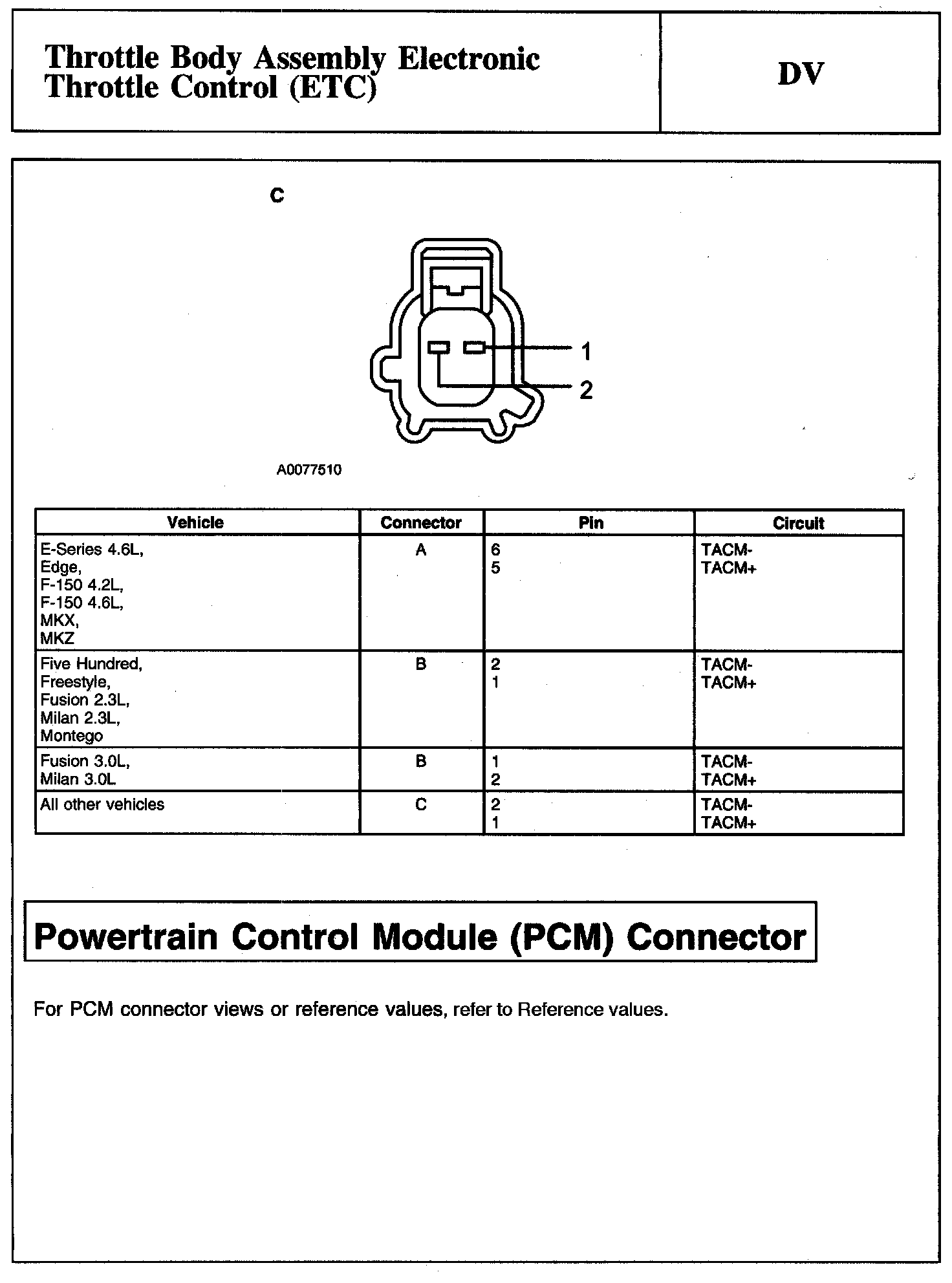

Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector And Powertrain Control Module (PCM) Connector:






Powertrain Control Module (PCM) Connector Continued:

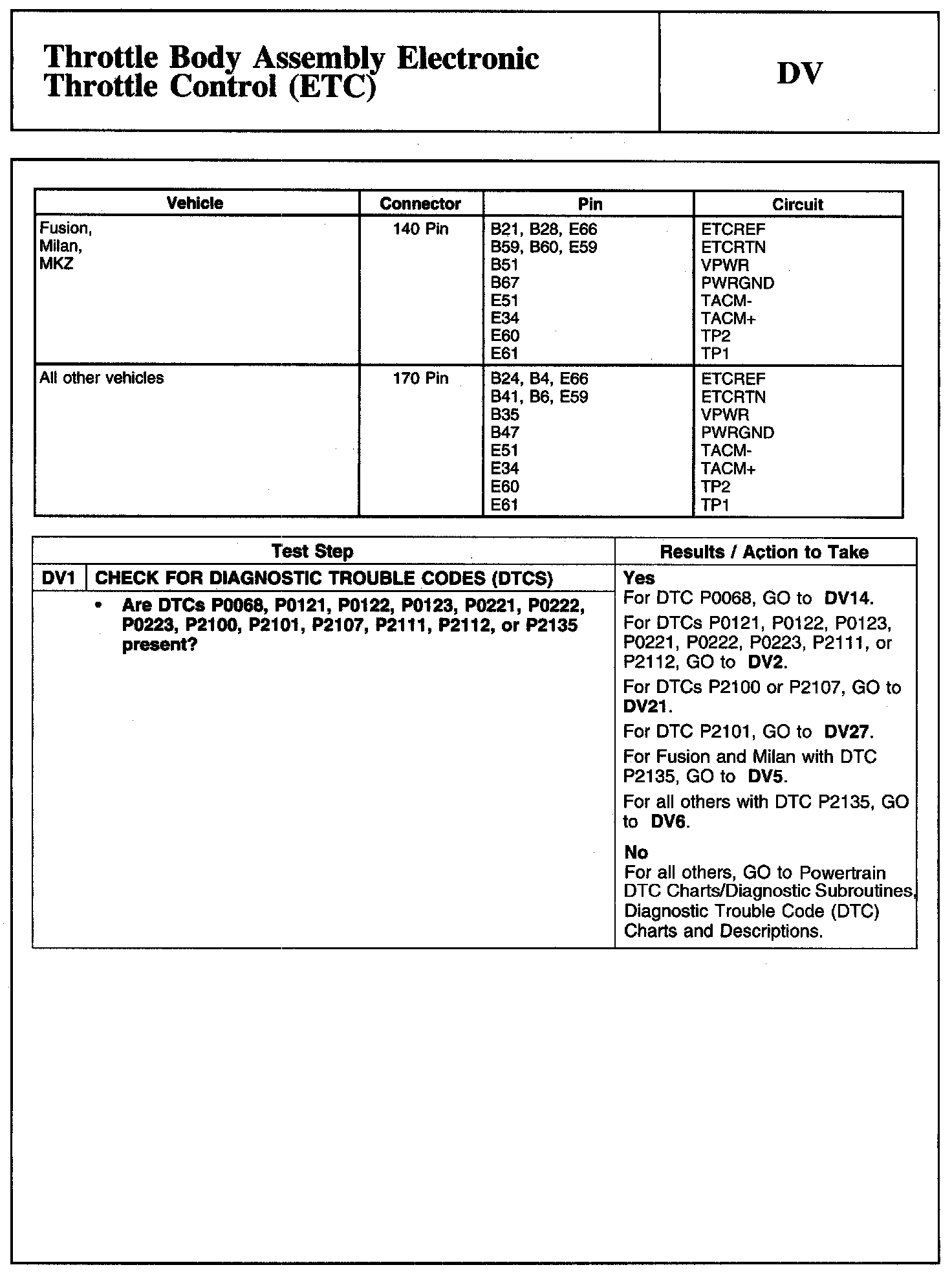

DV1:

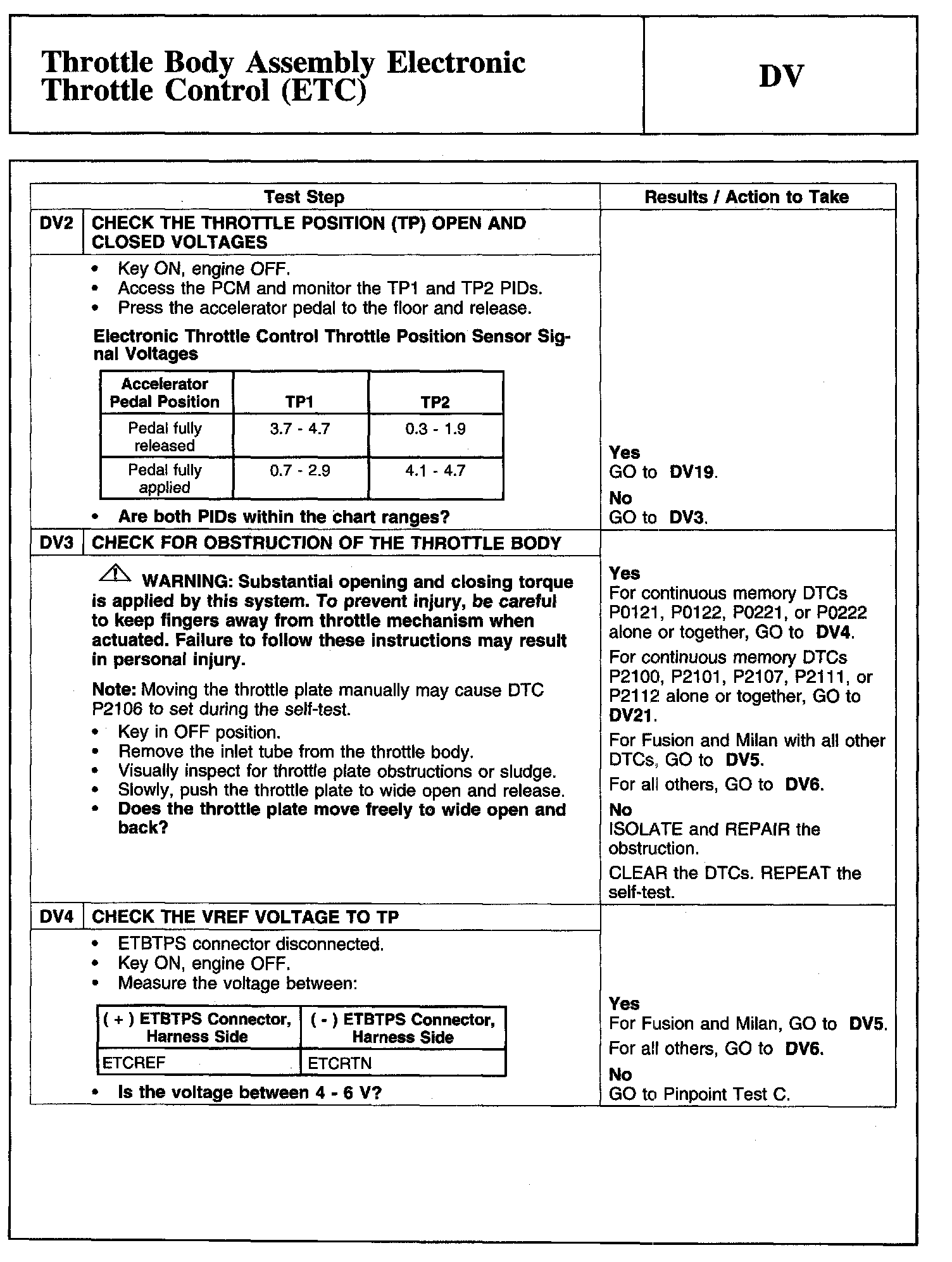

DV2-DV4:

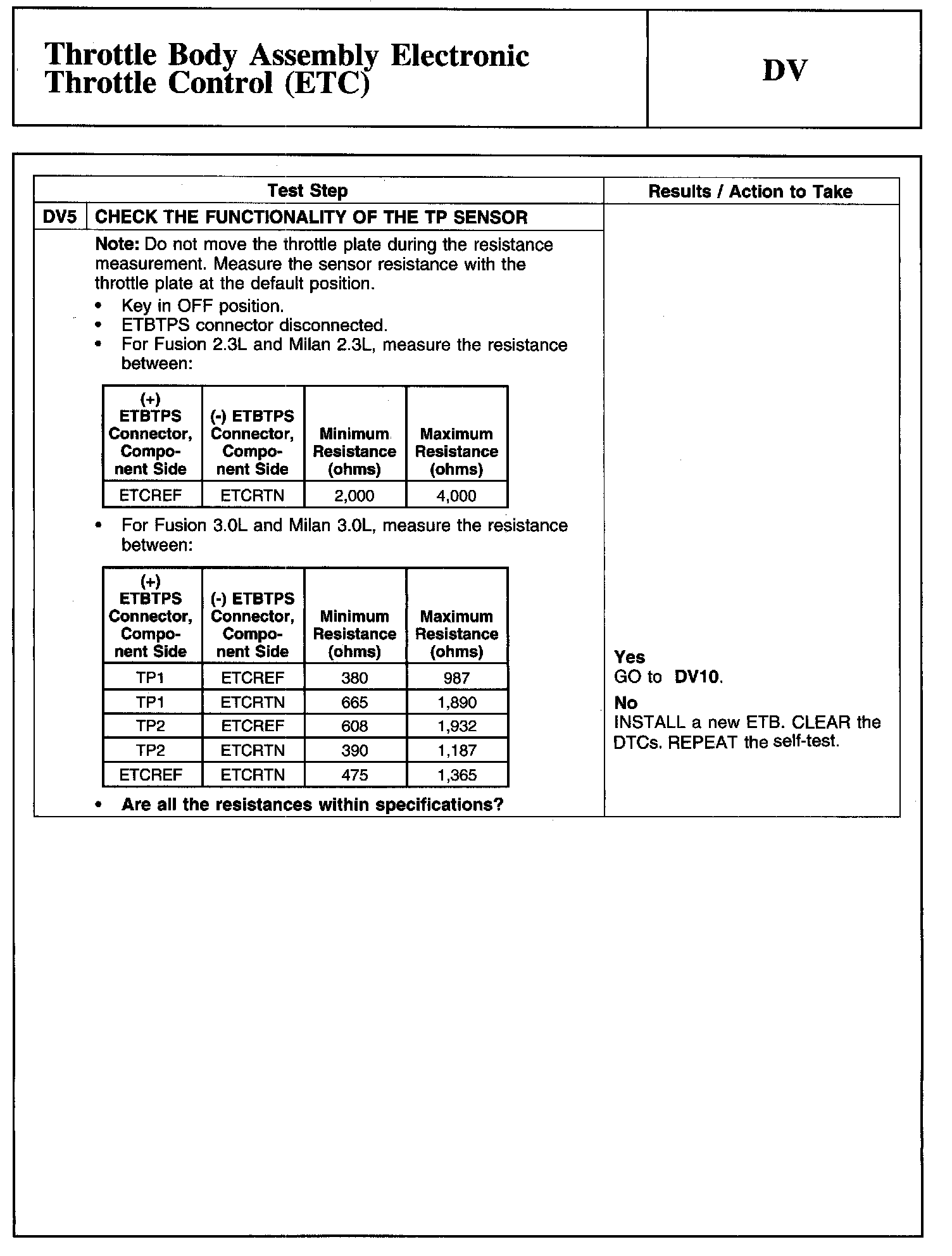

DV5:

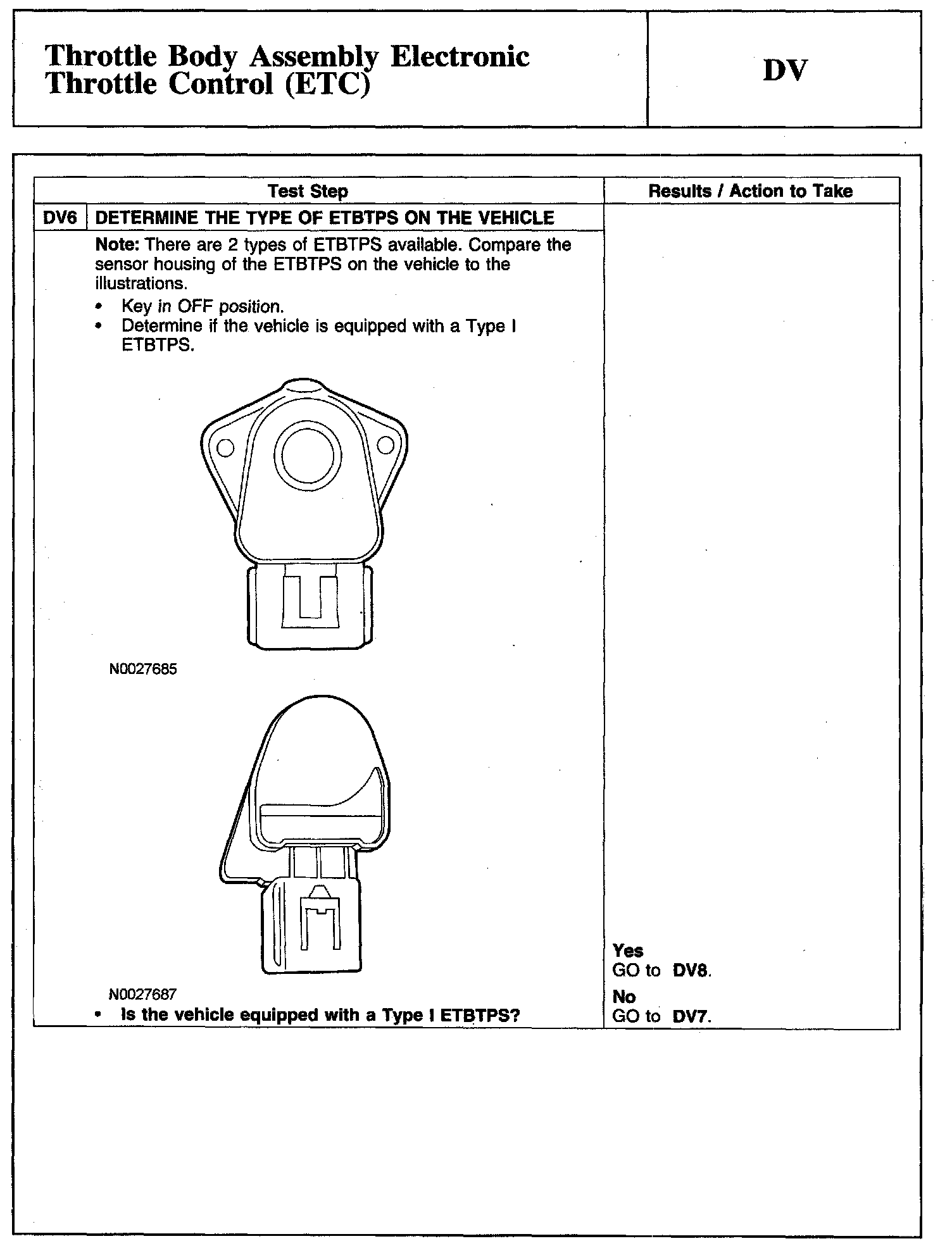

DV6:

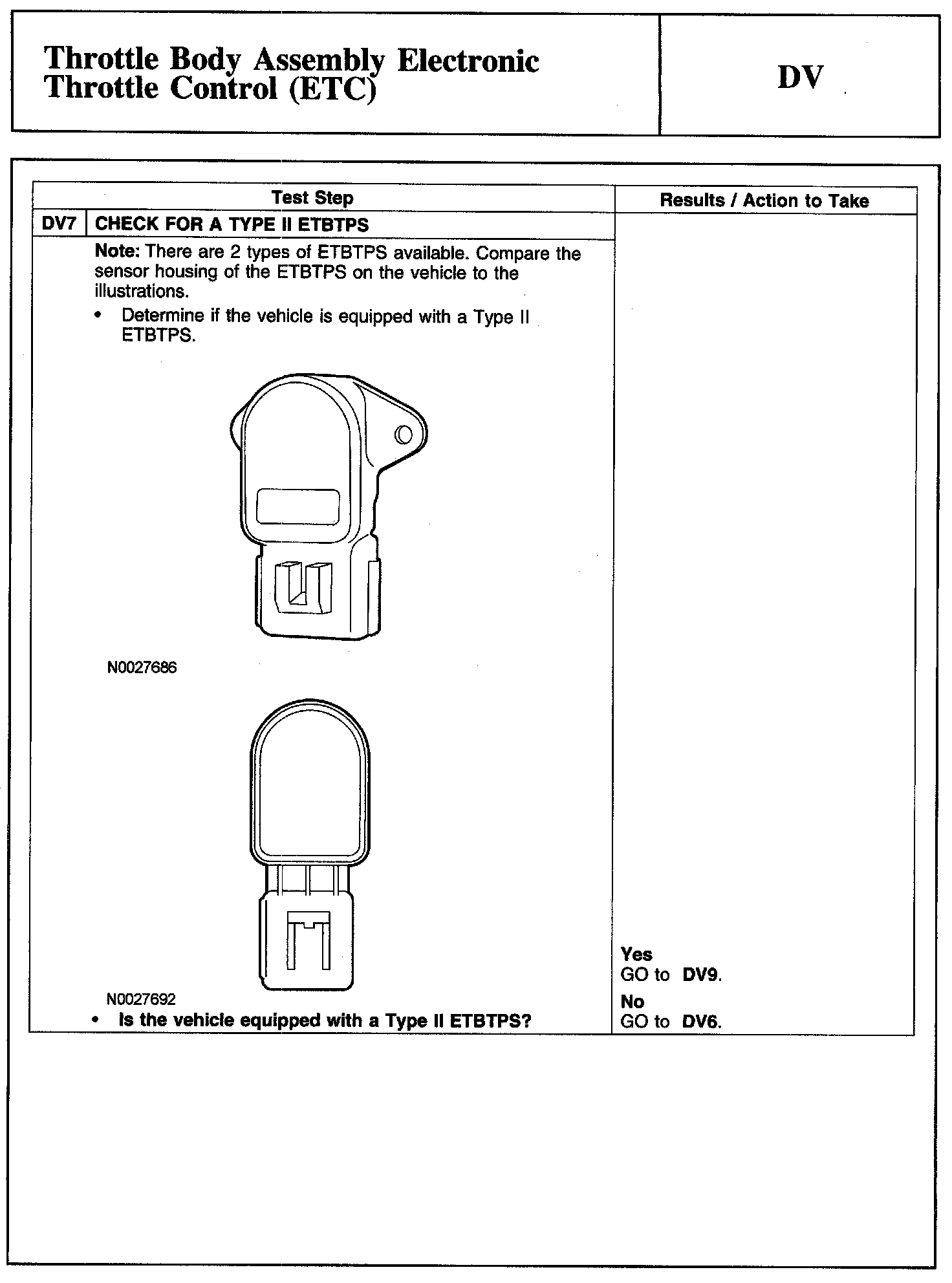

DV7:

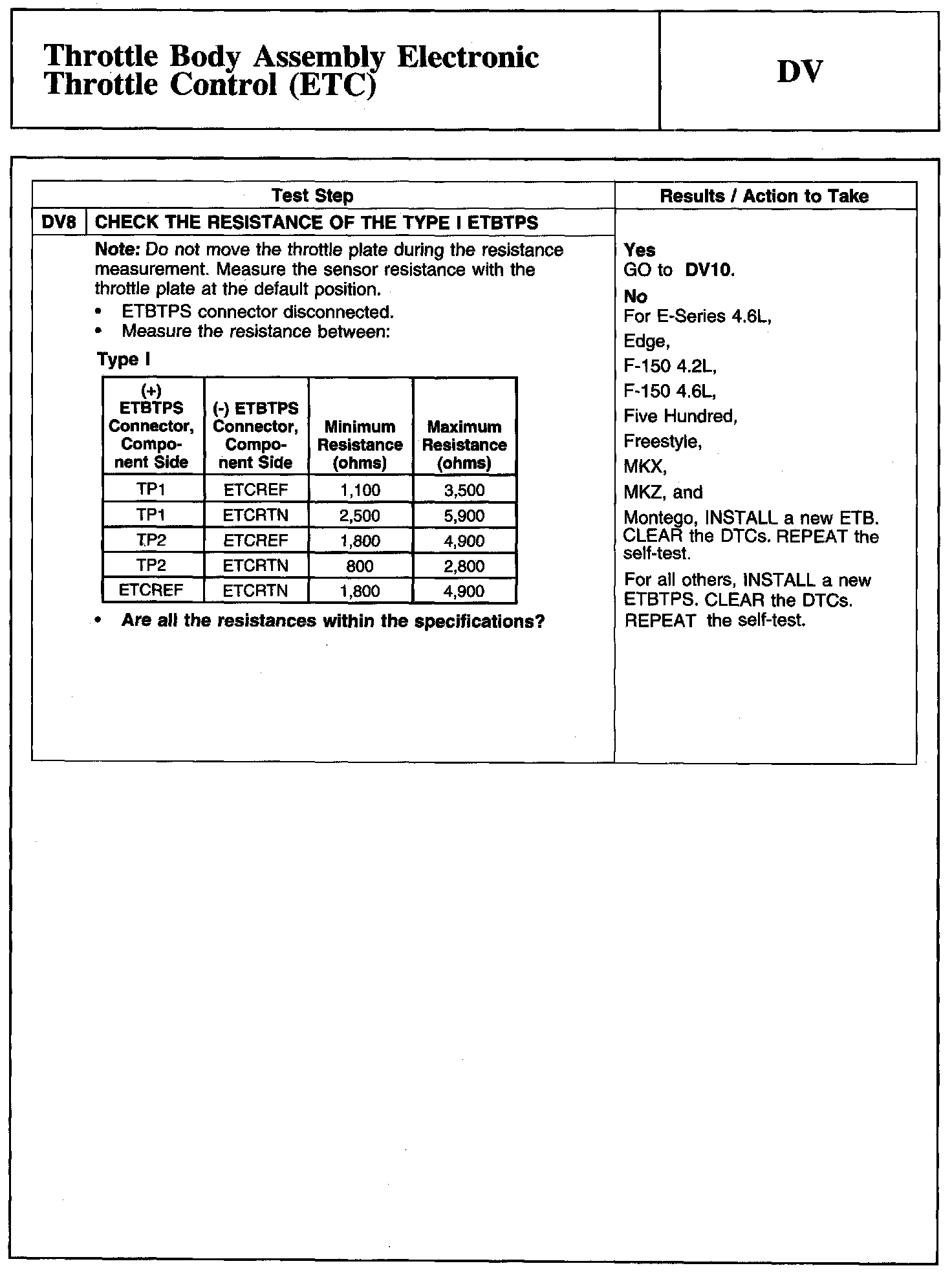

DV8:

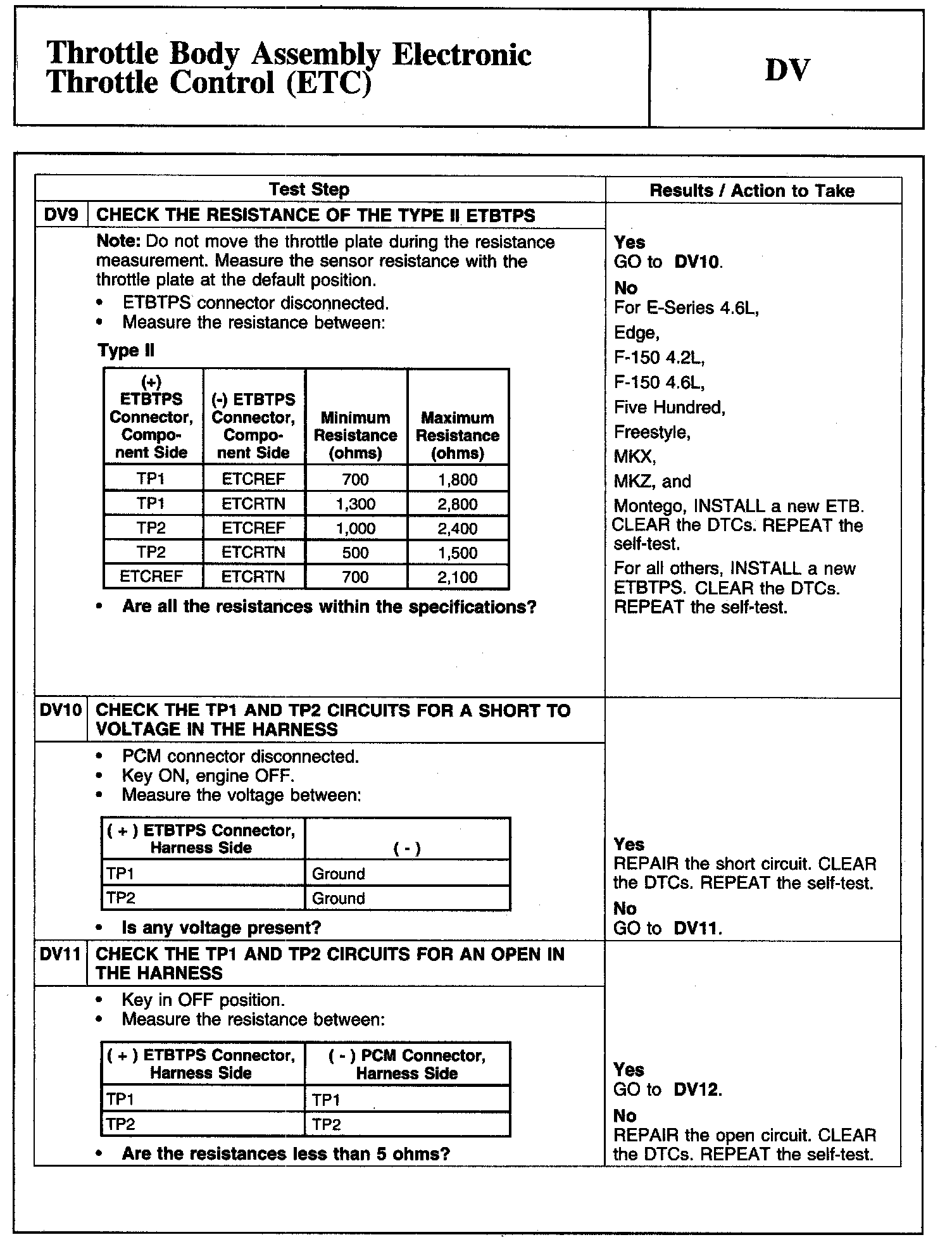

DV9-DV11:

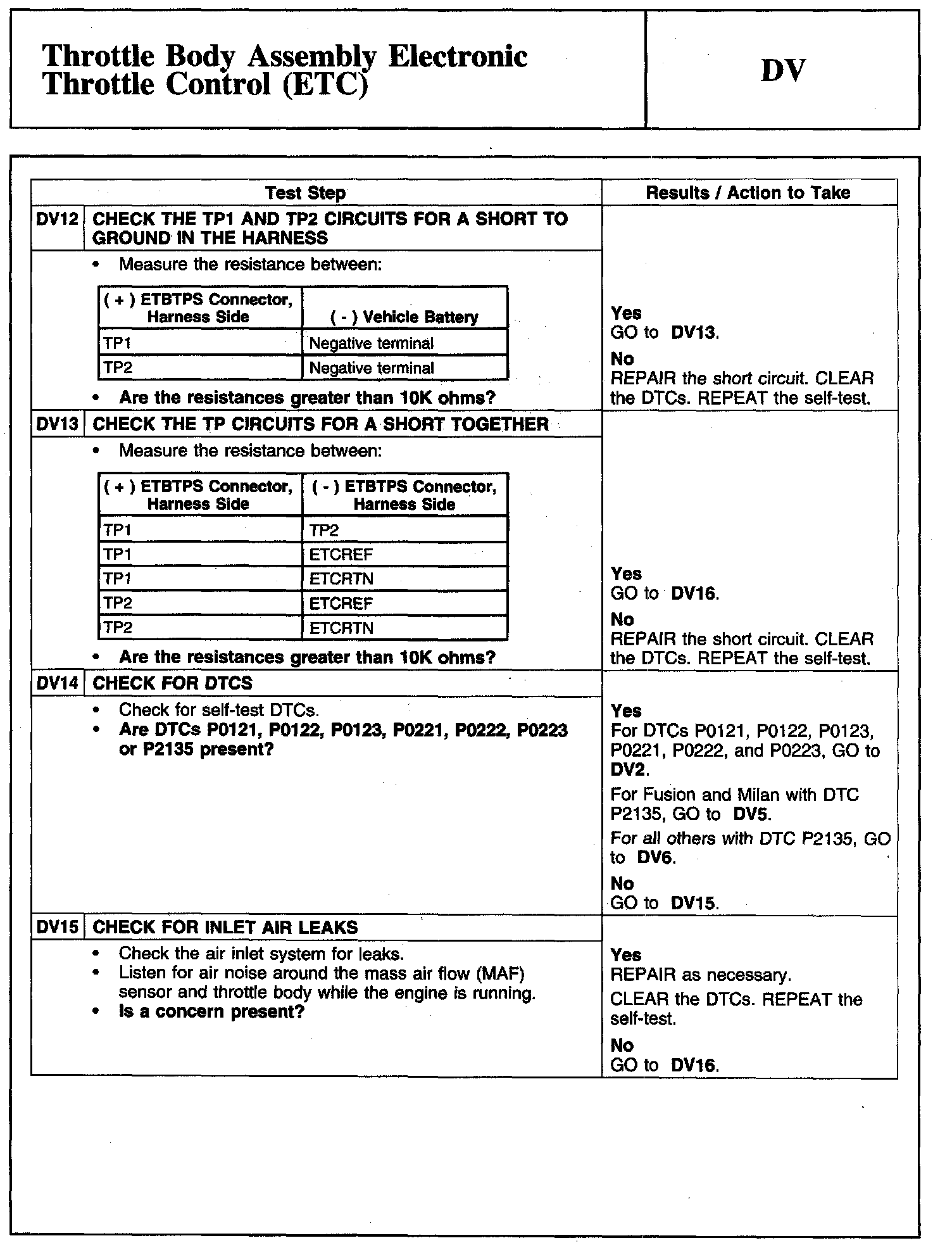

DV12-DV15:

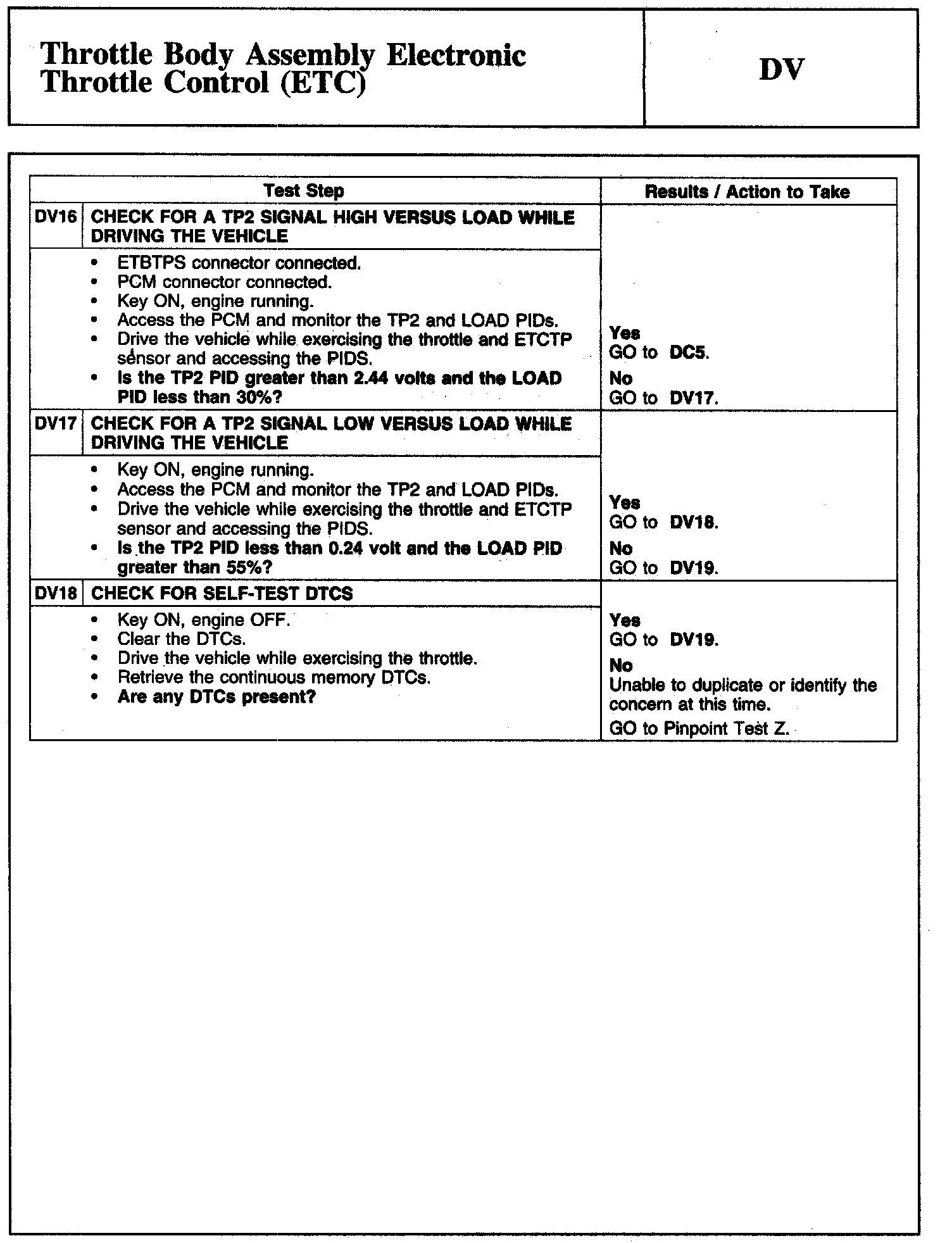

DV16-DV18:

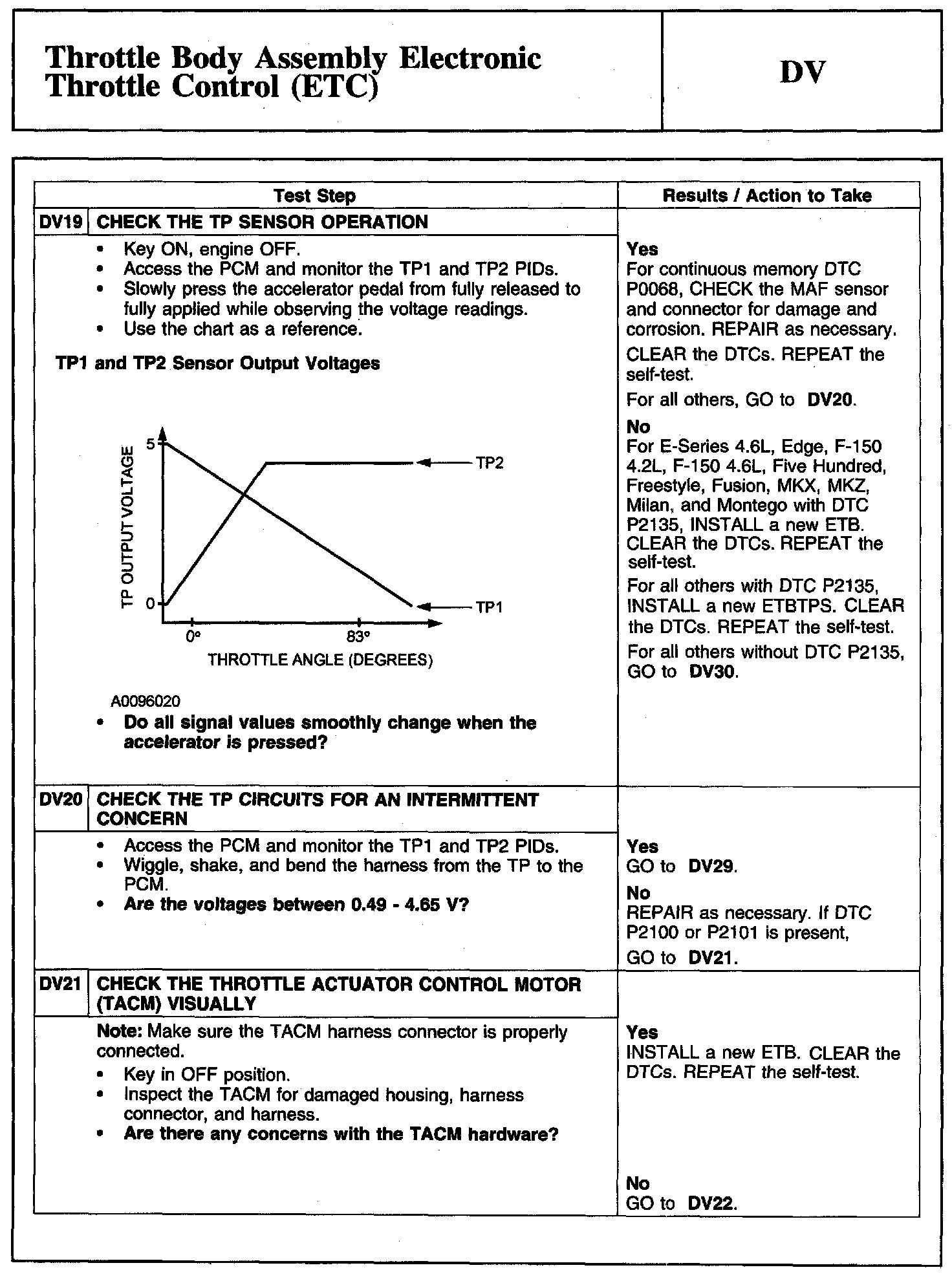

DV19-DV21:

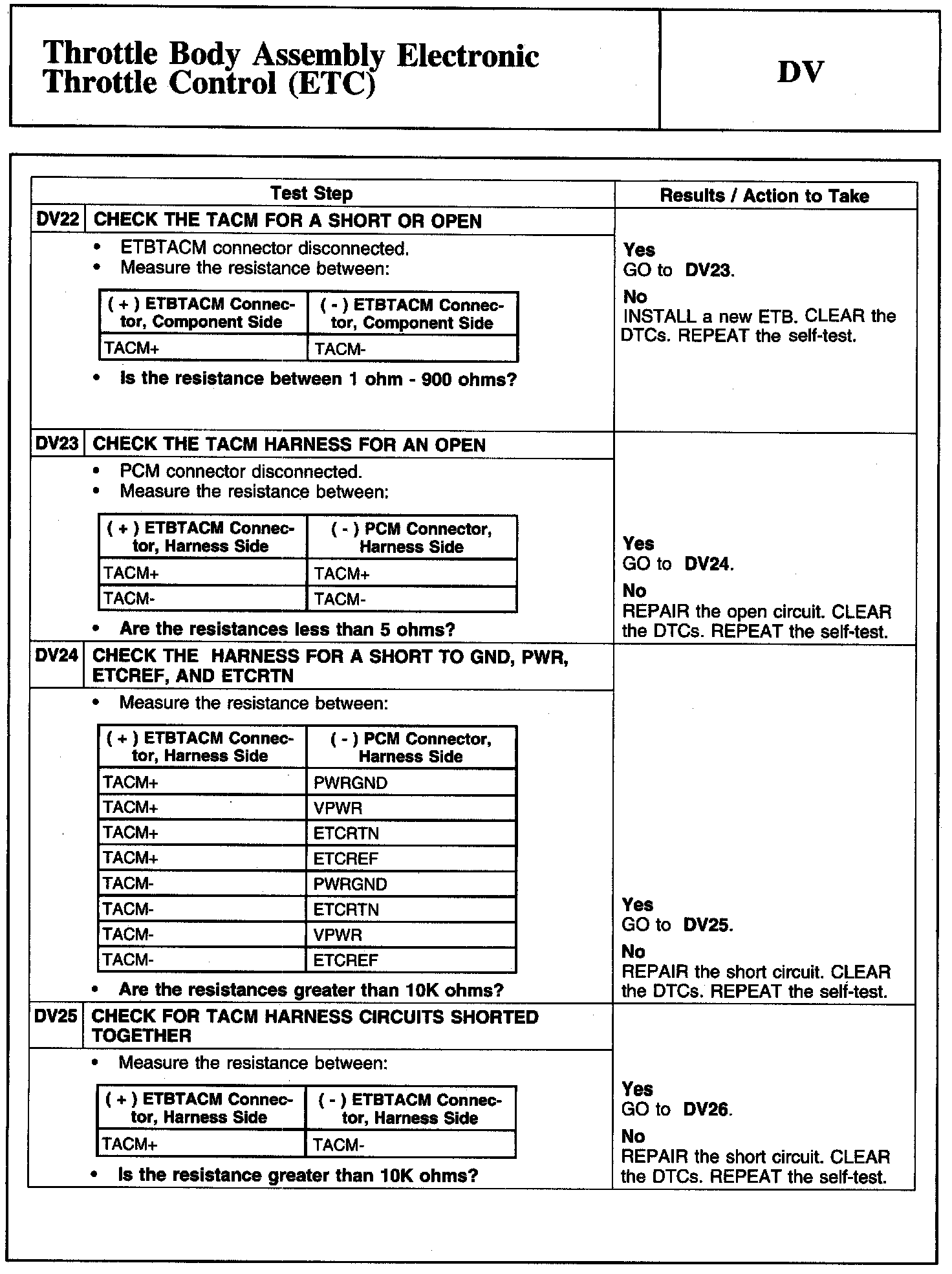

DV22-DV25:

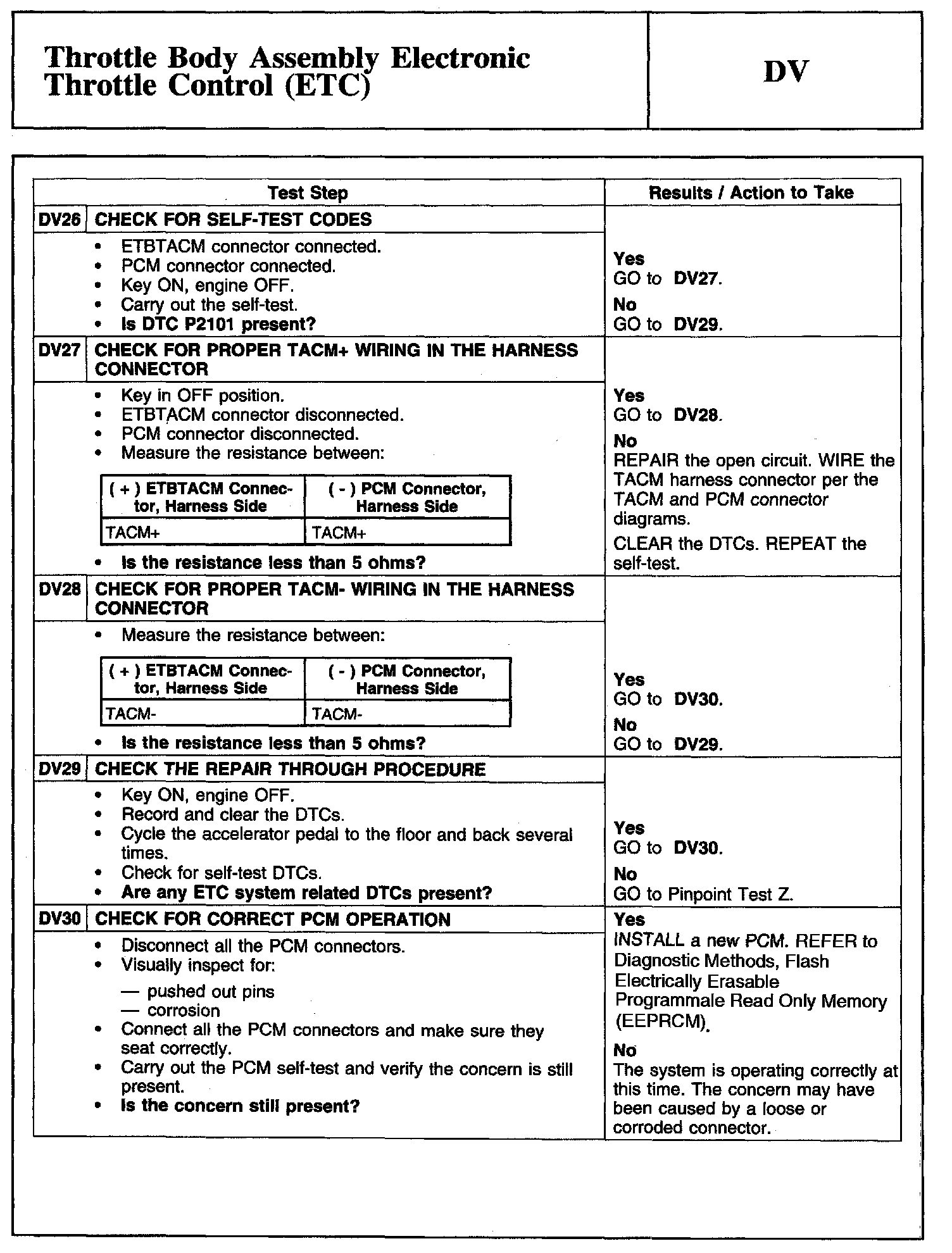

DV26-DV30:
