PINPOINT TEST DP: OUTPUT SHAFT SPEED (OSS) SENSOR/VEHICLE SPEED SENSOR (VSS)/TRANSFER CASE SPEED SENSOR (TCSS)

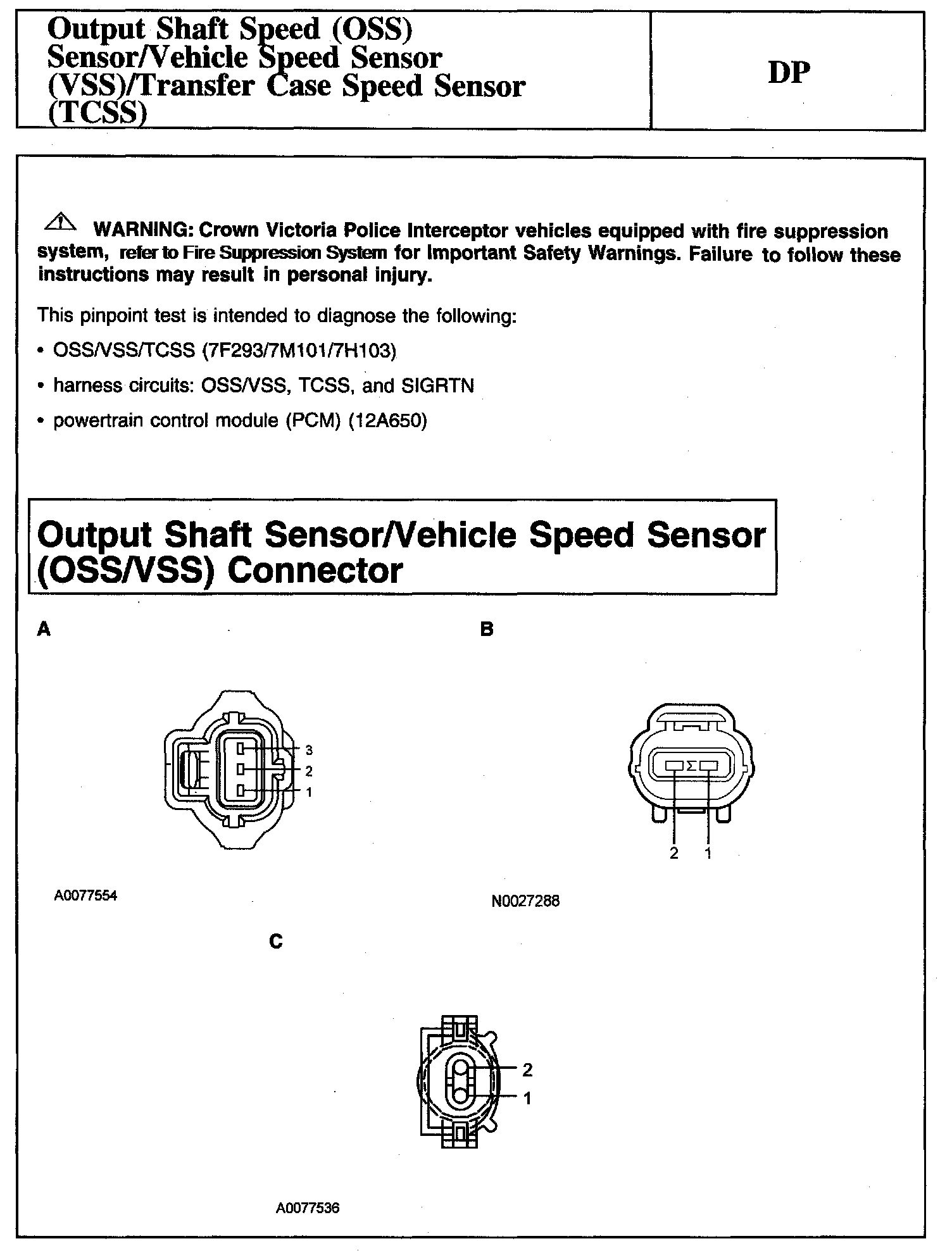

Warning And Output Shaft Sensor/Vehicle Speed Sensor (OSS/VSS) Connector:

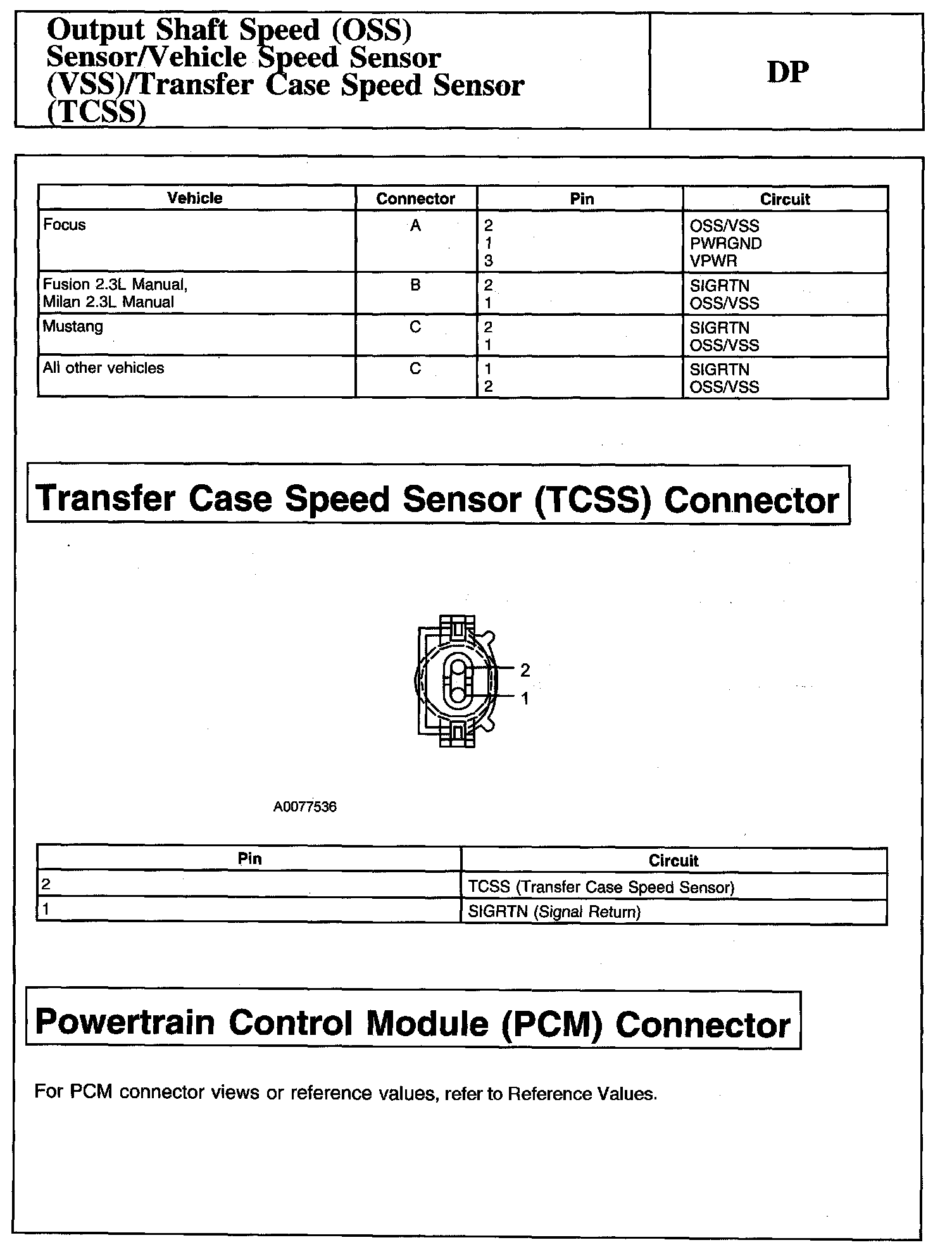

Output Shaft Sensor/Vehicle Speed Sensor (OSS/VSS) Connector, Transfer Case Speed Sensor (TCSSS) Connector And Powertrain Control Module (PCM) Connector:

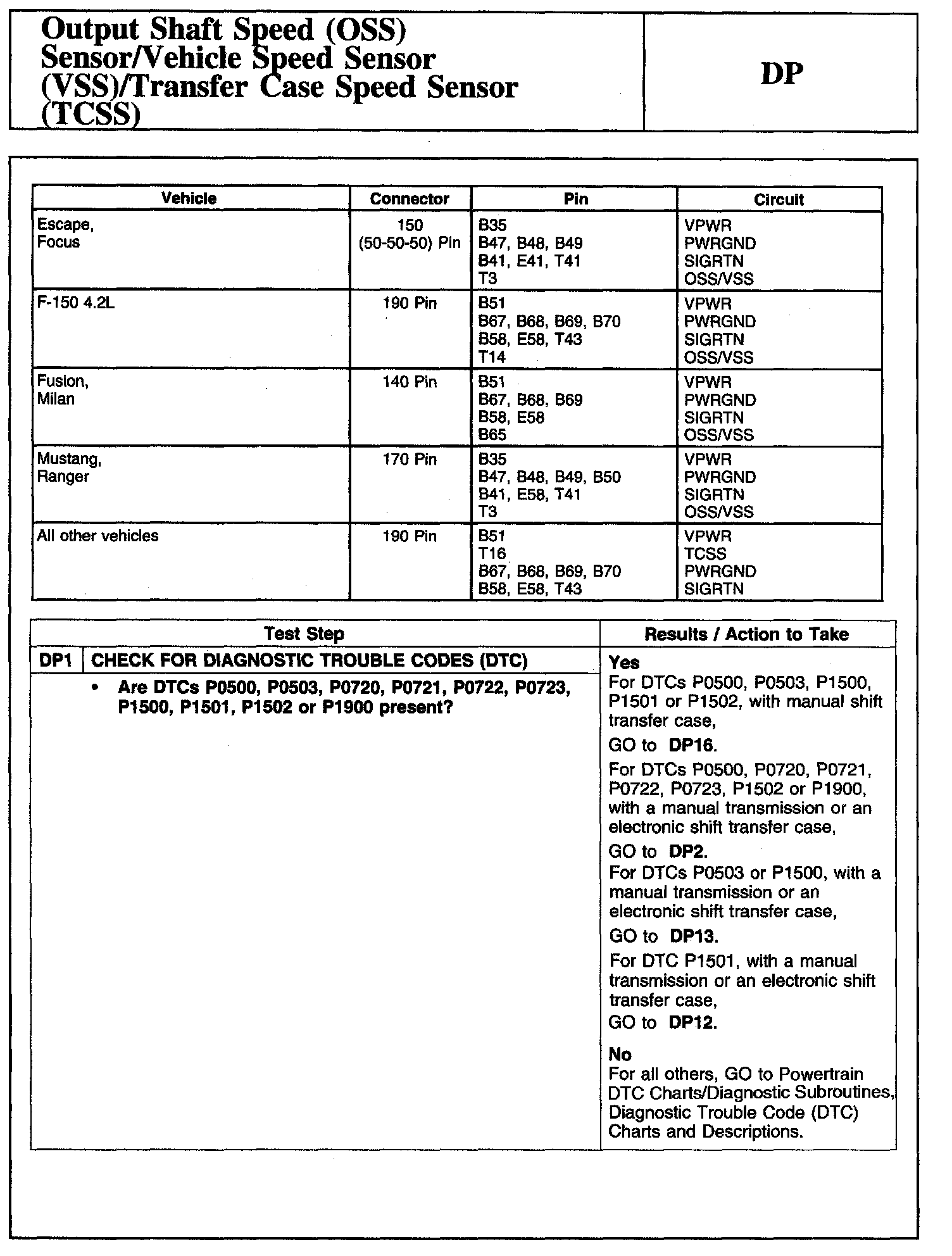

DP1:

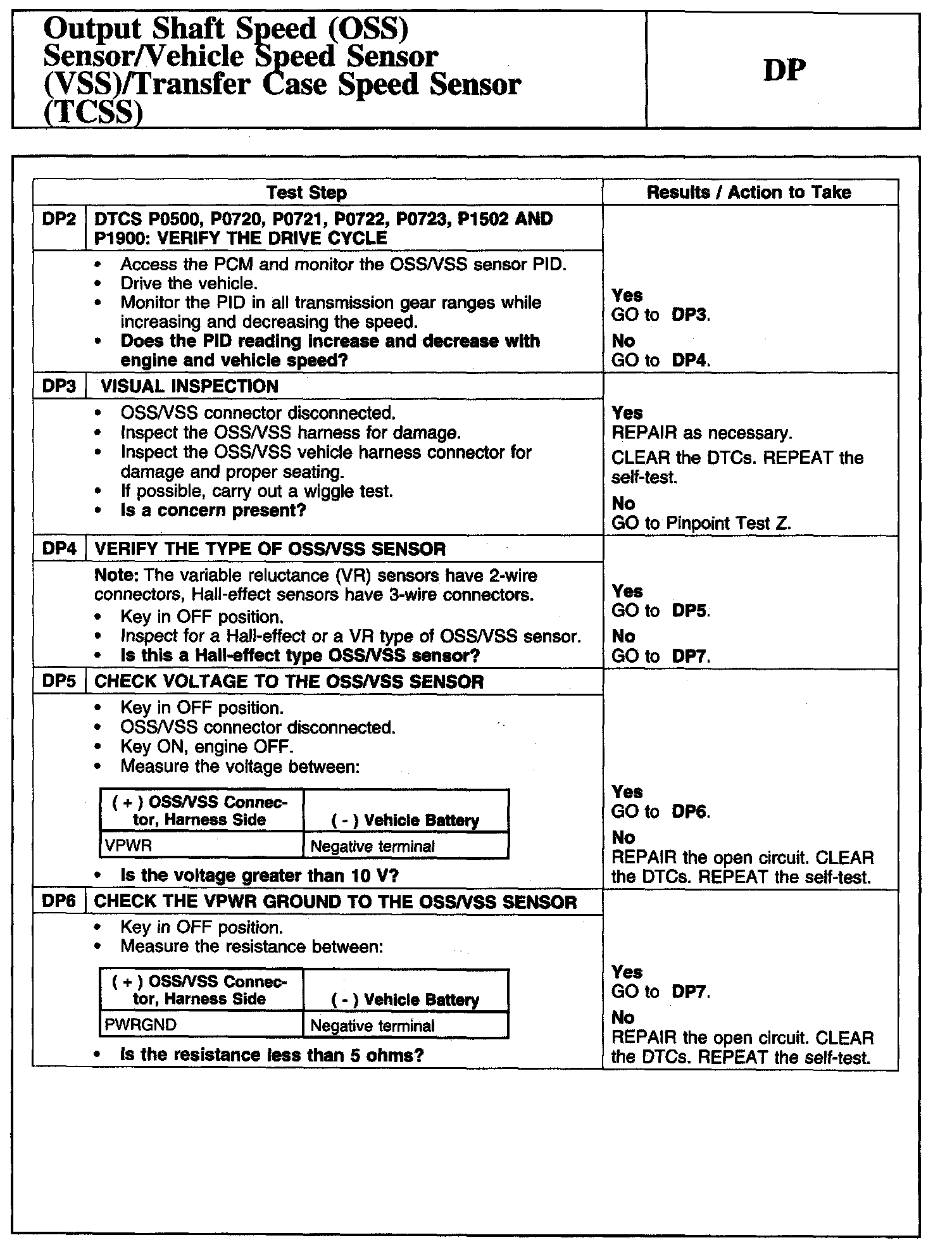

DP2-DP6:

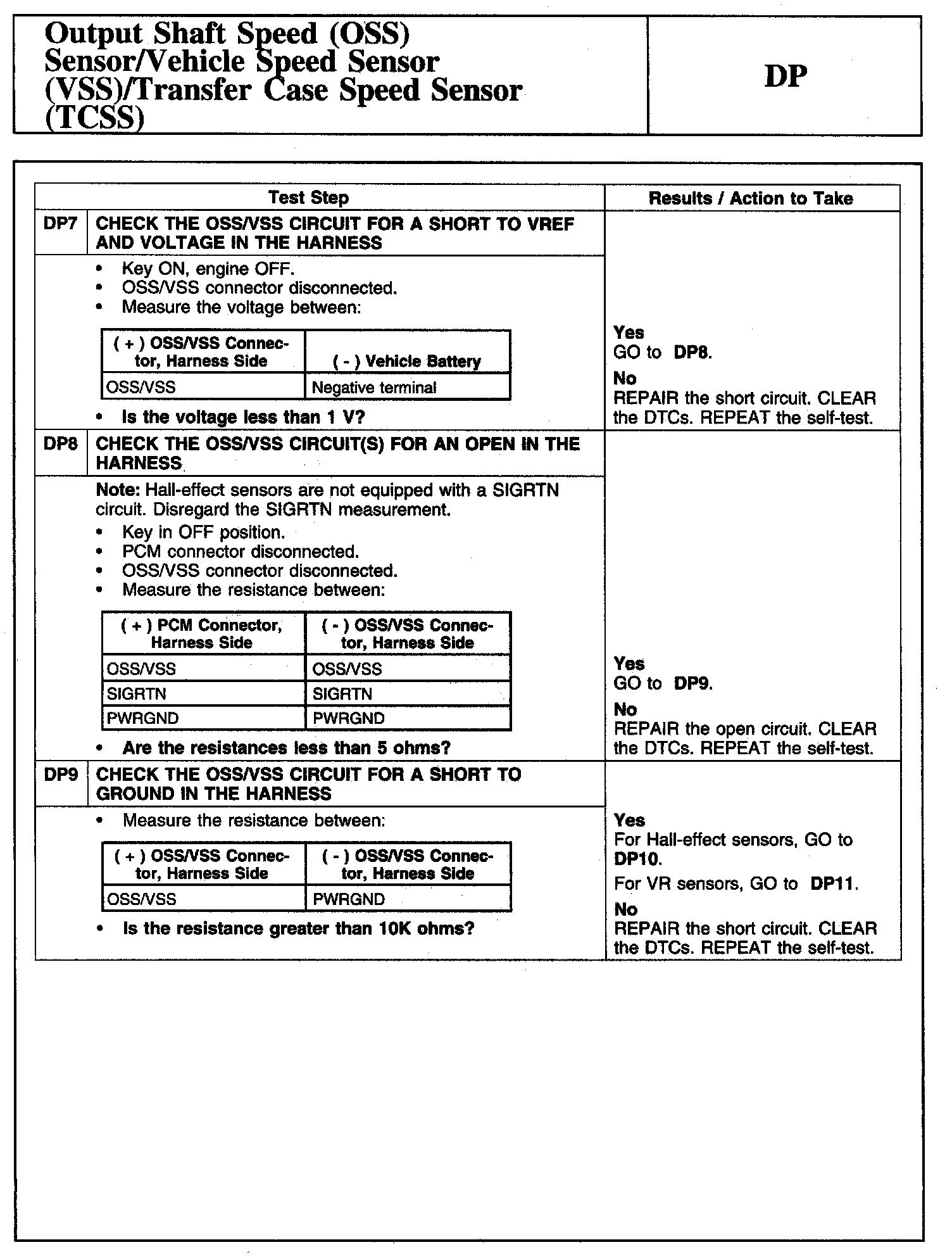

DP7-DP9:

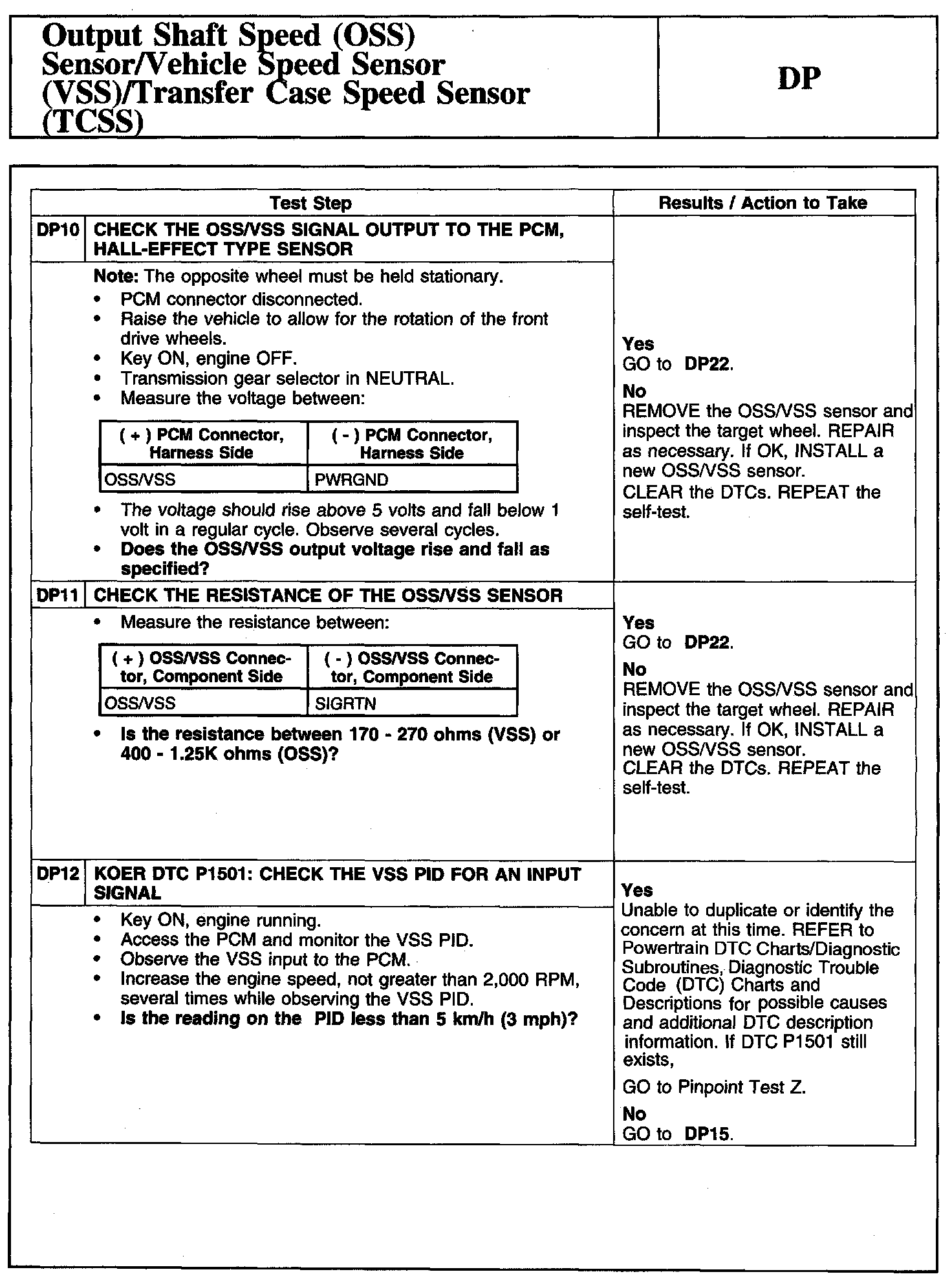

DP10-DP12:

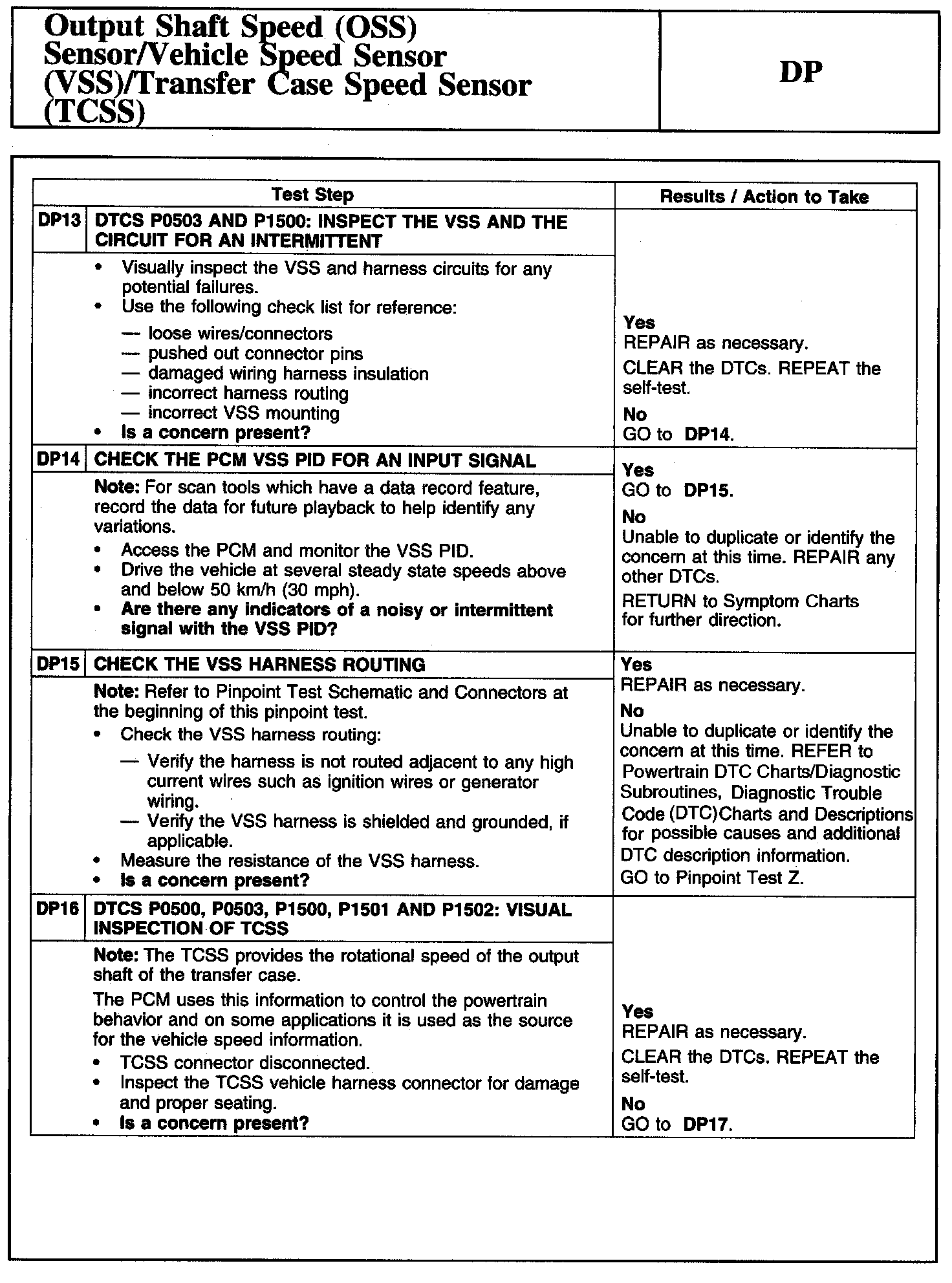

DP13-DP16:

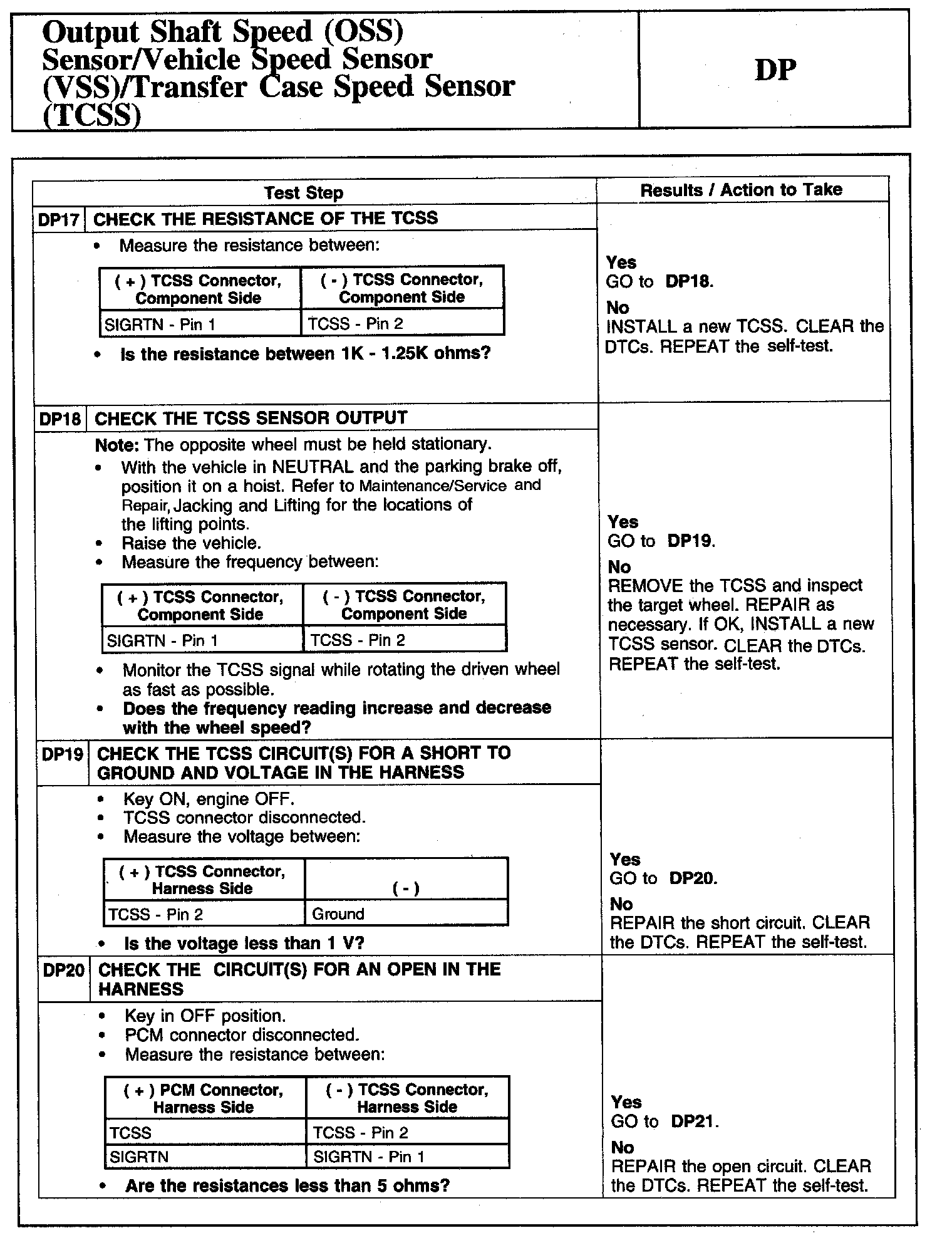

DP17-DP20:

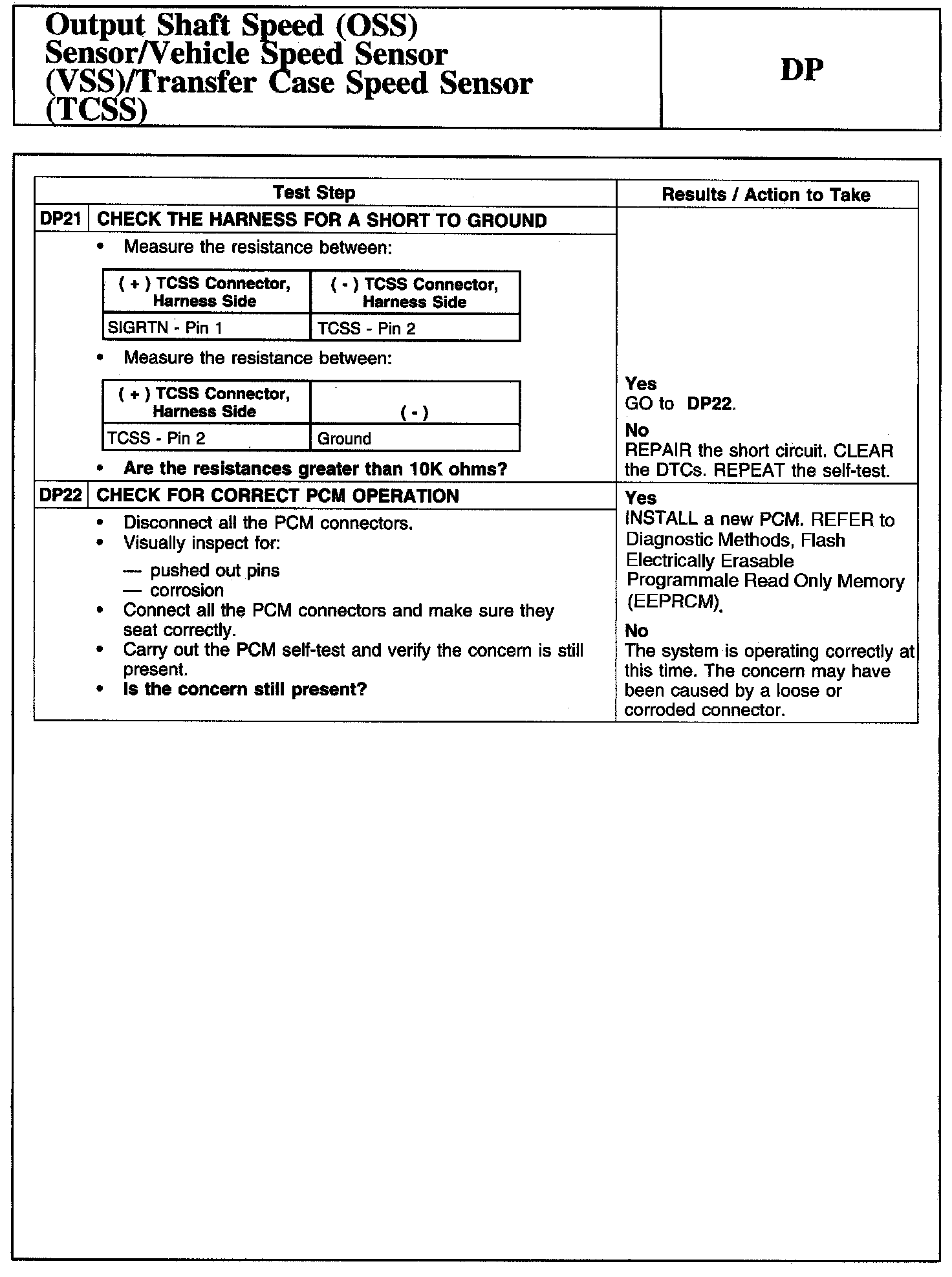

DP21-DP22:
