Tests DM: Manifold Absolute Pressure (MAP) Sensor

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.

AI Repair Guides
PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

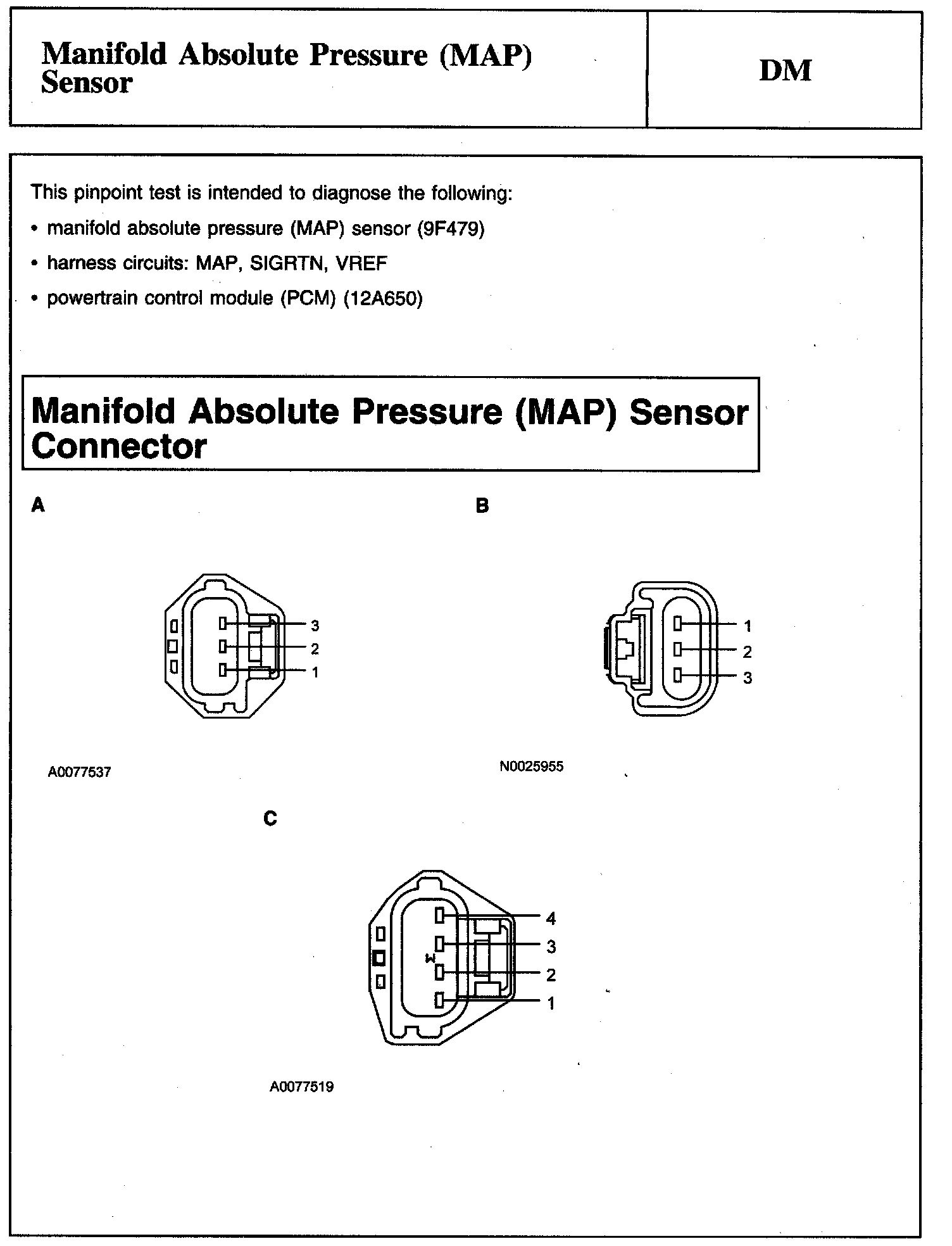

Manifold Absolute Pressure (MAP) Sensor Connector:

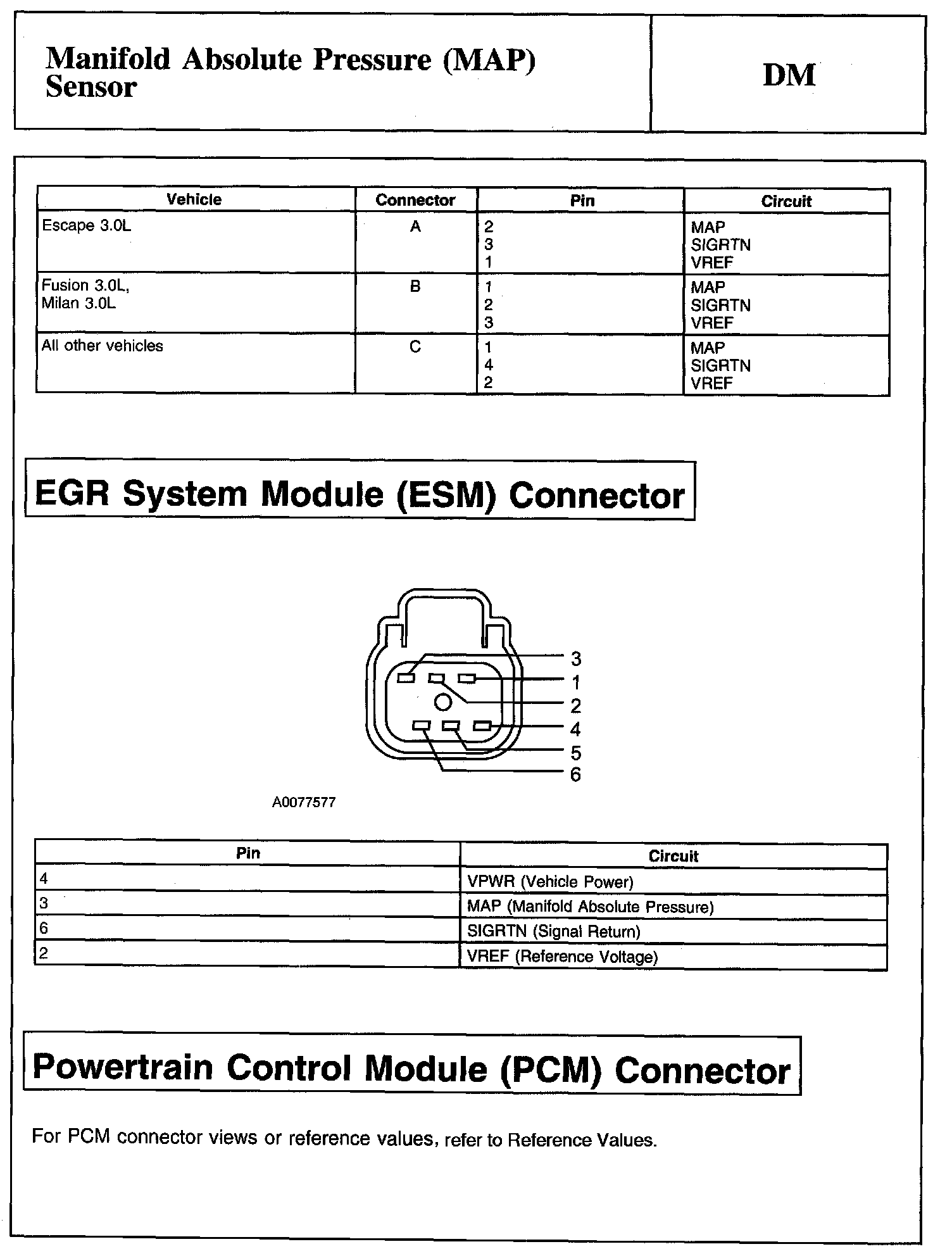

Manifold Absolute Pressure (MAP) Sensor Connector, EGR System Module (ESM) Connector And Powertrain Control Module (PCM) Connector:

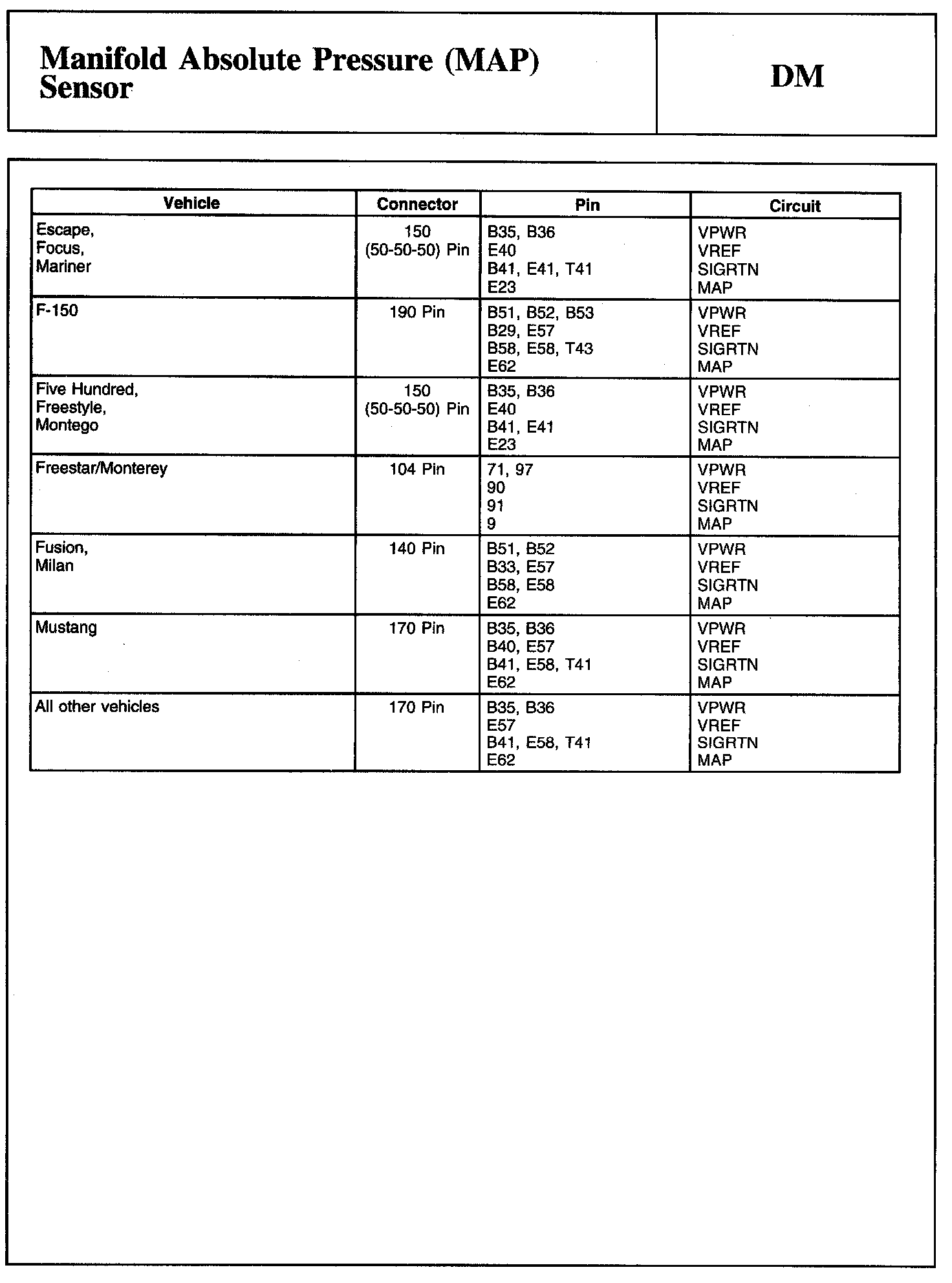

Powertrain Control Module (PCM) Connector Continued:

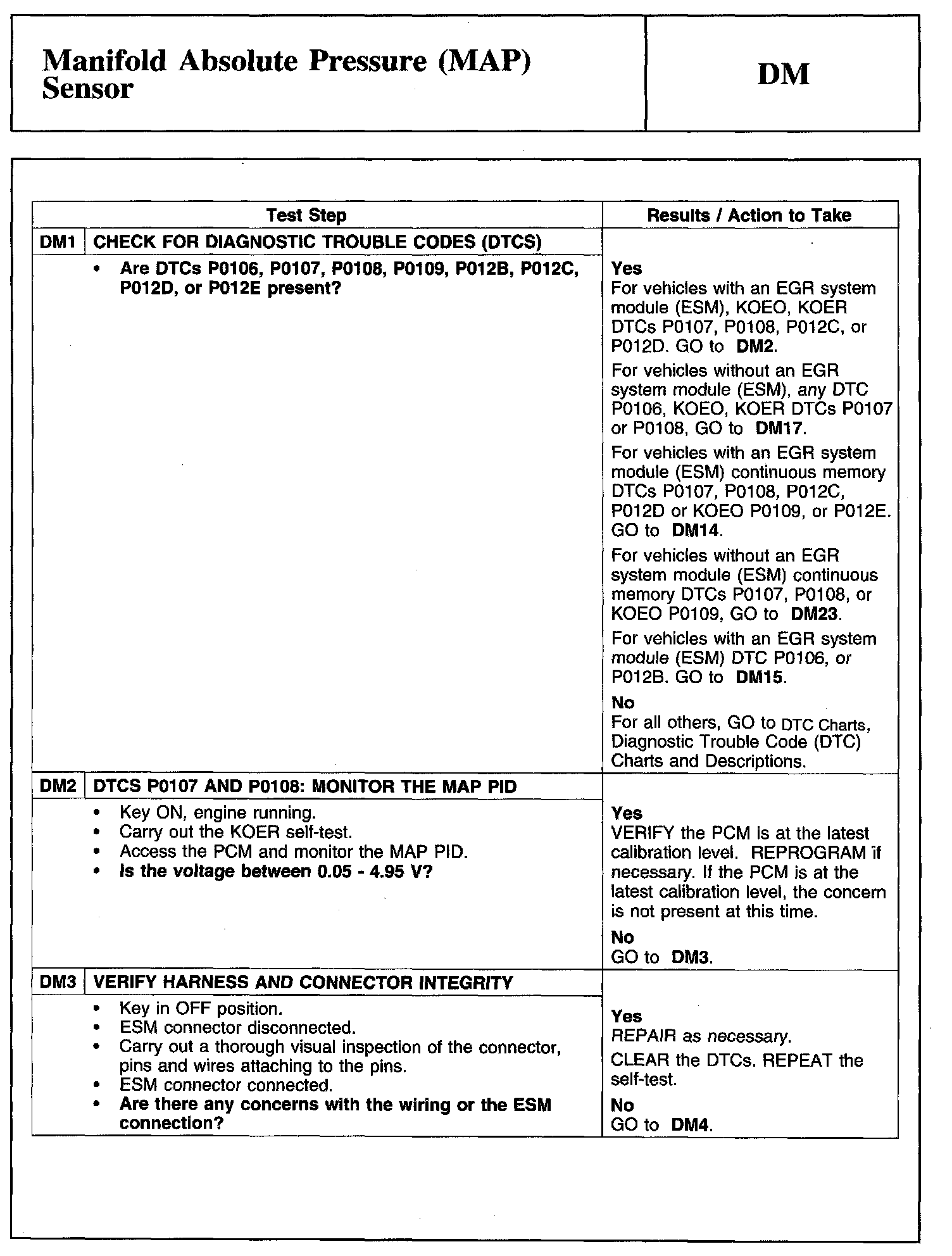

DM1-DM3:

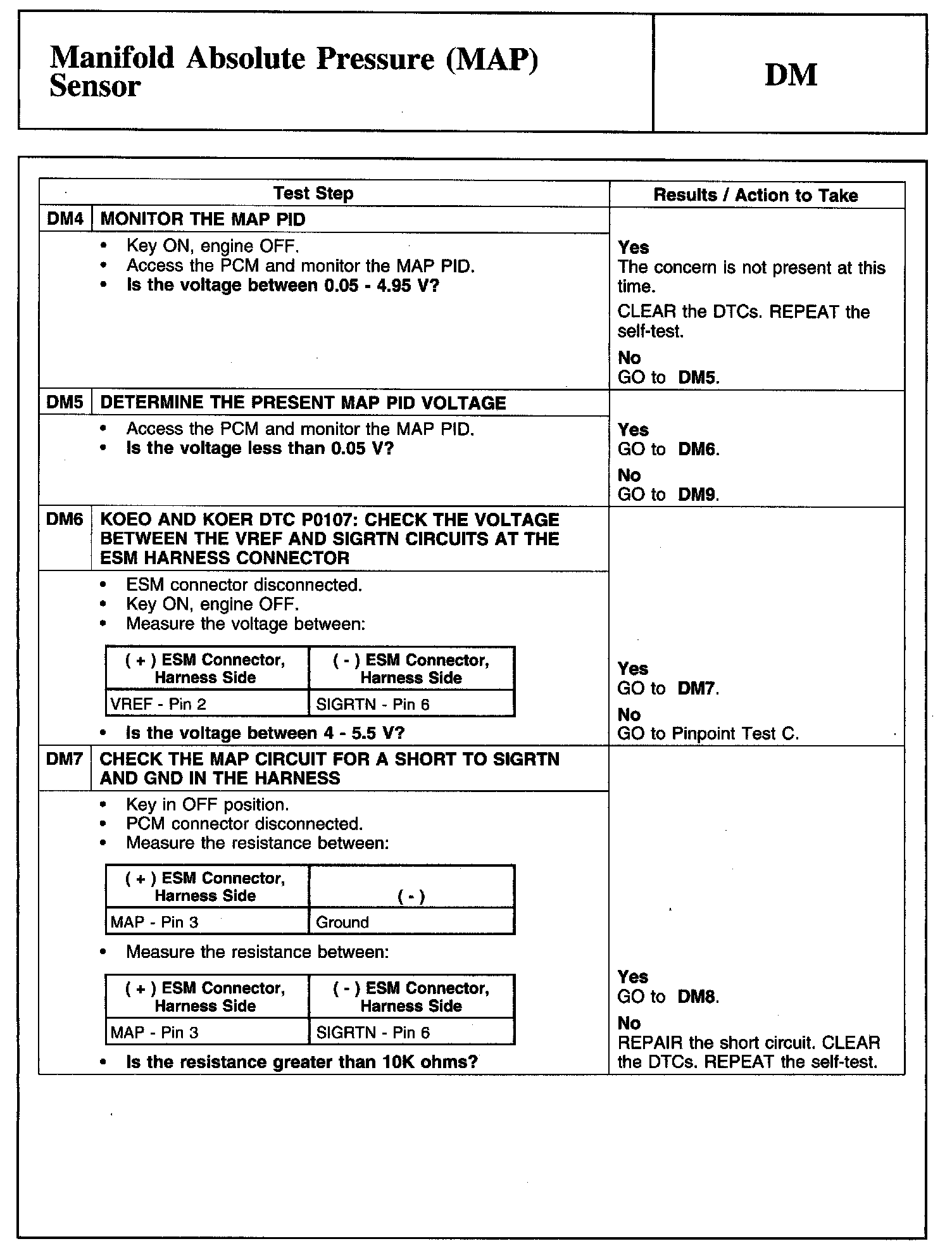

DM4-DM7:

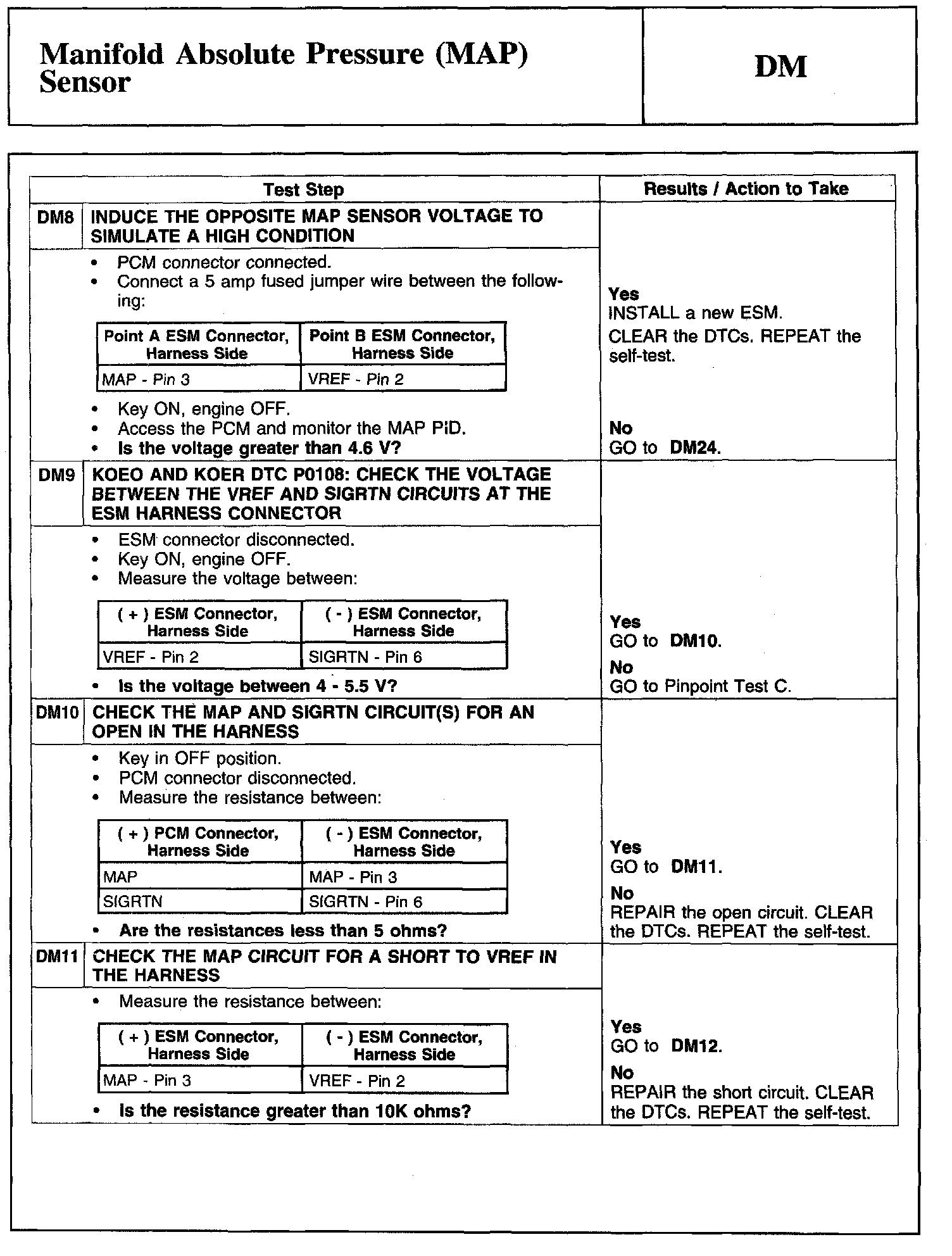

DM8-DM11:

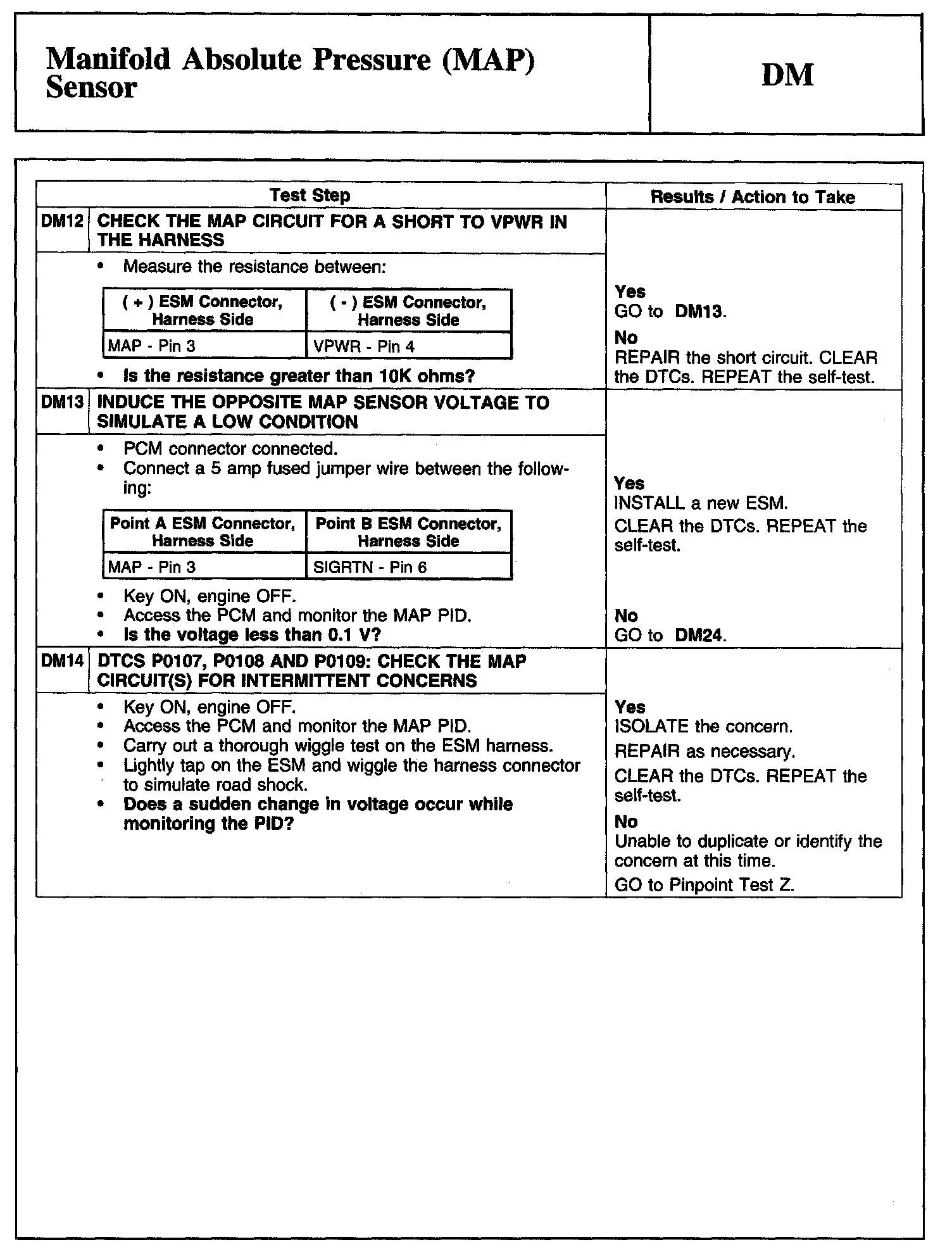

DM12-DM14:

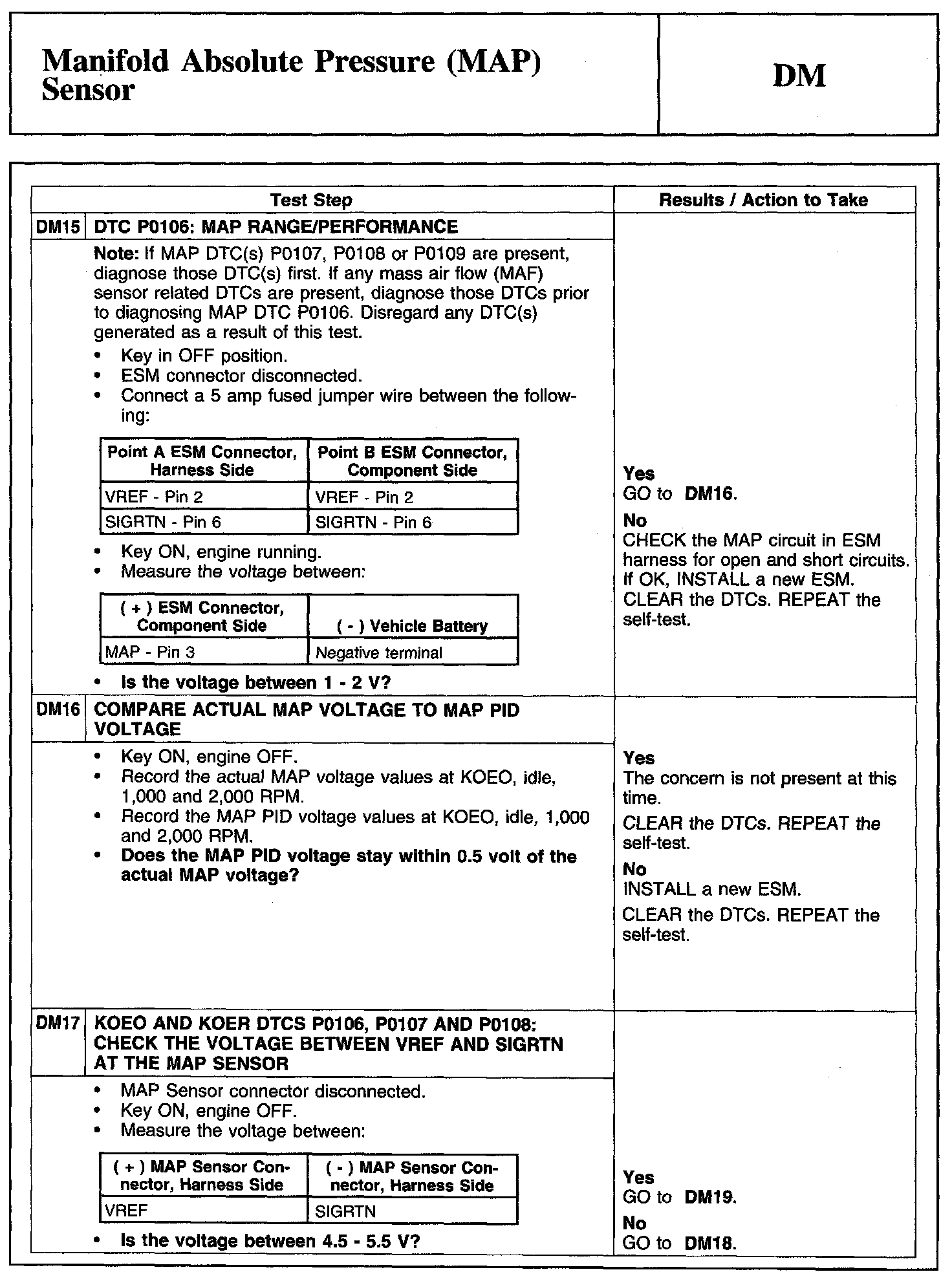

DM15-DM17:

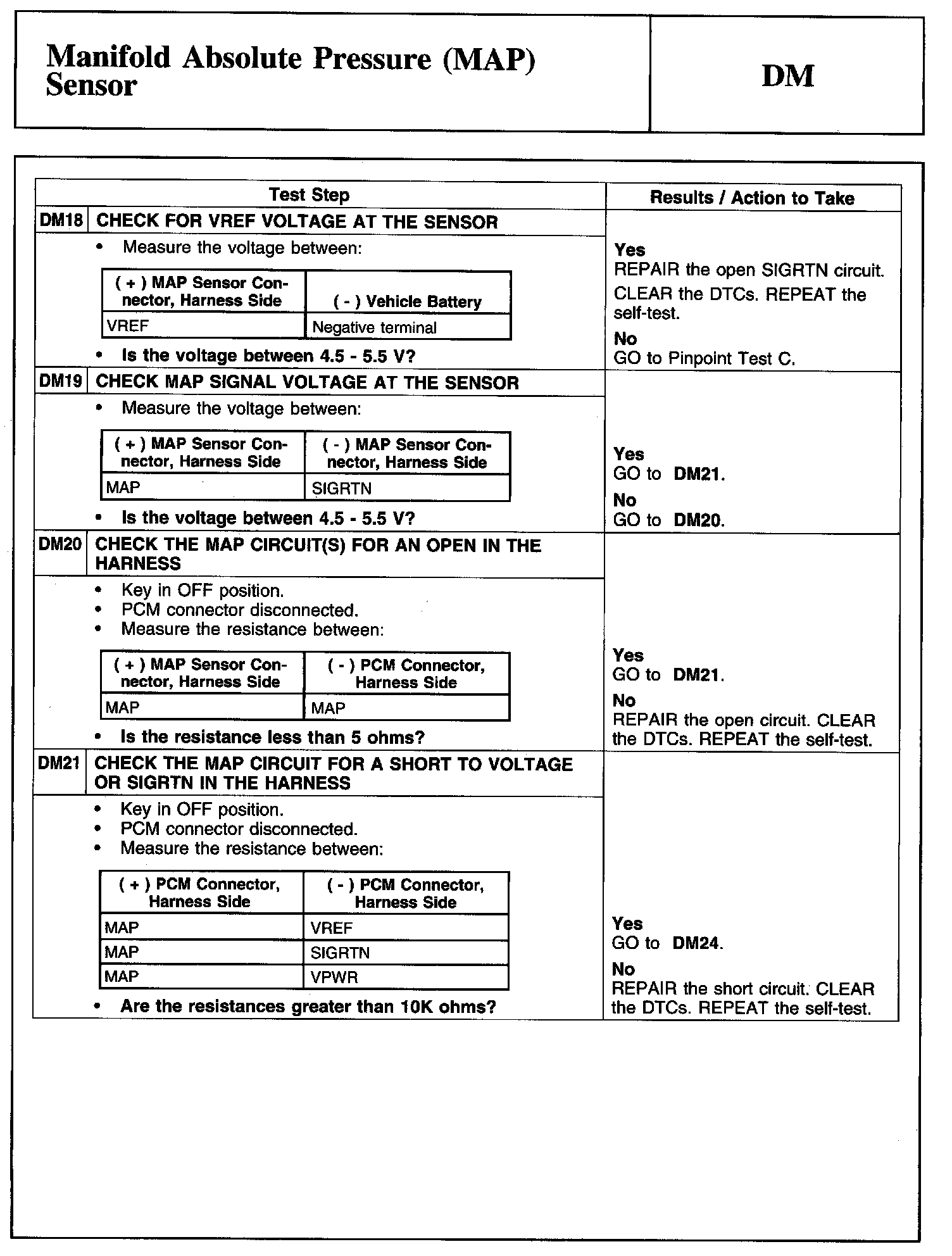

DM18-DM21:

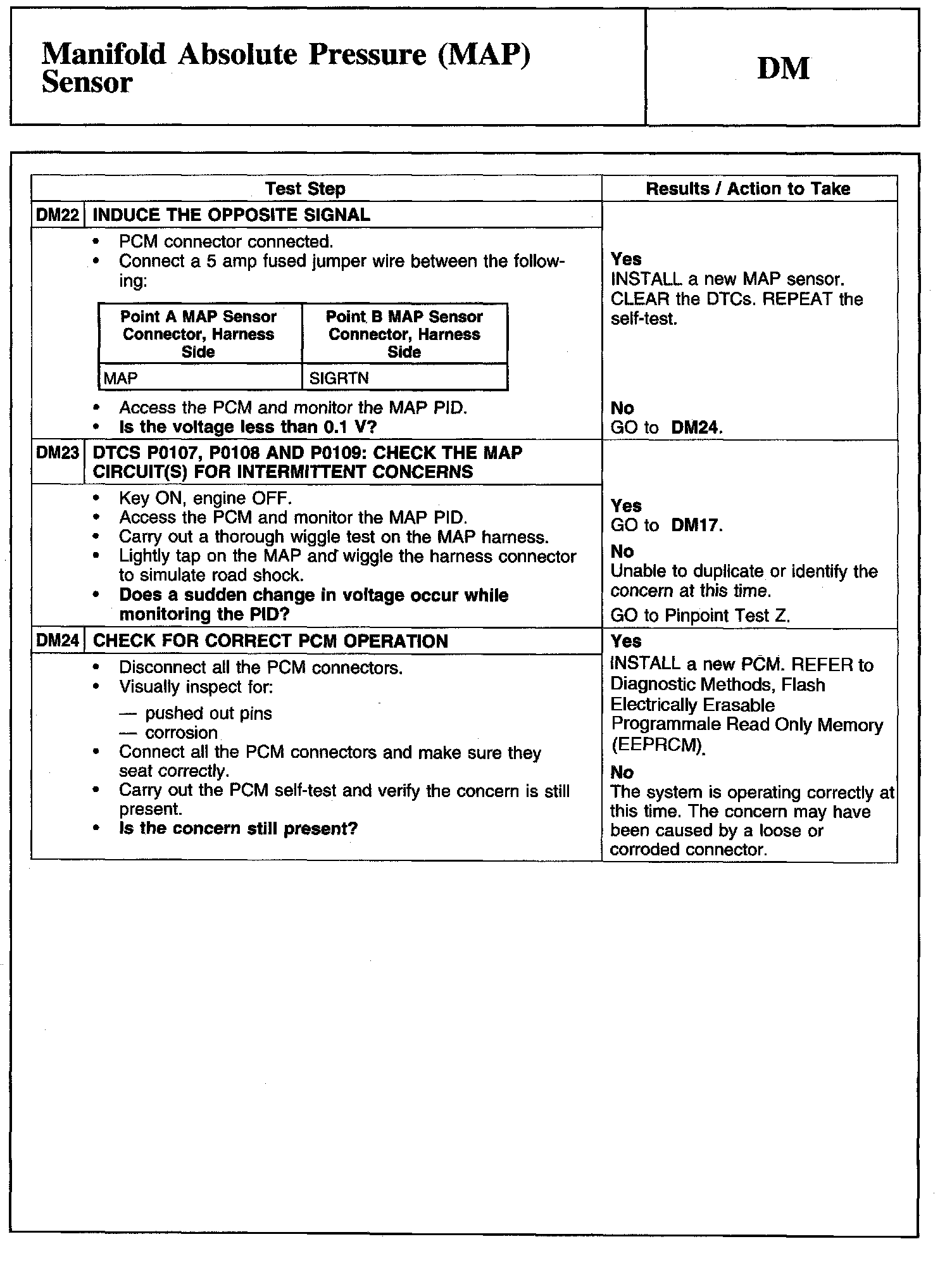

DM22-DM24:
