PINPOINT TEST DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

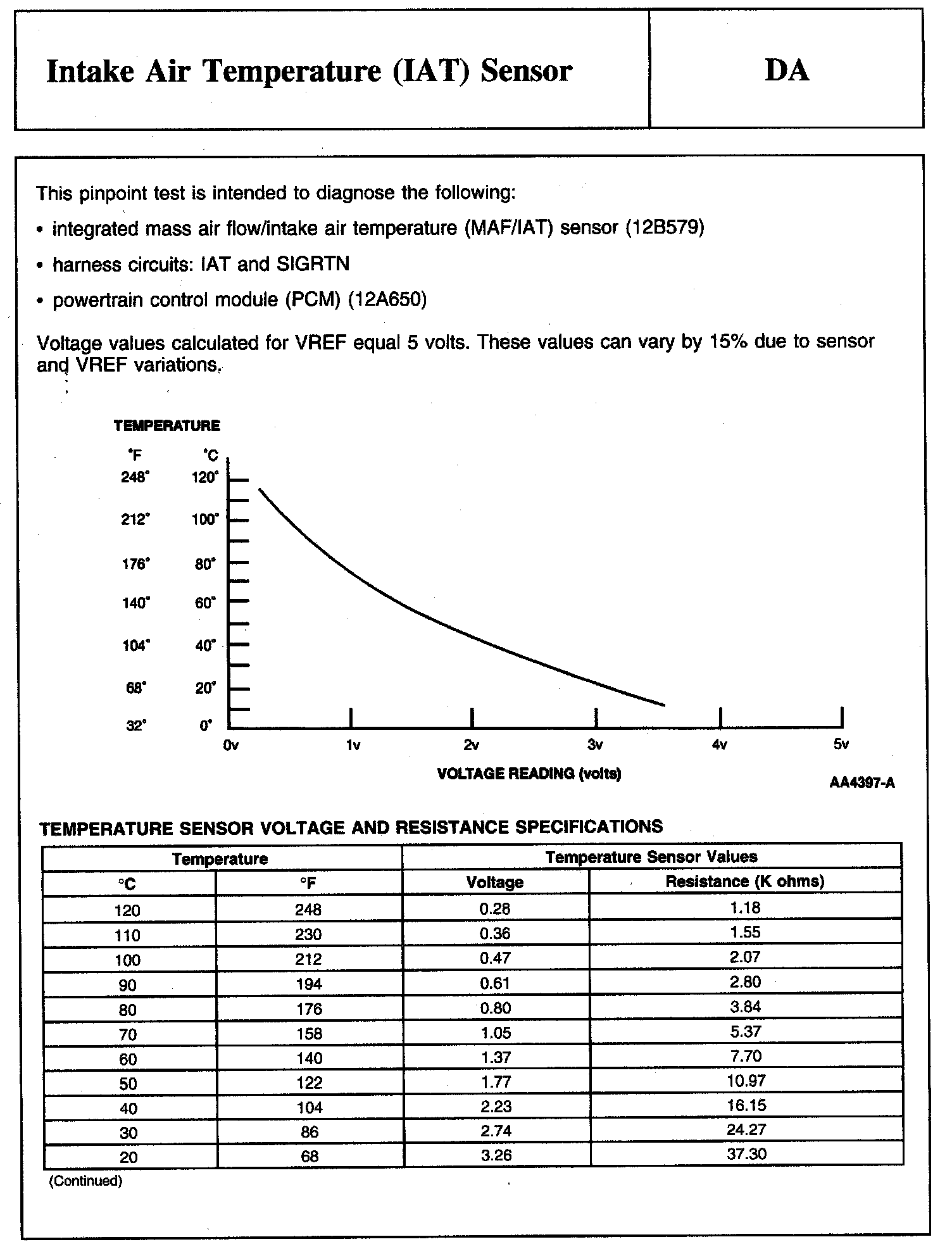

Graph And Table:

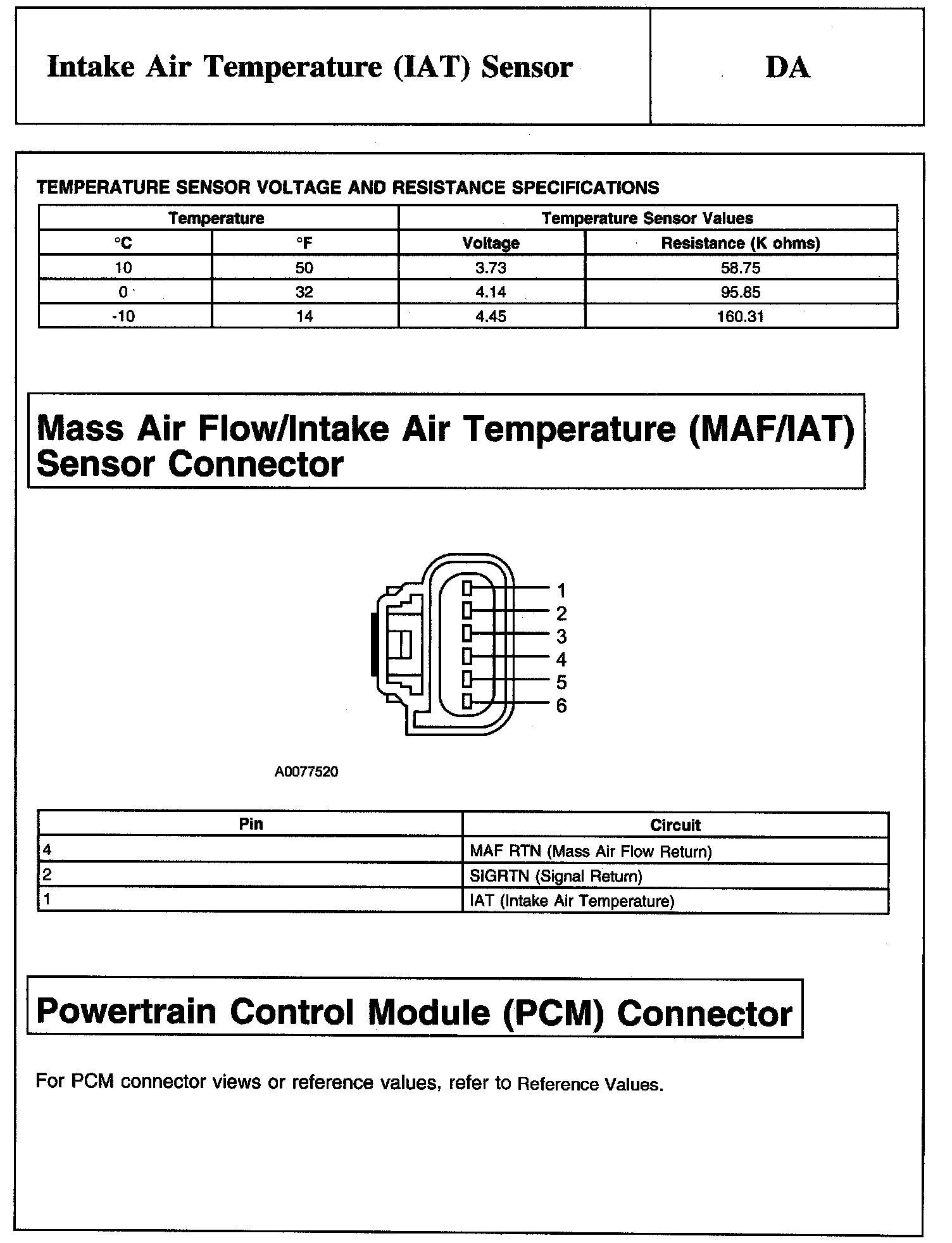

Table, Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector And Powertrain Control Module (PCM) Connector:

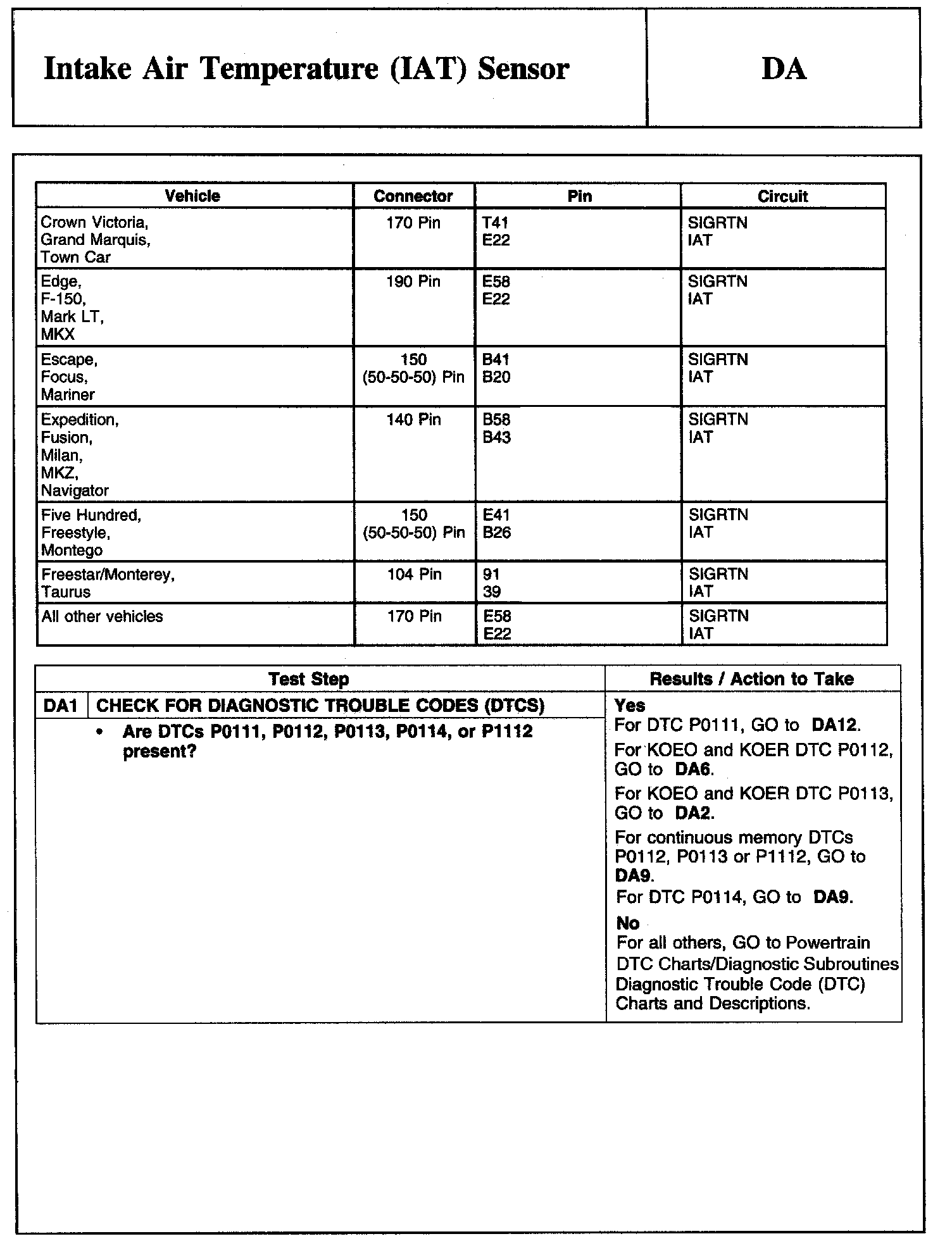

DA1:

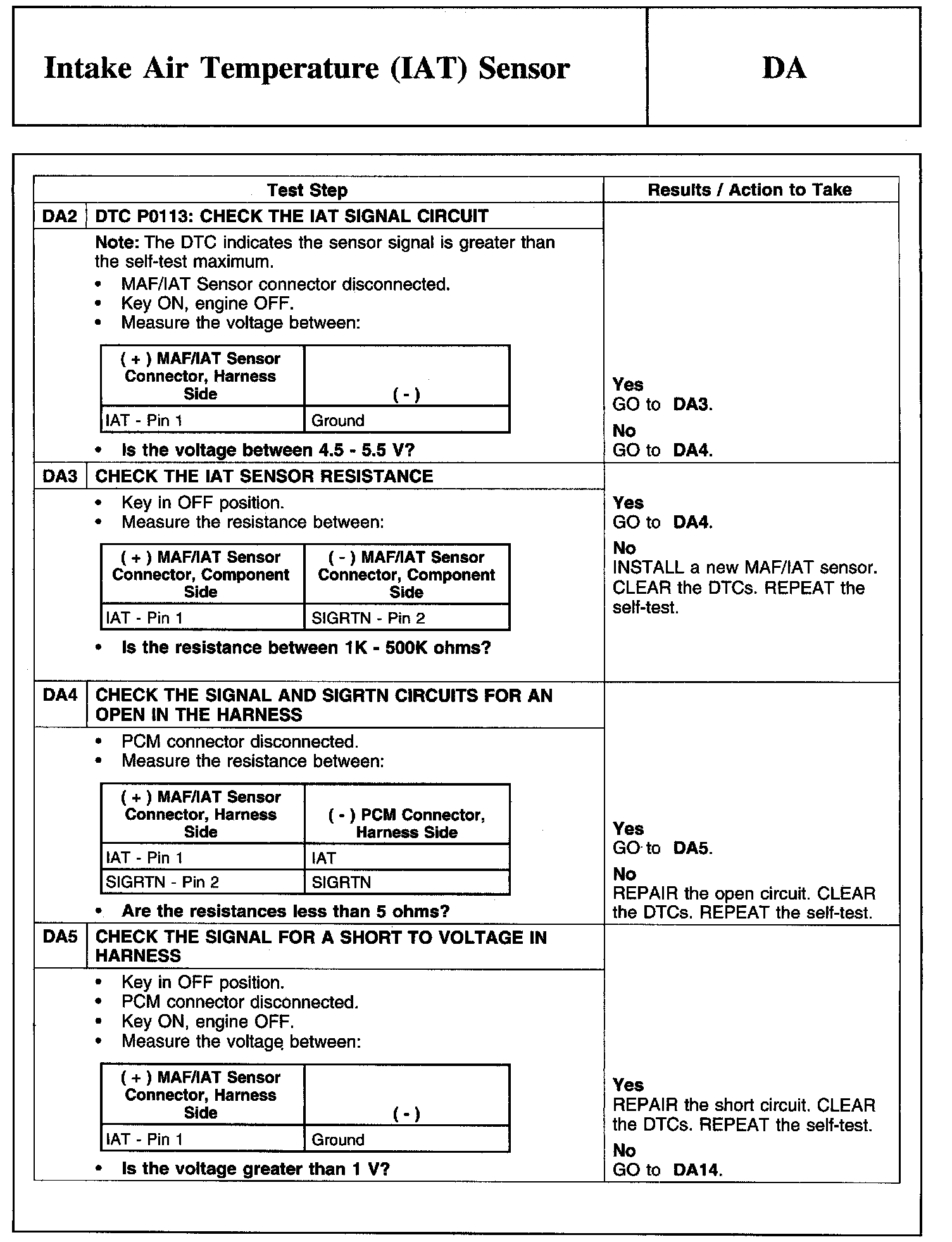

DA2-DA5:

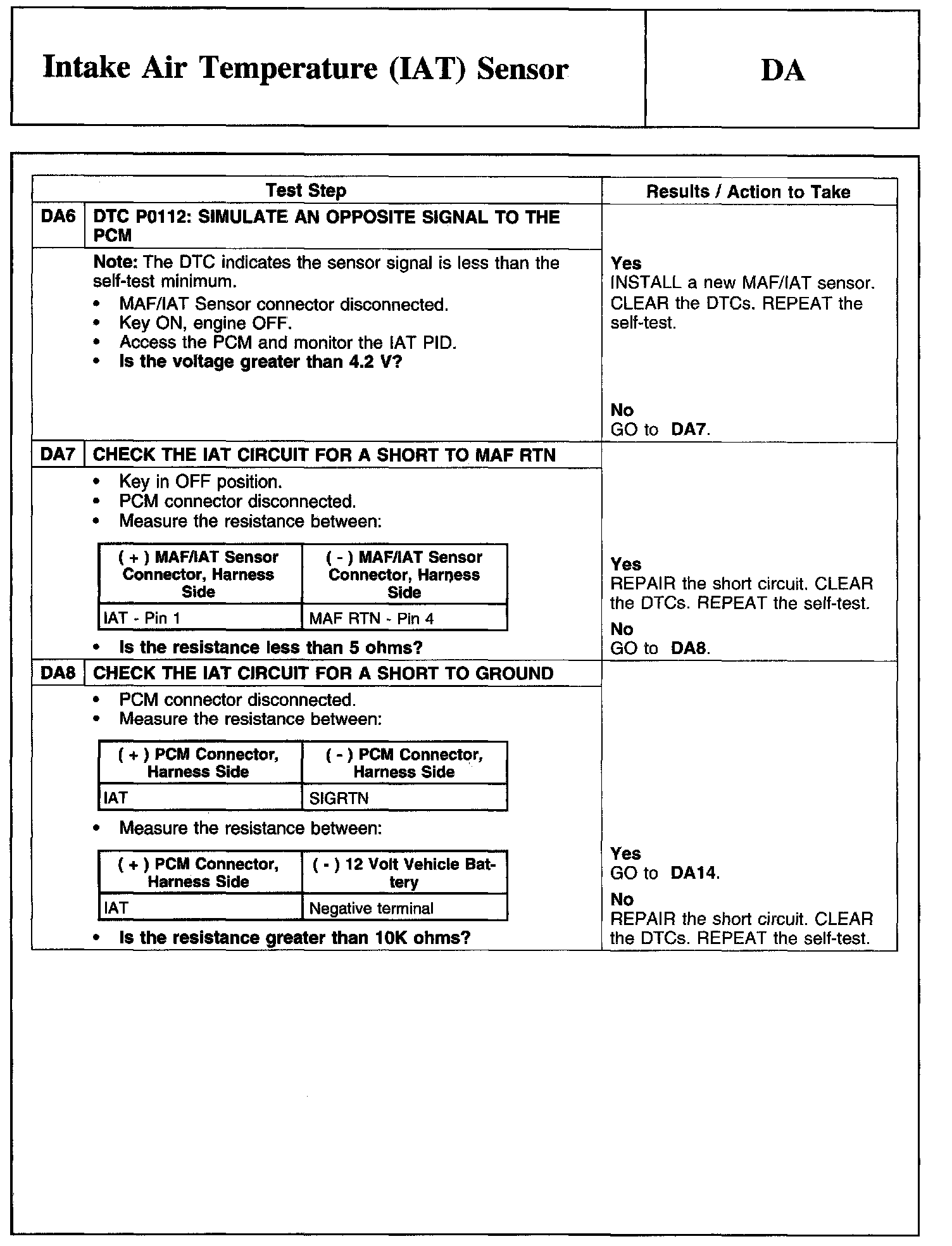

DA6-DA8:

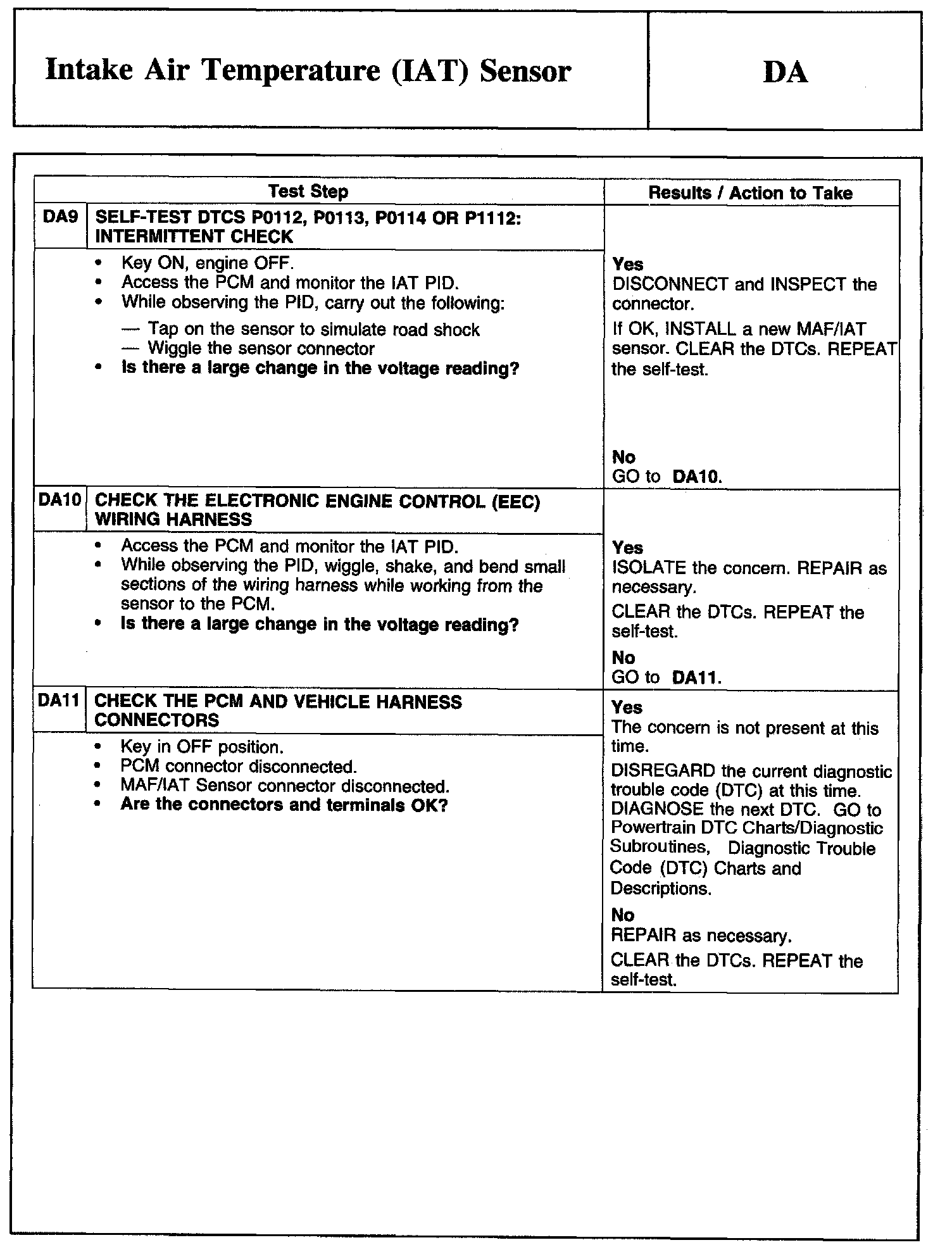

DA9-DA11:

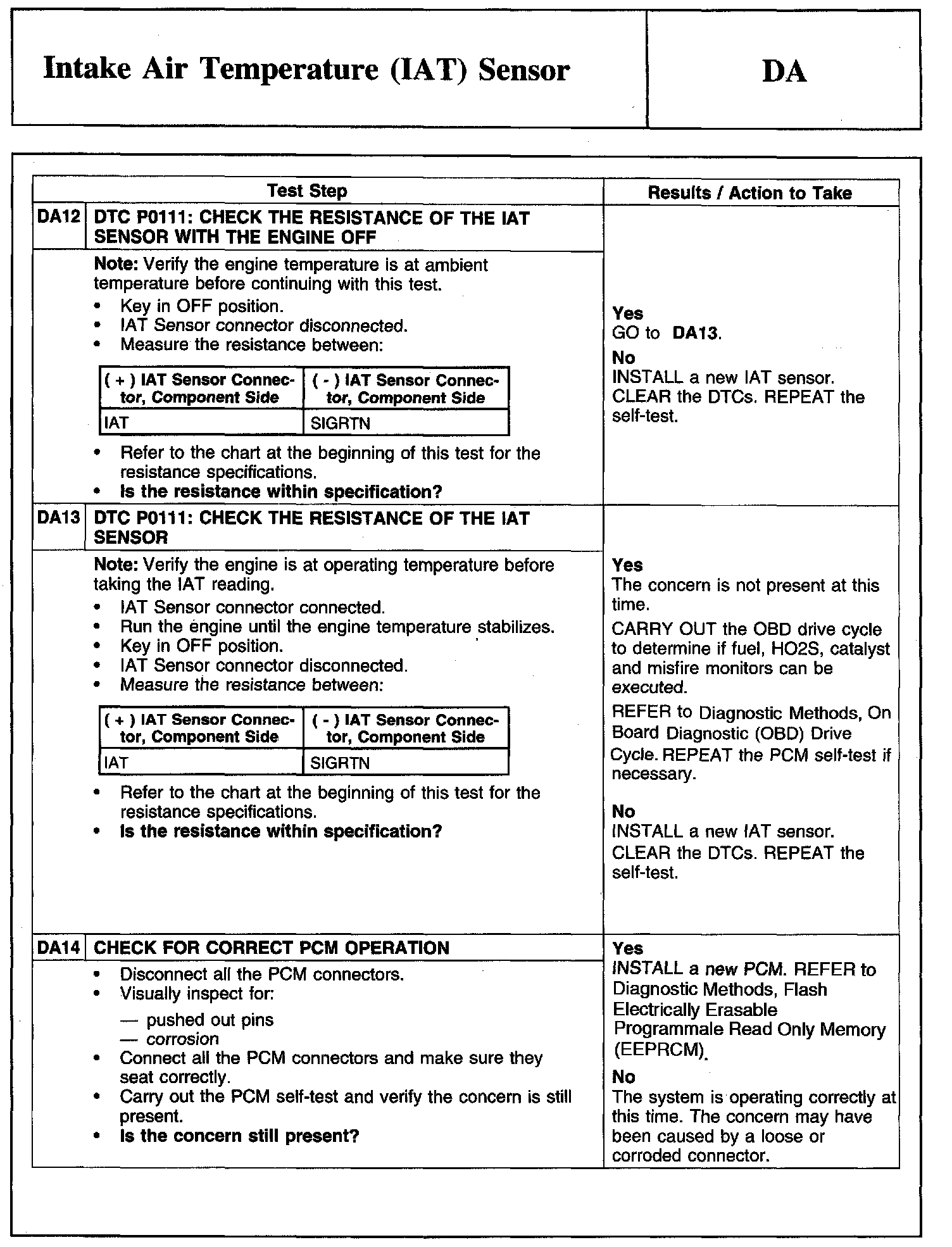

DA12-DA14:
