Test H: Fuel Control

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2007 Ford.

AI Repair Guides
PINPOINT TEST H: FUEL CONTROL

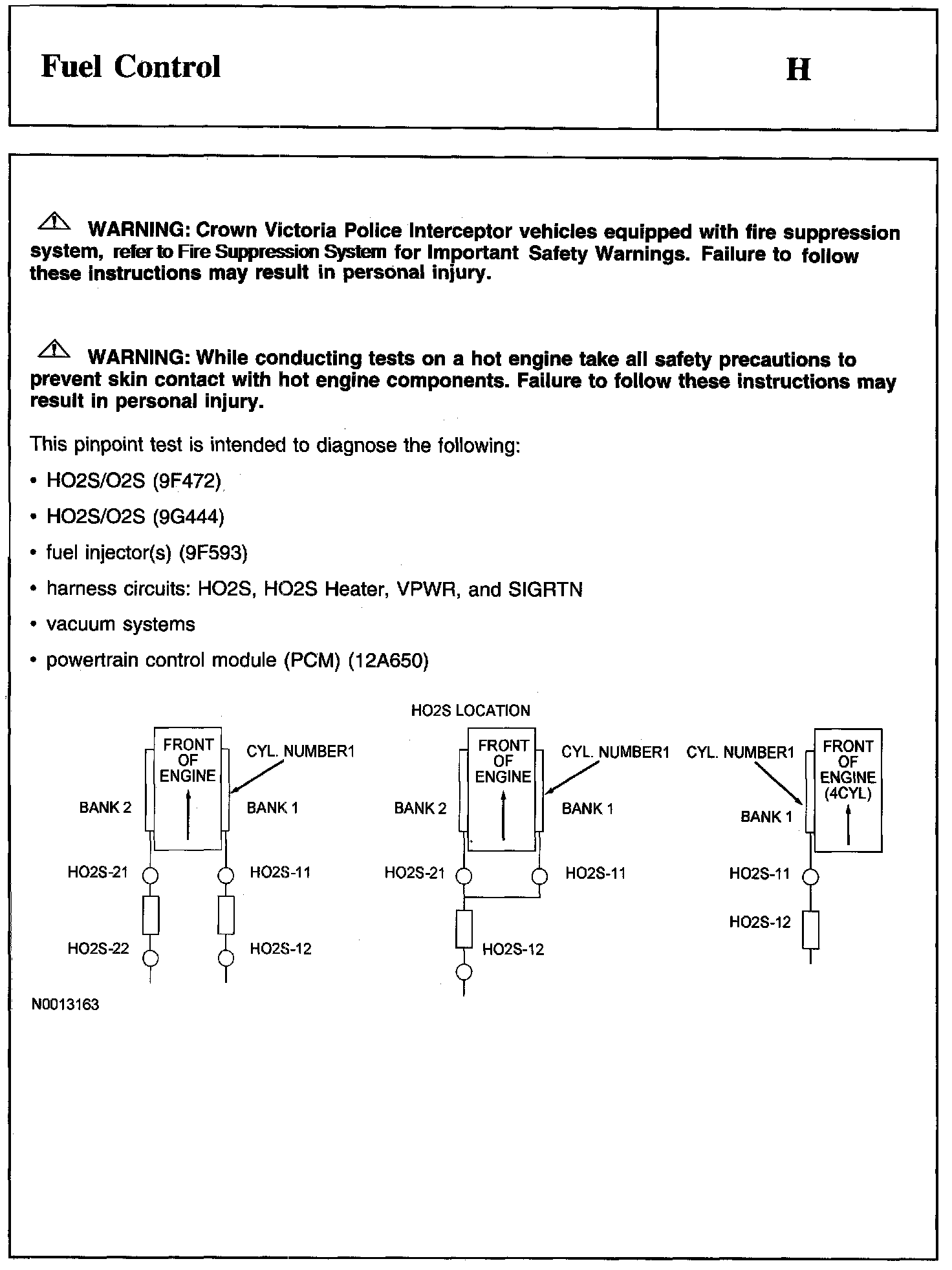

Warning And Schematic:

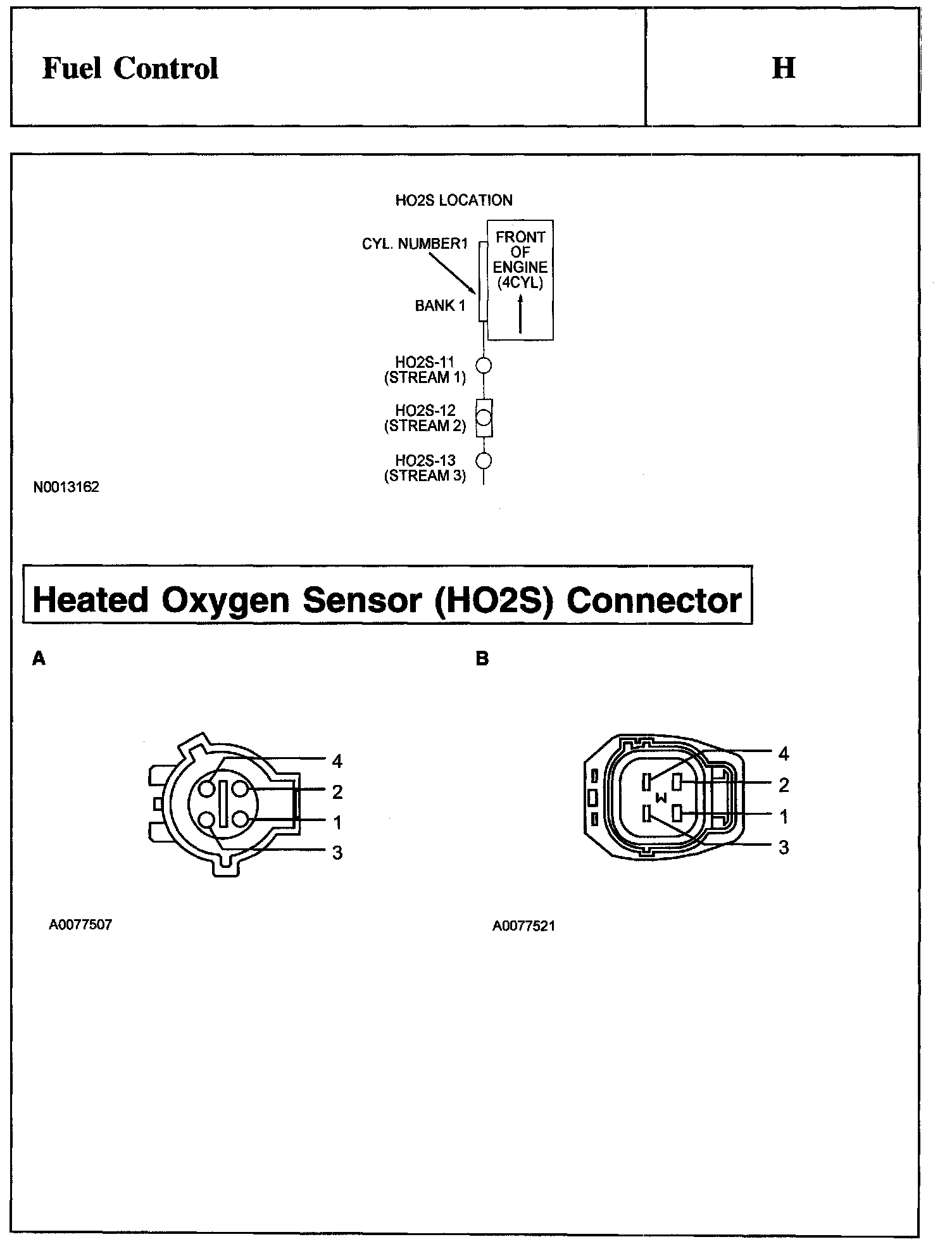

Schematic And Heated Oxygen Sensor (HO2S) Connector:

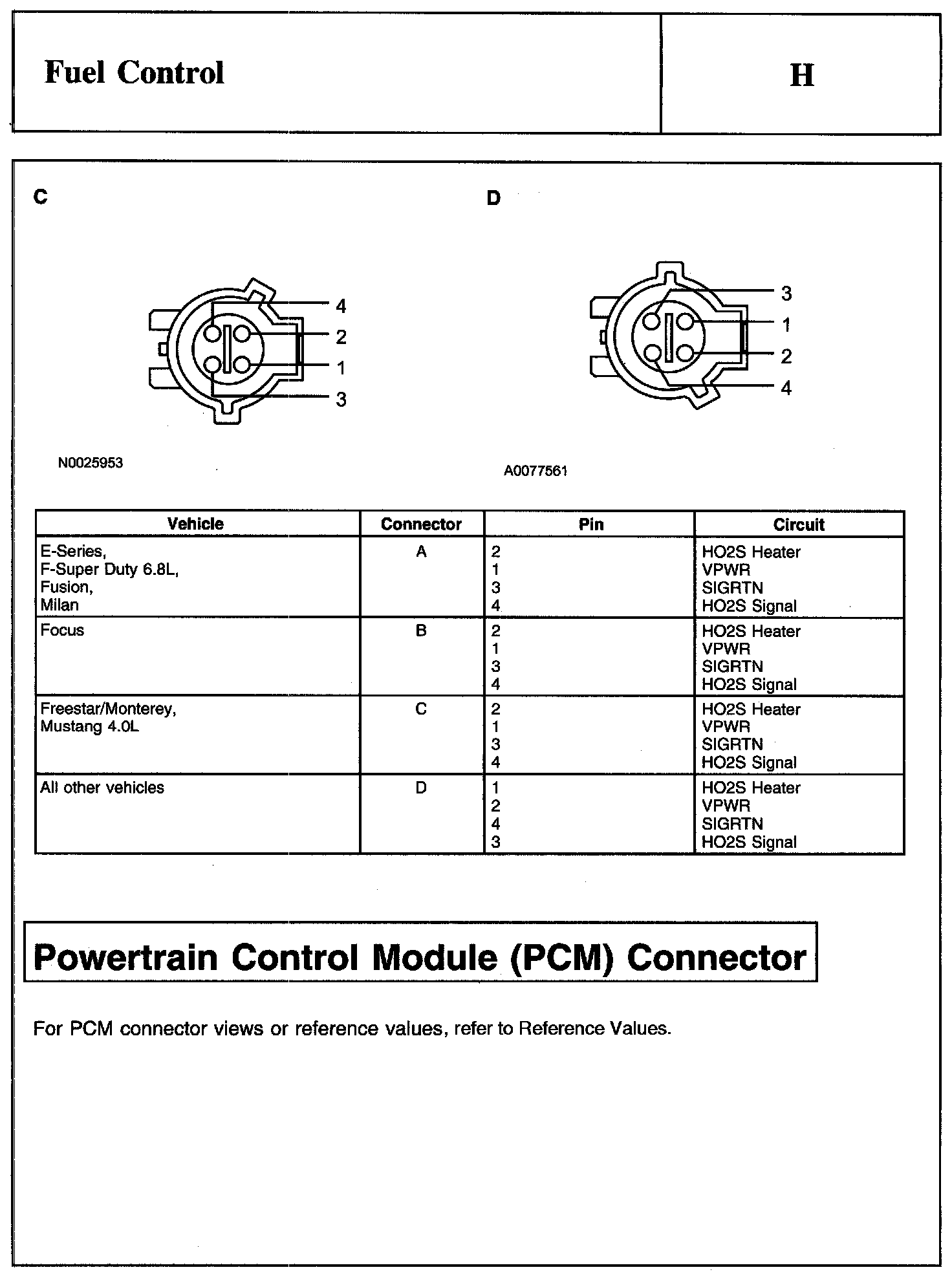

Heated Oxygen Sensor (HO2S) Connector And Powertrain Control Module (PCM) Connector:

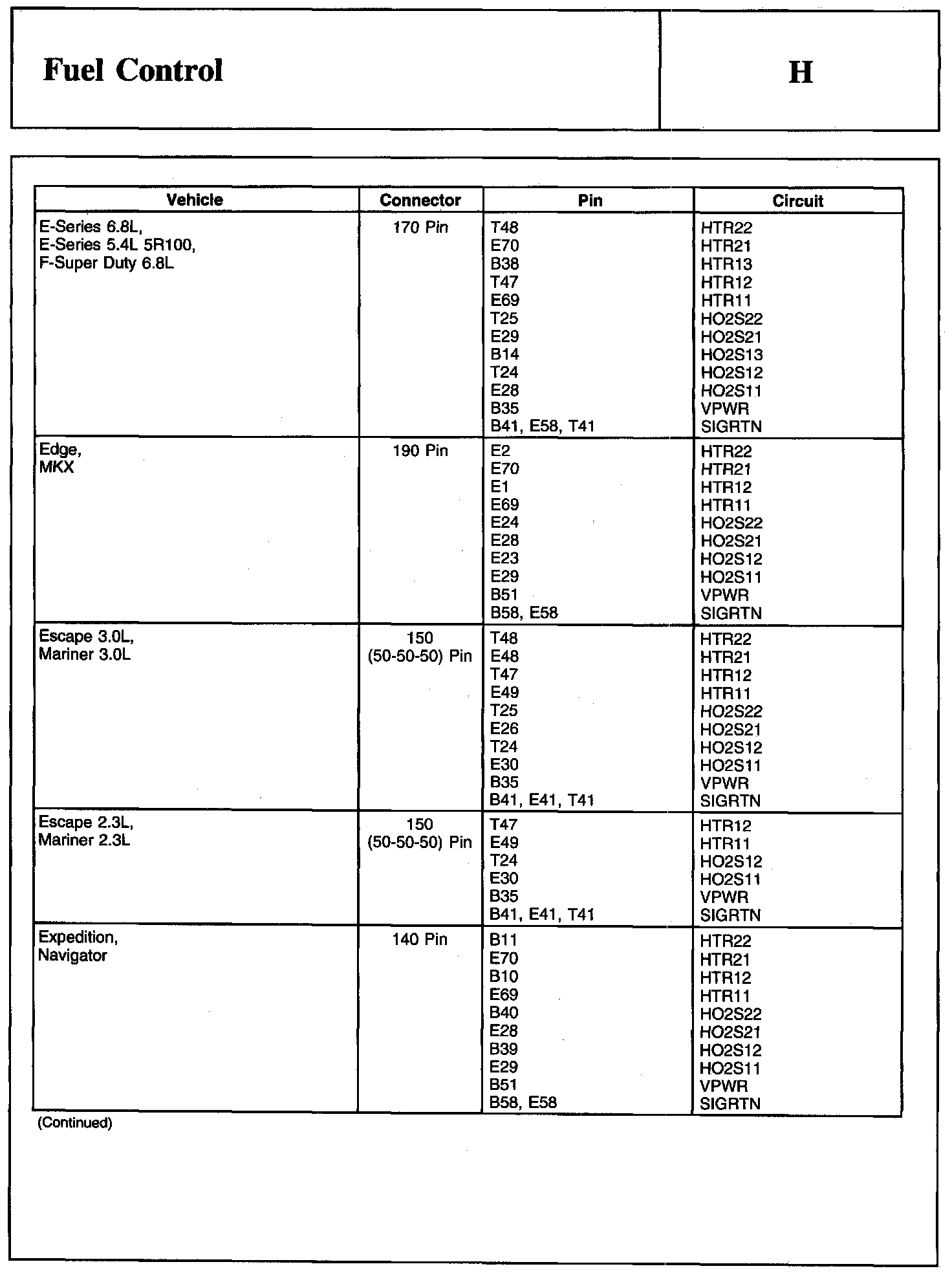

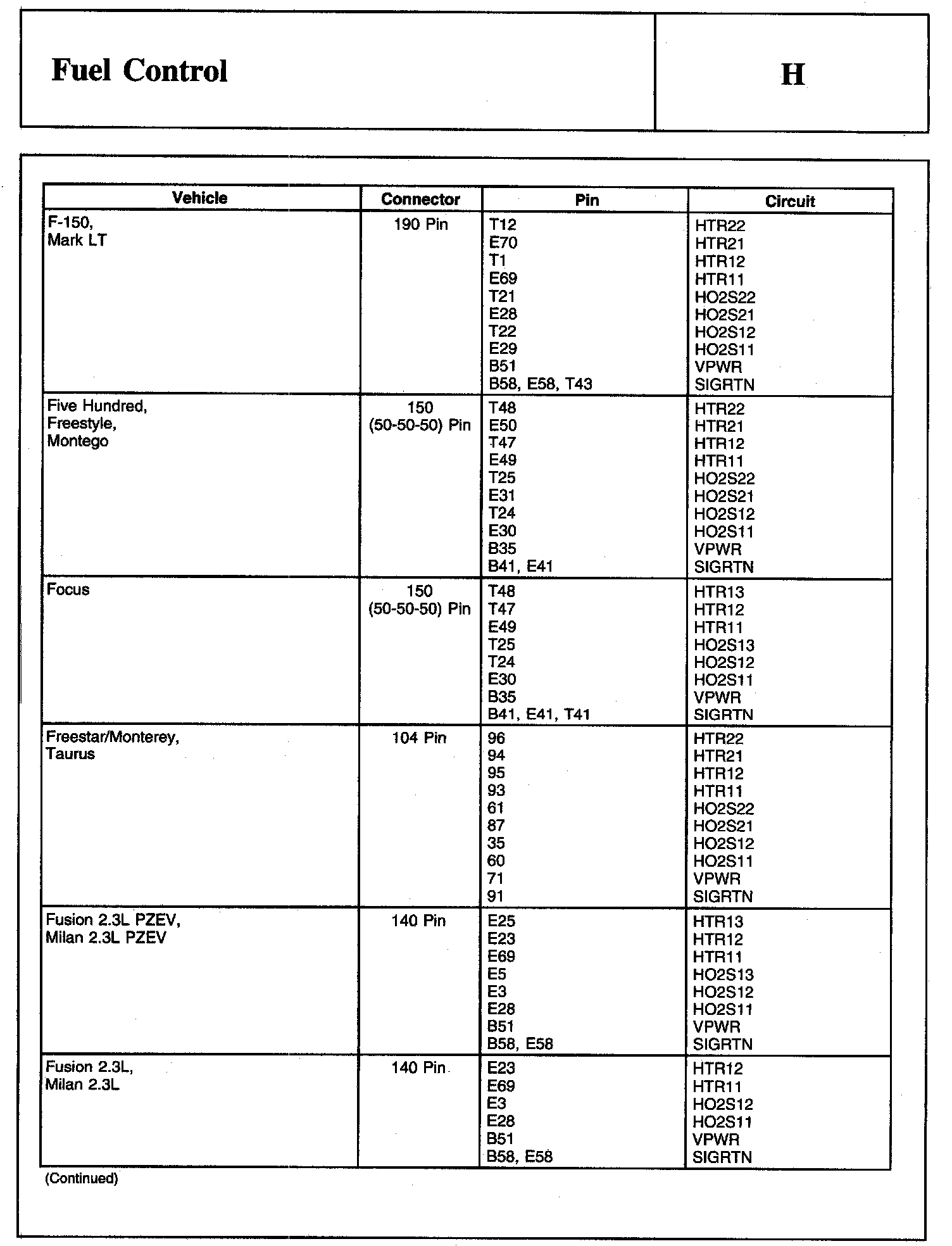

Powertrain Control Module (PCM) Connector Continued:






Powertrain Control Module (PCM) Connector Continued:

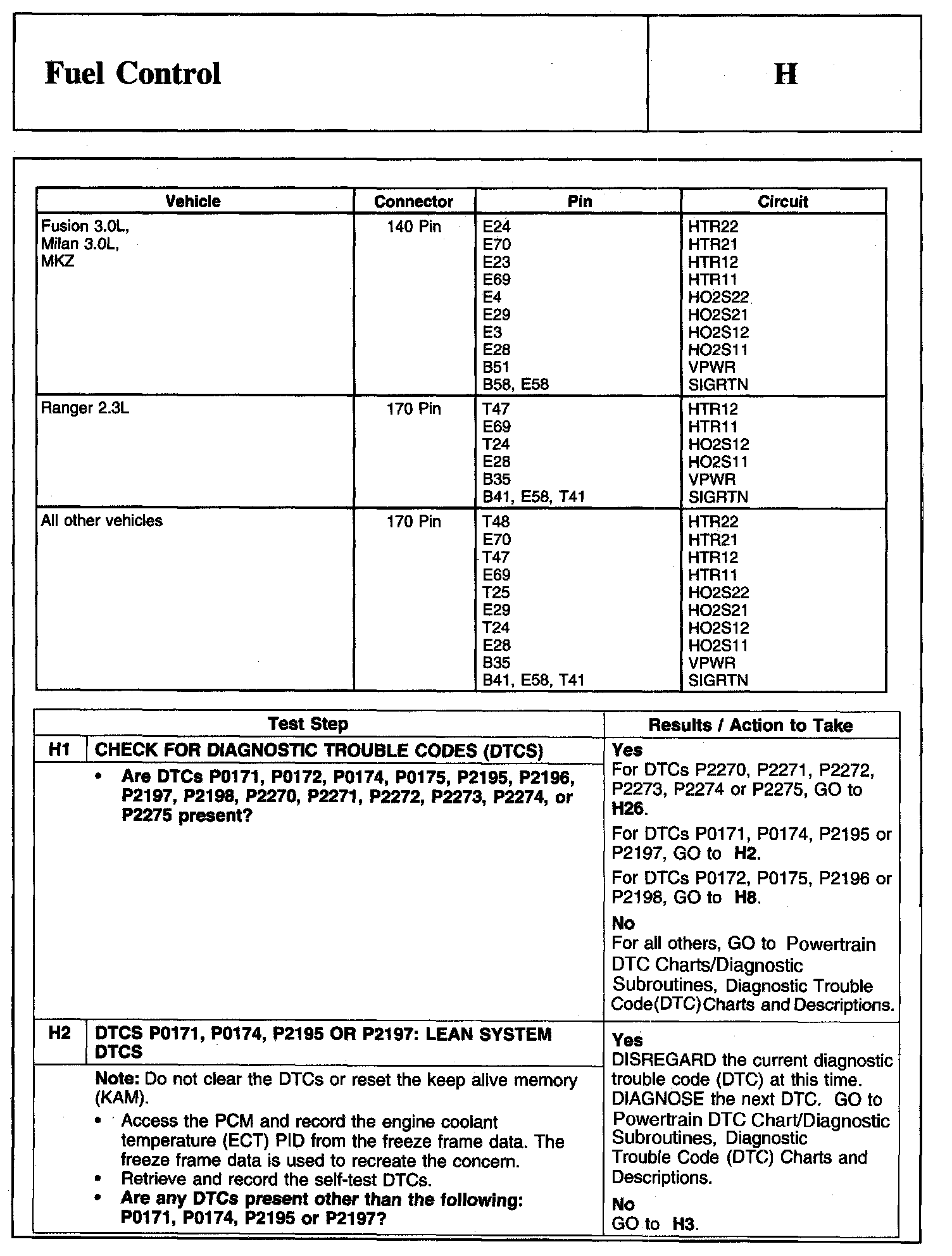

H1-H2:

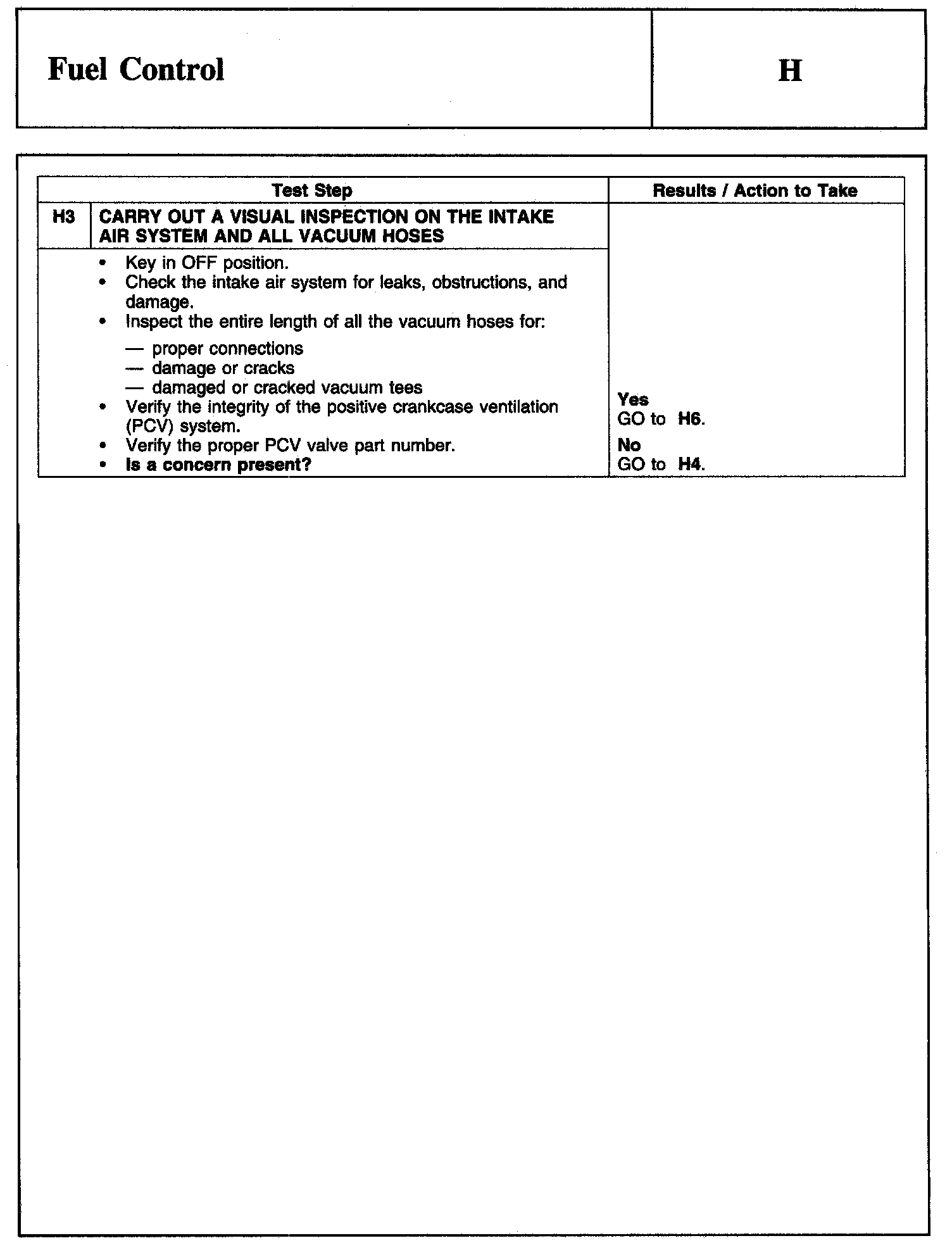

H3:

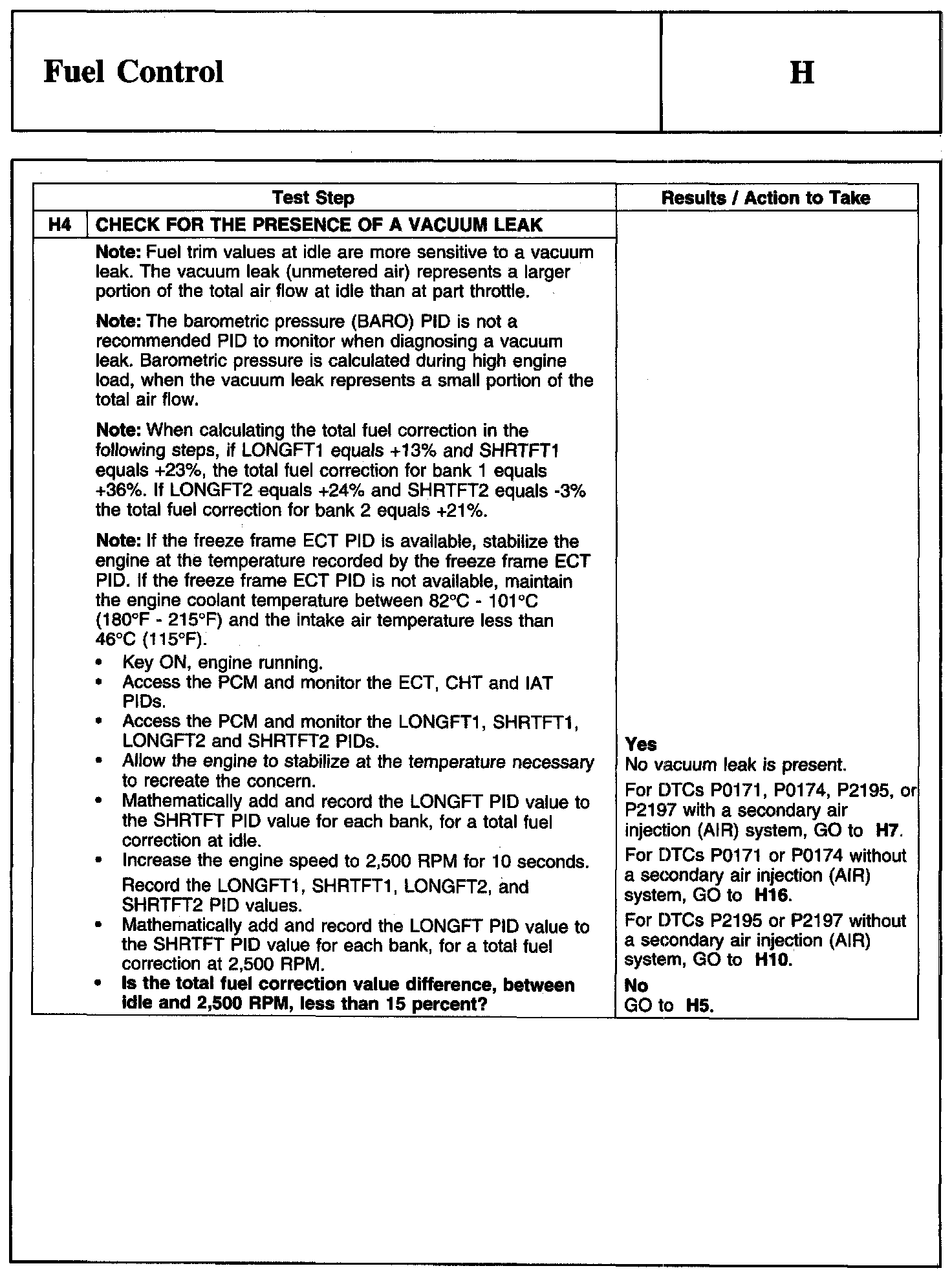

H4:

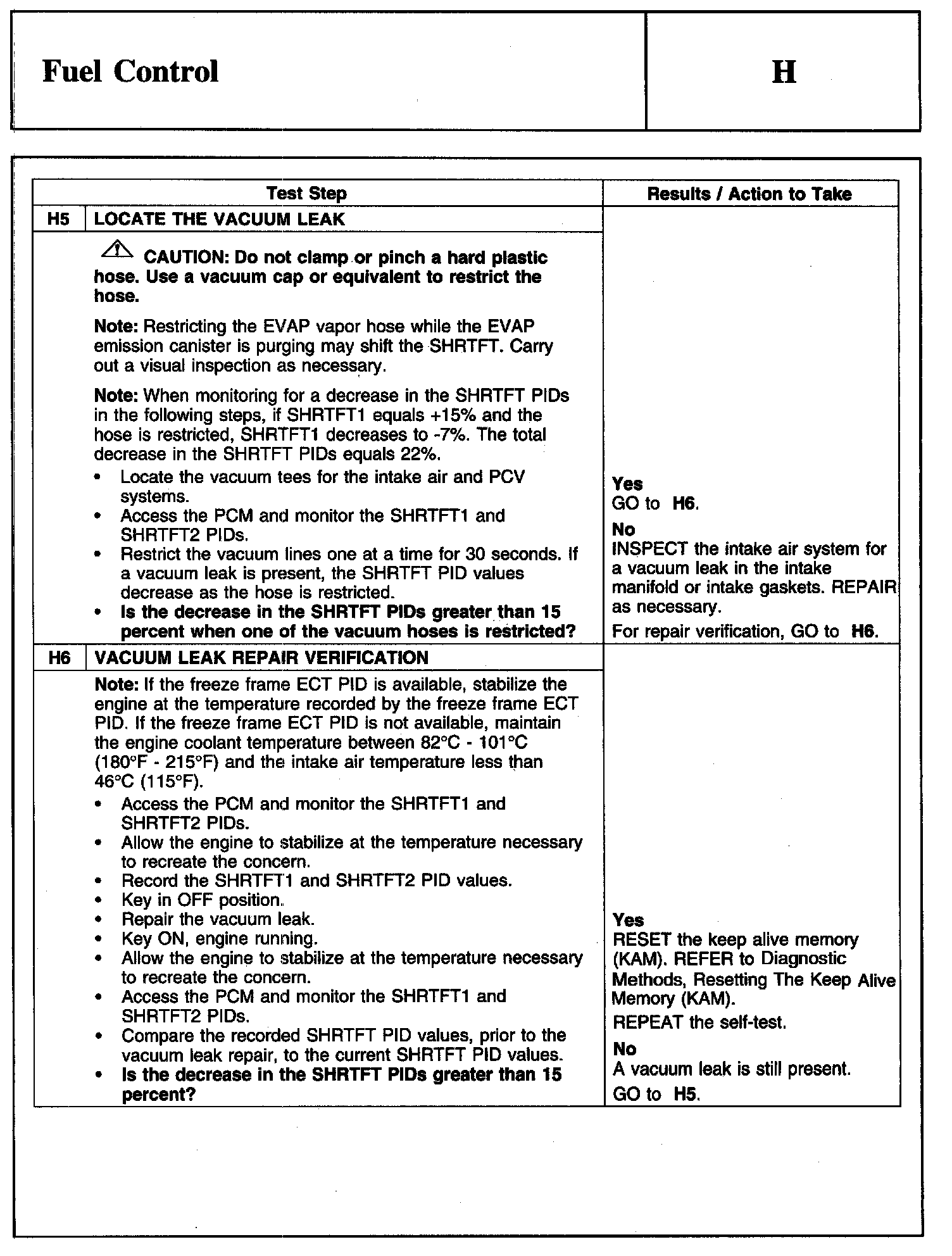

H5-H6:

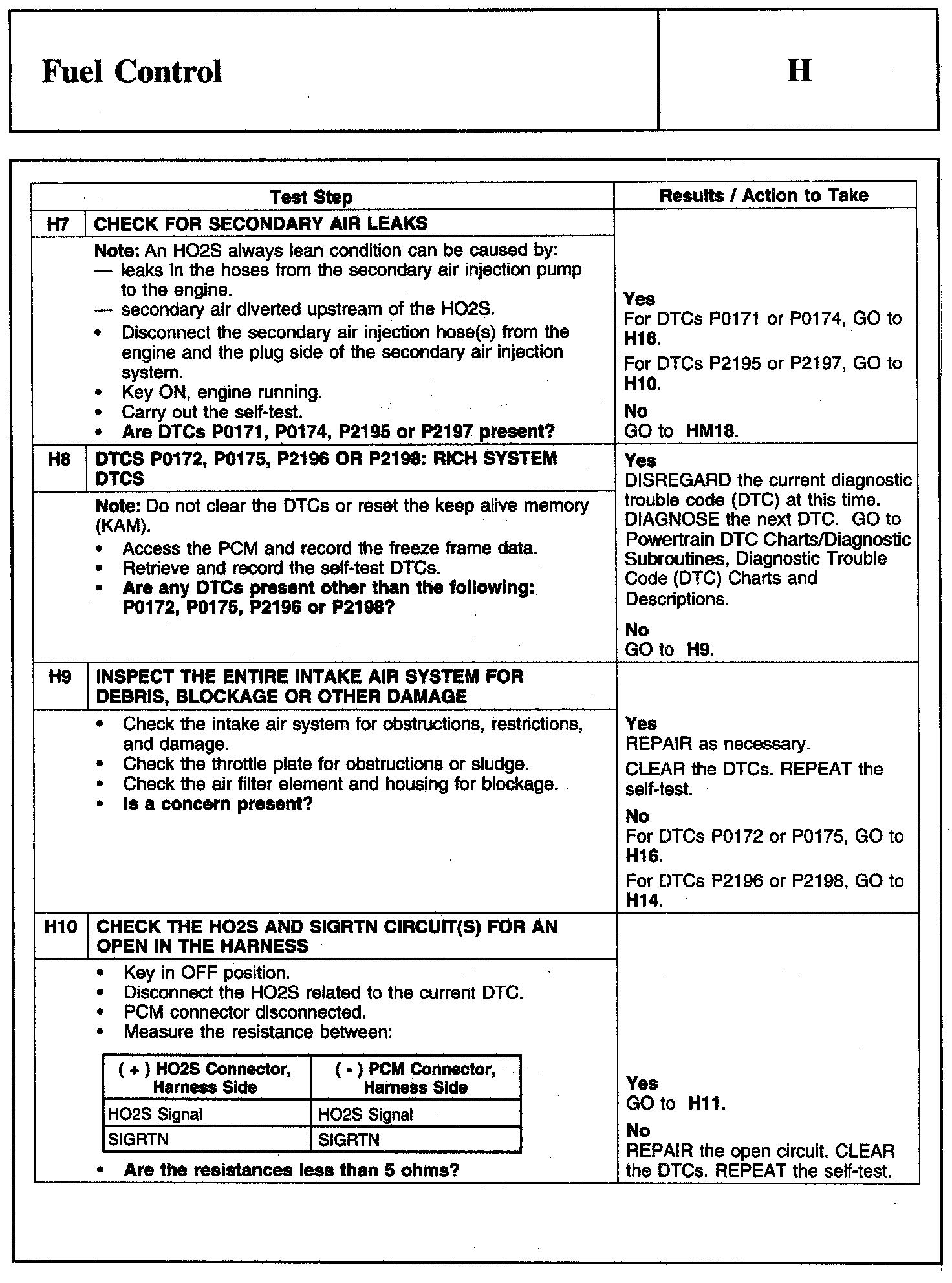

H7-H10:

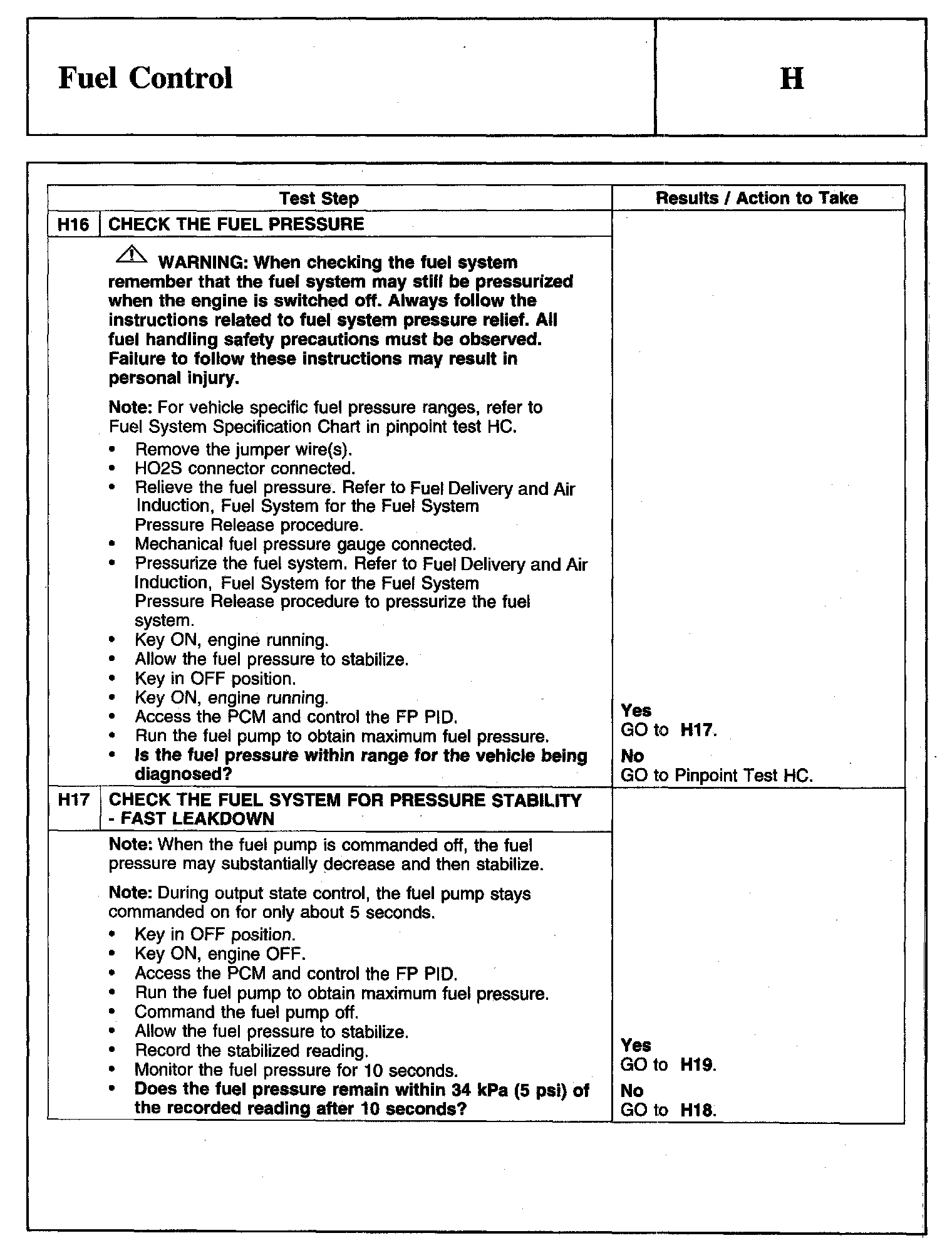

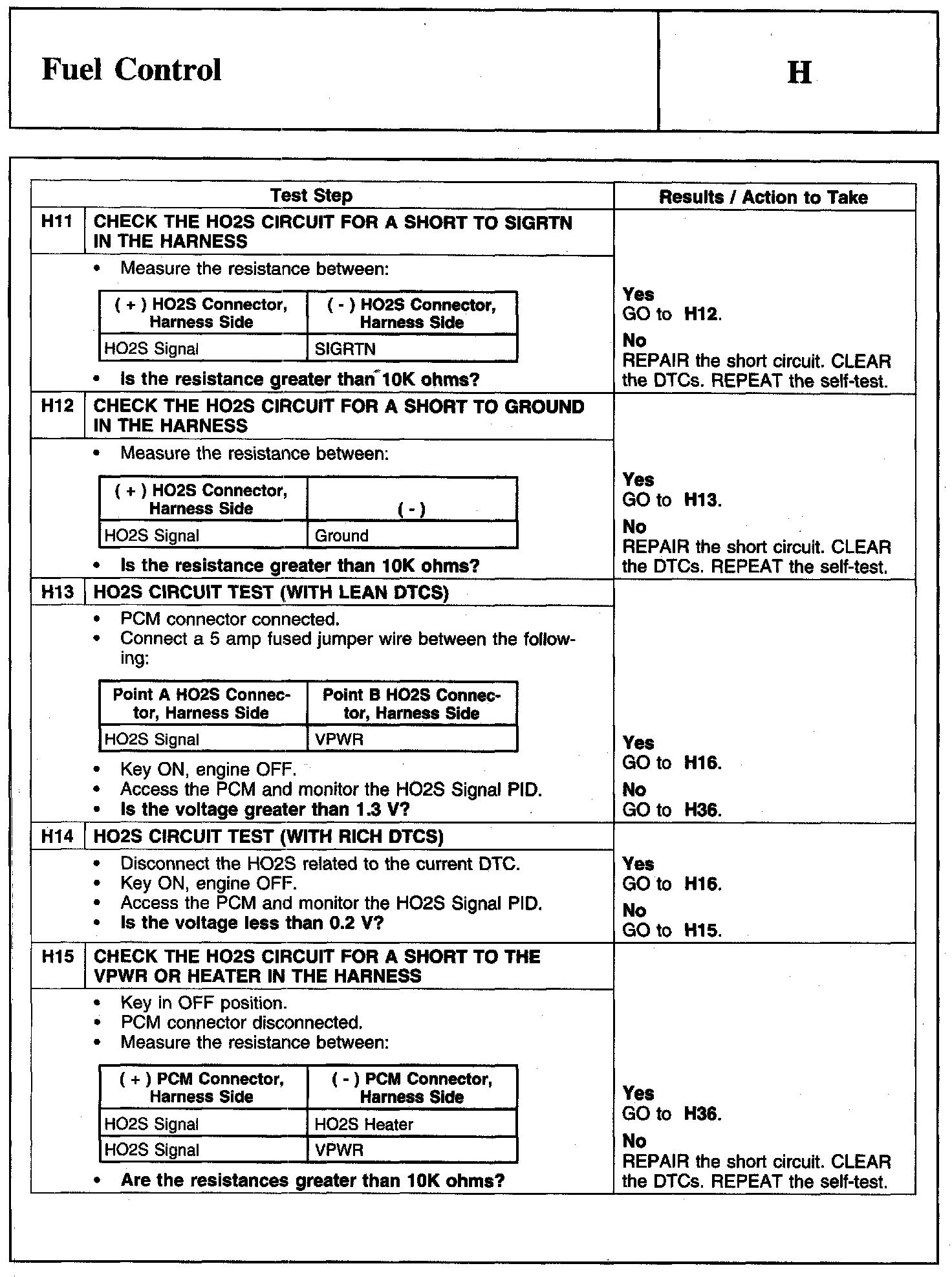

H11-H15:






H16-H17:

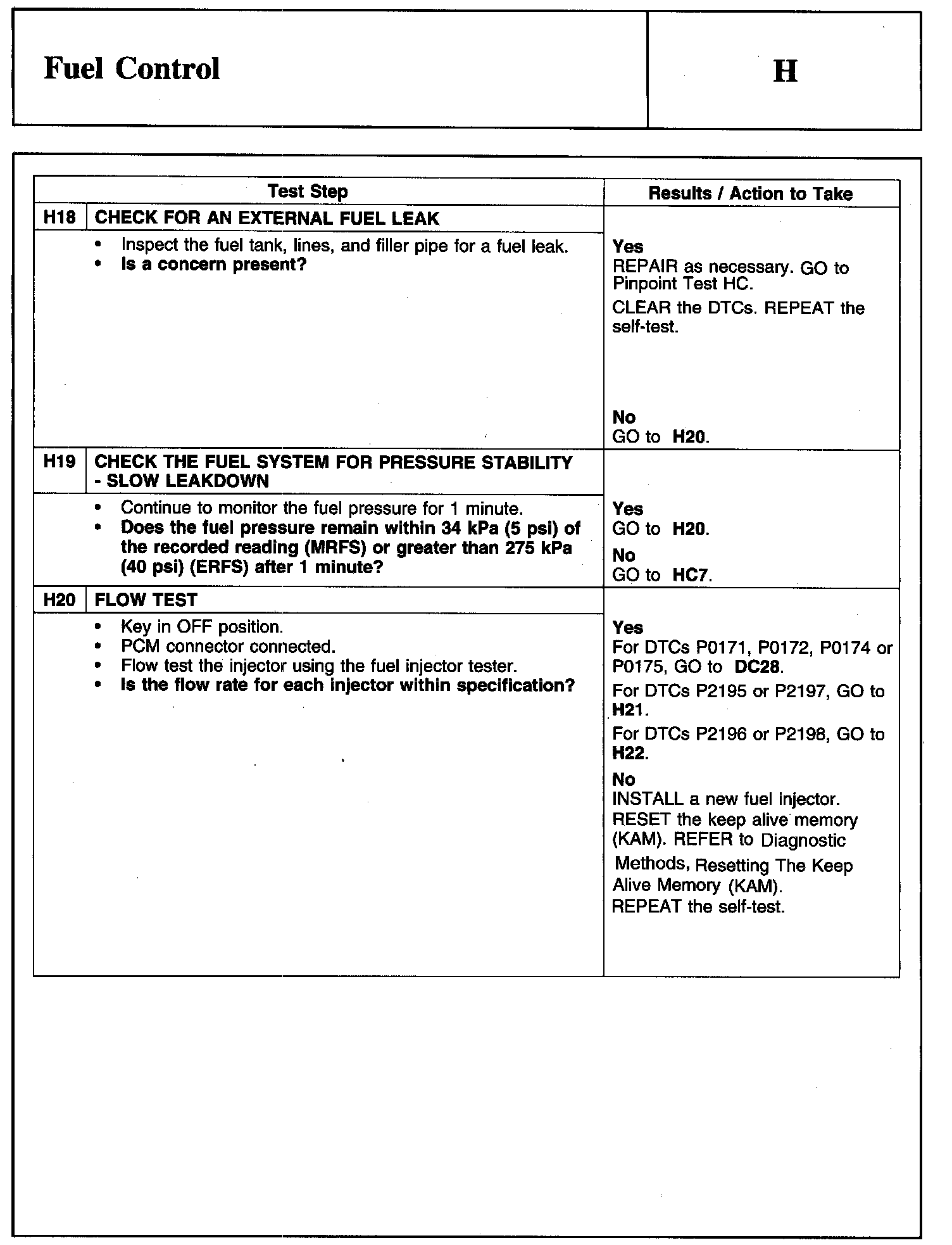

H18-H20:

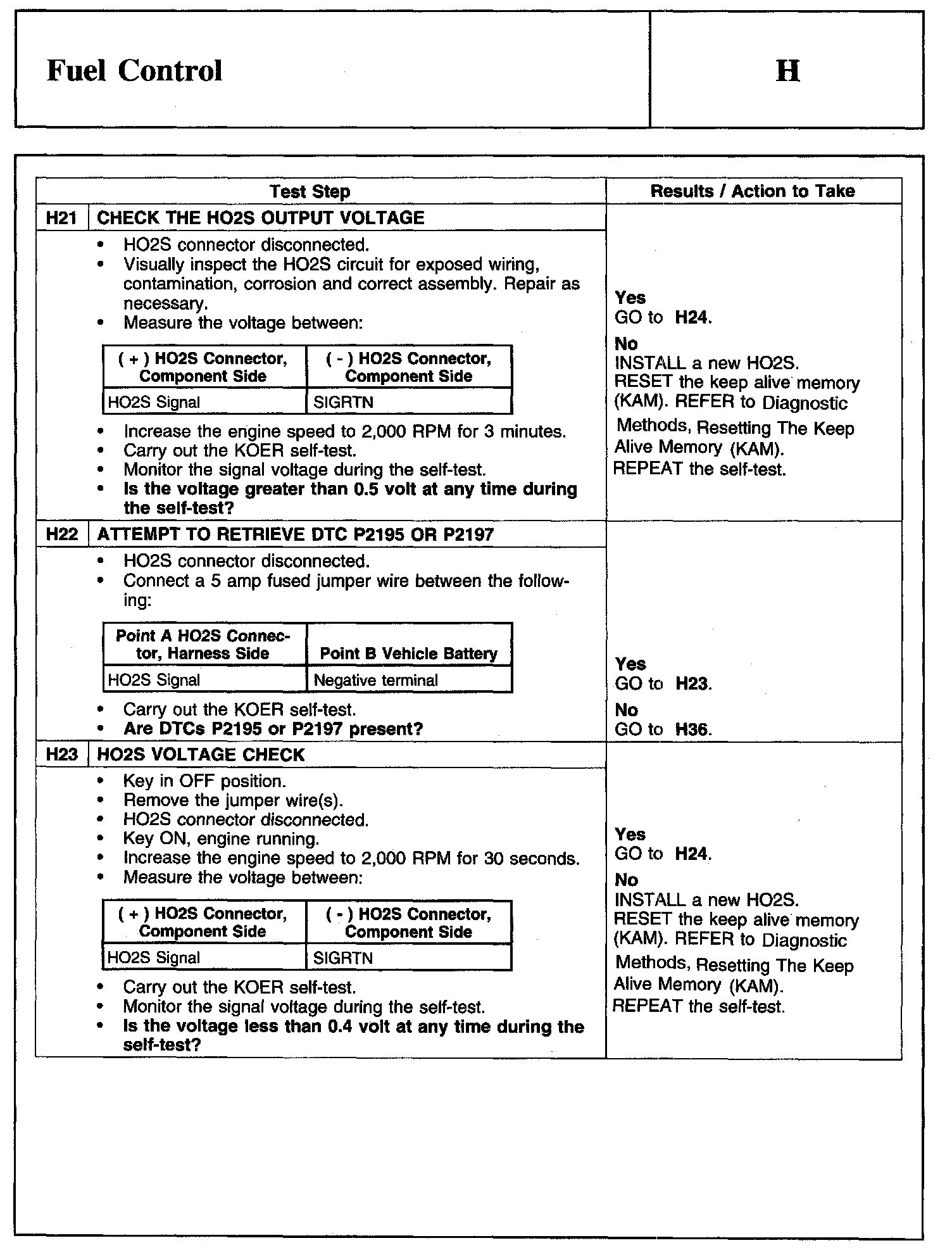

H21-H23:

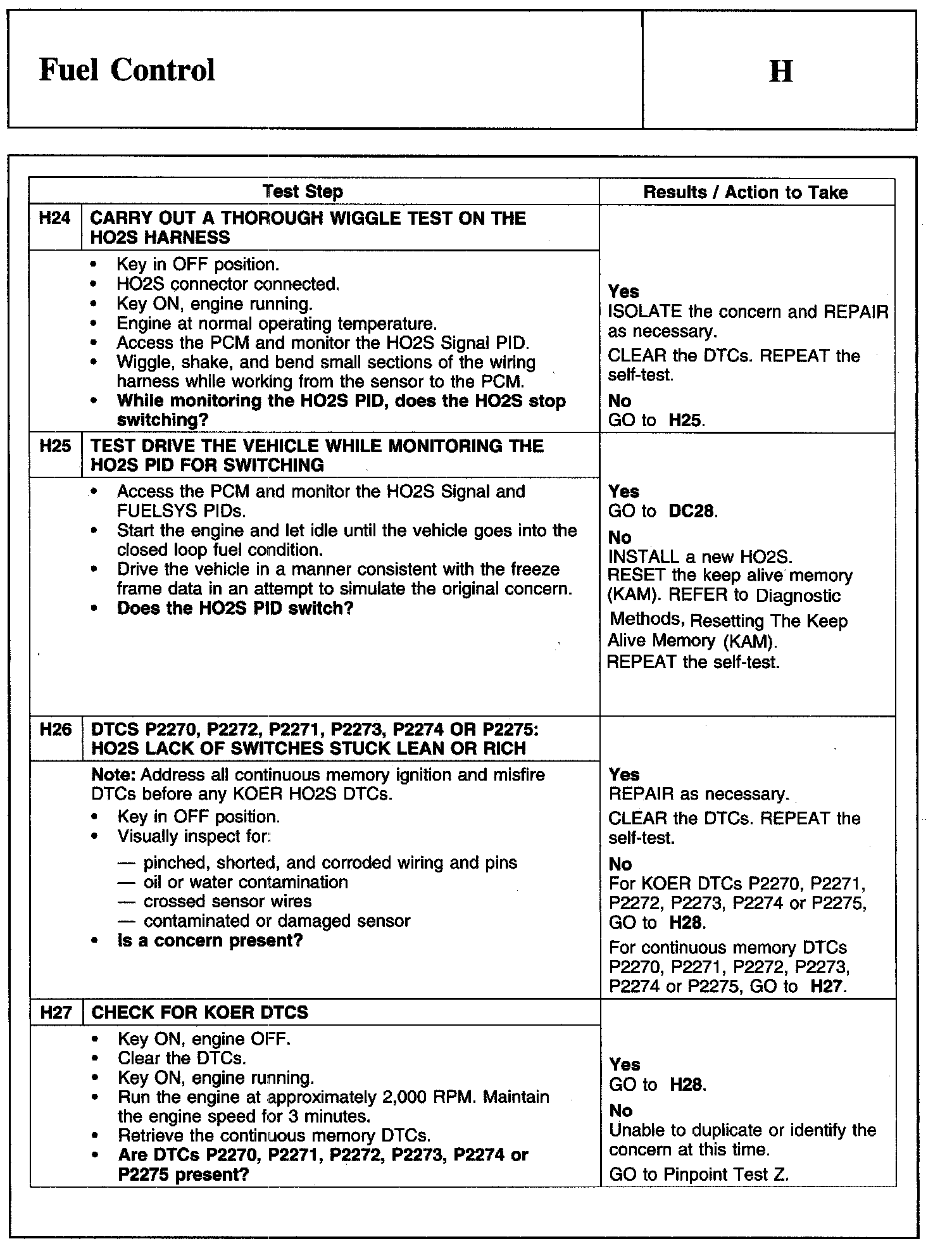

H24-H27:






H28-H29:

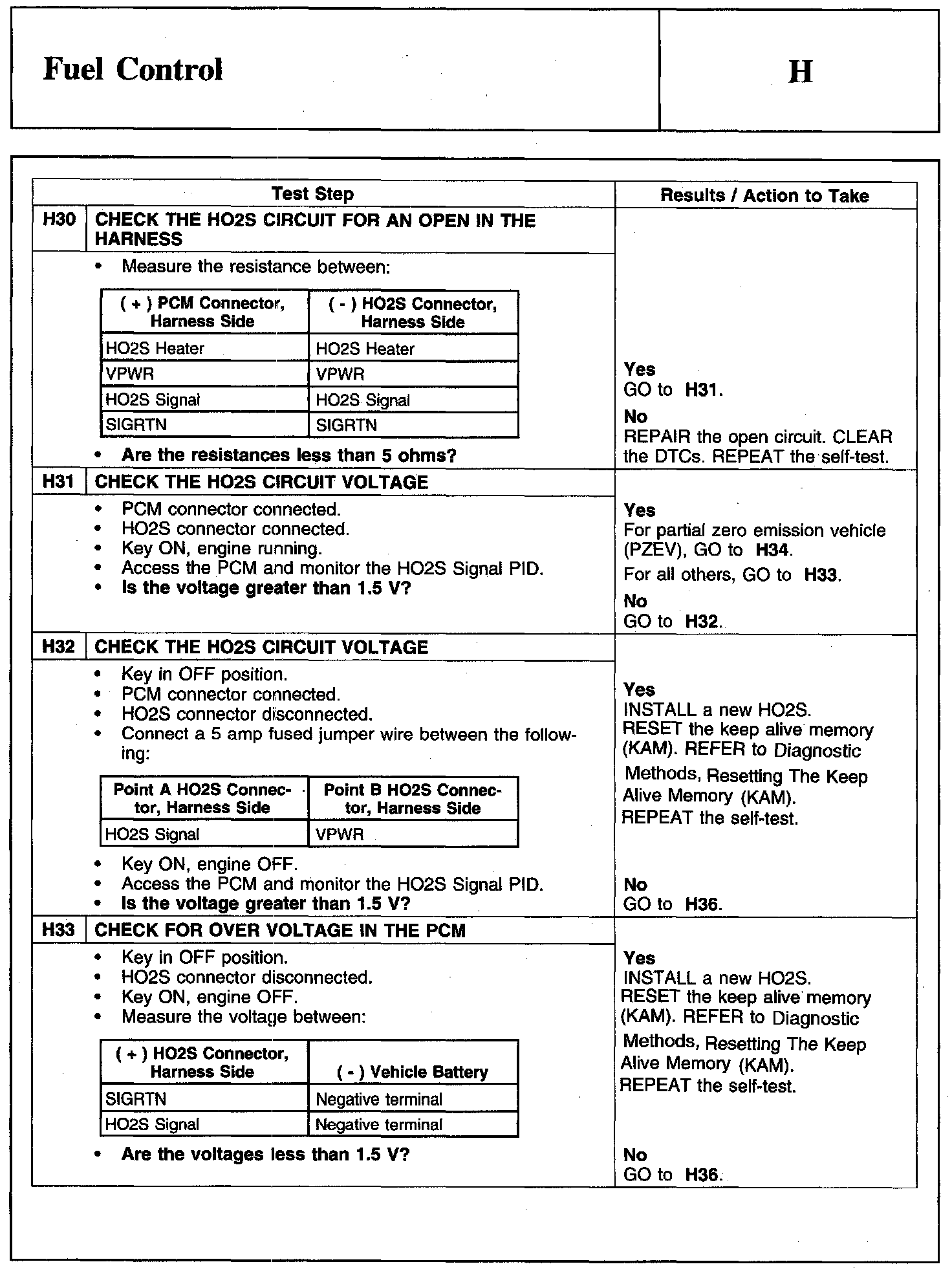

H30-H33:

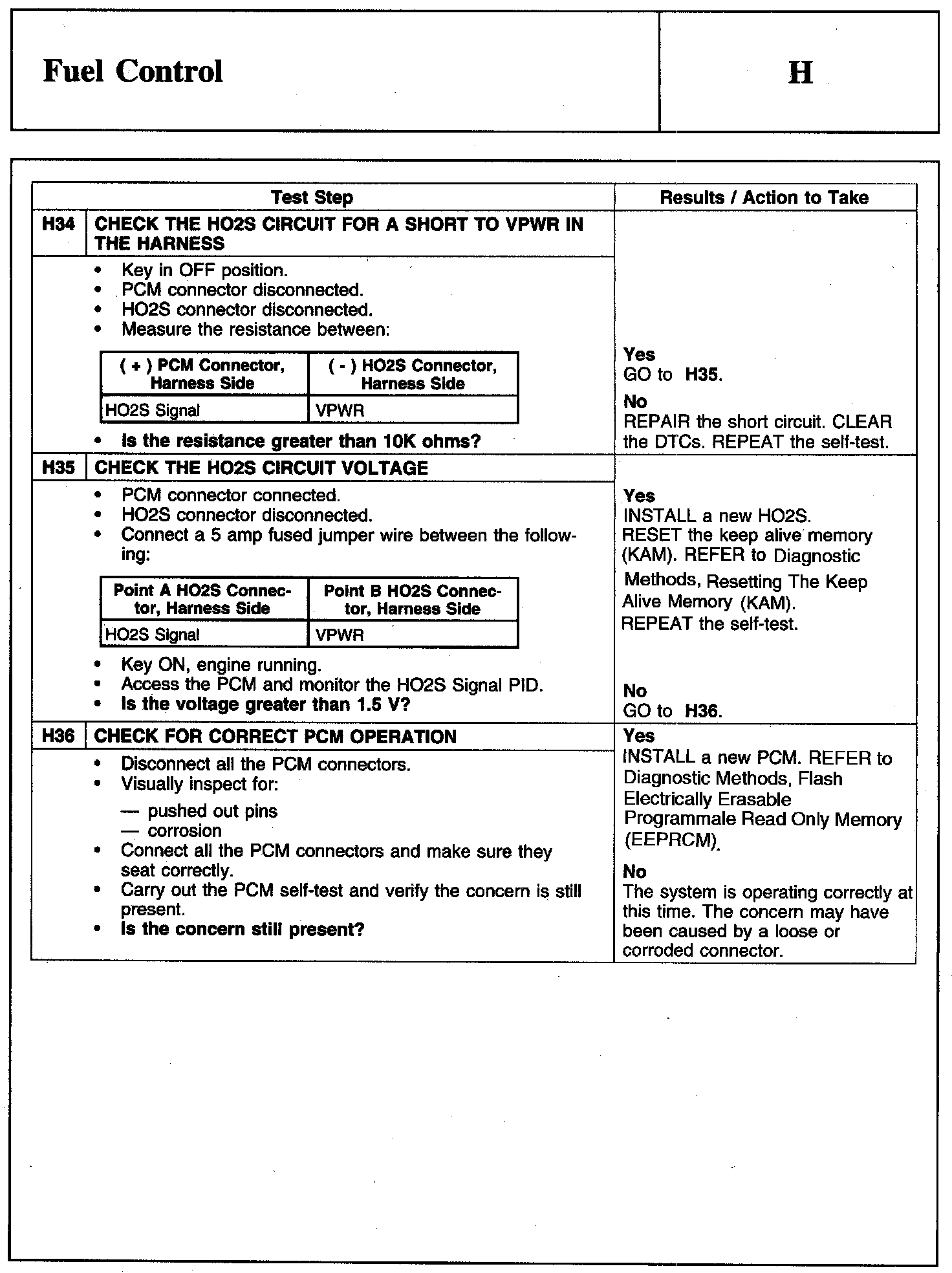

H34-H36:




← Back to Pinpoint TestsAll Makes
